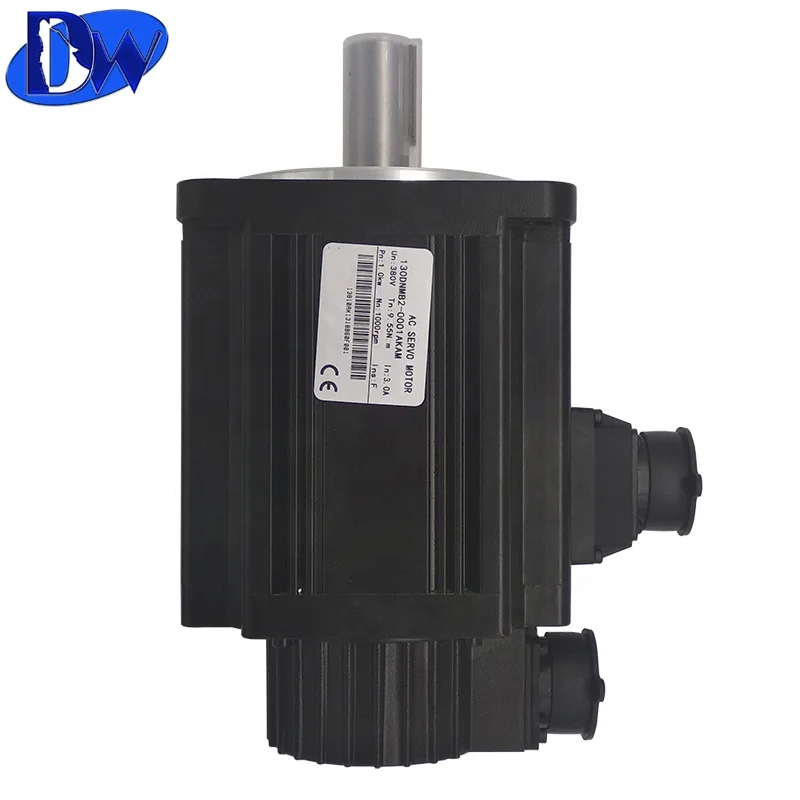

Серводвигатель высокого качества 380 В 130 мм 2000 кВт об/мин сертификат ROHS
- Категория: AC Motor >>>
- Поставщик: Changzhou,Dewo,Motor,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.47 $* | 0.54 $* |
| Aug-20-2025 | 0.73 $* | 0.84 $* |
| Jul-20-2025 | 0.51 $* | 0.35 $* |
| Jun-20-2025 | 0.59 $* | 0.22 $* |
| May-20-2025 | 0.49 $* | 0.41 $* |
| Apr-20-2025 | 0.18 $* | 0.92 $* |
| Mar-20-2025 | 0.24 $* | 0.60 $* |
| Feb-20-2025 | 0.15 $* | 0.1 $* |
| Jan-20-2025 | 0.52 $* | 0.78 $* |
Характеристики
Product Description
B1 series servo motor and driver 220V
Main features
1. Faster
- Shortened positioning time
- Quick instruction tracking
- Response frequency up to 1KHz bandwidth
- Built-in RS-485 communication. EtherCAT under development.
2. More Reliable
- 3 times overload
- Grade 2 Motch Filter
- Regenerative functions
- Built-in dynamic brakes(optional)
3. More Accurate
- High resolution encoders up to 20bit (1,048,576 ppr)
- Load inertia detection
- Fully closed-loop function
| B1 Series | Driver power | Corresponding servo model | Motor flange | Corresponding motor model | Servo motor parameters | |
| Rotate speed(r/min) | Holding Torque(N·M) | |||||
| Servo drive | Power | Model: B1 series 220V | Flange | Model | Speed | Holding Torque(N*m) |
| B1 series 220V servo driver | 100W | EPS-B1-0D10AA-A030 | 40 | 40DNMA2-0D10DIAK/M | 3000 | 0.32 |
| 100W | EPS-B1-0D10AA-A000 | 40 | 40DNMA2-0D10DKAK/M | 3000 | 0.32 | |
| 200W | EPS-B1-0D20AA-A000 | 60 | 60DNMA2-0D20DKAM | 3000 | 0.64 | |
| 400W | EPS-B1-0D40AA-A000 | 60 | 60DNMA2-0D40DKAM | 3000 | 1.27 | |
| 750W | EPS-B1-0D75AA-A000 | 80 | 80DNMA2-0D75DKAM | 3000 | 2.39 | |
| 1KW | EPS-B1-0001AA-A000 | 130 | 130DNMA2-0001DKAM | 3000 | 3.18 | |
| 1KW | EPS-B1-0001AA-A000 | 130 | 130DNMA2-0001CKAM | 2000 | 4.77 | |
| 1KW | EPS-B1-0001AA-A000 | 130 | 130DNMA2-0001AKAM | 1000 | 9.55 | |
| 1.2KW | EPS-B1-01D5AA-A000 | 130 | 130DNMA2-01D2CKAM | 2000 | 5.73 | |
| 1.2KW | EPS-B1-01D5AA-A000 | 110 | 110DNA-12CK1AMS | 2000 | 5.73 | |
| 1.5KW | EPS-B1-01D5AA-A000 | 130 | 130DNMA2-01D5CKAM | 2000 | 7.2 | |
| 1.8KW | EPS-B1-02D2AA-A000 | 130 | 130DNMA2-01D8DKAM | 3000 | 5.73 | |
| 2.2KW | EPS-B1-02D2AA-A000 | 130 | 130DNMA2-0002CKAM | 2000 | 9.55 | |
| 3KW | EPS-B1-0003AA-A000 | 130 | 130DNMA2-0003CKAM | 2000 | 14.33 | |
| 3KW | EPS-B1-0003AA-A000 | 180 | 180DNA-30BK1AMS | 1500 | 19.1 | |
| 4KW | EPS-B1-04D5AA-A000 | 180 | 180DNA-40BK1AMS | 1500 | 25.5 | |
| 4.5KW | EPS-B1-04D5AA-A000 | 180 | 180DNA-45BK1AMS | 1500 | 28.6 | |
| 5.5KW | EPS-B1-05D5AA-A000 | 180 | 180DNA-55BK1AMS | 1500 | 35 | |
Product Description
Produce process
Our Services
Different specification of stepper motor with competitive price for your choice:
A wide range of application:
Our stepper motor are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices, stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.
First-class service:
customization and OEM is available.
Warranty: 12 months
Contact Us: We 24 hours service for you! If you have any questions about our products, pleasee contact us without any hestation. It's a pleasure to serve you.
Contact me :
WhatsApp: +86 18306110590
Phone: +86 18306110590
Packaging & Shipping
We have standard package for our products. We can also make it as per your special requirements.
Shipping can be arranged as per your requirements. Air and sea transportation are both acceptabel.
FAQ
1.Q:Can I get some samples first?
A:Sure, we are honored to offer you samples for your check.
2.Q:Do you have the products in stock?
A:Our products are manufactured according to your order except the normal products.
3.Q:What's the delivery time?
A:It usually takes about 7 working days,but the exact delivery time might be different for different order or at different time.
