Операционный вес тонны и емкость ведра м3 мини-экскаватор
- Категория: Excavators >>>
- Поставщик: Shandong,Maytop,Import,&,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 4165.97 $* | 4373.73 $* |
| Aug-18-2025 | 4130.58 $* | 4337.27 $* |
| Jul-18-2025 | 3465.47 $* | 3638.27 $* |
| Jun-18-2025 | 4060.72 $* | 4263.19 $* |
| May-18-2025 | 3535.46 $* | 3712.30 $* |
| Apr-18-2025 | 3990.50 $* | 4190.92 $* |
| Mar-18-2025 | 3955.26 $* | 4153.25 $* |
| Feb-18-2025 | 3920.72 $* | 4116.9 $* |
| Jan-18-2025 | 3885.79 $* | 4079.22 $* |
Характеристики

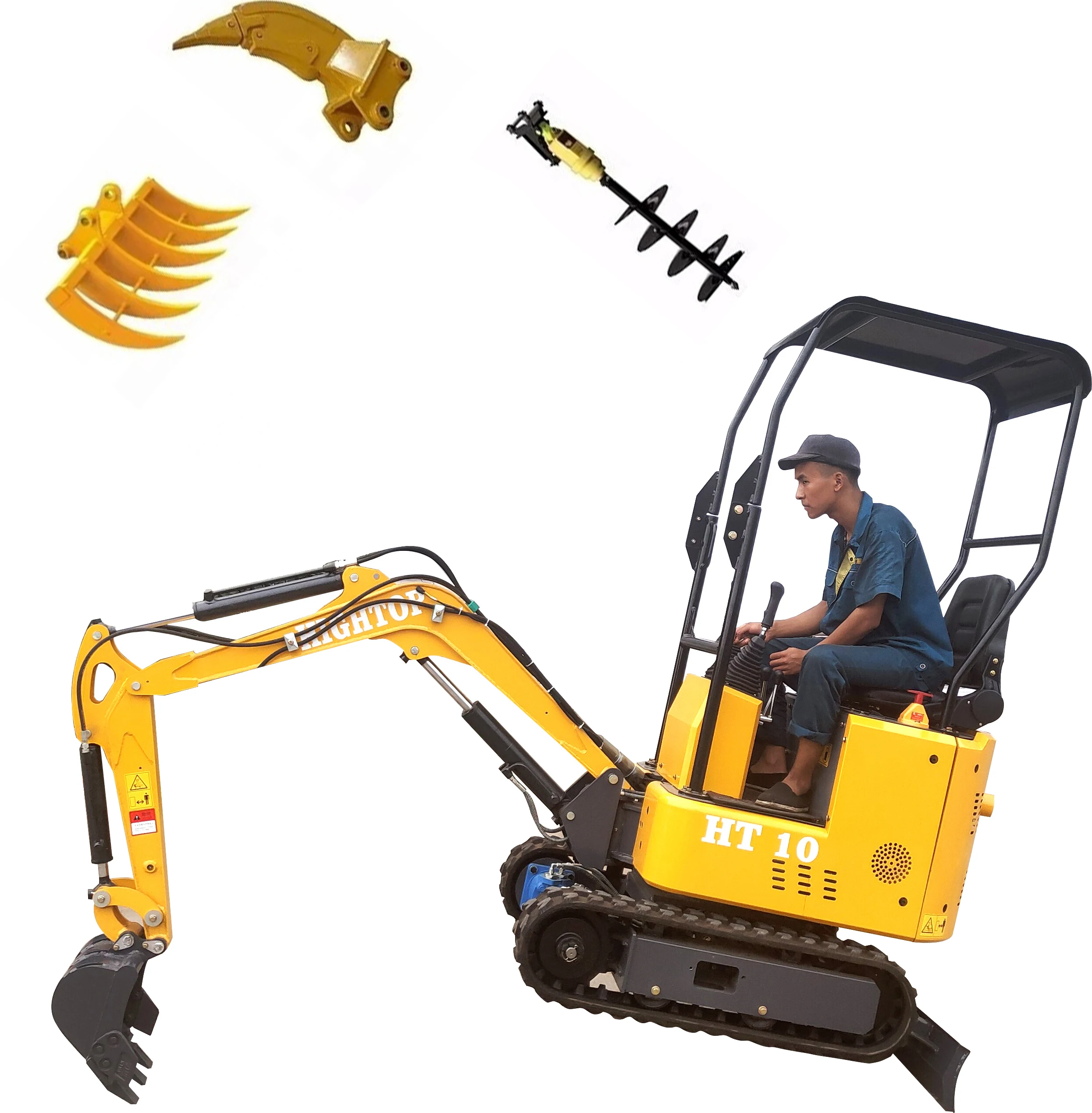

Mini Excavator 1ton micro Small Digger with Rubber Track for sale garden construction
constructions.This type of mini excavator can help to save manpower and material resources to meet various requirements of
operation and to maximize production capacity in the city's narrow work space.Its low pollution and small radius of rotation are
popular with many customers.
Weight | 900kg | |
Digging bucket capacity | 0.025cbm/120kg | |
Bucket width | 380mm | |
Engine | Briggs & Stratton | |
Bore stroke | Single cylinder, fan cool | |
Rated power | 13.5HP/3600r/min | |
Displacement | 420CC | |
Bore stroke | 70x55 | |
Main pump | Tianji G5-6 | |
Displacement | 6.8ml/r | |
Swing motor | Sanyang BMRS-250 | |
Traveling motor | Sanyang BMT245 | |
Travel speed | 1.5km/h | |
MAIN DEMENSIONS | ||
Overall dimension( LxWxH) | 2770x896x1490 mm | |
Wheelbase | 910 mm | |
Total length of track | 1230mm | |
Platform ground clearance | 380 mm | |
Platform back turning radius | 784 mm | |
Chassis width | 896 mm | |
Track width | 180 mm | |
Chassis ground clearance | 132 mm | |
Track height | 320 mm | |
OPERATING RANGE | ||
Max. Digging depth | 1650 mm | |
Max. Vertical digging depth | 1375 mm | |
Max. Digging height | 2610 mm | |
Max. Dumping height | 1850 mm | |
Max. Digging radius on ground | 2850 mm | |
Min. Rotation radius | 1330 mm | |
Max. Upgrade height of bulldozer blade | 345 mm | |
Max. Digging depth of bulldozer blade | 255 mm | |
