KSRCH-123 одностороннего действия 12 тонный гидравлический домкрат с полого Плунжера
- Категория: Домкраты >>>
- Поставщик: Taizhou,Kashon,Power,Equipment,Co.,ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 238.32 $* | 250.81 $* |
| Aug-15-2025 | 236.80 $* | 248.5 $* |
| Jul-15-2025 | 198.0 $* | 208.66 $* |
| Jun-15-2025 | 232.12 $* | 244.40 $* |
| May-15-2025 | 202.33 $* | 212.9 $* |
| Apr-15-2025 | 228.26 $* | 239.97 $* |
| Mar-15-2025 | 226.32 $* | 237.87 $* |
| Feb-15-2025 | 224.32 $* | 235.7 $* |
| Jan-15-2025 | 222.73 $* | 233.63 $* |
Характеристики
Product

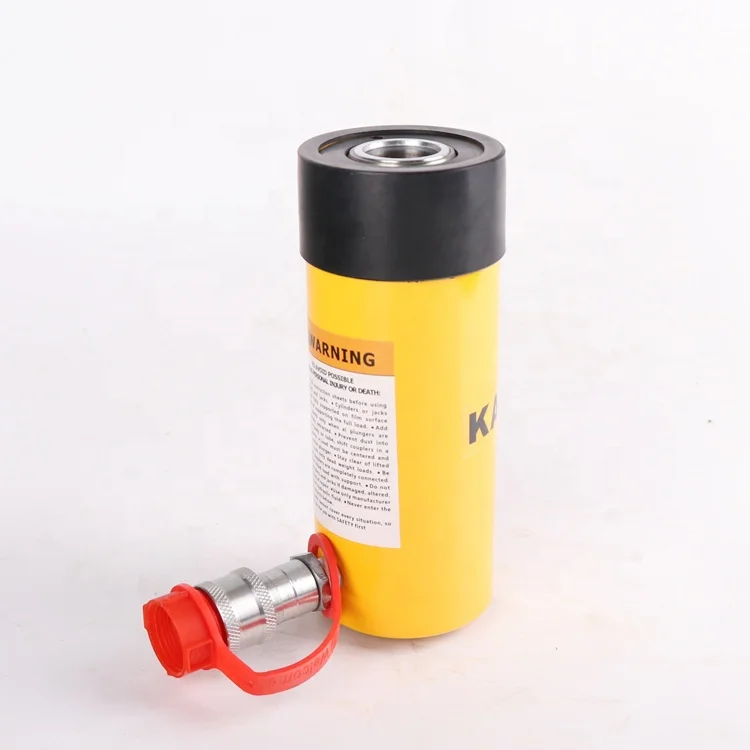

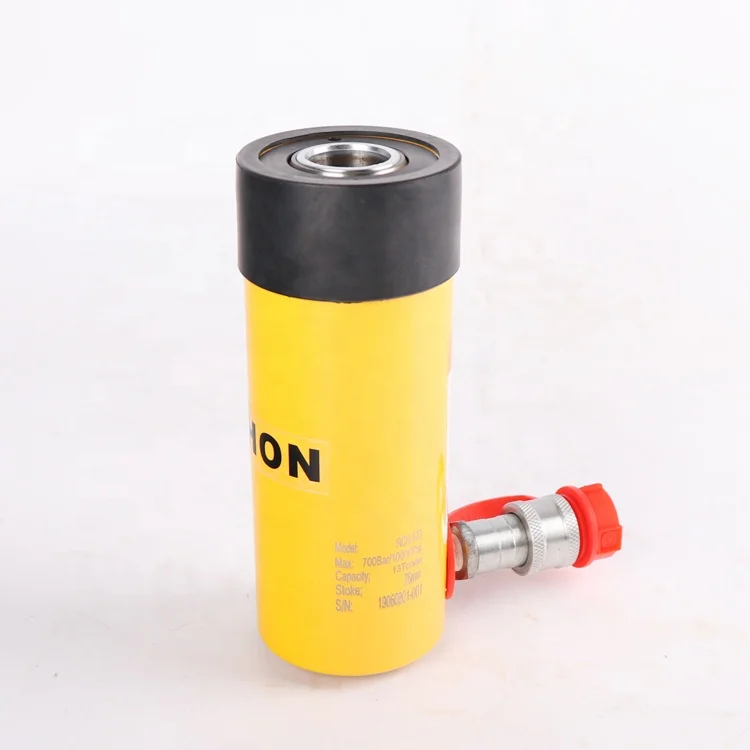

KSRCH-123 Single Acting 12 ton Hydraulic Hollow Plunger Cylinder
Product Description
Max working pressure: 700 bar.
Single acting cylinders with heavy duty return springs and are designed to be used in all orientations.
Hollow rod design enables pulling and tensioning.
Threaded collars enable convenient placement.
Have a nickel-plated floating centre tube to increase their working life.
Coated with corrosive resistant baked enamel.
Parameters
| Model | Capacity (ton) | Max. Working Pressure | Closed Height A (mm) | Stroke (mm) | Effective Area (cm2) | Center Hole Diameter Y (mm) | Oil Capacity | Outside Diameter D | Plunger Diameter F (mm) | Weight (kgs) |
| KSRCH-123 | 12 | 70 | 184 | 76 | 17.9 | 19.5 | 136 | 69 | 35.1 | 4.4 |
Company Information
Kashon Equipment has been in hydraulic tools industry since 2002. mainly export:
Hydraulic cylinder/jacks/rams (5-1500ton), single double acting, hollow plunger; low height, lock nut;
Hydraulic torque wrenches(100-72000Nm);
Hydraulic lifting pumps, manual and electric type;
Hydraulic pullers, manual and hydraulic type;
Hydraulic flange spreader, manual and hydraulic type;
Hydraulic steel wire rope press machine
Hydraulic accessories(hoses, couplers, oil distributors, etc.)
Over the years we have grown into a diversified market based that now services customers all over the world. We enjoy listening to our customers needs and ideas while working hard to provide the best service and delivering the highest quality of parts.
We believe “service” is our number one customer. We hope our commitment to provide our customers quickly and efficiently with competitive prices will keep you coming back.
FAQ
Q1: How can contact sales?
A1: Please via email sean at kashonequipment dot com or call: +86-158-5086-4100 for pre-sales
Q2: How to make payment?
A2: Paypal, Western Union, Moneygram or T/T transfer.
Q3: How long does it take to process orders?
A3:It usually takes 10-14 business days to process most orders for no stock, if stock available, only take 2- 3 business days.
Q4: What is the packing method?

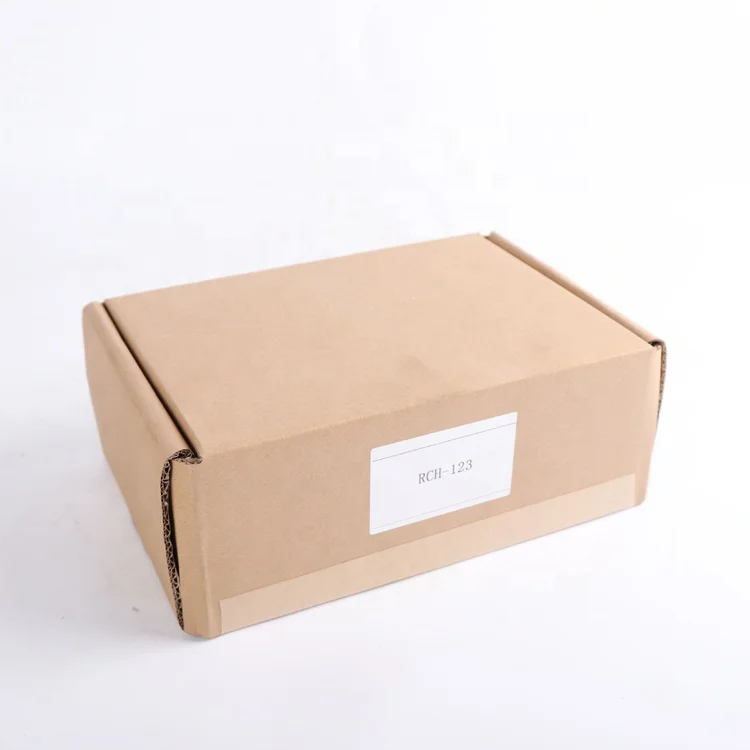

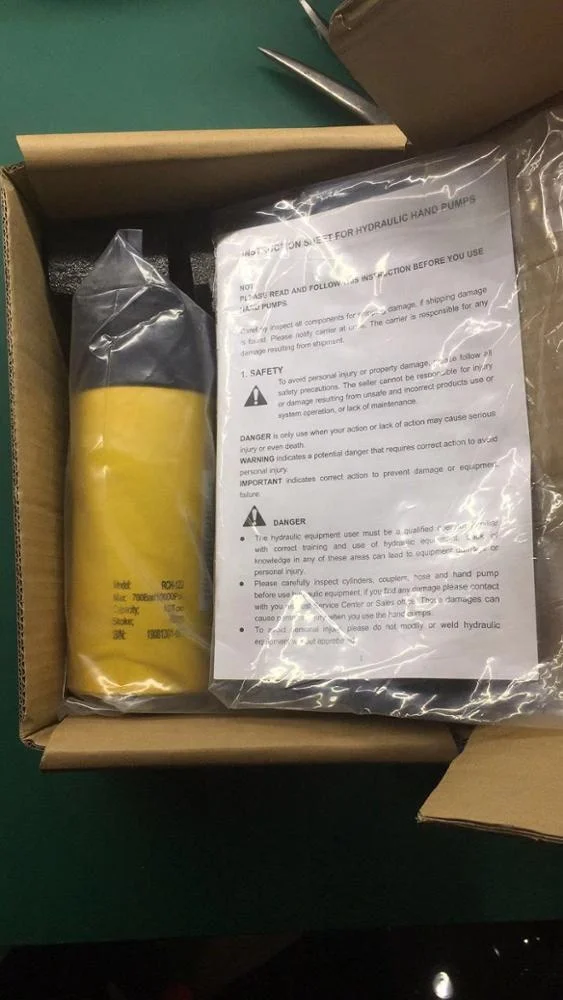

A4: For small piece, we use carton box; for big piece, we use exporting grade plywood case.
