Электическая Бетономешалка
US $109.12
Оптовая продажа с завода самозагружающаяся дизельная Бетономешалка
- Категория: Concrete Mixers >>>
- Поставщик: Shandong,Jinrui,Heavy,Industry,Machinery,Co.,Ltd.Shandong,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 2975.79 $* | 3124.73 $* |
| Aug-16-2025 | 2950.16 $* | 3098.75 $* |
| Jul-16-2025 | 2475.99 $* | 2599.73 $* |
| Jun-16-2025 | 2900.31 $* | 3045.44 $* |
| May-16-2025 | 2525.28 $* | 2651.16 $* |
| Apr-16-2025 | 2850.64 $* | 2993.3 $* |
| Mar-16-2025 | 2825.62 $* | 2966.89 $* |
| Feb-16-2025 | 2800.87 $* | 2940.2 $* |
| Jan-16-2025 | 2775.98 $* | 2914.71 $* |
Характеристики
Product Description

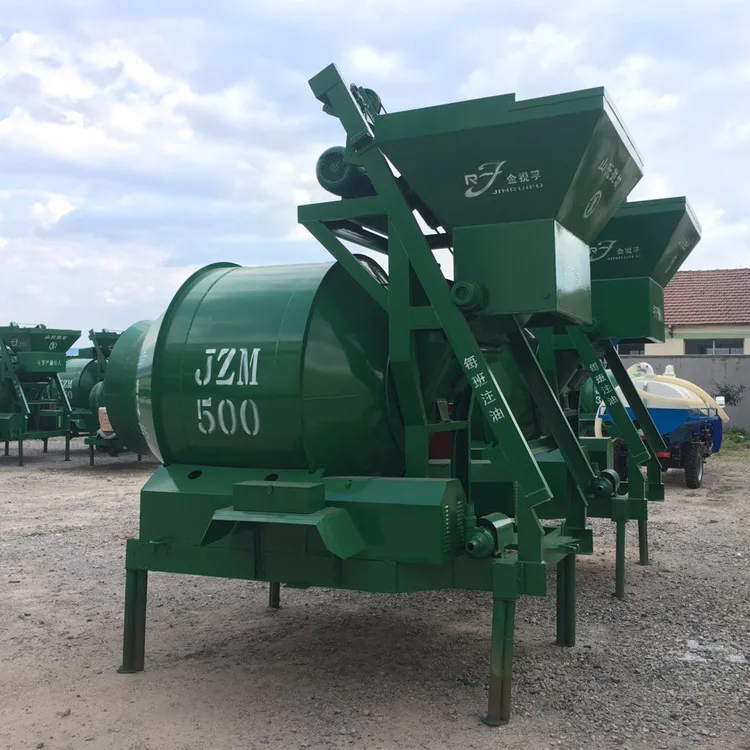

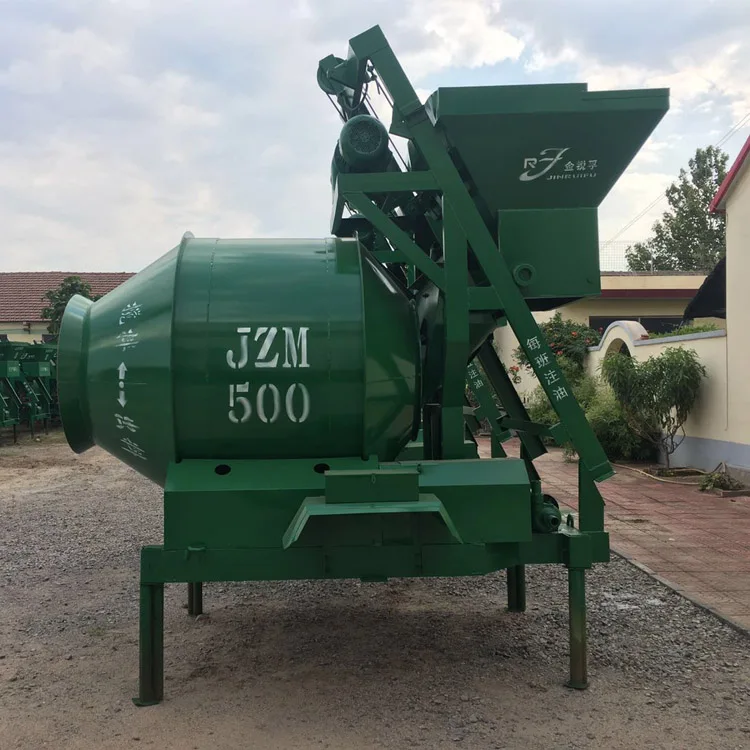

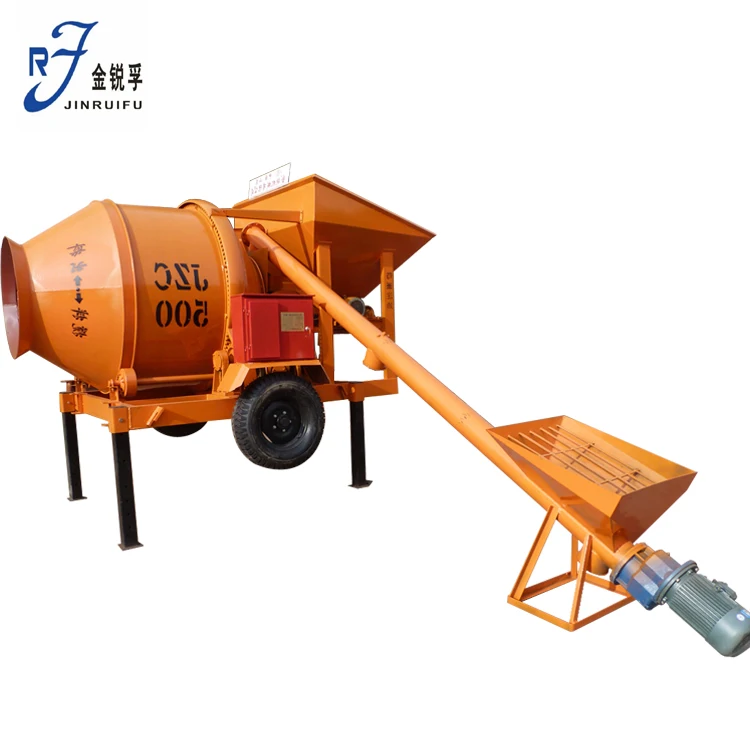

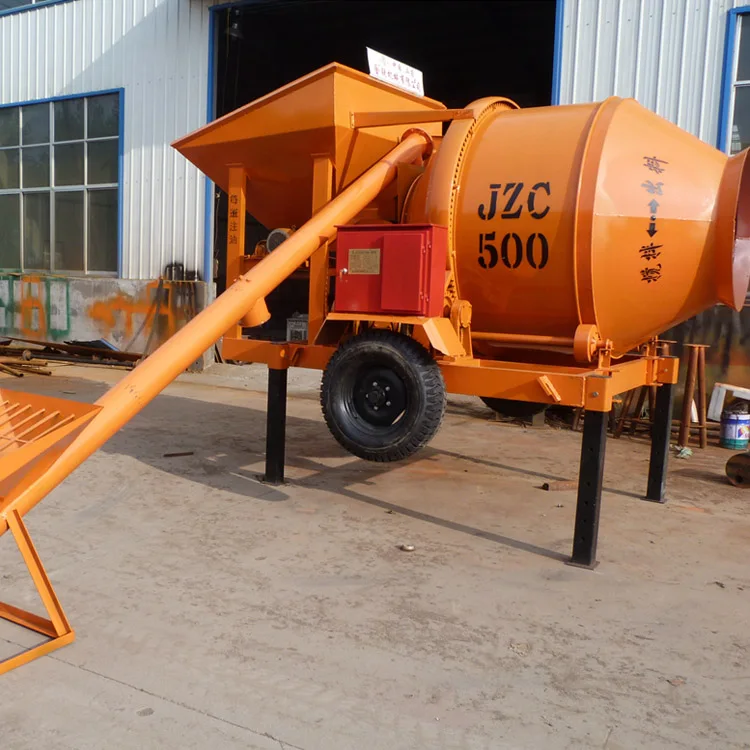

Factory price Portable self loading JZC350 concrete Mixer
Product Application
JZC series concrete mixer machine is a self-loading concrete mixing machine, discharging with the twin cones rotating reversely. It mixes the material by rotating positively, and discharges by rotating reversely.
Manual control.
Forward mixing & Reversal discharging.
The gear ring drives the drum.
Can mix plastic concrete and low flow concrete.
Application: the construction of road or bridge; small and medium-sized concrete factory.
They can be used for different mixing products like concrete precasts for construction such as road, bridge, water supplying and civil engineering. The mixers can produce with high efficiency dry and hard concrete, plastic concrete, light weight concrete and mortars.
Model | JZC/JZM350 | JZC/JZM450 | JZC/JZM500 | JZC/JZM750 |
Discharge volume(L) | 350 | 450 | 500 | 750 |
Charge volume(L) | 560 | 720 | 800 | 1200 |
Capacity( m³/h) | 13 | 14-18 | 25 | 35 |
Mixing motor( KW) | 5.5 | 5.5 | 2*5.5 | 2*7.5 |
Lifting motor() KW | 4.5 | 4.5 | 5.5 | 7.5 |
Water pump motor( KW) | 0.55 | 0.55 | 0.75 | 0.75 |
Rotating speed ( r/min) | 15 | 15 | 15 | 15 |
Max. aggregate size( mm) | 60 | 60 | 60 | 60 |
Dragging speed( km/h) | 10-15 | 20 | 15 | |
Discharge way | electric-pull-type | electric-pull-type | electric-pull-type | electric-pull-type |
hydraulic | hydraulic | hydraulic | hydraulic | |
creeper | creeper | creeper | creeper | |
Belt transmission | Belt transmission | Belt transmission | Belt transmission | |
Tyre Size | 6.50-16 | 6.50-16 | 7.50-16 | |
Overall weight (kg) | 1500 | 1700 | 2100 | 2100 |
Our advantage
Reduce the labor intensity of workers.
The operation is simple.
Less vulnerable parts, save traditional components such as wire rope, limiter, brake pad.
Simple maintenance and low cost.
More safety, the aggregate hopper not easy to fall off.
The hopper is not easily deformed and has a long service life.
Manganese steel cylinder body, wear-resisting.
National standard motor.
More practical.
Suitable for places without electricity.
Real Manufacture and OEM.
Detailed Images
Hydraulic oil cylinder
1.Save wire rope, limiter, brake pad, less vulnerable parts,
2.Keep the hopper long service life without deformation
3.Low noise.
4.More safety, the aggregate hopper not easy to fall off.
Directional control valve
1.rise and fall the hopper.
2.Reduce the labor intensity of workers.
3.Simple maintenance and low cost.
Electric control system
1.Schneider brand electric appliances.
2.Easy operation.
3.Reduce the labor intensity of workers.
Ring gear transmission
1.Stable transmission and not slippery.
2.Roller supports the drum to turn.
Our Company
Shandong Jinrui Heavy Industry Machinery Co.,Ltd
Shandong jinrui hevay industry machinery CO.,LTD was established in 2001, which is located in Anqiu,Shandong, China. It is only 160 kilometers way from Qingdao port, which is biggest prot in north of China. We specialized in construction machinery,which is including concrete mixers(including JZ series counter- rotary with double cones, JS series compulsory mixer with double lying shafts, LSY cement spiral conveyor, cement silo, PLD concrete proportioning MC series and concrete plant ETC).The concrete mixers can be widely used in all kind of prefabrications, roads, bridges, ports and civil constructions and so on. The can mix stable soil concrete, plastic concrete, fluidity concrete, light aggregate concrete and mortars.
Now all the constuction MC have passed state quality standard GB9142-2000, and our company have passed international quality management ISO9001-2000.
We belive "customers foremost, credit first" and insist on providing satisfaction to the customers, we have created strong sales network all over the country and overseas covering east asia, southeast asia and africa.
We are the manufacture.
Near to Qingdao port.
OEM acceptable.
16 years of production experience and 6 years of exporting experience.
Competitive price with high quality
JINRUIFU is China top 10 famous brand
Main production:JZC series mixer, JS series mixer, concrete mixing plants and mobile concrete batching plant.
We have created strong sales network all over the country and overseas covering East Asia,South Asia and Africa.
We are the manufacture.
Near to Qingdao port.
OEM acceptable.
16 years of production experience and 6 years of exporting experience.
Competitive price with high quality
JINRUIFU is China top 10 famous brand
Main production:JZC series mixer, JS series mixer, concrete mixing plants and mobile concrete batching plant.
We have created strong sales network all over the country and overseas covering East Asia,South Asia and Africa.
Exibition Picture and Customer Visit
Jinruifu Machine,be part of your success
Project case
Packing & Delivery
Packaging | ||
Size | 2810(L) * 2140 (W) * 3070 (D) | |
Weight | 1.4 T | |
Packaging Details | The normal package is container(Size: L*W*H). If container is too tigher,we will pack it according to customers special request. | |
Our Service
Pre-Sales and After-Sales Service
Inquiry and consulting support.
Sample testing support.
View our Factory.
Sample testing support.
View our Factory.
Training how to instal the machine, training how to use the machine.
Engineers available to service machinery overseas.
Engineers available to service machinery overseas.
FAQ
Q: How about the quality of your products?
A: We are factory with more than 16 years of construction machinery manufacturing experience. All of our machines are manufactured strictly according to the national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.
Q: How about the price?
A: We are manufactory, not dealer, so we can give you a lower price than those trade companies can.
Q: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and
thoroughly solve your problems.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
A: We are factory with more than 16 years of construction machinery manufacturing experience. All of our machines are manufactured strictly according to the national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.
Q: How about the price?
A: We are manufactory, not dealer, so we can give you a lower price than those trade companies can.
Q: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and
thoroughly solve your problems.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
