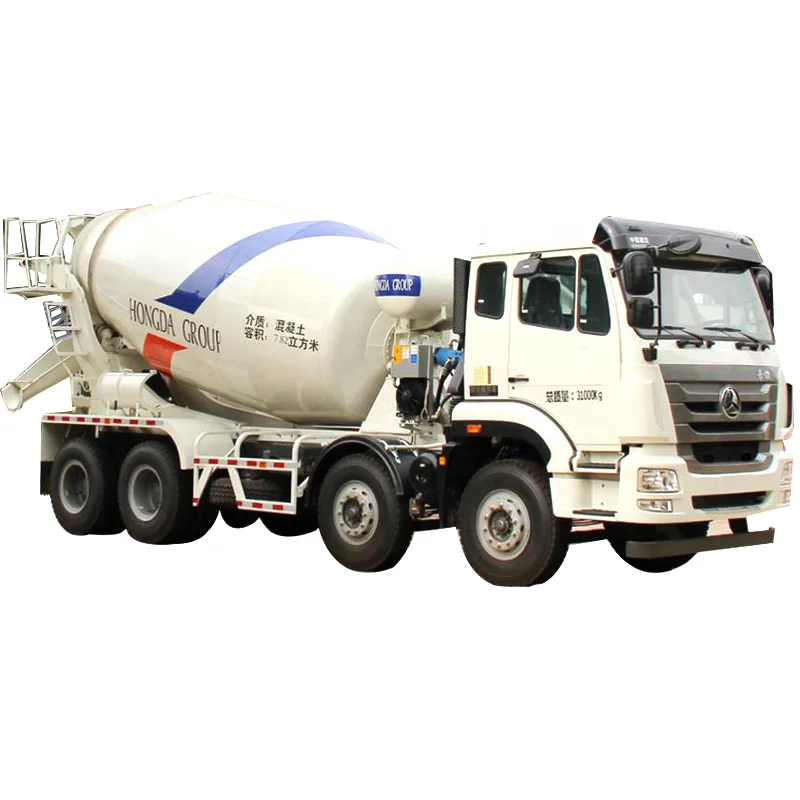

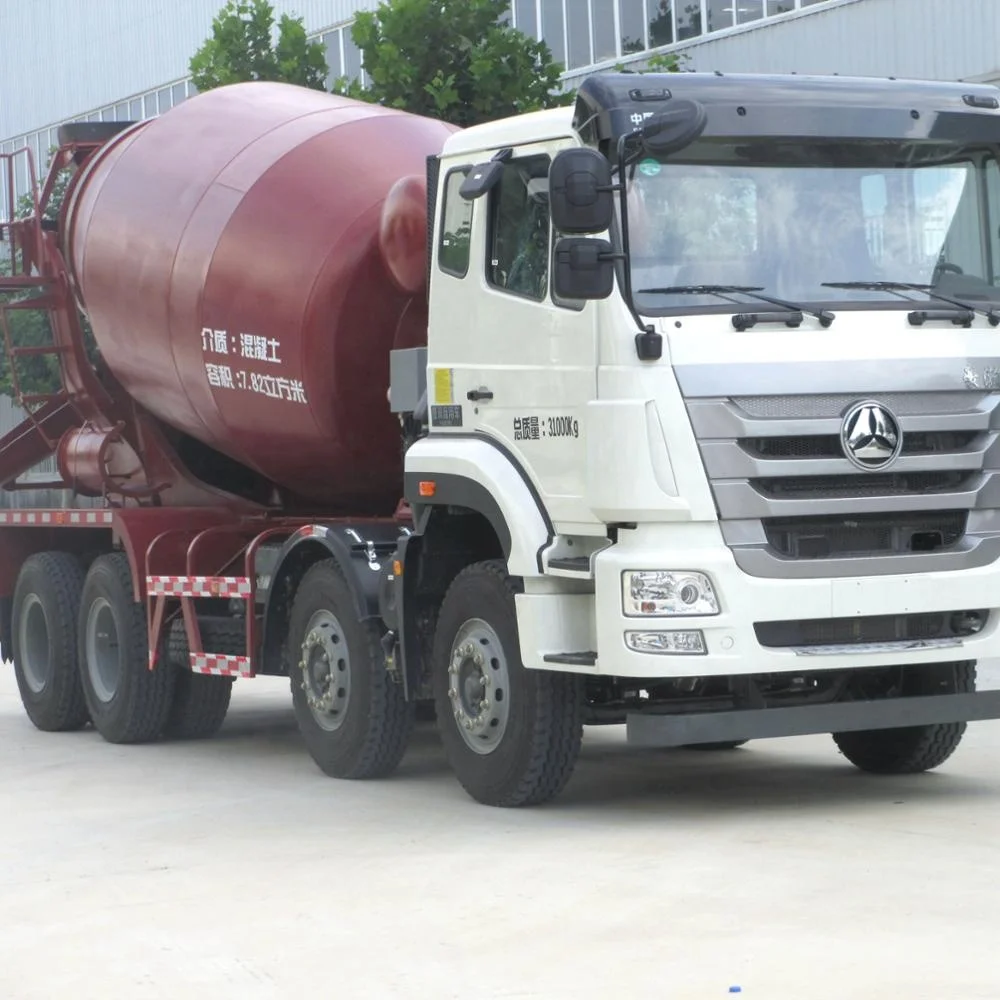

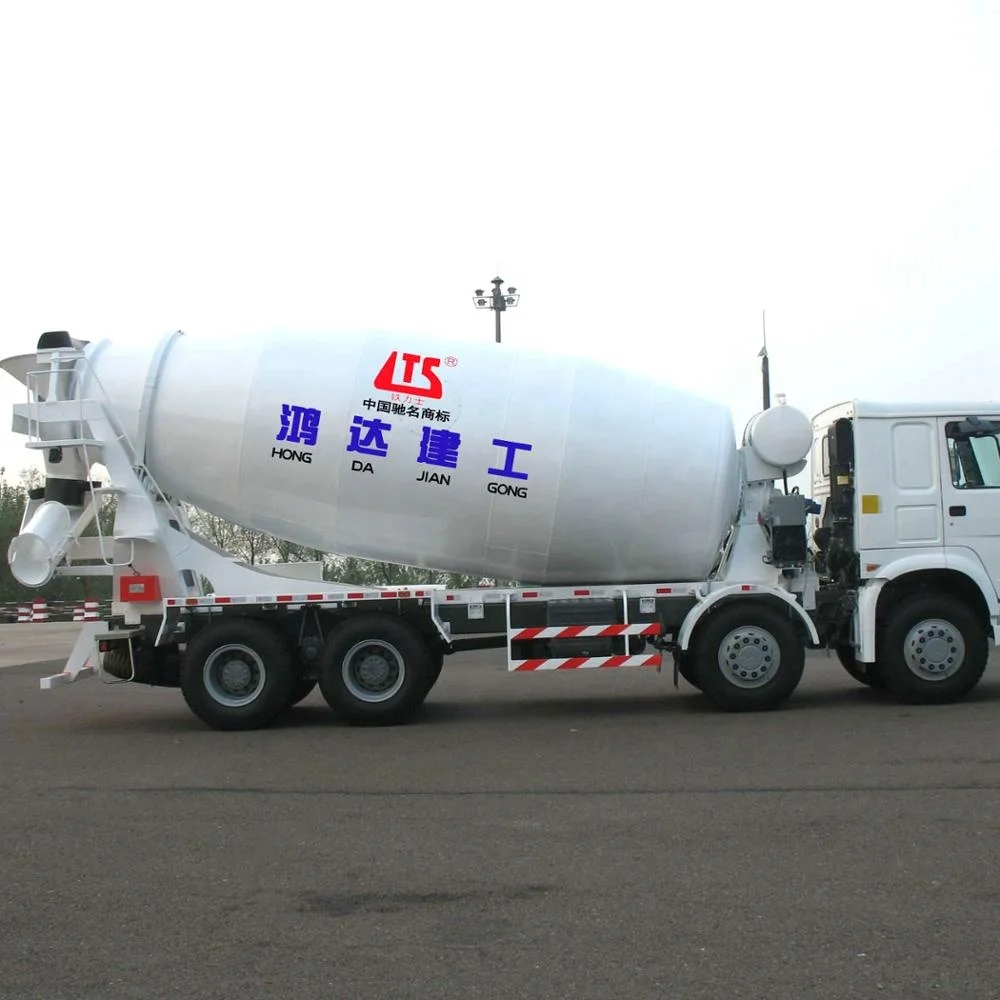

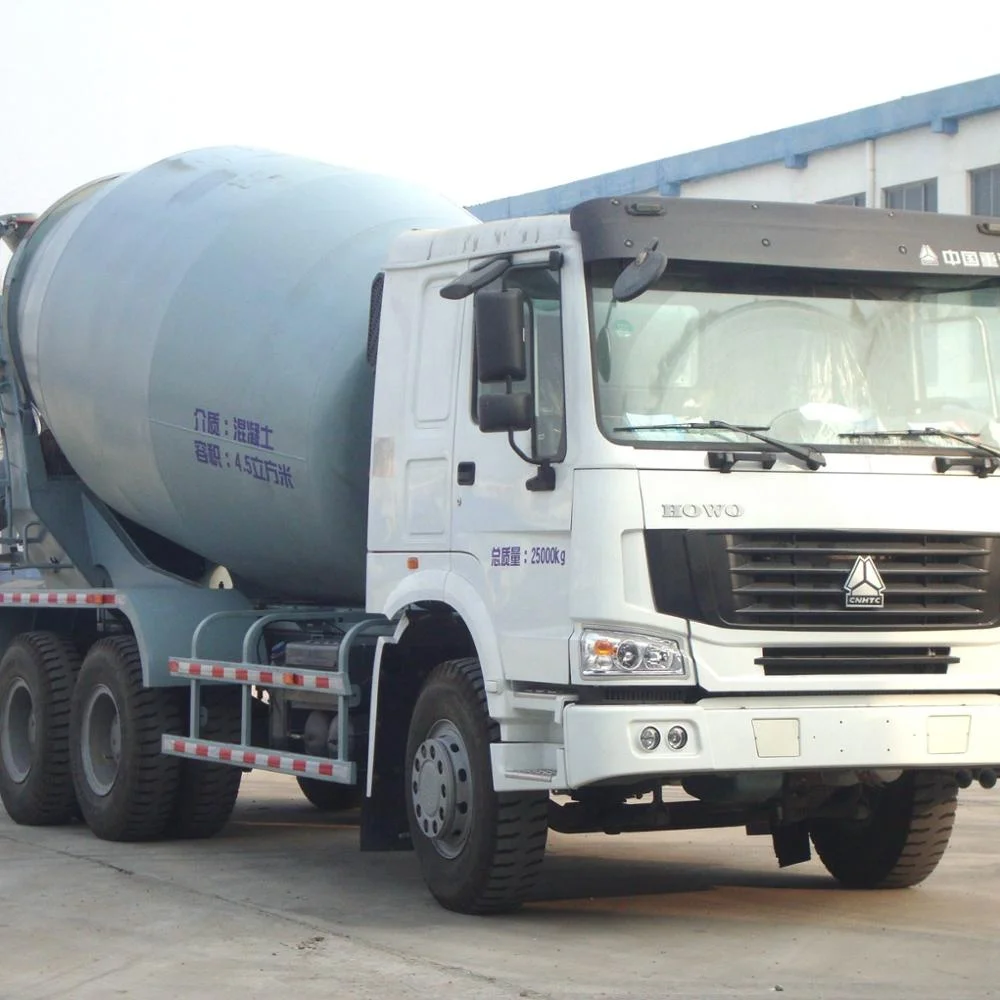

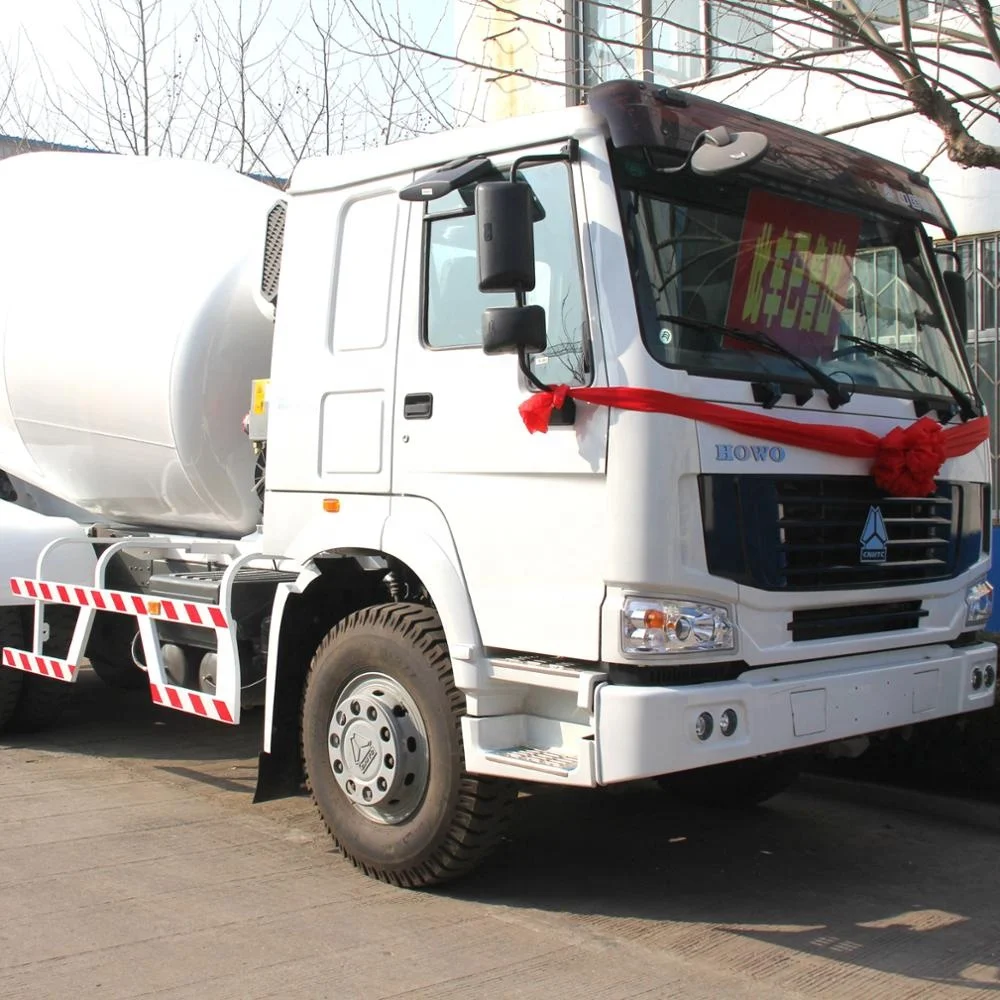

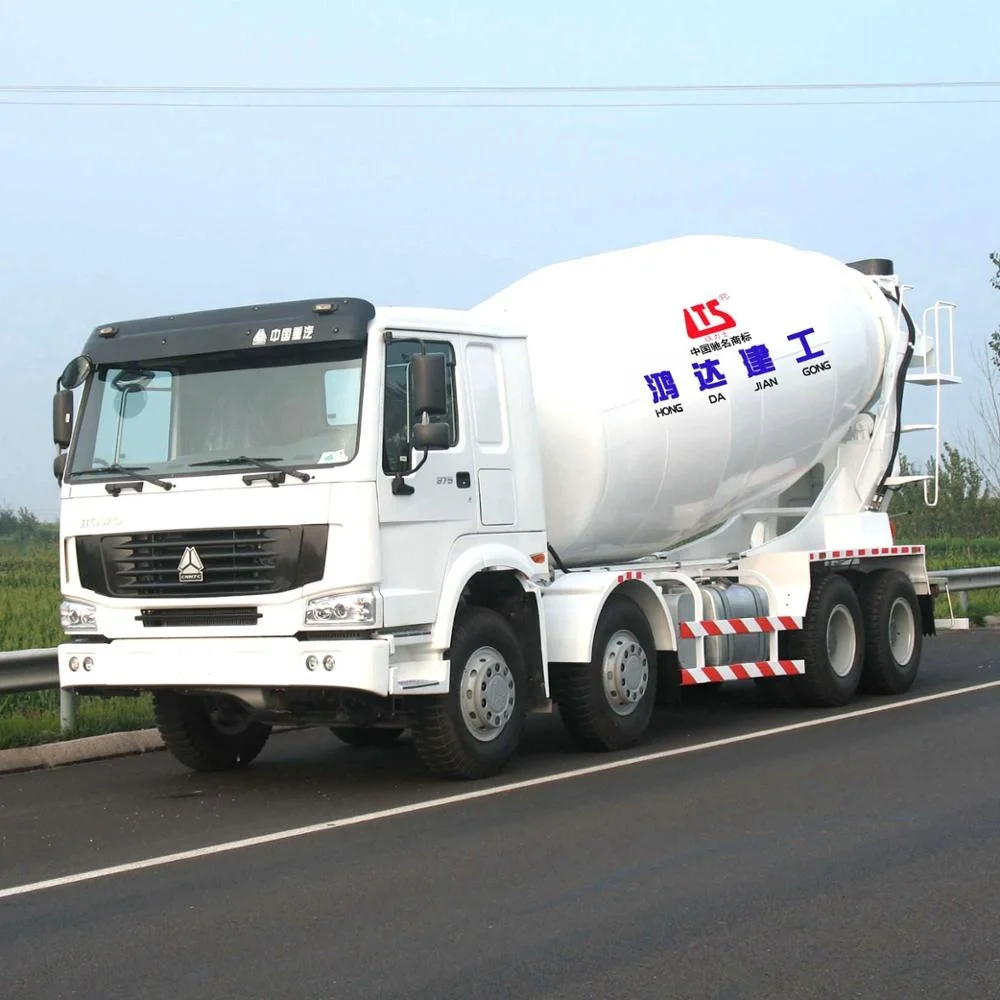

Автобетономешалка 12 М3 мобильный автобетономешалка с загрузкой ISO CCC
- Категория: Concrete Machinery >>>
- Поставщик: Shandong,Aizhou,Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 57120.14 $* | 59976.40 $* |
| Aug-16-2025 | 56640.61 $* | 59472.8 $* |
| Jul-16-2025 | 47520.13 $* | 49896.64 $* |
| Jun-16-2025 | 55680.67 $* | 58464.47 $* |
| May-16-2025 | 48480.63 $* | 50904.39 $* |
| Apr-16-2025 | 54720.48 $* | 57456.95 $* |
| Mar-16-2025 | 54240.42 $* | 56952.44 $* |
| Feb-16-2025 | 53760.58 $* | 56448.99 $* |
| Jan-16-2025 | 53280.14 $* | 55944.86 $* |
Характеристики
Product Description
Product Application
The concrete mixer trucks of Hongda Group are independently developed by SHANDONG HONGDA GROUP on the basis of absorbing advanced domestic and foreign technologies.The product is mainly used for the mixing and transporting of concrete mixtures between long distances.It can effectively delay the initial coagulation of concrete and avoid the quality and progress of construction.
SPECIFICATIONS FOR 12m3 Concretemixer Truck | ||||
HDT5256GJB4 | ||||
Items | Technical Parameters | |||
Whole Vehicle Parameters | Chassis Model | ZZ1257N4047D1 | ||
Curb weight(kg) | 14700 | |||
Full Load weight(kg) | 25000 | |||
Outline Dimension (mm)(LxWxH) | 9900x2496x4000 | |||
Wheebase (mm) | 4025+1350,4000+1400 | |||
Min Ground Clearance(mm) | ≥243 | |||
Min Turning Diameter(m) | ≤21 | |||
Oil Consumption/100km/L | ≤45 | |||
Braking Distance (V0=30km/h) | ≤10(Full load);≤9(No Load) | |||
Engine Parameters | Displacement(L) | 9.276,11.596,9.726,11.596 | ||
Rated Power /Revolution(kw/rpm) | 249/1900,249/2000 276/2000,279/2000 | |||
Max Torque(Nin/rpm) | 1490/1200~1500,1470/1100-1500 1560/1200~1500,1650/1100-1400 | |||
Emission Standard | China IV | |||
Upper Unit Parameters | Geometric Capacity of Mixing Drum(m^3) | 8.72 | ||
Mixing Capacity(m^3) | 4.5 | |||
Drum Inclination(°) | 11 | |||
Drum Rotating Speed (m^3) | 0~14 | |||
Feeding Speed(m^3) | ≥3 | |||
Discharging Speed(m^3) | ≥1.5 | |||
Concrete Residual Rate(%) | <0.8 | |||
Slump Range(mm) | 100-230 | |||
Water Tank Capacity(L) | 400 | |||
Configuration | Engine | D10.34-40,D12.34-40 D10.38-40,D12.38-40 | ||
Gearbox | HW18710 | |||
Steering Mechanism | ZF8098 | |||
Tyre | 11.00-20,12.00-20,11.00R20,12.00R20 | |||
Reducer | Bonfiglioli | |||
Oil Pump | Eaton | |||
Motor | Eaton | |||
Radiator | Made in China,With Vacuum Meter | |||
Main Features
1)Elegant and beautiful
2)Stable and reliable rotation
3)Rapid discharging
4)Low residue rate
5)Simple operation and long service life
Detailed Images
Name: Hydraulic Pump,Motor and Reducer
Full set of imported static pressure drive system with large driving torque and high efficiency.
Name: Three-dimensional Design Rendering of Drum and Blades
The three-section double-logarithmic spiral-surface design ensures fast feed and discharge and low residual rate.The reasonable arrangement of mixing arms and mixing holes ensures fast feed of concrete ,small impact on blades and good discharging continuity
Name: Pollution Degree
Original imported hydraulic pollution degree detector to ensure the hydraulic oil particle pollution level to be above Nas7.
Name: Oil Tank and Radiator
The imported brand-name assembly of oil tank and radiator with temperature control switch and necessity of oil change and maintenance can be noticed at a glance.
Our Company
FACTORY
OUR CUSTOMERS
FAQ
1.Q:What is your terms of delivery?
A:FOB, CFR, CIF, EXW
2.Q:What is your terms of payment?
A:L/C 100% irrevocable L/C at sight
T/T 30% as deposit, and 70% before delivery
3.Q:What's your after-sale service?
A:12 months warranty.
We have enough confidence in the products, even if something goes wrong, we must actively solve the problem for you and do our due diligence.
