Лидер продаж UHT Стерилизатор для сока обработки линии
US $5000-$15000

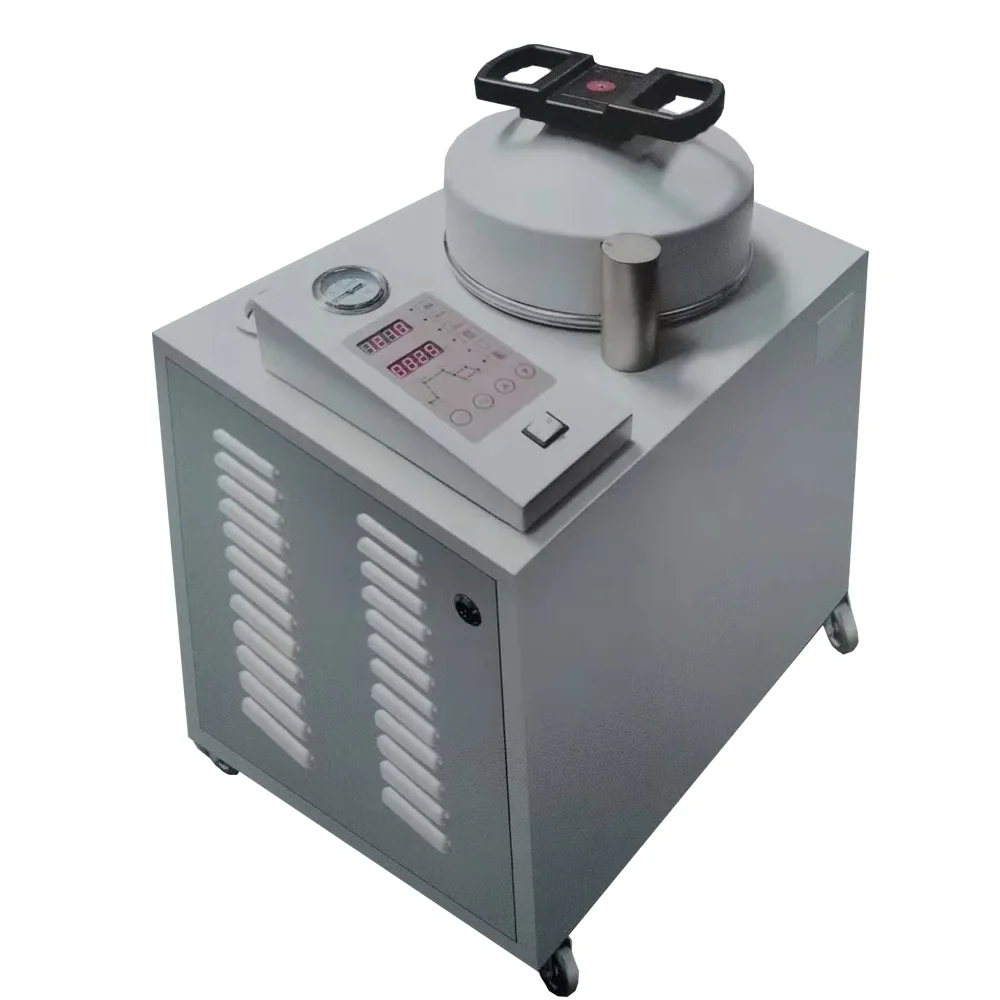

Маленький Автоклав Из Нержавеющей Стали Электрический тепловой
- Категория: Стерилизатор >>>
- Поставщик: Shandong,Zhongtai,Medical,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 2023.31 $* | 2124.46 $* |
| Aug-16-2025 | 2006.88 $* | 2106.45 $* |
| Jul-16-2025 | 1683.45 $* | 1767.2 $* |
| Jun-16-2025 | 1972.40 $* | 2071.28 $* |
| May-16-2025 | 1717.26 $* | 1803.45 $* |
| Apr-16-2025 | 1938.50 $* | 2035.61 $* |
| Mar-16-2025 | 1921.27 $* | 2017.60 $* |
| Feb-16-2025 | 1904.29 $* | 1999.66 $* |
| Jan-16-2025 | 1887.55 $* | 1981.86 $* |
Характеристики
Product Description
This equipment is widely used in the dairy industry, food, pharmaceutical, chemical, beverage and other industrial sectors, as heating, insulation, sterilization treatment or storage slurry equipment is necessary;This equipment is used in the processing of food such as candy, pharmacy, dairy, wine, pastry, candied fruit, beverage, canned food, marinated meat, etc., as well as large restaurants or cantina stewed soup, cooked vegetables, stewed meat, stewed porridge, etc. It is a good equipment for food processing to improve quality, shorten time and improve working conditions.This equipment can also be used for packaging, film, food, inspection institutions, scientific research institutes, medical institutions and other packaging materials (and adhesives, ink products) high-temperature cooking performance testing and experimental use.
Application:
Application in candy :(making hard candy under normal pressure) mixing of granulated sugar and starch syrup, melting, boiling, mixing section (with stirring and scraping).It is characterized by large heating area, high thermal efficiency, uniform heating, short boiling time and easy control of heating temperature.
Application in pastry: frying process (precise heating temperature, adjustable).
Application in beverage: it can be composed of glycosylated system: namely, the glycosylated system is composed of hydration mill, sandwich pot, double filter and ultra-high temperature sterilization unit.It can also be used for tea extraction and other materials precooking, heating and mixing.
Application in candied fruit: can be used in candied fruit precooking (debitter), sugar boiling process.
Application in canned food: used for precooking and mixing of materials.
Application of sauce products: used for the preparation and sterilization of bean paste, sweet bean paste, peanut butter, chili paste, beef paste and other sauces.
Application:
Application in candy :(making hard candy under normal pressure) mixing of granulated sugar and starch syrup, melting, boiling, mixing section (with stirring and scraping).It is characterized by large heating area, high thermal efficiency, uniform heating, short boiling time and easy control of heating temperature.
Application in pastry: frying process (precise heating temperature, adjustable).
Application in beverage: it can be composed of glycosylated system: namely, the glycosylated system is composed of hydration mill, sandwich pot, double filter and ultra-high temperature sterilization unit.It can also be used for tea extraction and other materials precooking, heating and mixing.
Application in candied fruit: can be used in candied fruit precooking (debitter), sugar boiling process.
Application in canned food: used for precooking and mixing of materials.
Application of sauce products: used for the preparation and sterilization of bean paste, sweet bean paste, peanut butter, chili paste, beef paste and other sauces.
Specification parameter table
Description:We accept equipment customization. You can provide drawings or dimension parameters for customization | ||||||||
Main Features
Structure:
It is composed of pot body, lid, opening device, locking wedge, safety interlock device, track, sterilizing basket, steam nozzle and several pipe orifice.
Features:
Automatic heating, automatic insulation, automatic timing;
Reverse pressure cooking function;
Special cavity design, sterilizing effect thoroughly, wrinkle-proof bag process design;
Using spray water cooling and air cooling, the cooling efficiency is high, cooking effect is good, sterilization is more fully, the speed of temperature rise faster;
With water level, time, temperature control and water cut off, overtemperature alarm and automatic power off function and other insurance control measures, safe and reliable.
Perfect pressure control, suitable for gas package sterilization.
Principle:
By means of electric heating, water is directly injected into the cooking room for heating to generate high-pressure steam required for cooking, and the goods that need to be boiled are steamed. After the cooking, compressed air is connected to the outside, and the water pressure is used for rapid cooling for about 3 minutes. The goods in the cylinder can be reduced to 35℃.The digester is equipped with programmed control and automatic protection device, which can be used for water boiling and fast cooling reverse pressure digesting.The water boiling range is set at ≤100℃.Rapid cooling pressure cooking temperature range of 101℃ ~ 135℃ preselection;It is equipped with the control of water boiling and cooking time, pre-selection within 0 ~ 99 minutes, and overload protection of heater and the performance of the end of cooking buzzer alarm.
Operating instructions:
1. Add water to the container, add the digester and cover the pot.
2. Turn on the power switch and set the cooking temperature at 121 ° c for 40 minutes or 135 ° c for 20 minutes (according to the packaging material).
3. Press the start switch and start working according to the set procedure to expel cold air. After the air is exhausted, it will start to heat up.
4. When the temperature rises to 101℃, the solenoid valve closes and continues to heat up. When the temperature reaches the set temperature, it enters the constant temperature cooking time.
5. At this time, turn on the pressure supplement knob to maintain the pressure and start the cooling operation. When the temperature drops to 40℃, the pressure supplement shall be stopped.
6. Open the lid and remove the cooking material.
Security guarantee:
The equipment is equipped with safety valve and steam relief valve.When the pressure of the safety valve exceeds 0.14mpa, it can automatically release excessive pressure, with reliable performance. Before sterilization, open the steam valve to discharge cold air and carry out steam up-exhaust at the end of sterilization.
The cover of the container is equipped with a double-scale pressure gauge with pressure and temperature reading indication for clear observation.
With automatic protection function, when the equipment is short of water, the power will be cut off automatically, the heater will stop working, effectively protect the use of the equipment, at the same time, the buzzer will remind the user to replenish water in time.
It is composed of pot body, lid, opening device, locking wedge, safety interlock device, track, sterilizing basket, steam nozzle and several pipe orifice.
Features:
Automatic heating, automatic insulation, automatic timing;
Reverse pressure cooking function;
Special cavity design, sterilizing effect thoroughly, wrinkle-proof bag process design;
Using spray water cooling and air cooling, the cooling efficiency is high, cooking effect is good, sterilization is more fully, the speed of temperature rise faster;
With water level, time, temperature control and water cut off, overtemperature alarm and automatic power off function and other insurance control measures, safe and reliable.
Perfect pressure control, suitable for gas package sterilization.
Principle:
By means of electric heating, water is directly injected into the cooking room for heating to generate high-pressure steam required for cooking, and the goods that need to be boiled are steamed. After the cooking, compressed air is connected to the outside, and the water pressure is used for rapid cooling for about 3 minutes. The goods in the cylinder can be reduced to 35℃.The digester is equipped with programmed control and automatic protection device, which can be used for water boiling and fast cooling reverse pressure digesting.The water boiling range is set at ≤100℃.Rapid cooling pressure cooking temperature range of 101℃ ~ 135℃ preselection;It is equipped with the control of water boiling and cooking time, pre-selection within 0 ~ 99 minutes, and overload protection of heater and the performance of the end of cooking buzzer alarm.
Operating instructions:
1. Add water to the container, add the digester and cover the pot.
2. Turn on the power switch and set the cooking temperature at 121 ° c for 40 minutes or 135 ° c for 20 minutes (according to the packaging material).
3. Press the start switch and start working according to the set procedure to expel cold air. After the air is exhausted, it will start to heat up.
4. When the temperature rises to 101℃, the solenoid valve closes and continues to heat up. When the temperature reaches the set temperature, it enters the constant temperature cooking time.
5. At this time, turn on the pressure supplement knob to maintain the pressure and start the cooling operation. When the temperature drops to 40℃, the pressure supplement shall be stopped.
6. Open the lid and remove the cooking material.
Security guarantee:
The equipment is equipped with safety valve and steam relief valve.When the pressure of the safety valve exceeds 0.14mpa, it can automatically release excessive pressure, with reliable performance. Before sterilization, open the steam valve to discharge cold air and carry out steam up-exhaust at the end of sterilization.
The cover of the container is equipped with a double-scale pressure gauge with pressure and temperature reading indication for clear observation.
With automatic protection function, when the equipment is short of water, the power will be cut off automatically, the heater will stop working, effectively protect the use of the equipment, at the same time, the buzzer will remind the user to replenish water in time.
Certifications
Main components
Electric heat pipe
Food hygiene seal ring
High precision pressure gauge
Air switch
Air pump
The water pump

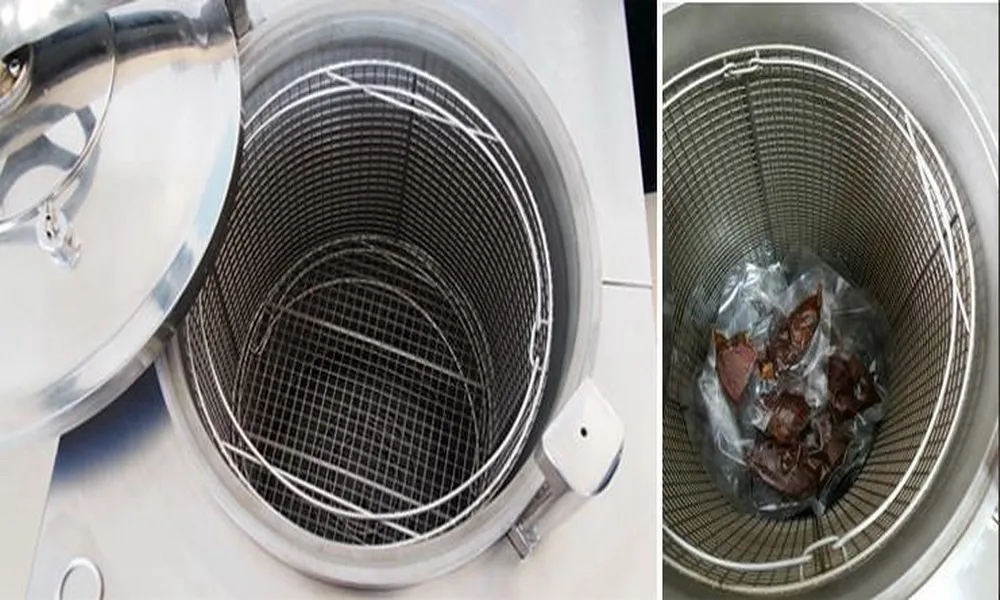

Food basket
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
Packing & Transportation
Packaging Details
Under normal circumstances, we will use PE wrapping film for part of the product, then use wooden case packaging, or according to the special requirements of the customer packaging;If exported to European countries, we will fumigate the wooden cases.
Shipping Details
Under normal circumstances, we will use trucks to transport products to Qingdao port;Or according to customer requirements, choose the most convenient, the most economic mode of transportation.
Company profile
Zhongtai company is a leading supplier of food processing industry, beverage industry, edible mushroom processing industry and the pharmaceutical industry in sterilization equipment. The company has the national Pressure Vessel Design, Manufacture, Installation alteration service qualification, was awarded the "new high-tech enterprises," the title of Shandong province. Professional manufacture of various sterilization retort, medical sterilization equipment, jacketed kettle, agitation wok, pressure cooking pot, fermentation tank，extraction tank, concentration tank , mixing tank, animal oil and fat refining production line, rice dumpling production line, (sweet potato, potato) peeling production line, central kitchen equipment and other equipment，products have passed the European CE safety certification and ISO9001 international quality management system certification, with import and export rights. Forming a set of raw materials supply, product development, process design, production-manufacturing, finished product testing, storage and transportation, after-sales service in one of the network system.
Zhongtai company is sterilization pot industry standard drafting unit. The company has an independent R & D, testing center, can be completed with the thermal distribution of standard test before all sterilization pot factory. Products can be widely used in food, beverage, edible mushroom processing, pharmaceutical, chemical and other fields, the products have been sold to the provinces, city, autonomous regions, and exported to South Asia, Southeast Asia, Africa, Europe and America more than 30 countries and regions, enjoy a high reputation in the same industry.
Zhongtai company is sterilization pot industry standard drafting unit. The company has an independent R & D, testing center, can be completed with the thermal distribution of standard test before all sterilization pot factory. Products can be widely used in food, beverage, edible mushroom processing, pharmaceutical, chemical and other fields, the products have been sold to the provinces, city, autonomous regions, and exported to South Asia, Southeast Asia, Africa, Europe and America more than 30 countries and regions, enjoy a high reputation in the same industry.
Other major products and major engineering examples of the company
FAQ
1.How to visit our company?
You can fly to qingdao airport,our company is 1 and a half hour car driving away from qingdao,we can pick up you at qingdao city.
You can fly to qingdao airport,our company is 1 and a half hour car driving away from qingdao,we can pick up you at qingdao city.
2.Installment, commission and others
The charges for installation and commissioning (if required by the buyer (user)) of these equipments are excluded. It will be charged at US＄100 per person per day. Theround-trip air tickets between China and buyer's (user's) country, accommodation,insurance, food should be on the buyer's (user's)account.
The charges for installation and commissioning (if required by the buyer (user)) of these equipments are excluded. It will be charged at US＄100 per person per day. Theround-trip air tickets between China and buyer's (user's) country, accommodation,insurance, food should be on the buyer's (user's)account.
3.Voltage:380V/50HZ or the voltage can be customized.
4. What if there is something wrong with the machine within one and half year?
We have two ways to solve this problem:
1)Phone call guidance to confirm the problem.
2)We will take video to show 'how to solve the problem'. All the problem can be solved by video guidance.
We have two ways to solve this problem:
1)Phone call guidance to confirm the problem.
2)We will take video to show 'how to solve the problem'. All the problem can be solved by video guidance.
