1-16 тонн индивидуальный наружный и внутренний высококачественный Электрический подъемник однобалочный козловой кран
- Категория: Gantry Cranes >>>
- Поставщик: Zhongye,Crane,(Henan),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.36 $* | 0.50 $* |
| Aug-16-2025 | 0.49 $* | 0.96 $* |
| Jul-16-2025 | 0.51 $* | 0.21 $* |
| Jun-16-2025 | 0.75 $* | 0.18 $* |
| May-16-2025 | 0.64 $* | 0.40 $* |
| Apr-16-2025 | 0.31 $* | 0.14 $* |
| Mar-16-2025 | 0.73 $* | 0.70 $* |
| Feb-16-2025 | 0.35 $* | 0.70 $* |
| Jan-16-2025 | 0.46 $* | 0.99 $* |
Характеристики
Product Description

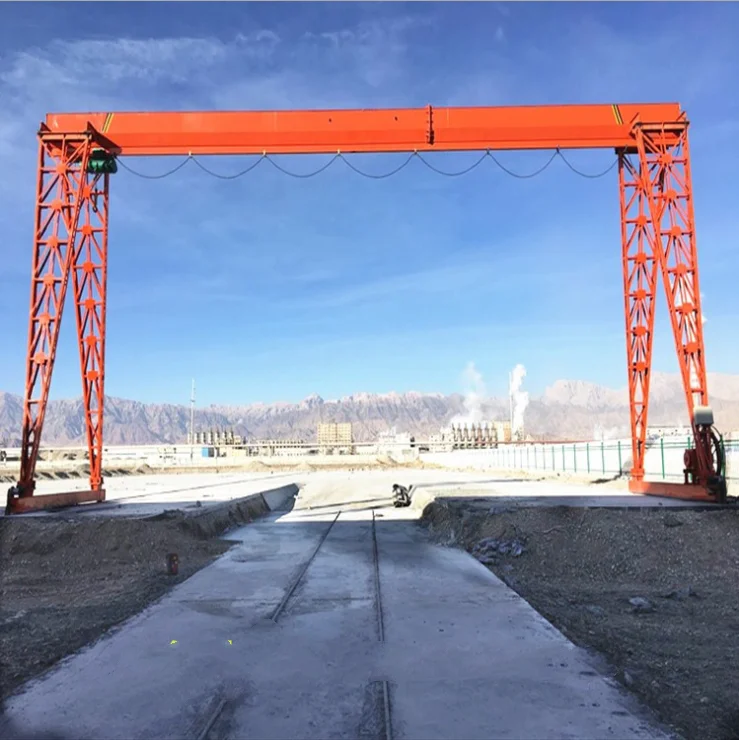

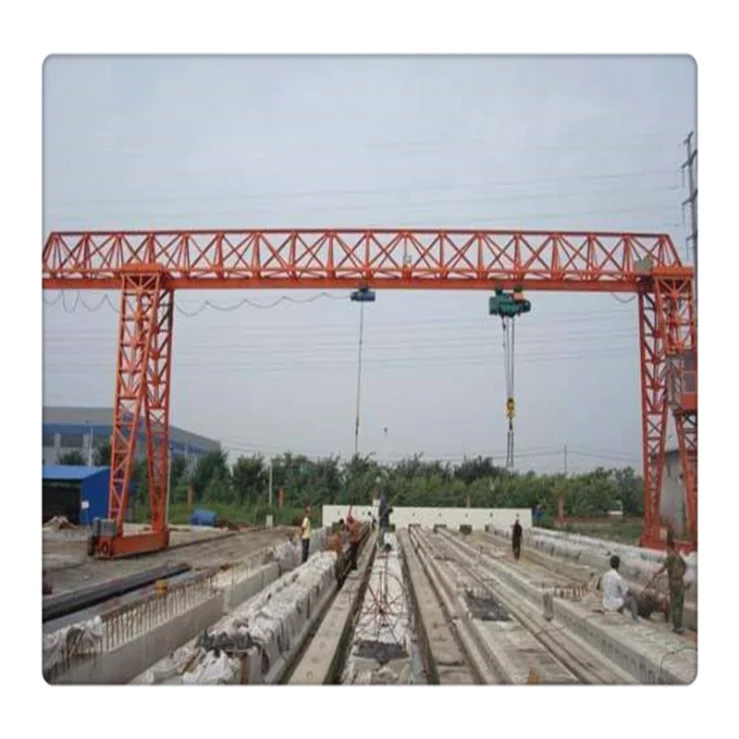

Gantry crane: a variant of the bridge crane. It is mainly used for loading and unloading of outdoor cargo yard, storage yard cargo and bulk cargo. Its metal structure resembles a door-shaped frame. Two feet are installed under the main beam, which can directly walk on the ground track. The main beam can have outriggers at both ends.
Advantages of gantry crane: It has the characteristics of high site utilization, large operating range, wide adaptability and strong versatility. It is widely used in port cargo yards.
Product parameters:
| Capacity | T | 3 | 5 | 10 | 16 | ||
| Span | m | 12,16,20,24,30 | |||||
| Operational method | Pendent Line With Press Button /Cabin/ Remote | ||||||
| Speed | Lifting | 8 ,8/0.8 | 8 ,8/0.8 | 7,7/0.7 | 3.5 | ||
| Cross traveling | 20 | 20 | 20 | 20 | |||
| Long traveling | Ground | 20 | 20 | 20 | 20 | ||
| Cabin | 20, 30,45 | 20, 30,40 | 30,40 | 30,40 | |||
| Motor | Lifting | Type /kw |
ZD1 32-4/4.5 ZDS1 0.4/4.5 | ZD1 41-4/7.5 ZDS1 0.8/7.5 | ZD1 51-4/13 ZDS1 2.2/13 | ZDS1 1.5/13 | |
| Cross traveling | Type /kw | ZDY12-4/0.4 | ZDY121-4/0.8 | ZDY21-4/0.8*2 | ZDY21-4/0.8*2 | ||
| Long traveling | Ground | ZDY21-4/0.8*2 ZDY21-4/1.5*2 | YZY22-4/1.5*2 YZR132M2-6/3.7*2 | YZR22-4/1.5*2 | YZR160M1-6/6.3*2 YZR160M2-6/8.5*2 | ||
| Cabin | ZDR100-4/1.5*2 ZDR112-4/2.1*2 | YZR112L1-4/2.1*2 YZR132M2-6/3.7*2 | YZR112L1-4/2.1*2 YZR160M2-6/8.5*2 | YZR160M1-6/6.3*2 YZR160M2-6/8.5*2 | |||
| Electric hoist | Model | CD1/MD1 | CD1/MD1 | CD1/MD1 | CD1 | ||
| Lifting height | m | 6,9,12,18,24,30 | |||||
| Working duty | A3 Contact us: | ||||||
| Power supply | 380V 50HZ 3phase AC (According to your demand ) | ||||||
Main beam structure:

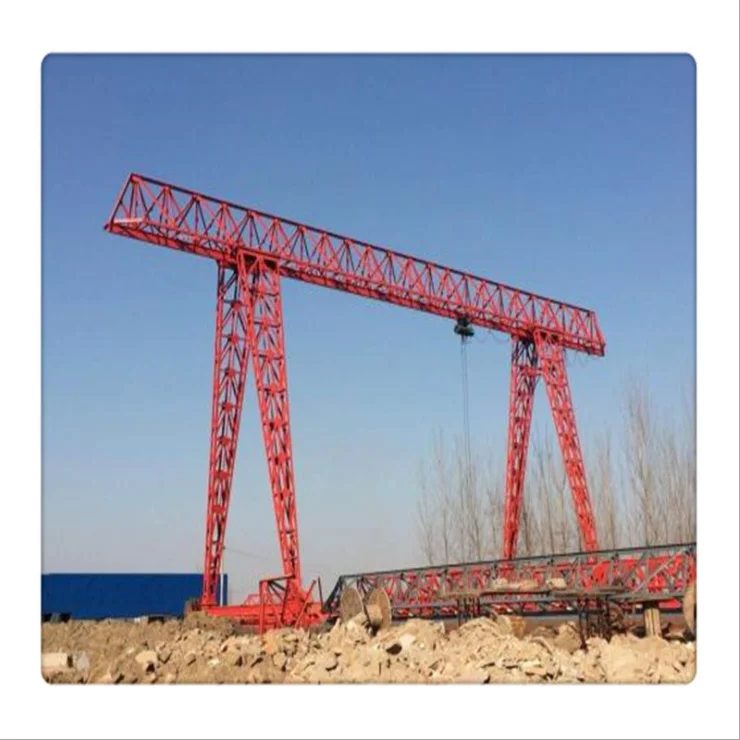

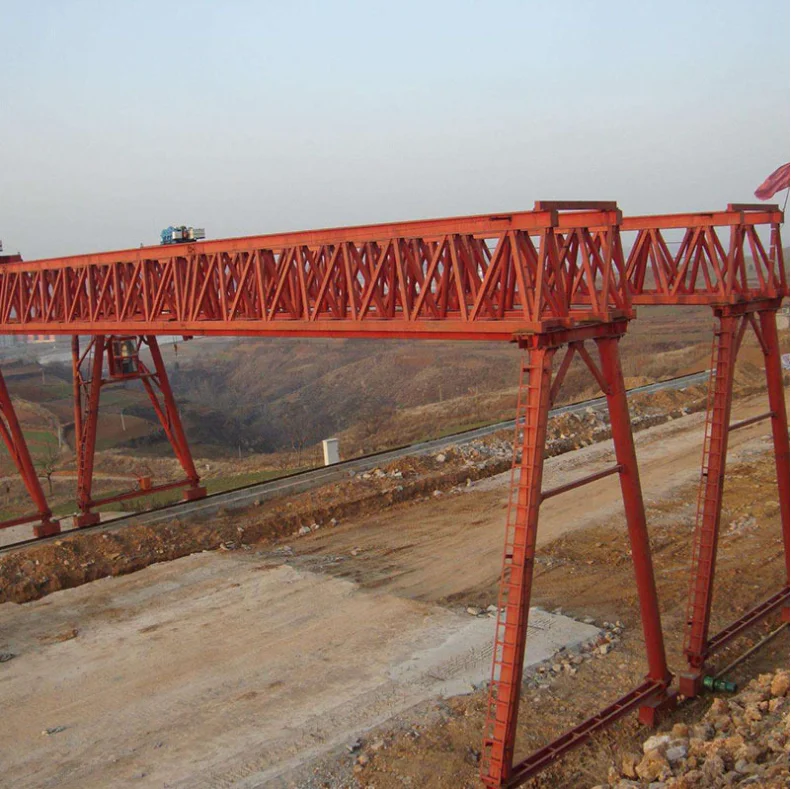

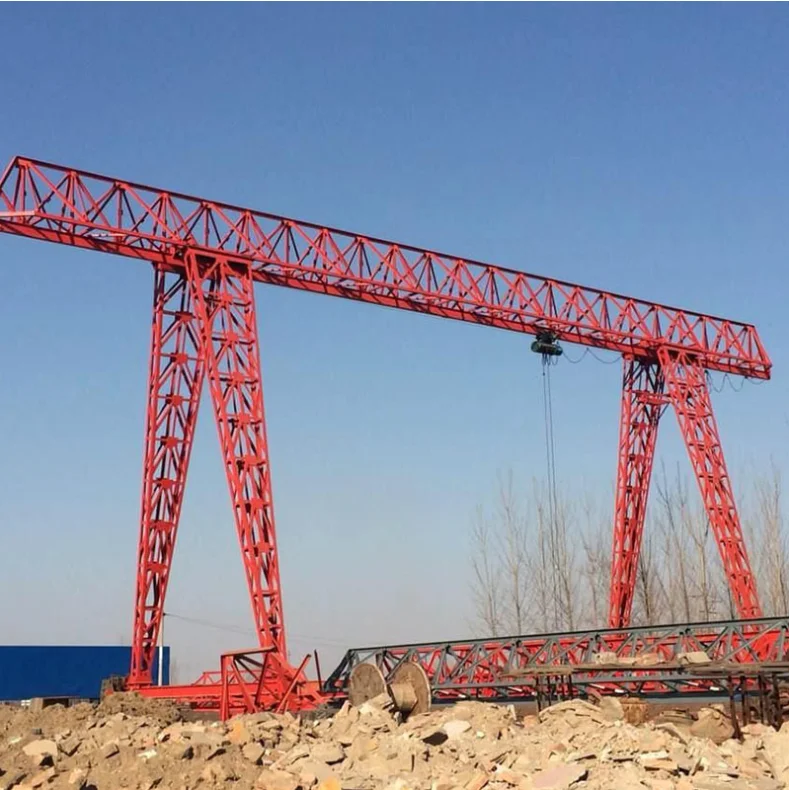

Truss beam
The structural form made by welding angle steel or I-shaped steel has the advantages of low cost, light weight and good wind resistance. However, due to the many welding points and the defects of the truss itself, the truss beam also has the disadvantages of large deflection, small stiffness, relatively low reliability, and frequent inspection of welding points. It is suitable for sites with low safety requirements and small lifting capacity.
Box girder
The steel plate is welded into a box structure, which has the characteristics of high safety and high rigidity. Generally used for gantry cranes with large tonnage and super large tonnage. Box girder also has the disadvantages of high cost, heavy weight, and poor wind resistance.
Packaging & Shipping
Related Products
Exhibition & Visit
Company Information
Zhongye cranegreat (Henan) Co., Ltd. is located in Changyuan City, Henan Province, which is the crane manufacturing base of the People's Republic of China. The base is the largest in the lifting industry, with the highest concentration and the most complete chain. Crane manufacturing center. Zhongye Company specializes in the import and export of lifting equipment and accessories. As the earliest enterprise to enter this field, Zhongye Company has more than 20 years of industry experience and is a team with comprehensive technology and services and united and enterprising.
factory
FAQ
Gantry crane ordering instructions
About the product: Please tell us the following data so that we can confirm your needs faster!
1. Lifting capacity.
2. Span (track center to guide center)
3. Lifting height (hook center ground)
4. Whether overhang is required (please provide overhang length)
5. Do you need rails and cables? (Please provide running length)
6. Other special requirements
If you have more detailed information, please inform, we will give the price more accurately!
