3 дюйма 4 AC/DC водяной насос на солнечной энергии Погружной
- Категория: Solar Water Pump >>>
- Поставщик: Shanghai,Lanchuan,Automation,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 274.43 $* | 288.99 $* |
| Aug-15-2025 | 271.1 $* | 285.55 $* |
| Jul-15-2025 | 228.48 $* | 239.8 $* |
| Jun-15-2025 | 267.17 $* | 280.47 $* |
| May-15-2025 | 232.79 $* | 244.84 $* |
| Apr-15-2025 | 262.81 $* | 275.7 $* |
| Mar-15-2025 | 260.93 $* | 273.24 $* |
| Feb-15-2025 | 258.26 $* | 271.90 $* |
| Jan-15-2025 | 255.33 $* | 268.38 $* |
Характеристики

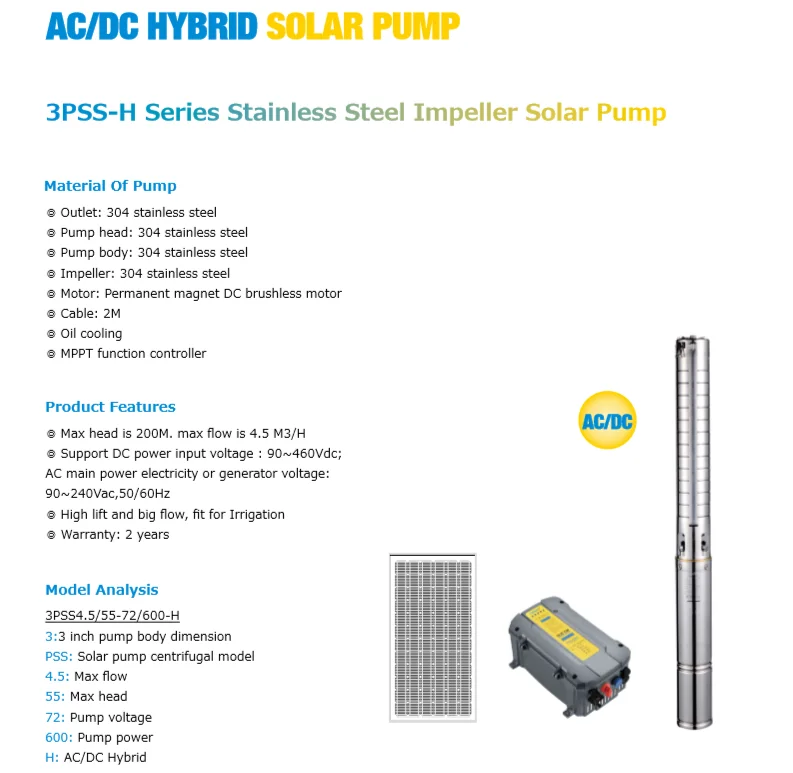

Product Description

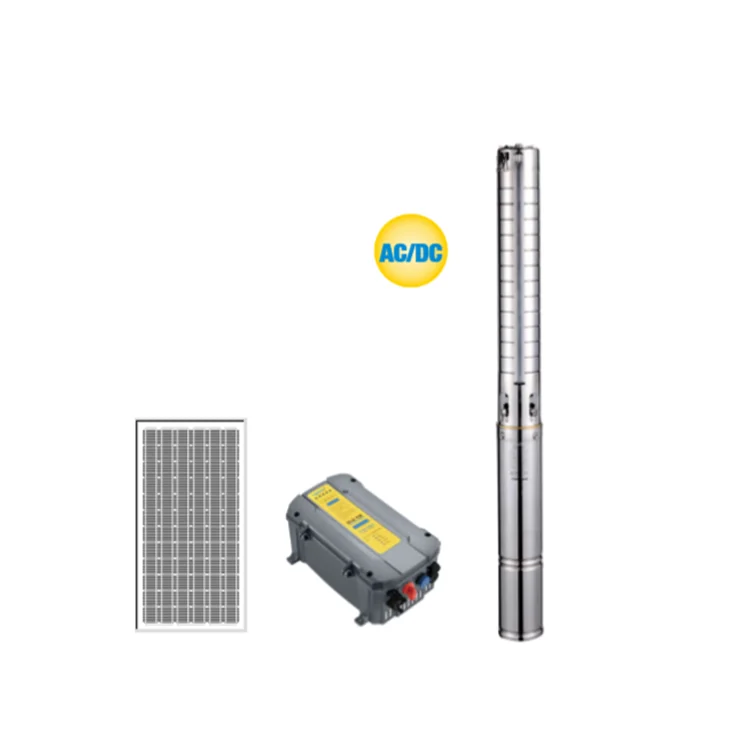

3 Inch 4 inch AC/DC Solar Power Water Pump Submersible Solar Pump
| ITEM NO. | VOLTAGE (V) | POWER (W) | MAX FLOW (M³/H) | MAX HEAD (M) | OUTLET (INCH) | CABLE (M) |
| 4PSS3.0/80-72/600-H | 72 | 600 | 3.0 | 80 | 1.25" | 2 |
| 4PSS3.0/100-96/750-H | 96 | 750 | 3.0 | 100 | 1.25" | 2 |
| 4PSS3.0/125-120/900-H | 120 | 900 | 3.0 | 125 | 1.25" | 2 |
| 4PSS3.0/140-144/1100-H | 144 | 1100 | 3.0 | 140 | 1.25" | 2 |
| 4PSS3.0/170-192/1500-H | 192 | 1500 | 3.0 | 170 | 1.25" | 2 |
| 4PSS3.5/260-280/2200-H | 280 | 2200 | 3.5 | 260 | 1.25" | 2 |
| 4PSS4.0/70-72/600-H | 72 | 600 | 4.0 | 70 | 1.25" | 2 |
| 4PSS4.0/90-96/750-H | 96 | 750 | 4.0 | 90 | 1.25" | 2 |
| 4PSS4.0/100-120/900-H | 120 | 900 | 4.0 | 100 | 1.25" | 2 |
| 4PSS4.5/120-144/1100-H | 144 | 1100 | 4.5 | 120 | 1.25" | 2 |
| 4PSS4.5/150-192/1500-H | 192 | 1500 | 4.5 | 150 | 1.25" | 2 |
| 4PSS5.0/240-280/2200-H | 280 | 2200 | 5.0 | 240 | 1.25" | 2 |
| 4PSS5.5/50-72/600-H | 72 | 600 | 5.5 | 50 | 1.25" | 2 |
Benefits:
The solution to your remote water pumping needs. Submersile centrifugal & screw solar water pumping system is rugged, durable and built to last. This pump delivers a steady 1-36m³/h (17-600LPM) at its maximum depth of 100-600 feet (30-180M) when supplied with DC power. Its unique water-tight power connector stops water wicking and prevents potential condensation problems. Great for livestock watering, irrigation, pond aeration, remote homes and 120m deep well.
Features:
- solar water pumping system use with solar panels and DC24 & DC48 & DC72 & DC96V battery systems
- Water blocked cable connector is impervious to water leakage and condensation
- Fits 3inch Dia. and larger wells
- submersible solar pump accepts a variety of jacketed cables from your power source
- Runs dry without damage temporary
- Easily repaired in the field
- 304 stainless steel inlet screen for solar powered water pump
- Corrosion-proof housing with stainless steel fasteners
- Quick disconnect electrical connection
- Require to work with a pump control box
- MPPT function
Note:
1. Do not mix the positive (+) and negative (-) connection.
2. Do not operate for long time when there is no water in the pump
3. The pump is submersible pump, it must be full submerged in the water.
4. Copper wire required. ( PS: 6 mm² or 10 mm² copper wire is required when the cable length is too long.)
5. The diameter of the pipe connected to the pump must bigger than 1 inch. Don’t block or bend the pipe/ inake/ outlet. Damage caused by the above is not covered by the warranty.
Send us inquiry, we will send best price and free samples for your test!
Related product
Customer high praise
Installation
SOLAR PANELS AND BATTERIES SELECTION:
1. The power of solar panel=power of pump X 1.3, the voltage of solar panel=the voltage of pump, the controller should be matched
2. Select the batteries according to the following fomulas: The use hour of Battery=The battery capacity÷(the machine power÷the battery voltage) X 0.6 . For example,the machine power is 200w,the battery capacity is 100AH,the voltage is 12V,and the battery is fully charged,then the use hour is 100÷(200/12) x 0.6=3.6housrs.
3. The battery capacity=the use hour÷0.6 x (the machine power÷the battery voltage) For example,the machine power is 200w,the battery capacity is 12V,and the battery need to be used for 3.6 hours,the the battery capacity is: 3.6÷0.6 x (200÷12)=100AH
Application Feedback
Related product
Company Information
Packaging & Shipping
Our Services
FAQ
1. Q: Can I know more about your products?
2. A: Pls view our website: www.mslace.en.alibaba.com
2. Q: What's your MOQ of this item?
A: 1~2PCS
3. Q: What is the lead time?
A: 15~30 days after receiving your payment, it depends on pumps.
4. Q: What is the payment term?
A: Normally T/T in advance or L/C at sight. Others like D/P, Cash, Credit Card
5. Q: what is the product's warranty?
A: The whole pump is warrantee for one year, while the spare parts or wetting parts about pump will be warrantee for 3 months from the date of delivery.
6. Q: Are you a manufacturer or trading company
A: We are a manufacturer specialize in water pump and other pumps more than 20 years.
