Найти Мотор задний привод 36V 250W спицевое колесо мотор для центрального движения электрического
- Категория: >>>
- Поставщик: Changzhou,Found,Environmental,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 40.20 $* | 42.13 $* |
| Aug-16-2025 | 40.3 $* | 42.43 $* |
| Jul-16-2025 | 34.26 $* | 36.49 $* |
| Jun-16-2025 | 39.43 $* | 41.51 $* |
| May-16-2025 | 34.90 $* | 36.2 $* |
| Apr-16-2025 | 39.79 $* | 41.68 $* |
| Mar-16-2025 | 38.79 $* | 40.16 $* |
| Feb-16-2025 | 38.67 $* | 40.95 $* |
| Jan-16-2025 | 38.42 $* | 40.96 $* |
Характеристики

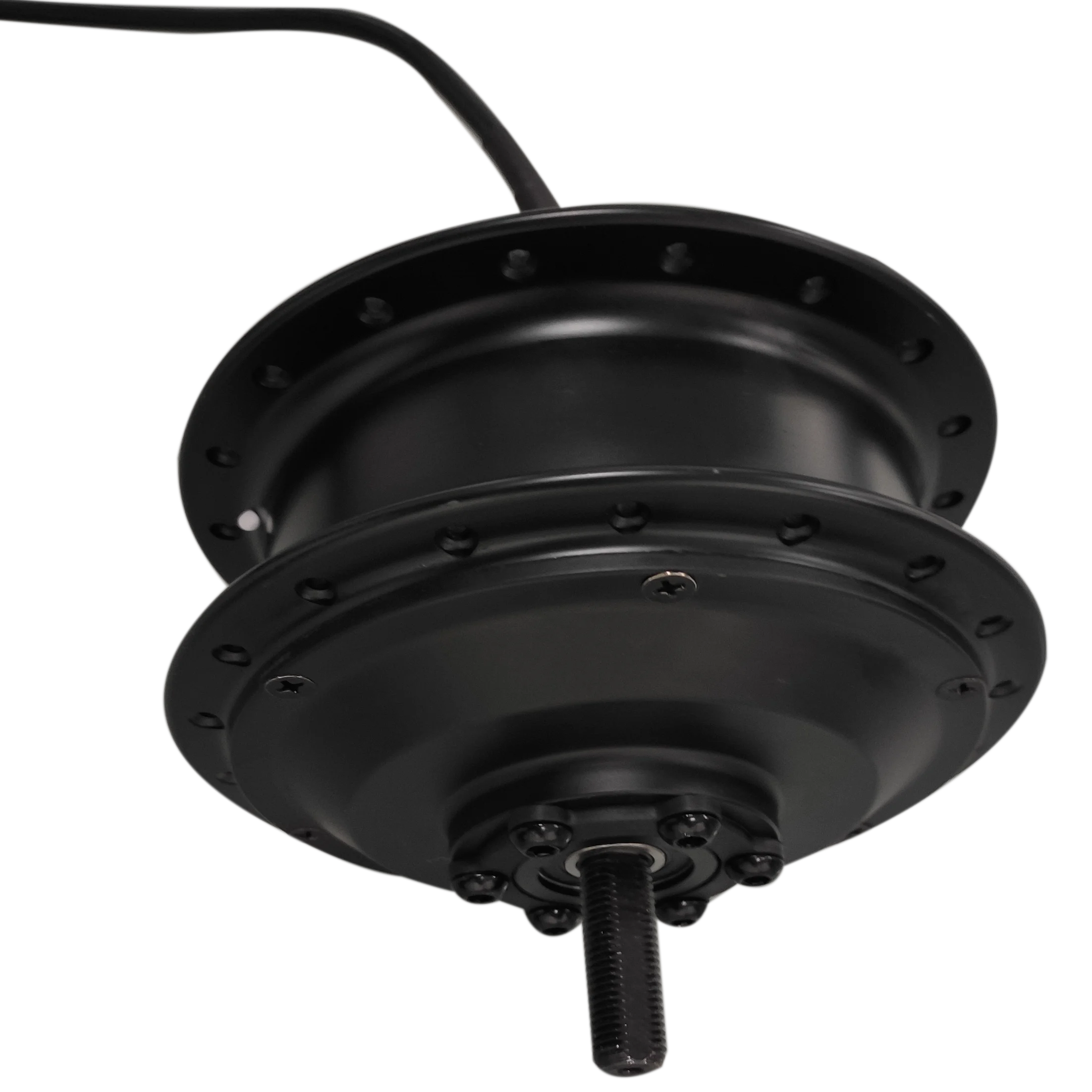

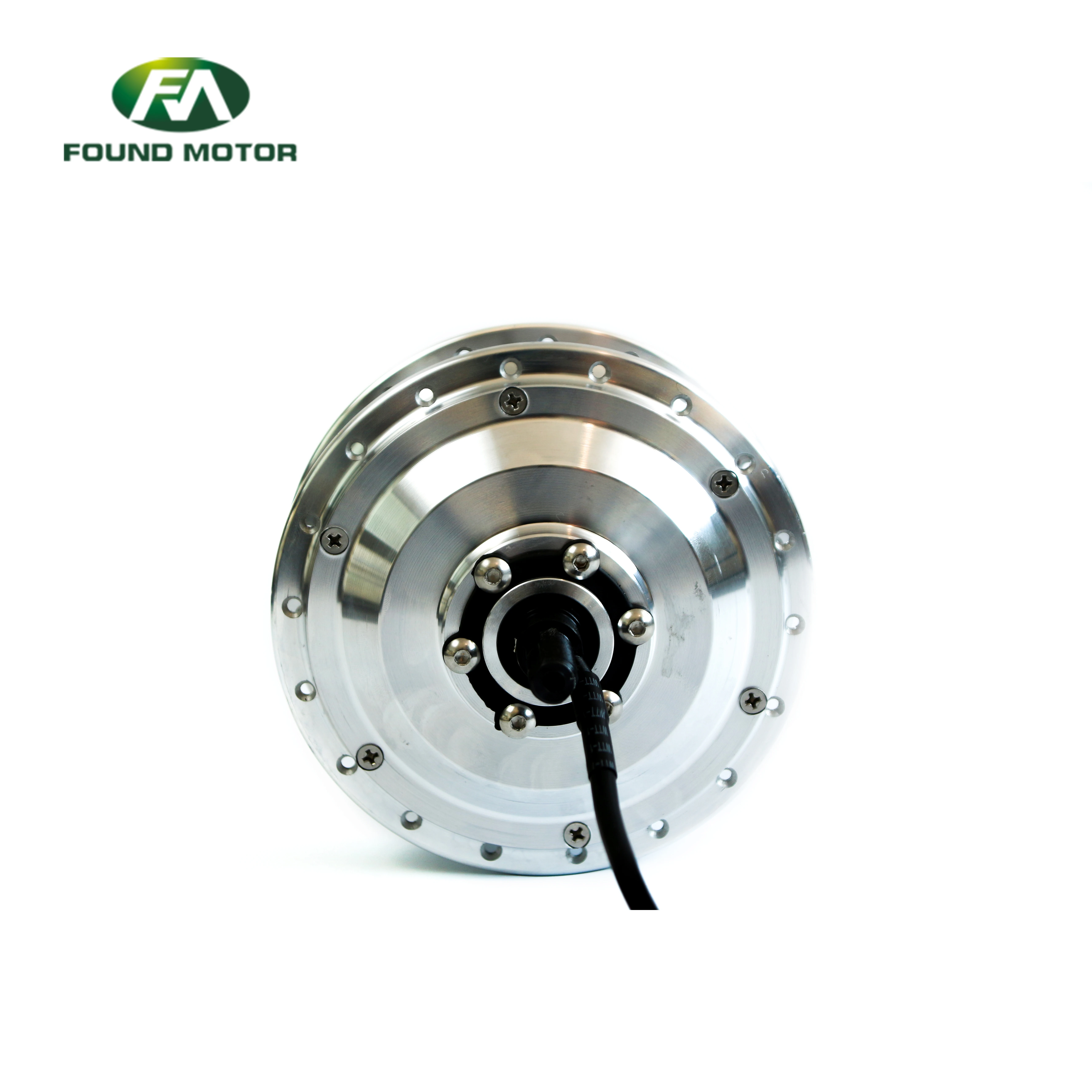

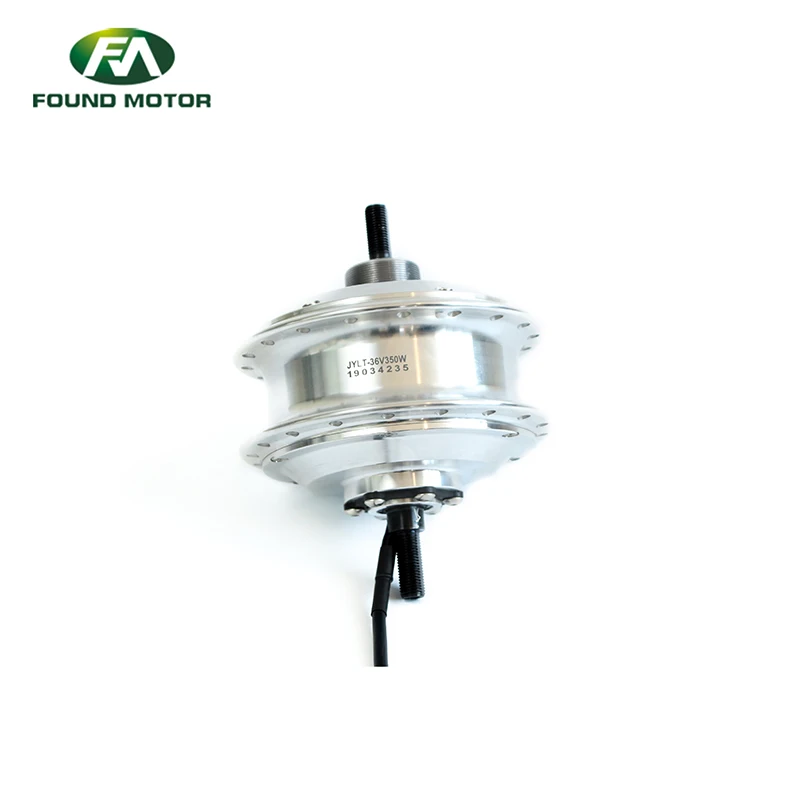

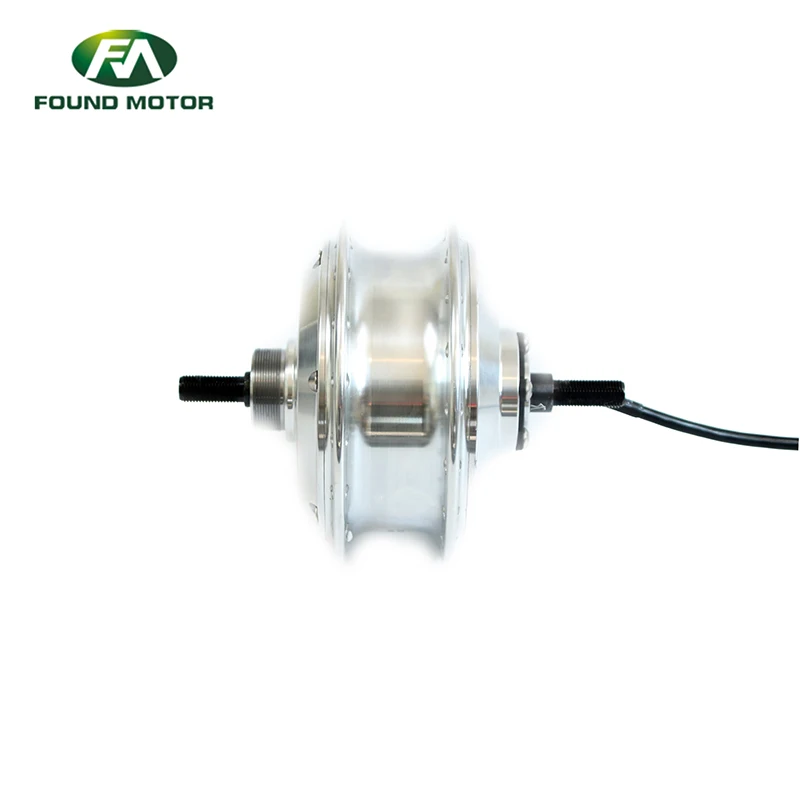

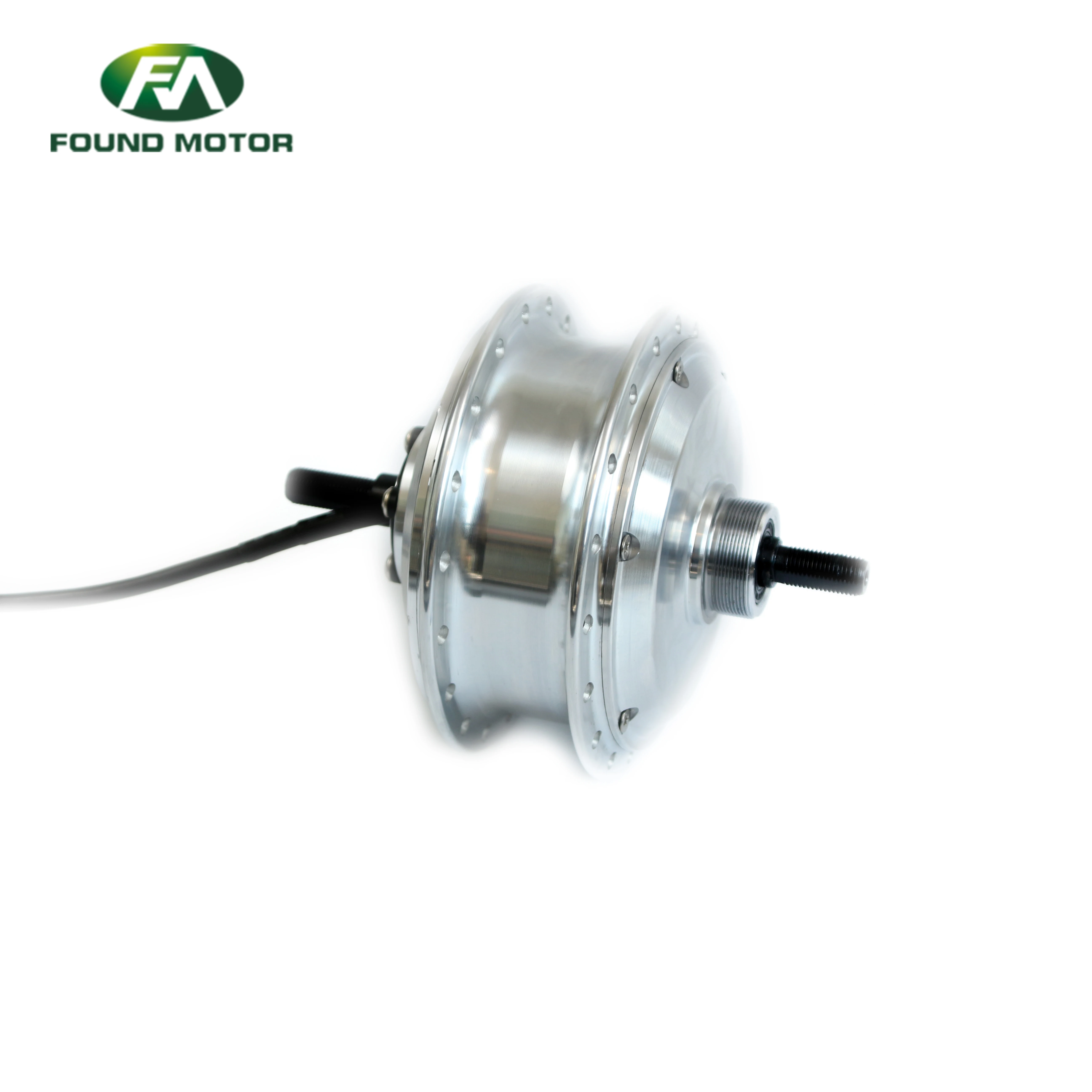

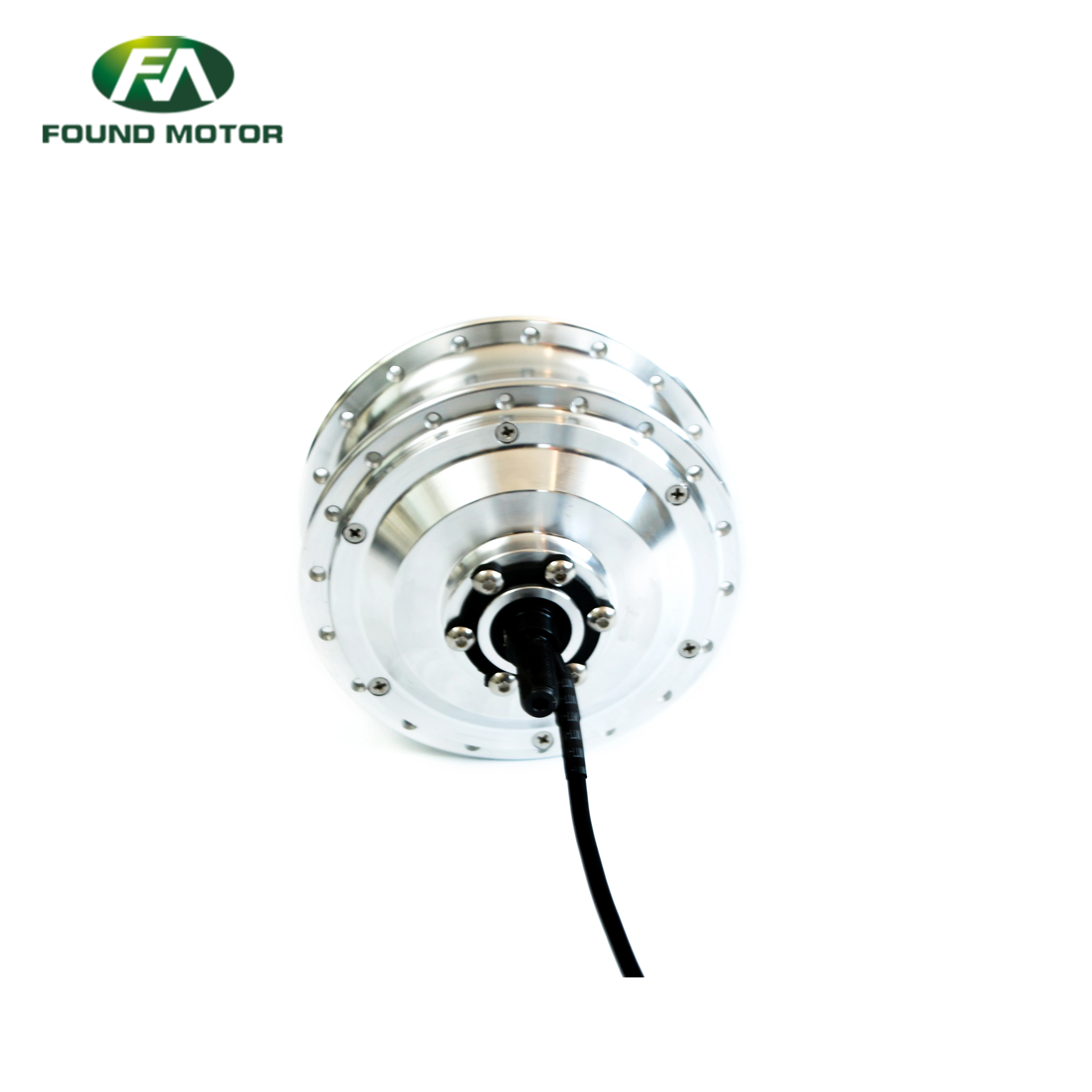

FOUND MOTOR rear drive 36V 250W spoke wheel hub motor for electric bicycle motor
Model | FM-01-01-92Z |
Rated Voltage(V) | 24/36/48 |
Rated power(W) | 180-350 |
Wheel Size | 14”-28” |
Spoke Specification | 12G/13G |
Spoke holes | 36 |
Rated Speed(km/h) | 25 |
Rated Efficiency(%) | ≥80 |
Reduction Ratio | 1:4.4 |
Weight (Kg) | 2.8 |
Open Size(mm) | 125 |
Drive And Freewheel | Rear drive/1S(single speed) |
Cable Location | Optional |
Hall Sensor | Optional |
Integrate Speed sensor | Optional |
Surface | Black/Silver |
Brake Type | V brake/Disc brake |
Salt fog test(h) | 24/96 |
Noise (db) | <55db |
Waterproof Grade | IP54/IP65 |
MOTOR OPEN SIZE
MTB/Normal electric bike
1.Front drive motor:100mm
2.Rear drive single speed motor: 125mm
3.Rear drive 6-9speed motor: 135mm
4.Rear drive cassette:140mm
Fat bike/Snow bike
1.Front drive motor:130-140mm
2.Rear drive motor:170-190mm
Single speed, 6-9speed,cassette motor optional.
Electric motorcycle
180-200mm
PRODUCT APPLICATION CASES
COMPANY PROFILE
CHANGZHOU FOUND ENVIRONMENTAL TECHNOLOGY CO., LTD,A Professional Electric Motor Manufacturer & Experienced Motor Kit Supplier in China,located in Changzhou City,Jiangsu Province.
We recommend a low-carbon green lifestyle and support green environmental travel , we love riding culture,We want to enjoy green and healthy life with you!
Our products:
1.Electric Bike Motor&Electric Scooter Motor
(1)Spoke Motor
(2)Integrated wheel motor
(3)Magnesium Alloy Motor
(4)Custom motor
(5)Mid drive motor
(6)Switched reluctance motor
2.Electric bike conversion kit
3.Electric bike accessories
Controller,Throttle&Grips&Brake lever&Switch,LCD display&LED display&PAS&Front light,Electric bike frame &Front fork
4.Electric bike & Electric scooter
2019,In order to better realize the company's development, we have established an Electric Bike Industrial Park with our partners.
We can provide customers with one-stop service for the following products:
(1)Motor
(2)Controller
(3)Throttle&Brake lever&Switch
(4)LCD &LED display&Front light&PAS
(5)Front fork&Electric bike frame
(6)Electric Bike
We believe in keeping the customers happy by providing them best service all the time.
We always faithfully to: integrity, cooperation, innovation, win-win!
We look forward to: FOUND THE FUTURE WITH YOU!
CERTIFICATIONS
Found defines an OEM (Original Equipment Manufacturer) as an entity or organization that integrates a customized or embedded Found product in its own unique solution for sale to its customers. The proof of this concept is that the Found product must be significantly transformed. The OEM The firm side uses its own company logo and brand name on its solution and it markets, sells and providing technical and warranty support directly to its customers.
Our advantages:
1.Heartbeat price: Collaborative pricing strategy of motor, controller,throttle&brake lever&switch,LCD&LED display,PAS,front light,cutting extra cost and helping with get more profit margins for customers
2.Integrated performance: Specialist in providing intergrated solution for electric bike control system.
3.One-time delivery: Integration of all components of the production cycle, could improve the efficiency of supply chain.
4. One-stop service: The integrated service of providing assembly parts including pre-sale service, sale service, and after- sale service.
Our Services:
1.Two years guarantee.
2.Long time freely technical support.
3.24 hours technical support by e-mail&Wechat&Whatsapp&Skype.
4.Clients are our good friends, we will do our best to help friends, not limited to our existing products or business, we are happy to help friends and help them solve the problems.
