Характеристики

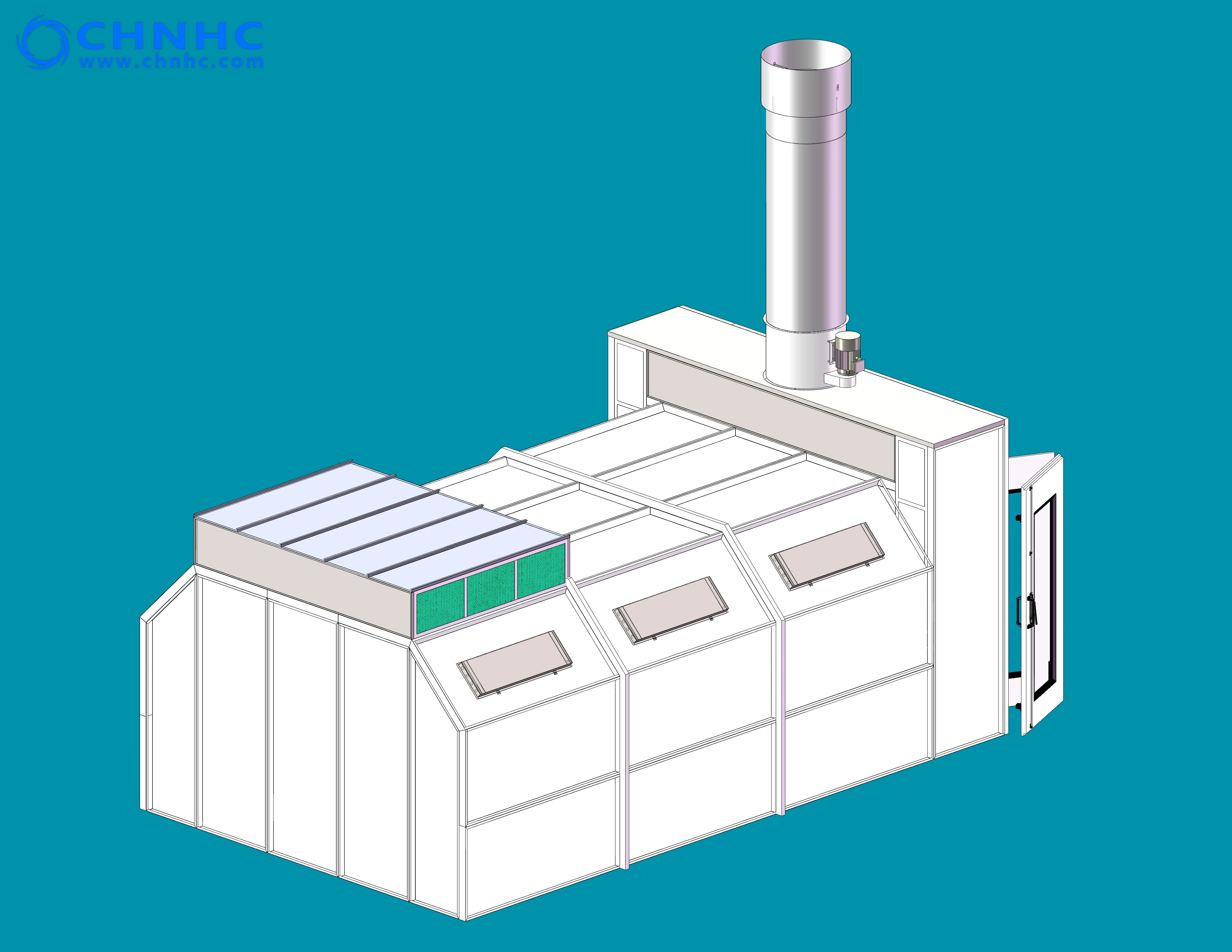

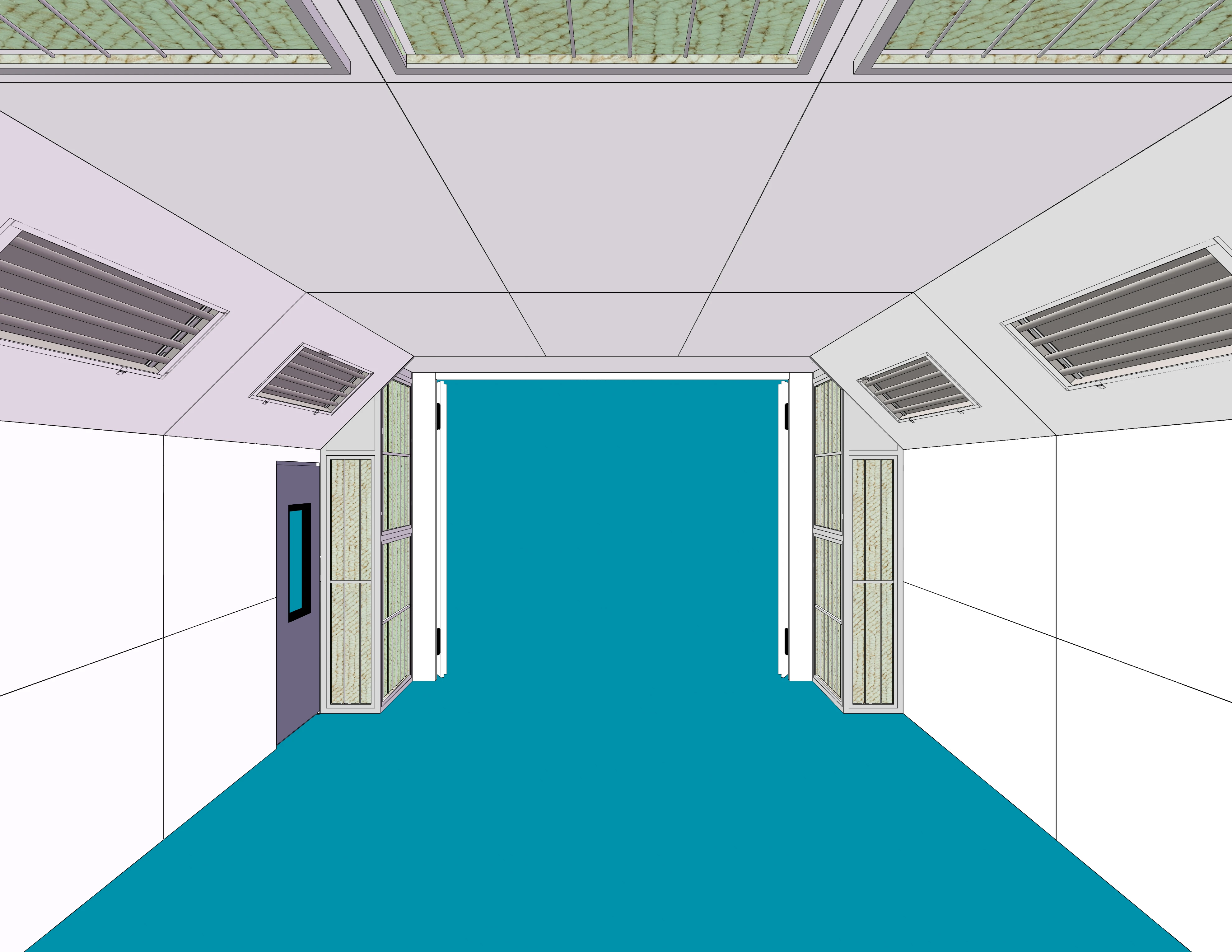

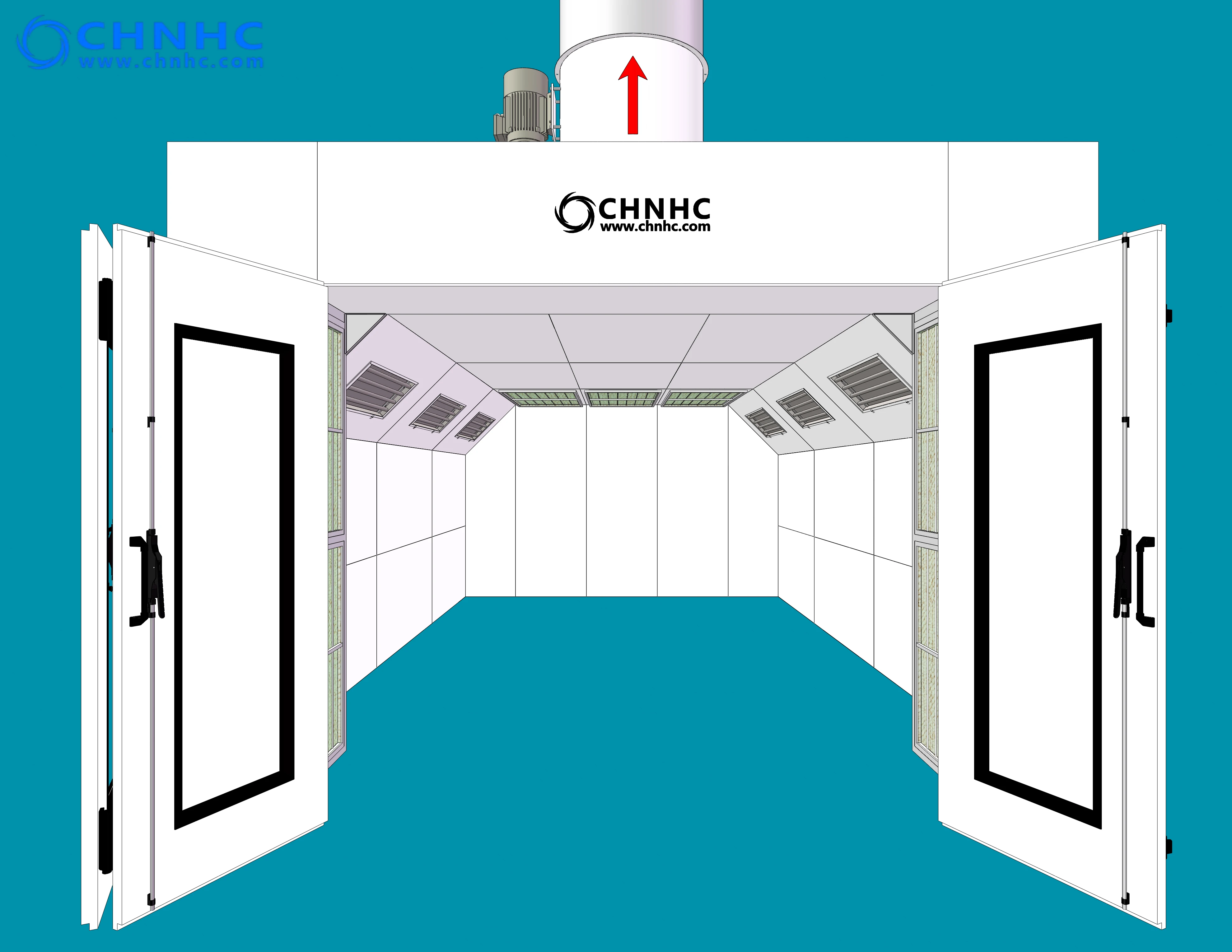

Specification of J1-HC
| J1-HC Spray booth 190902 | ||
Size: (L x W x H) | Inside size: | 7000 x 4000 x 2700 mm (L x W x H) |
Outside size: | 7100 x 4200 x 3100 mm (L x W x H) | |
Foundation and Floor | Foundation | No metal foundation, |
Wall and door | Wallboard | Adopt single-layer galvanized sheet bending forming, galvanized sheet material thickness 1.0mm (optional powder spraying white process) |
Entrance door | 1 set,Sheet metal gate, size: 2700X2600mm(W x H), Toughened large glass observation window | |
Operator door | 1 set, size: 700x1900mm (W x H), tempering glass observation window | |
Light System | Ceiling Lighting | 6units,each 4 x 16 W, LED light, ,Toughened glass, outer opening structure of light box |
Side Lighting | Optional | |
Brightness | ≥600 LUX | |
Filtration System | Pre-filters | Grade G2 plate type fibreglass filter |
Ceiling Filters | EU5 grade high efficient filter, Its filtering rate reaches 98% | |
Exhaust filter | Fibreglass paint-stop filter and G3 grade filter | |
Ventilation System | Inlet fan | --- |
Outlet fan | Adopt 1 set axial fan, 3KW, motor outside, Three-phase, 380V, 50HZ | |
Total fan Capacity | 19000 m³/h | |
Air Flow Speed in cabin | 0.4-0.5m/s in loaded booth | |
Standard piping | Standard with 3M straight pipe, 1 rain cap | |
Heating System | Heating | Optional infrared heater |
Control Board | Control system | Standard control system |
Function | Painting, lighting, emergency stop switch, error alarm | |
Total power | 3.5KW,380V, 50Hz optional :415 V/220V | |
Packaging &Shipping:
Comapny information:
HC Coating Equipment Manufacturing Co., Ltd. is an auto maintenance equipment company. Today it is a
global player in the automotive aftermarket providing a full range of equipment and service solutions for workshops.
The core products in our company are spray painting and baking booth, portable spray booth, bus/truck spray
paint booth, preparation station, mixing room, brake lathe, car bench and lifts. All our products are shipped to
Europe, East Europe, North & South America, Africa, Australia and Asia as well as different provinces in China.
Our company is accredited to the internationally recognized quality standards of CE, ISO9001:2008.
