Вихревой воздушный насос высокого давления промышленный
- Категория: Centrifugal Fans >>>
- Поставщик: Zhejiang,Shuntong,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 607.39 $* | 637.16 $* |
| Aug-15-2025 | 602.28 $* | 632.16 $* |
| Jul-15-2025 | 505.23 $* | 530.34 $* |
| Jun-15-2025 | 592.81 $* | 622.26 $* |
| May-15-2025 | 515.79 $* | 541.78 $* |
| Apr-15-2025 | 581.6 $* | 610.61 $* |
| Mar-15-2025 | 576.33 $* | 605.27 $* |
| Feb-15-2025 | 571.9 $* | 600.17 $* |
| Jan-15-2025 | 566.94 $* | 594.42 $* |
Характеристики

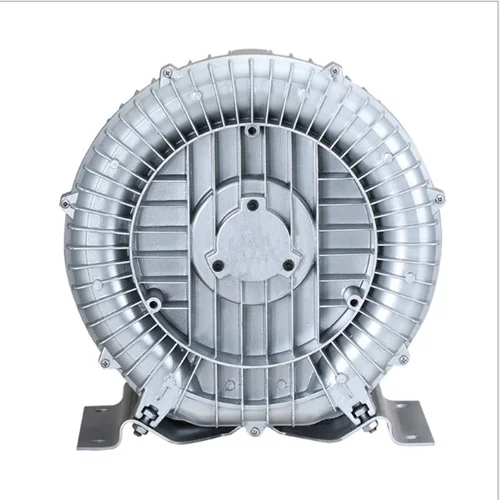

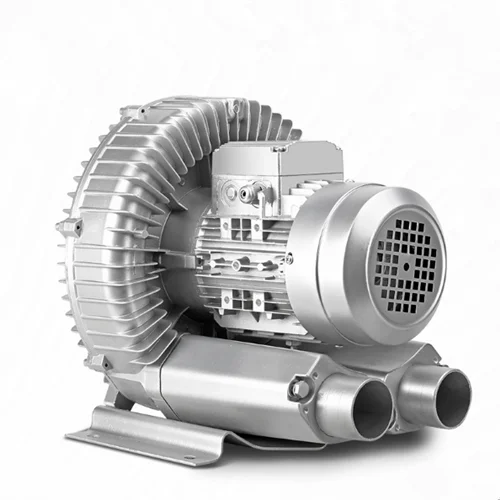

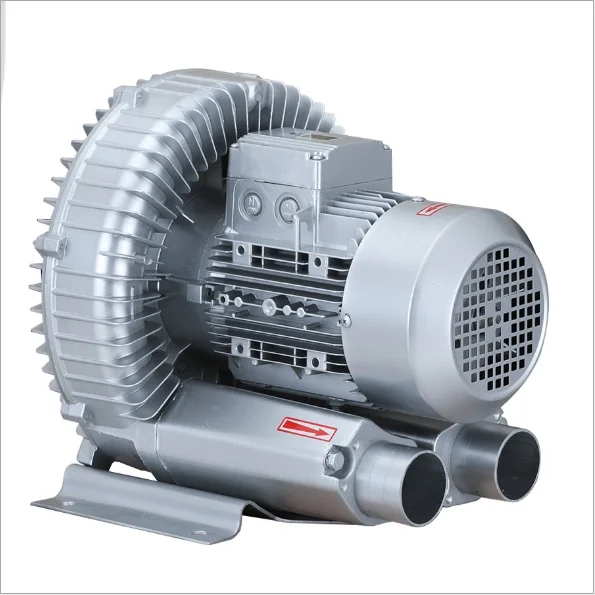

High-pressure Air Pump Industrial Aeration Pump Blower
CHARACTERISTIC
HG1 blowers can be used in almost all areas where pulsation-free vacuum and pressure operations are required. This type of fan can be installed horizontally or vertically. Die-cast aluminum makes it extremely robust.
- High Efficient
The HG1 fan is equipped with a 1.2 service factor high-efficiency motor, using cold-rolled silicon steel core and high-temperature sealed bearings. It can effectively reduce the working temperature rise and ensure the sustainable operation. The precise clearance between the cavity and the impeller makes the air medium output under pressure stably.
- Not Maintained
Permanently sealed high temperature bearings. Air-cooled motors and impeller-free access ensure full maintenance-free operation.
- Environmental protection
Oil-free compression and a built-in muffler, together with a high-efficiency motor, allow the HG1 scroll fan to run quietly with low energy consumption.
Technical note
The HG1 filter vortex high pressure fan works according to the pulse principle. The kinetic energy generated by the rotating impeller is transmitted to the pumped medium and converted into pressure. The side channel formed by the impeller and the aluminum casing directly mounted on the drive motor shaft allows the medium to be compressed therein and then discharged through the muffler on the pressure side.
Scenes to be used
Vortex air pump is a kind of dual-purpose ventilation air source. It is mainly used for: paper cutter, combustion deaerator, coiler filter forming machine, electroplating tank liquid stirring, atomization dryer, fish aeration and oxygenation. Water treatment aeration. Screen printing machine, photographic plate-making machine, automatic heavy load light material machine, liquid filling machine, powder filling machine, electric welding equipment, film machinery, paper conveying, dry cleaning clothes cleaning, air dust removal, dry bottles , Gas transmission and feeding, collection and so on.
PARAMETERS
| Model | Frequency (Hz) | Power (kw) | Voltage (v) | Current (A) | Max flow (m³/h) | Max pressure (mbar) | Max vacuum (mbar) | Speed (r/min) | Noise dB(A) |
| HG1-1 | 50/60 | 0.12/0.15 | 220 | 0.6/0.75 | 40/42 | 80/90 | 80/90 | 2800/3300 | 45/45 |
| HG1-1 | 50/60 | 0.18/0.22 | 220 | 0.9/1.1 | 56/58 | 90/100 | 90/100 | 2800/3300 | 48/48 |
| HG1-2 | 50/60 | 0.37/0.45 | 220 | 1.8/2.3 | 80/90 | 120/130 | 110/130 | 2800/3300 | 53/56 |
| HG1-2 | 50/60 | 0.37/0.45 | 380 | 1.1/1.29 | 80/90 | 120/130 | 110/130 | 2800/3300 | 53/56 |
| HG1-3 | 50/60 | 0.55/0.63 | 220 | 2.9/3.2 | 100/120 | 120/150 | 110/130 | 2800/3300 | 55/57 |
| HG1-3 | 50/60 | 0.55/0.63 | 380 | 1.6/1.8 | 100/120 | 120/150 | 110/130 | 2800/3300 | 55/57 |
| HG1-4 | 50/60 | 0.75/0.85 | 220 | 3.9/4.3 | 145/165 | 130/150 | 130/150 | 2800/3300 | 56/58 |
| HG1-4 | 50/60 | 0.75/0.85 | 380 | 2.15/2.43 | 145/165 | 130/150 | 130/150 | 2800/3300 | 56/58 |
| HG1-5 | 50/60 | 1.1/1.3 | 220 | 5.6/6.6 | 210/225 | 150/170 | 150/160 | 2800/3300 | 64/66 |
| HG1-5 | 50/60 | 1.1/1.3 | 380 | 3.15/3.72 | 210/225 | 150/170 | 150/160 | 2800/3300 | 64/66 |
| HG1-5 | 50/60 | 1.5/1.75 | 220 | 8.0/9.0 | 210/225 | 220/180 | 180/180 | 2800/3300 | 64/66 |
| HG1-5 | 50/60 | 1.5/1.75 | 380 | 4.29/5.0 | 210/225 | 200/180 | 180/180 | 2800/3300 | 64/66 |
| HG1-6 | 50/60 | 2.2/2.55 | 220 | 11.0/13.0 | 265/315 | 220/230 | 235/245 | 2800/3300 | 69/72 |
| HG1-6 | 50/60 | 2.2/2.55 | 380 | 6.29/7.29 | 365/315 | 220/230 | 235/245 | 2800/3300 | 69/72 |
| HG1-7 | 50/60 | 3.0/3.45 | 380 | 8.5/10.0 | 318/376 | 290/230 | 270/250 | 2800/3300 | 69/72 |
| HG1-8 | 50/60 | 4.0/4.6 | 380 | 11.4/13.1 | 530/620 | 260/280 | 260/280 | 2800/3300 | 70/74 |
| HG1-8 | 50/60 | 5.5/6.3 | 380 | 15.7/18.0 | 530/620 | 300/280 | 300/300 | 2800/3300 | 70/74 |
| HG1-8 | 50/60 | 7.5/8.6 | 380 | 21.4/24.5 | 520/620 | 400/330 | 400/360 | 2800/3300 | 70/74 |
| HG1-9 | 50/60 | 11/13 | 380 | 31.0/37.0 | 1050/1250 | 270/260 | 280/270 | 2800/3300 | 74/79 |
| HG`-9 | 50/60 | 15/18 | 380 | 42.8/51.4 | 1050/1250 | 460/420 | 340/380 | 2800/3300 | 74/79 |
PRODUCT DETAILS
Company Information
Wenzhou Shuntong Electric Co.,ltd.
Shuntong electric co.,ltd. is a professional manufacturer specializing in R & D, production and sales. The company has passed ISO9001: 2000 quality management system standard requirements certification. Specializing in industrial alarm, communication, lighting, aviation warning etc. Independently developed products are widely used in iron and steel metallurgy, telecommunications towers, lifting machinery, engineering machinery, ports and terminals, transportation,wind power generation, and ocean shipping. The company now has more than 20 professional and technical personnel, becoming one of the professional suppliers in this field, and has won wide recognition from customers.
The company follows the market-oriented, customer-centric, and integrity-based principles to ensure quality and cost reduction, improve management and efficiency, and to benefit customers with low prices and good quality. The company will wholeheartedly provide users with quality products and satisfactory services. Is willing to work with our customers to build the "SNTOOM" brand and create a brilliant tomorrow.
Certifications
•One of the member of China Supply Institute , the member of professional institute of "Household AC automatic voltage regulator" in domestic trading department and the authorized unit of"AC household appliances standardization" in domestic trading department.
•Certification-We have ISO9001,CE, RoHS,SGS etc.
•Technical support-more than 20 professional and technical personnel, becoming one of the professional suppliers in this field, and has won wide recognition from customers.
FAQ
Q 1.What's the payment term?
A. We accept T/T,LC,Western Union,Paypal.
Q 2.What is the delivery time?
A. It depends on order quantity,usually it will take about 3-5 days for sample production.
Q 3.What's the package used for?
A. For the small capacity,will use carton,but for big capacity,we should use honeycomb carton and pallet or wooden case for protection.
Q 4.Would you accept to use our logo?
A.It's no problem,we accept OEM service.
Q 5. What kind of certificates you have?
A. Our company has ISO9001,CE, RoHS,SGS etc.
