Vmaxpower солнечная энергетическая система 10-100 кВт фотоэлектрическая включения/выключения гибридная
- Категория: Renewable Energy >>>
- Поставщик: Beijing,Multifit,Electrical,Technology,Co.,Ltd.Beijing,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 98.95 $* | 100.69 $* |
| Jul-16-2025 | 79.89 $* | 81.23 $* |
| Jun-16-2025 | 96.91 $* | 98.27 $* |
| May-16-2025 | 95.81 $* | 97.5 $* |
| Apr-16-2025 | 76.12 $* | 78.58 $* |
| Mar-16-2025 | 94.10 $* | 96.80 $* |
| Feb-16-2025 | 93.8 $* | 95.69 $* |
| Jan-16-2025 | 92.18 $* | 94.97 $* |
Характеристики
Product Description
Multifit Off Grid Solar Power systems (Vmaxpower )
what you need for one system
System Instruction | 10KW on-grid photovoltaic system | ||||||
Item | Part | Specification | Quantity | Remarks | |||
1 | Solar panel | MUL-6M-350P-72 Poly 350W | 29PCS | ||||
2 | Inverter | 10KW | 1 unit | 10KW three phase(380V) on grid inverter | |||
3 | AC Distribution box | 10KW | 1 unit | Three phase 380V 50Hz | |||
4 | Bracket | 6m C type steel | 24pcs | 41*41*2.5mm | |||
5 | PV cables( to inverter) | Black and Red | 100m each | If the client wants longer cables, the price needs to be confirmed again. | |||
6 | MC FOUR connector ( C type steel connecting bolt and screw) | 10 set | |||||
Instructions | Above prices are for reference only. The final price needs to be confirmed . | Above prices are for reference only. The final price needs to be confirmed . | |||||
System Instruction | 10KW off-grid photovoltaic system | ||||||
Design Basis | the system DC voltage is set to 96VDC | ||||||
Item | Part | Specification | Quantity | Remarks | |||
1 | Solar panel | MUL-6M-350P-72 Poly 350W | 35PCS | ||||
2 | Solar controller | 96V 60A | 2pc | MPPT controller | |||
3 | Inverter | VMI-D 10KW 96V 10KW | 1 unit | 10KW inverter pure sine wave | |||
4 | Seal lead acid battery | 12V 200Ah | 24pcs | AGM type Deep Cycle solar battery | |||
5 | PV combiner box | 4 string | 1 set | ||||
6 | Bracket | 6m C type steel | 31pcs | 41*41*2.5mm | |||
7 | PV cables( to inverter) | Black and Red | 100m each | If the client wants longer cables, the price needs to be confirmed again. | |||
8 | MC FOUR connector ( C type steel connecting bolt and screw) | 20 set | |||||
9 | Battery rack | optional | |||||
Instructions | Above prices are for reference only. The final price needs to be confirmed . | ||||||
Note: Product dimensions and physical appearance in this data sheet are nominal. Multift Power reserves the right to make the product changes from time to time,without prior notification, which may change the dimensions and/or physical appearance shown.
Parallel Connection
The inverter accept parallel connection up to Six pieces
Three phase working
the inverter could be connected to Three phase
Solar Panels
Optional Mono/Poly
Blue/Black Panels
High Efficiency panels available
25 years warranty with 80% power output
PID Resistant,High salt and ammonia resistance
* High-transmittance and low reflection
* High solar transmittance
* High mechanical strength
> Service life is as long as 25 years (30 years optional)
Blue/Black Panels
High Efficiency panels available
25 years warranty with 80% power output
PID Resistant,High salt and ammonia resistance
* High-transmittance and low reflection
* High solar transmittance
* High mechanical strength
> Service life is as long as 25 years (30 years optional)
Grid Tie Inverters
> 5 years standard warranty> Max.Efficiency 99.6%,European efficiency 99%;
> Integrated DC switch for added safety protection;
> Power factor continuously adjustable
>Transformer-less design and high power density,
off lighter and more convenient installation
> Flexible communication connection,support RF WIFI
Mounting structure
> Residential Roof(Pitched Roof)
> Commercial Roof(Flat roof&workshop roof)
> Ground Solar Mounting system
> Vertical wall solar mounting system
> All aluminum structure solar mounting system
> Car parking solar mounting system
> Commercial Roof(Flat roof&workshop roof)
> Ground Solar Mounting system
> Vertical wall solar mounting system
> All aluminum structure solar mounting system
> Car parking solar mounting system
Solar combiner box
> IP65 protection ,dustproof and UV resistant
>Strict high and low temperature test
> Suitable for a wide area
>The system wiring is simplified and convenient
> Designed independently for each user
>Strict high and low temperature test
> Suitable for a wide area
>The system wiring is simplified and convenient
> Designed independently for each user
Solar panel bracket
Choose the most suitable bracket according to different installation locations to provide customers with professional technical support
Solar cable &MC FOUR
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:/1000VDC/1500VDC
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
Lead-Acid battery
Capacity(kWh): 2.4KWHNominal Voltage(Vdc): 12
Nominal Capacity(AH): 200
Depth of Discharge: 70%

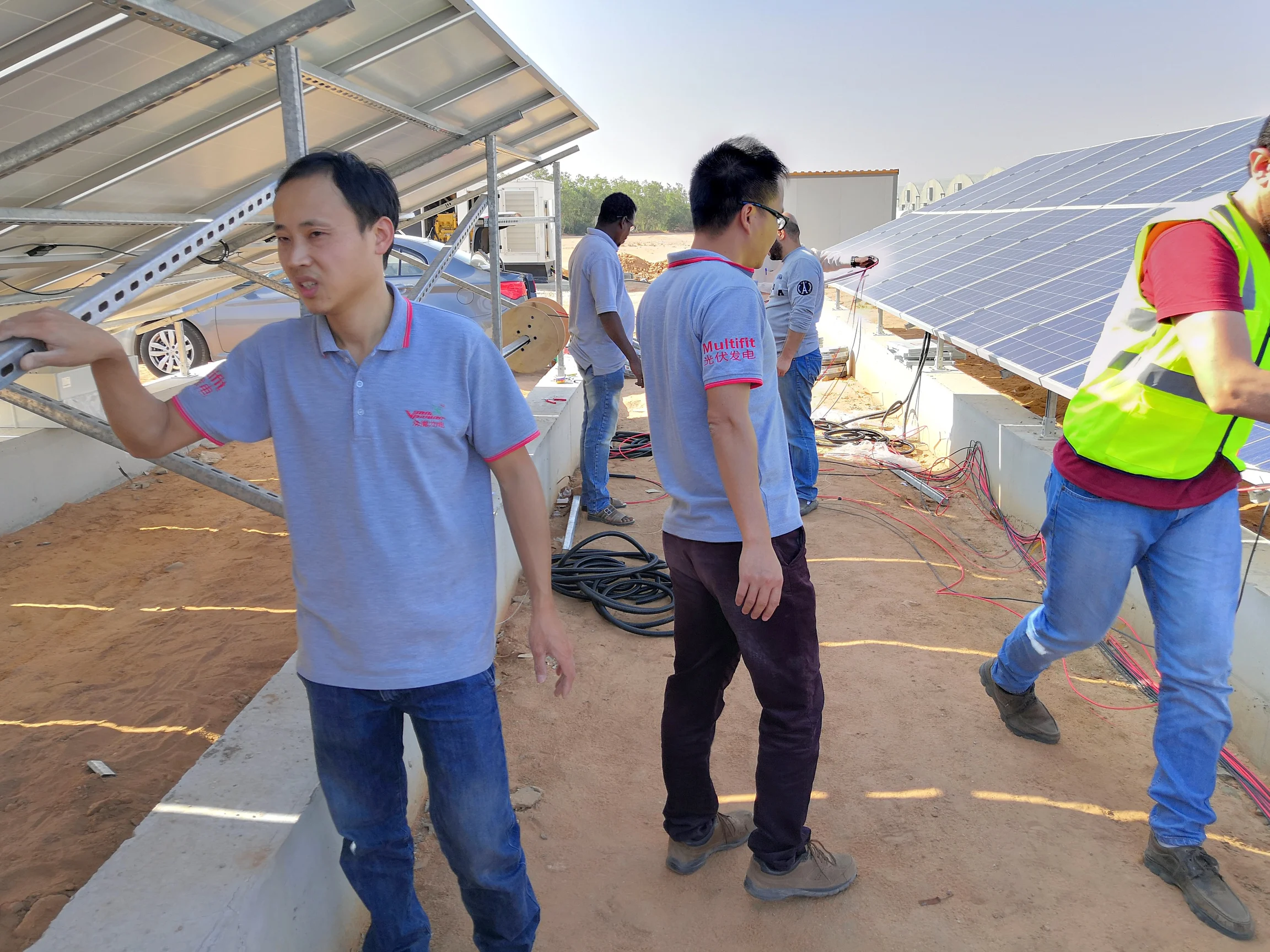

Customer Photos
Our Factory

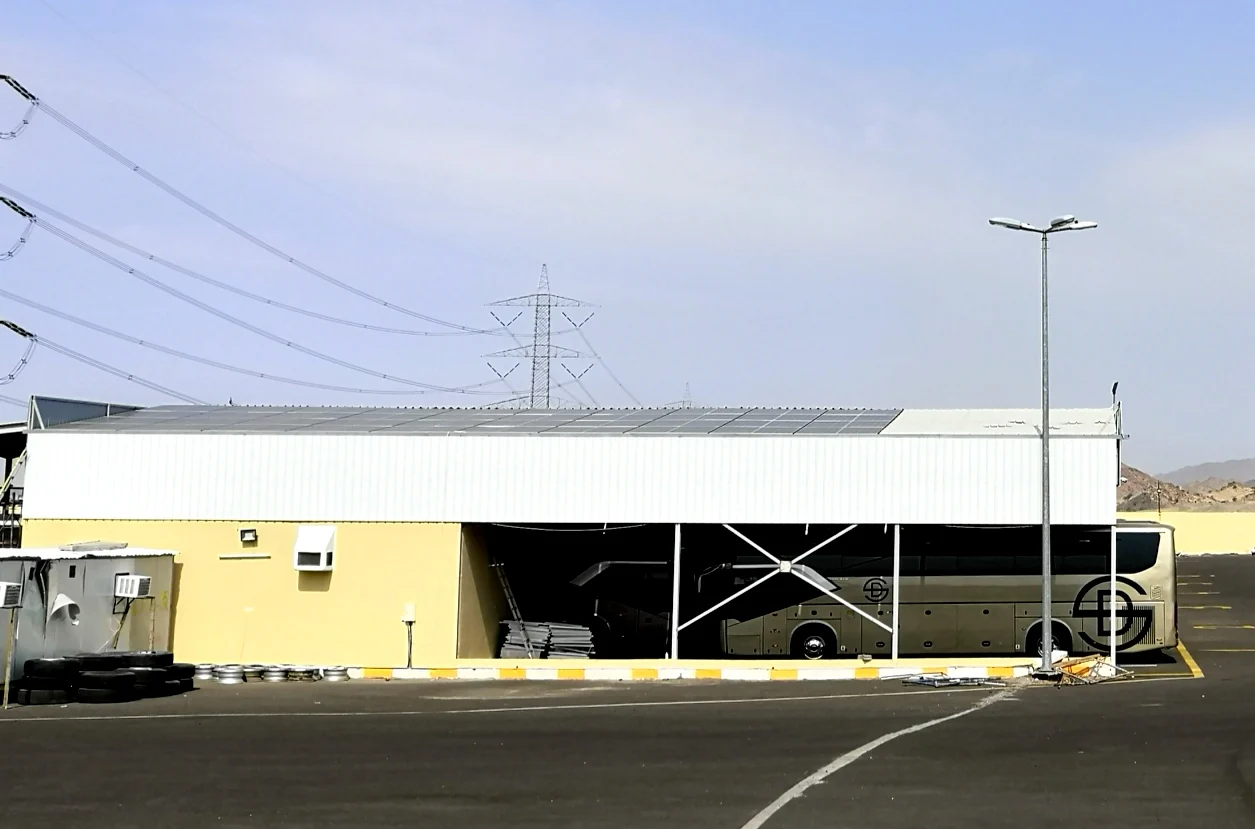

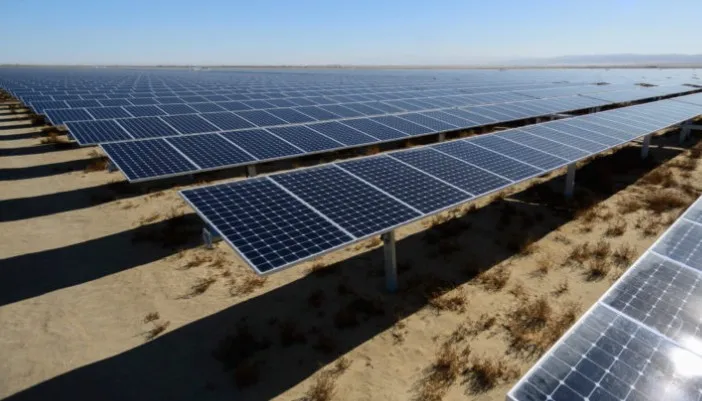

Engineering Cases
