Недорогой водонепроницаемый пыленепроницаемый умный беспроводной GPS-трекер CST MobicomIOT 4G LTE Micro Mini для мотоцикла автомобиля транспортного
- Категория: GPS Tracker >>>
- Поставщик: Shenzhen,Mobicom,Telematics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 2792.88 $* | 2932.0 $* |
| Aug-17-2025 | 2768.61 $* | 2906.56 $* |
| Jul-17-2025 | 2323.27 $* | 2439.94 $* |
| Jun-17-2025 | 2721.31 $* | 2857.76 $* |
| May-17-2025 | 2369.19 $* | 2487.4 $* |
| Apr-17-2025 | 2674.66 $* | 2808.87 $* |
| Mar-17-2025 | 2651.47 $* | 2784.29 $* |
| Feb-17-2025 | 2628.20 $* | 2759.26 $* |
| Jan-17-2025 | 2604.11 $* | 2734.50 $* |
Характеристики
Mini 4G gps tracking device G108P motorcycle gps tracker
Product Description

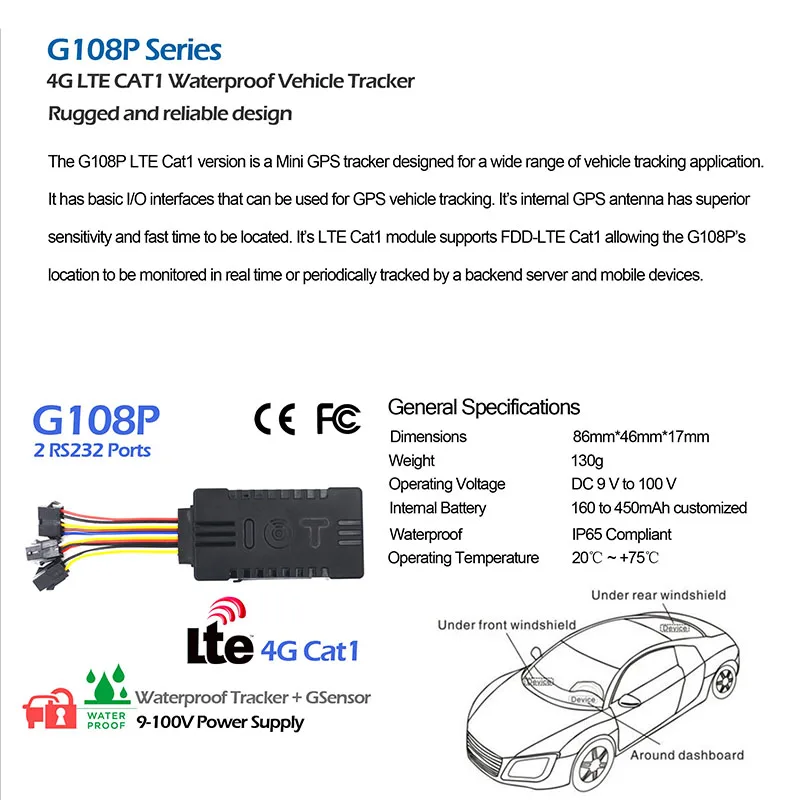

The G108P LTE Cat1 version is a waterproof IP65 Mini 4G GPS tracker designed for a wide range of vehicle tracking application. It has basic I/O interfaces that can be used for GPS vehicle tracking. It’s internal GPS antenna has superior sensitivity and fast time to be located. It’s LTE Cat1 module supports FDD-LTE Cat1 allowing the G108P’s location to be monitored in real time or periodically tracked by a backend server and mobile devices.

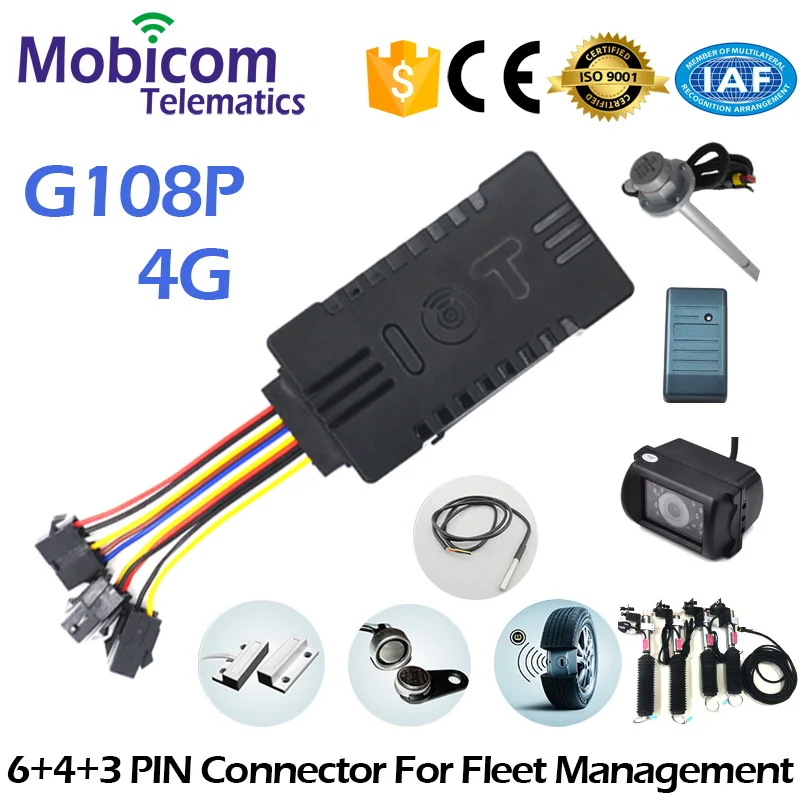

The G08P has multiple I/O and 2 RS232 interfaces. Built-in Mobicom and JT808 dual protocols. Support multiple sensors.

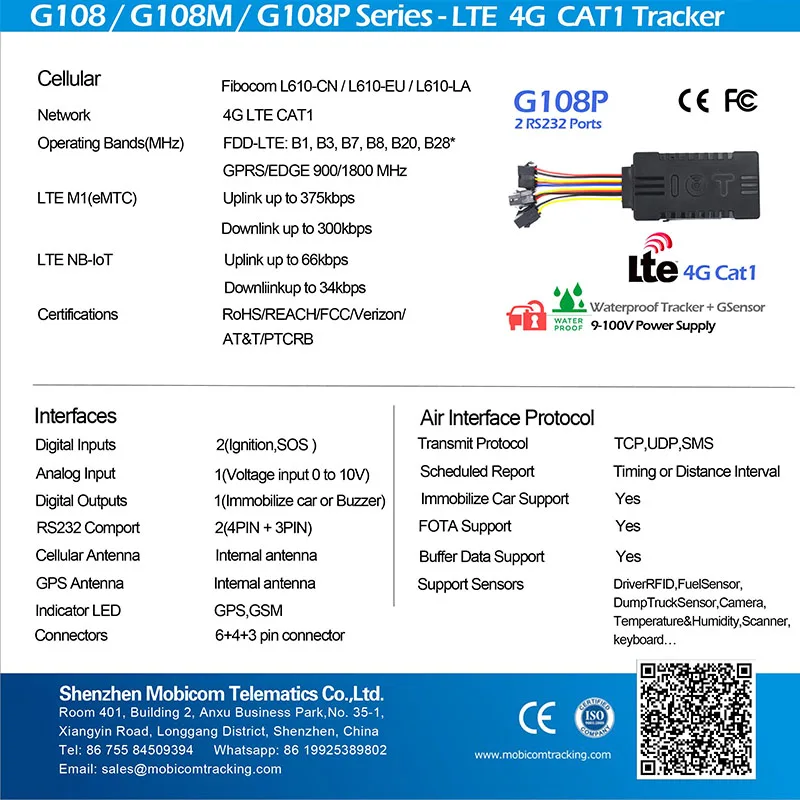

Product Functions & Specifications
Items | Specifications | |||
Gift Box Dimension | 132*100*42mm | |||
Tracker Dimension | 86*46*17 mm | |||
Tracker Color | Black | |||
Weight | Tracker weight | 0.13kg | Total package | 0.15kg |
Power Supply | DC 9V -- 55V | |||
Working current | 46 mA(12V DC) | |||
Back-up battery | Built-in 120mAh, support 2 hour working. | |||
Operating temperature | -25℃ -- 75℃ | |||
Operating humidity | 5% -- 95% | |||
LED indicator | Green led and Red led light indicates GPS and Cellular network status respectively | |||
Power Switch | SIM Card control | |||
I/O Port | 2 digital inputs | Ignition detecting –positive trigger | ||
SOS detecting-negative trigger (Or iButton or Temperature Sensor) | ||||
1 digital output | Fuel pump/engine circuit cut- Output GND (connect to a normal close relay) | |||
1 Analog Input | Voltage input 0 to 10V, connect fuel stick, load sensor… You can customize the upper and lower voltage limits to become Positive Trigger digital input | |||
RS232 COM1 | 4PIN have +5V Power Supply Support DriverRFID,FuelSensor, DumpTruckSensor,Camera,Temperature&Humidity | |||
RS232 COM2 | 3PIN don’t have Power Supply Support DriverRFID,FuelSensor, DumpTruckSensor,Camera,Temperature&Humidity | |||
G108 Series 4G Cellular Module | G108: 4G LTE CAT1 Fibocom L610 Series G108P: 4G LTE CAT1 Fibocom L610 Series G108M: 4G LTE CAT M1 Quectel BG95 Series | |||
GPS Module | Positioning accuracy | < 5m CEP without SA | ||
Cold start time | < 29s(in average) | |||
Warm start time | < 28 s (in average) | |||
Acquisition Sensitivity | -165dbm | |||
Acquisition channel | 66-channel | |||
GPS Frequency | 1575.42 MHz | |||
Application

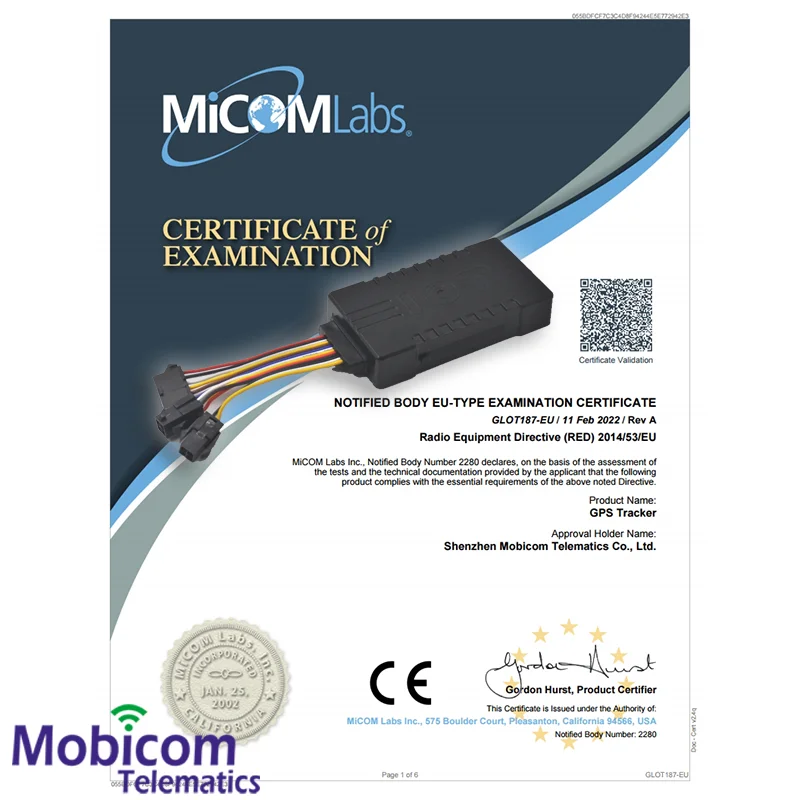

Certifications
Our Team
Packing & Delivery
Good Reviews
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral blank brown-paper boxes.
Q2. What is your terms of payment?
A: 1. For order quantity less than 200pcs,100% TT accepted;
2. For order quantity more than 200pcs, T/T 30% as deposit, and 70% before delivery;
3. For sample and order less than 100pcs, Trade Assurance accepted.
Q3. What is your terms of delivery?
A: EXW, CNF Shenzhen or FOB Shenzhen.
Q4. How about your delivery time?
A: Generally, it will take 2-3 days after receiving your advance payment. The mass production delivery time depends on the items and the quantity of your order, maximum 10-20 days.
Q5. Can you produce according to the samples?
A: Yes, we can produce your samples or technical drawings. We can build the moulds and working samples.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
