Волоконно-оптический доступ коробка телекоммуникационный кабель Соединительная крышка ODB с 4
- Категория: Fiber Optic Equipment >>>
- Поставщик: Ningbo,Jinze,Telecommunication,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.74 $* | 0.34 $* |
| Aug-17-2025 | 0.33 $* | 0.34 $* |
| Jul-17-2025 | 0.79 $* | 0.4 $* |
| Jun-17-2025 | 0.33 $* | 0.77 $* |
| May-17-2025 | 0.80 $* | 0.17 $* |
| Apr-17-2025 | 0.70 $* | 0.50 $* |
| Mar-17-2025 | 0.46 $* | 0.77 $* |
| Feb-17-2025 | 0.38 $* | 0.60 $* |
| Jan-17-2025 | 0.29 $* | 0.1 $* |
Характеристики
Main products
Main products of Jinze
Product Description

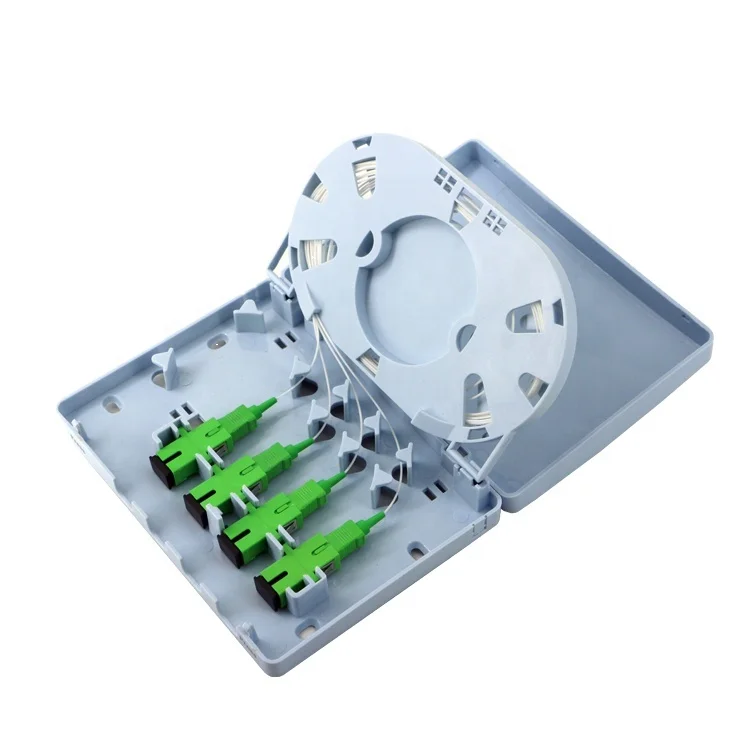

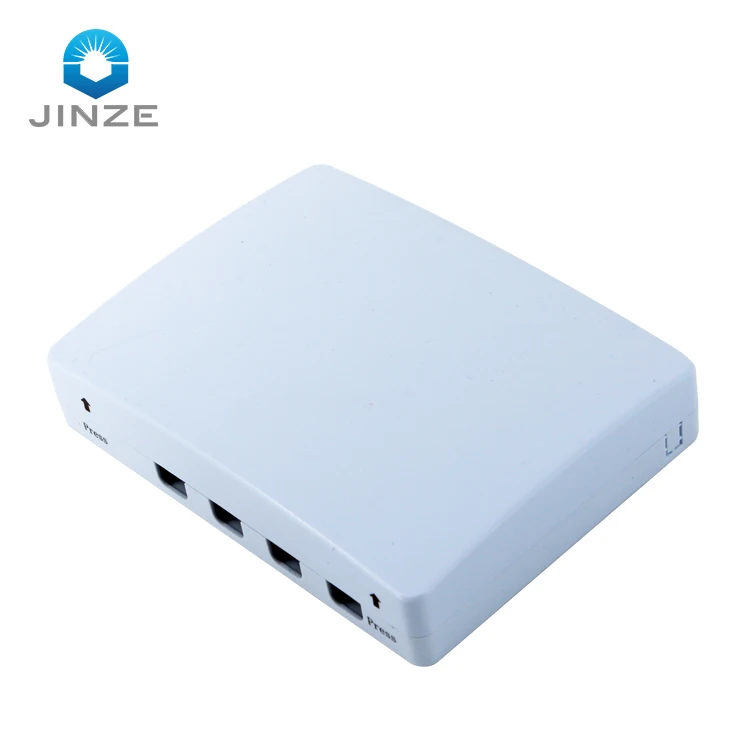

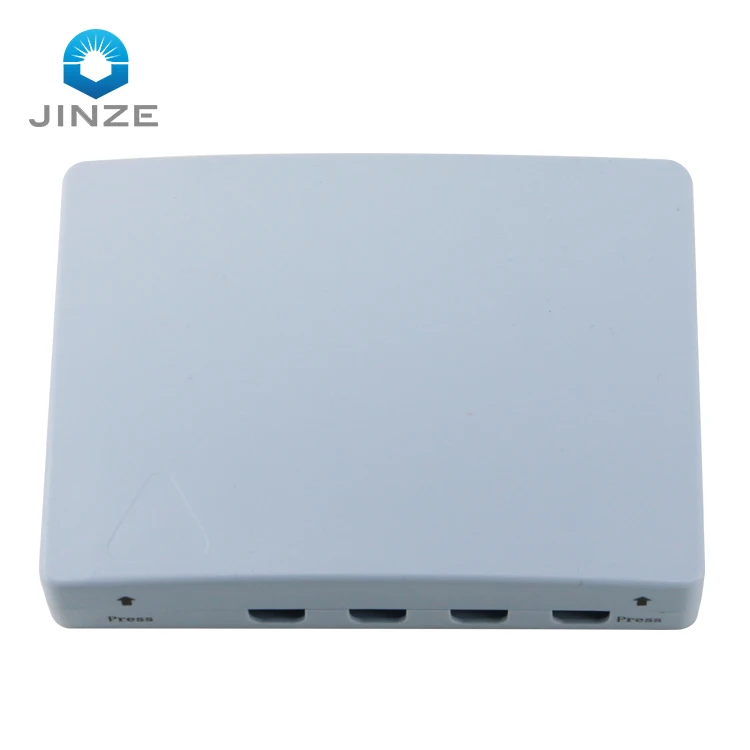

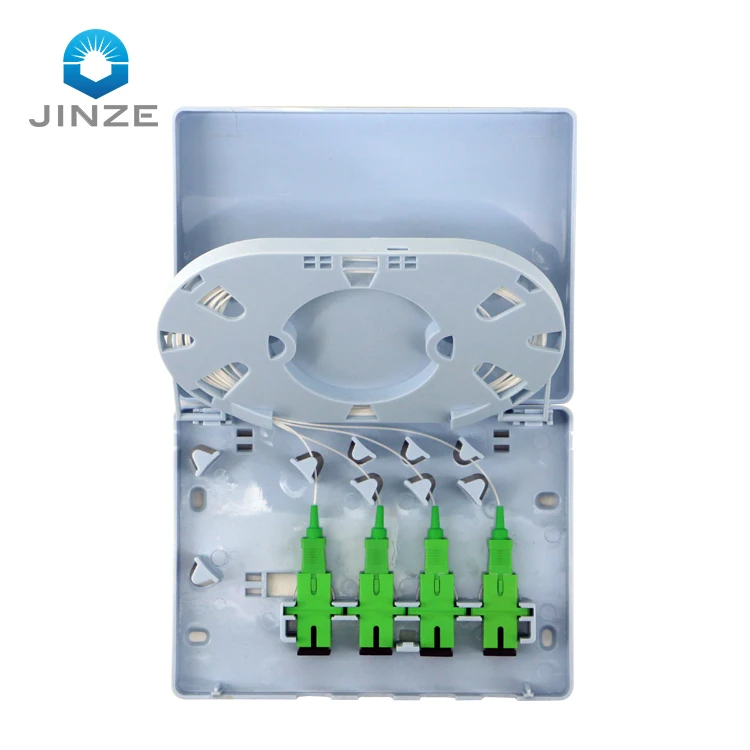

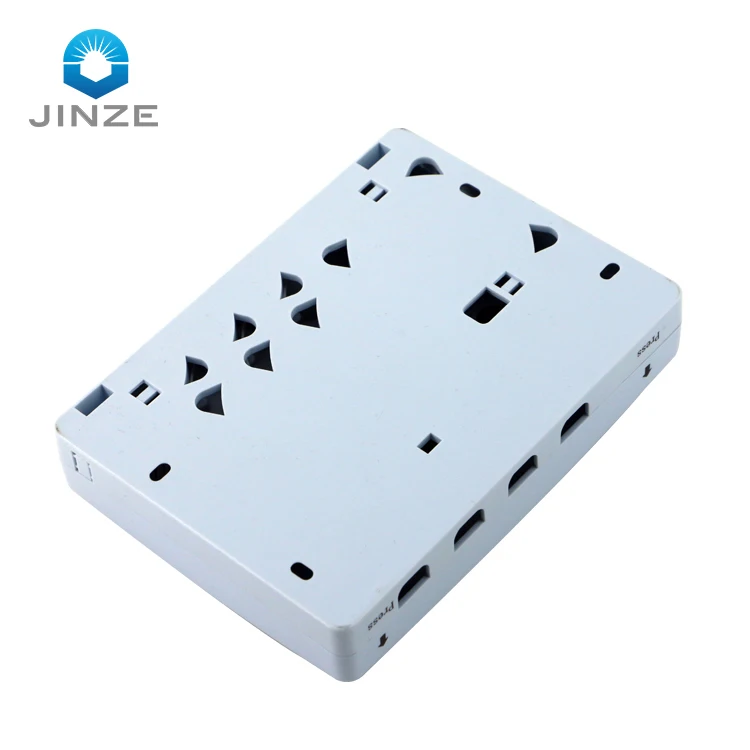

This model JZ-1426-4 is a Fiber Optic Mini Terminal Box, it is designed for 4 subscribers. It is used as a termination point for the drop cable and it connects with patch cable in FTTH indoor application. It integrates fiber splicing, termination, storage and cable connection in one solid protection box. Jinze has been produced more than 1000000 pcs of this box and sold to customers all over the world.
More choices we have for terminal boxes.
Specifications
Fiber storage/splicing areas designed
Positive fiber management (30mm min bend radius)
IP65 rating
Easy to operate,tool free
Indoor use
Compact design
Various option of materials
Acess port cover slide-able
Technical Data
Dimensions | 150*110*34mm |
Number of ports | 2 ports+2 knock off ports |
Acess cable size | 3.0x2.0mm,5.0*3mm drop cable or indoor cable |
Fiber type | SM&MM |
Fiber cladding diameter | 125um(G652&G657) |
Suitable connector type | SC/LC |
Operating temperature | -40 ~ +85 C |
Color | White |
Insertion loss | <0.2dB |
Return loss | >50dB(UPC),>60dB(APC) |
