Двухрядный Сферический роликовый подшипник 22226 МБ, сделано в Китае
US $18.00-$20.00
Высококачественные сферические роликовые подшипники 22318 E cc ca c3 w33 90*190*64 мм прочные и с высокой
- Категория: Сферический роликовый подшипник >>>
- Поставщик: Hannov,(Changzhou),Turning,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 75.36 $* | 77.5 $* |
| Jul-20-2025 | 61.64 $* | 62.0 $* |
| Jun-20-2025 | 74.53 $* | 75.33 $* |
| May-20-2025 | 73.97 $* | 74.35 $* |
| Apr-20-2025 | 58.27 $* | 59.70 $* |
| Mar-20-2025 | 72.8 $* | 73.71 $* |
| Feb-20-2025 | 71.96 $* | 72.14 $* |
| Jan-20-2025 | 71.20 $* | 72.50 $* |
Характеристики

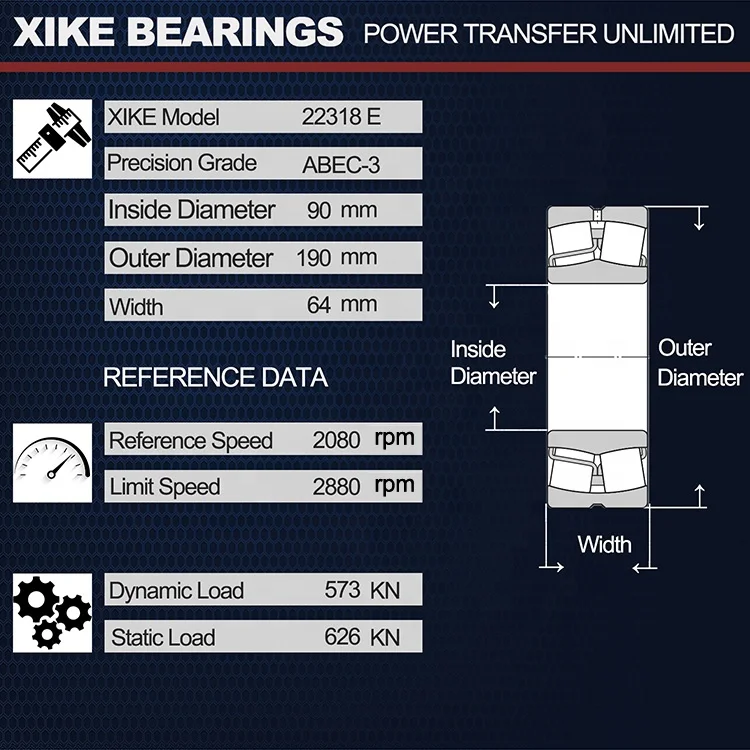

Product Name | 22318 E | ||||||
Precision Grade | ABEC-3 | ||||||
Inside Diameter | 90mm | ||||||
Outer Diameter | 190mm | ||||||
Width | 64mm | ||||||
Reference Speed | 2080 rpm | ||||||
Limit Speed | 2880 rpm | ||||||
Dynamic Load | 573 KN | ||||||
Static Load | 626 KN | ||||||

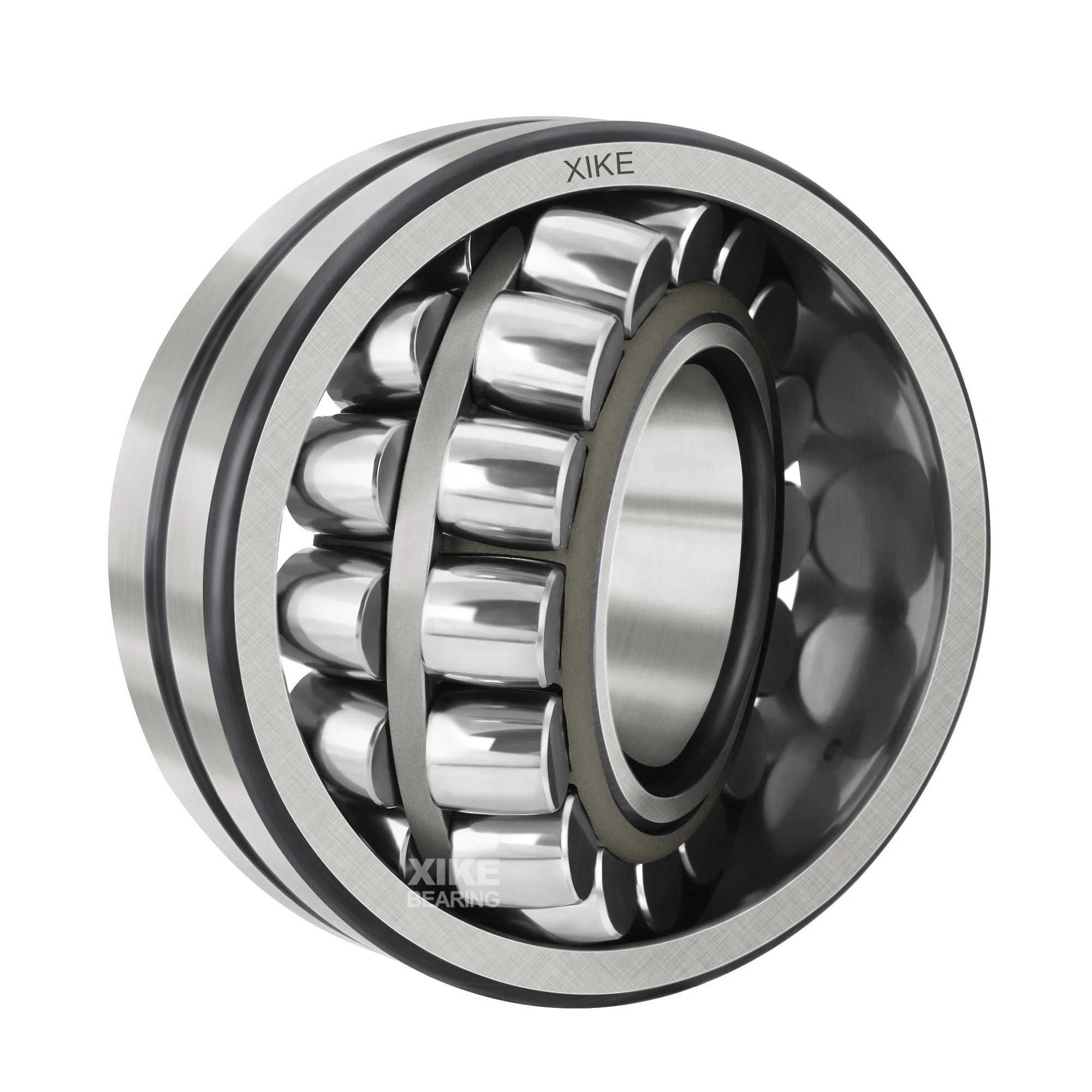

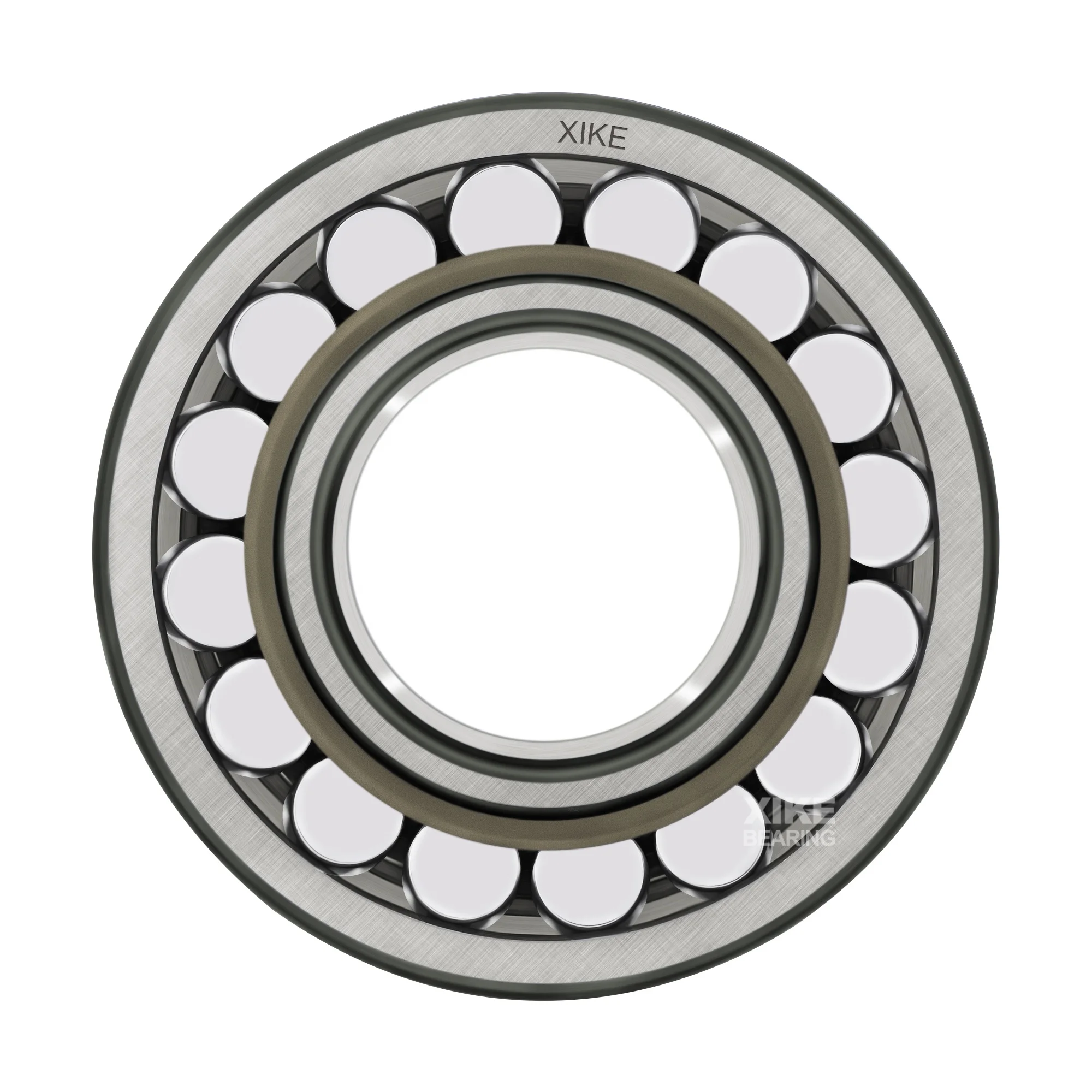

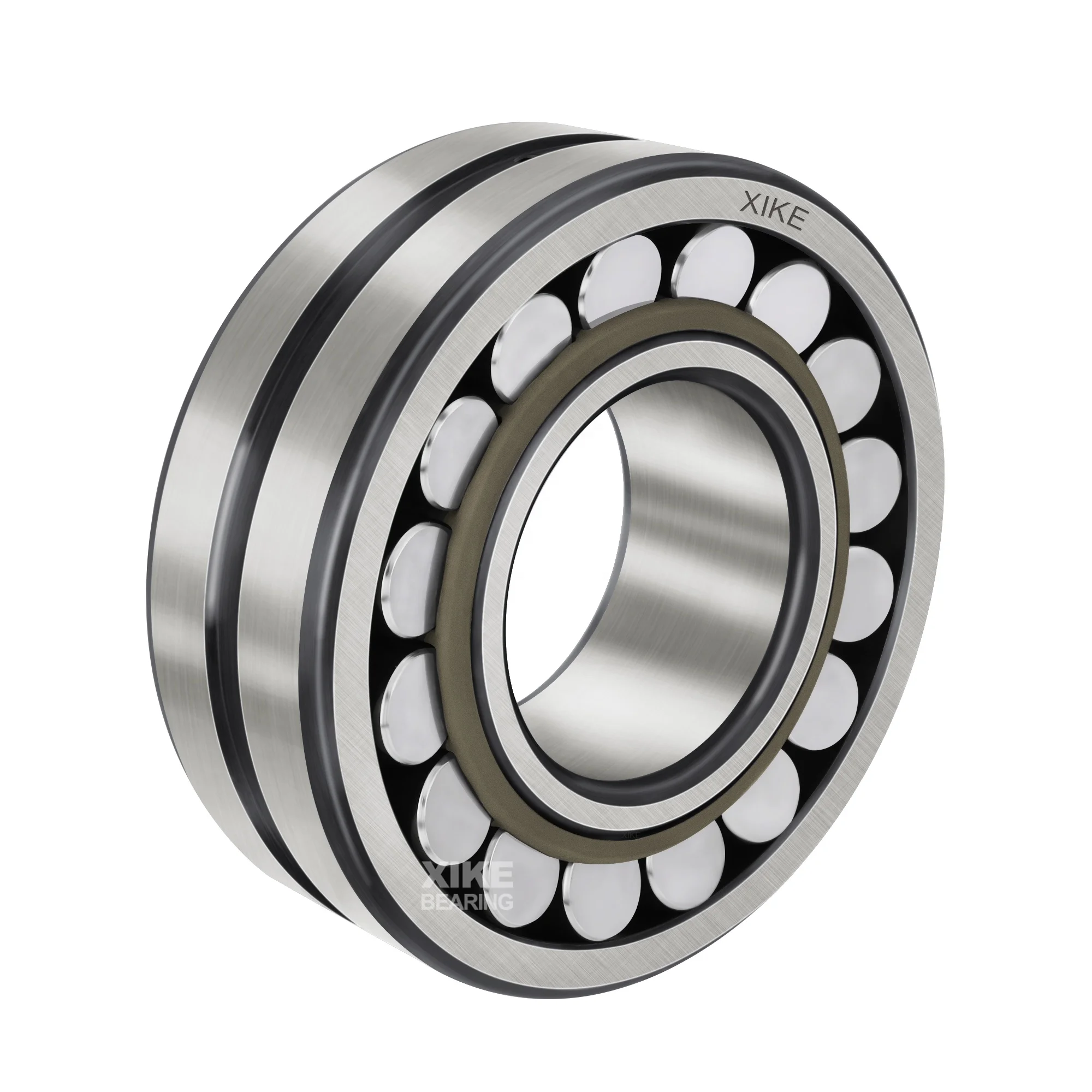

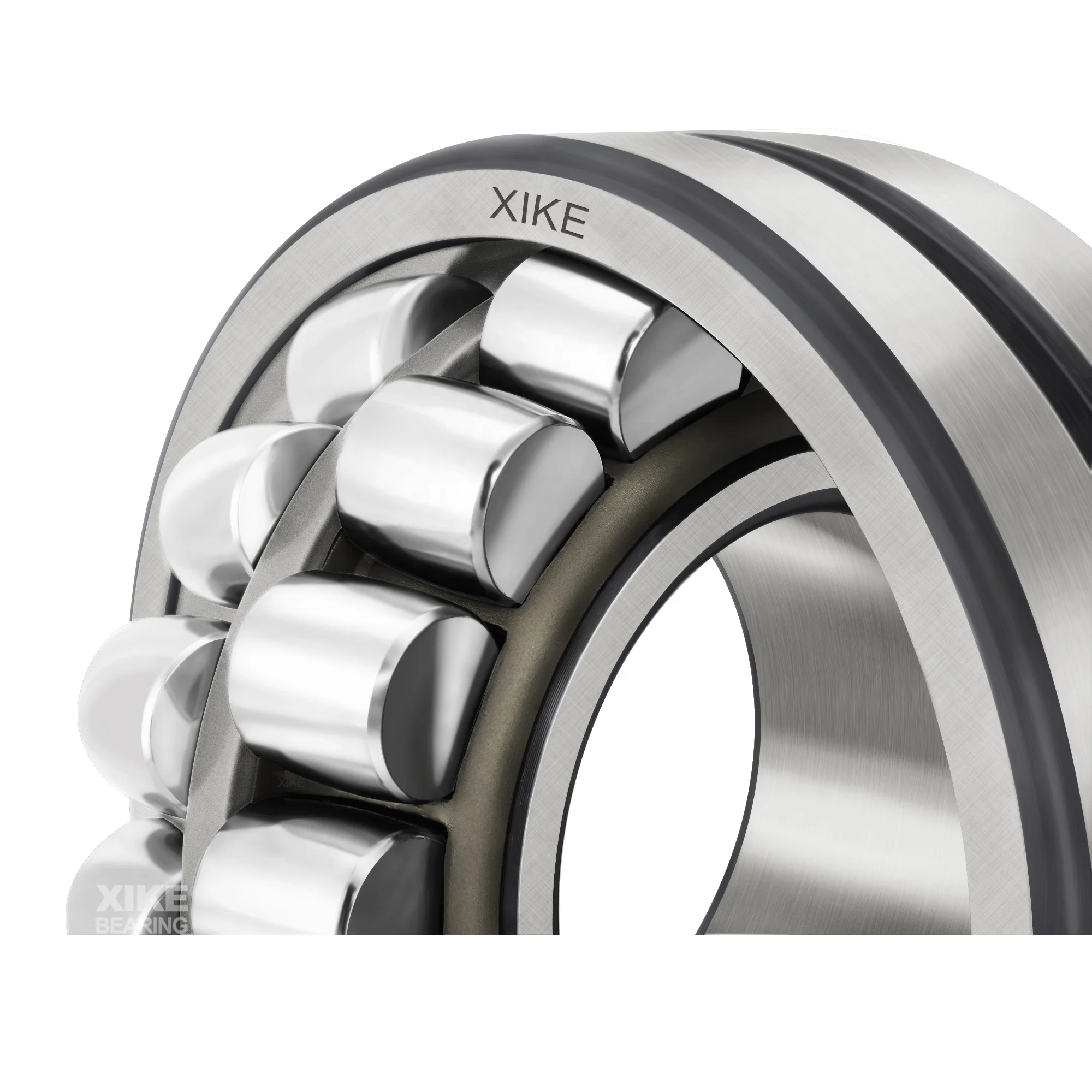

Spherical roller bearings
Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis.
Other Designs and Variants Type
Double row spherical roller bearings
*Most widely used.Single row spherical roller bearings
*Radial load and compensation misalignment
Split spherical roller bearings
*Carrying out replacement work quickly and easily
Sealed spherical roller bearings
*Harsh environment applications
Spherical roller bearings for vibratory machinery
*Vibration machinery application
Extended Inner Ring spherical roller bearings
*Special application
*Special application
Exterior Designs
W33 | Annular groove and three lubrication holes in the outer ring | ■ | ||||
K | Tapered bore, taper 1:12 | ■ | ||||
K30 | Tapered bore, taper 1:30 | ■ | ||||
W20 | Three lubrication holes in the outer ring | ■ | ||||
W26 | Six lubrication holes in the inner ring | ■ | ||||
W | Without annular groove and lubrication holes | ■ | ||||
SH | Outer ring screw holes (can be customized) | ■ | ||||
2RS | Contact seal, NBR, on one or both sides | ■ | ||||
Cage Type
CA | Overall machined brass cage | ■ |
CC | Two stamped steel cages | ■ |
E, E1 | Two stamped steel cages | ■ |
MB | Two machined brass cages | ■ |
FA | One or two machined steel cages | ■ |
ER, ER | One or two reinforced nylon and resin cages | ■ |
Interior Design, Precision Grade and Other
Clearance | C2 C3 C4 C5 | ■ |
Precision grade | P0 P6 P5 P4 or ABEC-1 ABEC-3 ABEC-5 ABEC-7 | ■ |
Personalise | Stand by custom made | ■ |
Grease | Low temperature, High temperature, Universal and no | ■ |
The above data and information are for reference only, we have the right to change without notice.
Deep Groove Ball Bearings
Deep groove ball bearings are particularly versatile. They are suitable for high and very high speeds, accommodate radial and axial loads in both directions and require little maintenance. Because deep groove ball bearings are the most widely used bearing type, they are available from XIKE in many designs, variants and sizes.
*Most widely used.
Stainless steel deep groove ball bearings
*Resistant to oxidation and corrosion.
Double row deep groove ball bearings
*Considerably higher load carrying capacity.
Plastic deep groove ball bearings
*Food machinery, underwater equipment and more.
High temperature resistance deep groove ball bearings
*High temperature applications
Electrical insulation deep groove ball bearings
*Marine, offshore and more applications
Exterior Designs
Open | Without seal | ■ | ||||
2RS | Contact seal, NBR, on one or both sides | ■ | ||||
ZZ | Shield on one or both sides | ■ | ||||
N | Snap ring groove in the outer ring | ■ | ||||
NR | Snap ring groove in the outer ring, with snap ring | ■ | ||||
F | Flanged outer ring | ■ | ||||
Black coating | Prevent premature corrosion | ■ | ||||
Insulation coating | Coating to prevent electrostatic contact | ■ | ||||
Cage Type
NO | Stamped steel | ■ |
M | Machined brass cage | ■ |
EN | Enhance nylon | ■ |
ER | Enhance resin | ■ |
FB | Full ball, no cage | ■ |
Interior Design, Precision Grade and Other
Clearance | C2 C3 C4 C5 | ■ |
Precision grade | P0 P6 P5 P4 or ABEC-1 ABEC-3 ABEC-5 ABEC-7 | ■ |
Matched bearings | DB DF DT | ■ |
Grease | Low temperature, High temperature and Universal | ■ |
The above data and information are for reference only, we have the right to change without notice.
FAQ
Q: Are you trading company or manufacturer ?
A: We are trading company.
Q: How is the compatibility of the parts?
A: 100% compatible with original manufacturer parts.
Q: How is the quality guaranteed?
A: Our products are fully inspected and many products have a warranty period.
Q: What is the payment method?
A: As long as it is a reasonable payment method, we almost accept it.
