Hot Sale new type miniature concrete pump Small concrete pump+8618737189043

Advantage of concrete pump feeding machine

1. Simple mechanical structure, fool-like operation, novice can still operate

2. Low maintenance cost

3. Easy to move by one person (previous models required 4-5 people to move)

4.The power of the whole machine is 7.5KW, which is convenient for wiring on all floors.

5. The whole machine is small and only 60 * 80 size can be entered in a small place

6. The whole machine adopts building block design, which can be separated and combined at any time.

7.The conveying height can be adjusted freely from 1-6 meters



Parameters of small concrete pump

Name	Small concrete pump feeding machine
Capacity	5 m3/h
Tube diameter	115mm
Power	7.5kw/11kw
Biggest aggregate size	30mm
Weight	200kg
Machine size	1000*600*1000-6000mm(customized)
Voltage	380V



Details of stone mortar pump



Operation of the concrete pump:

1. Check the appearance of the machine, whether the machine is damaged due to long-distance transportation, especially the electrical appliances in the electrical box, and whether the wires have fallen off.



  2. Connect the power supply, and the equipment case should be grounded. Start the motor to see if it works properly.



  3. Put it in the hopper, insert the 1m or 0.58m winch according to the construction height and angle, and the angle of the joint of the upper and lower blades should be aligned according to the spiral angle. Then install the gray outlet. Back fastening buckle.



  4. The gallows inside the tube. (The height of the cage from the top is higher than the height of the pillar or lintel to be poured) Push it to the construction site, and extend the ash outlet hose into the ash inlet of the column.



  5. When starting to use, the pipeline should be wetted with dilute ash, the remaining ash in the pipeline should be led out, and then the hopper and ash pipe should be cleaned.



Precautions:

1. Must be under the leakage protector.

2. It must be more than 20 seconds when reversing.

3. Pay attention to stability when moving to prevent the machine from detecting accidental injuries and smashing things.

4. When the machine is stopped, the remaining materials must be put out and the machine cleaned with water.

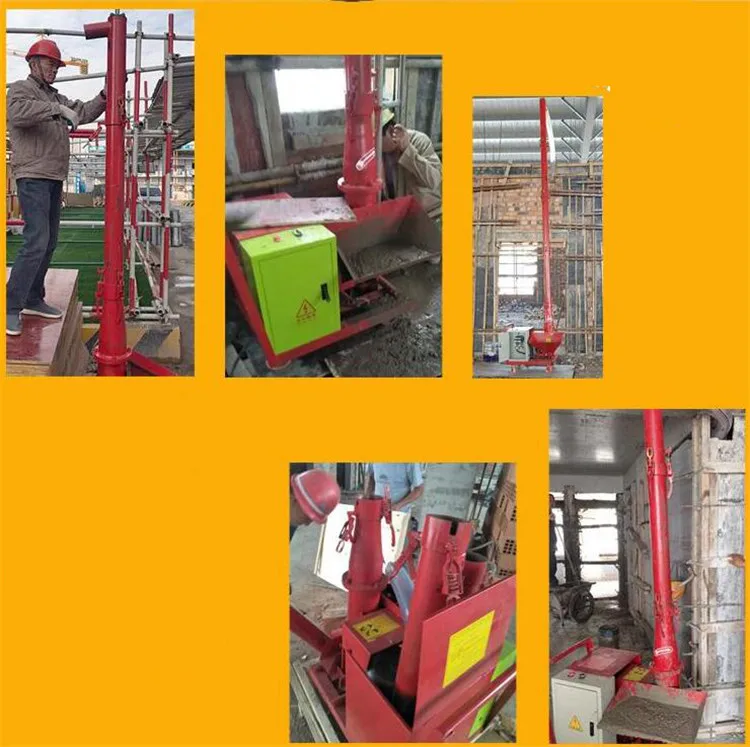

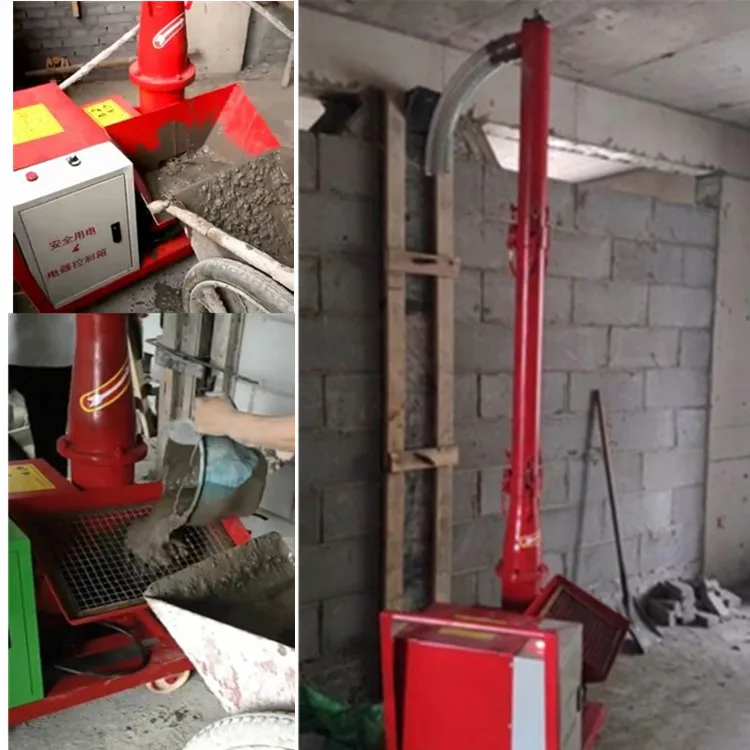

Real working pictures show:

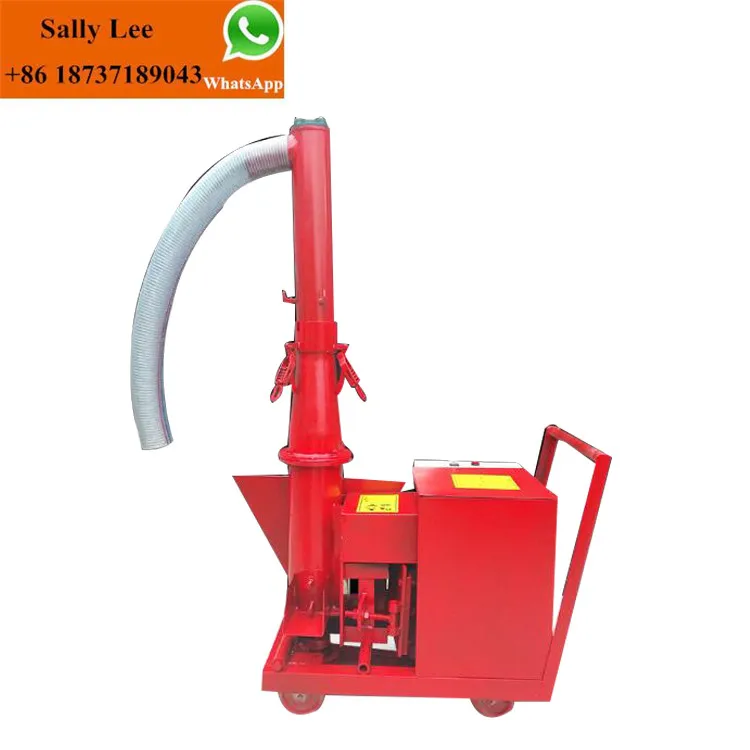

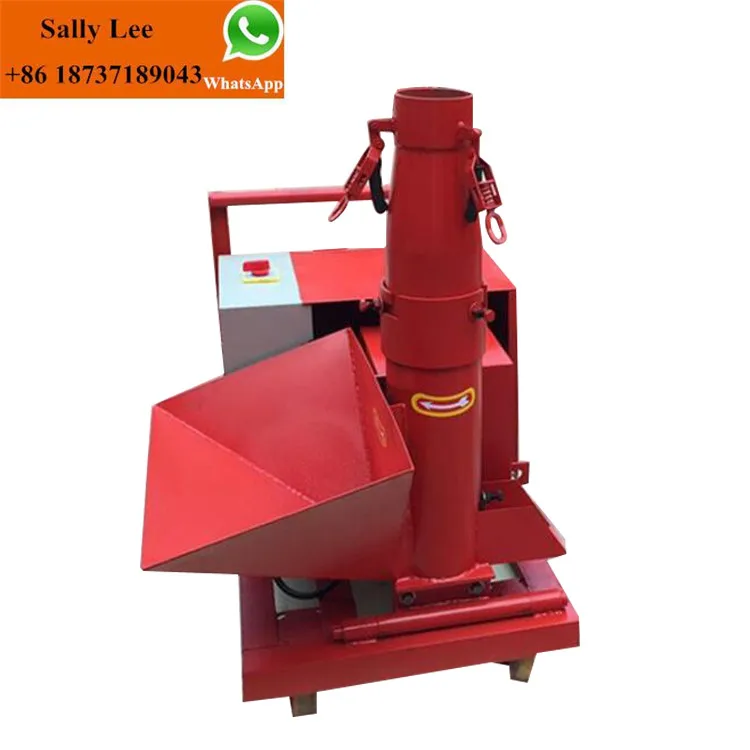

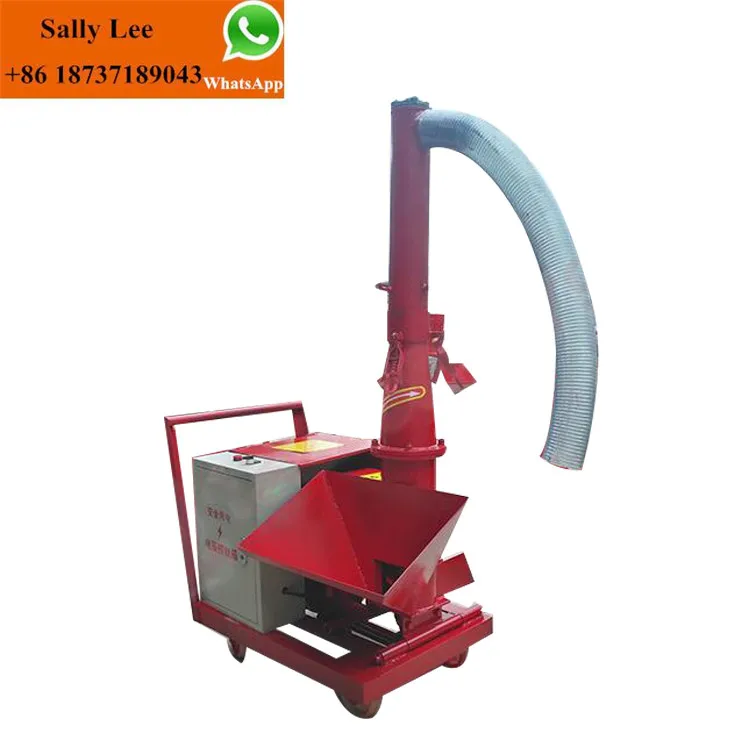

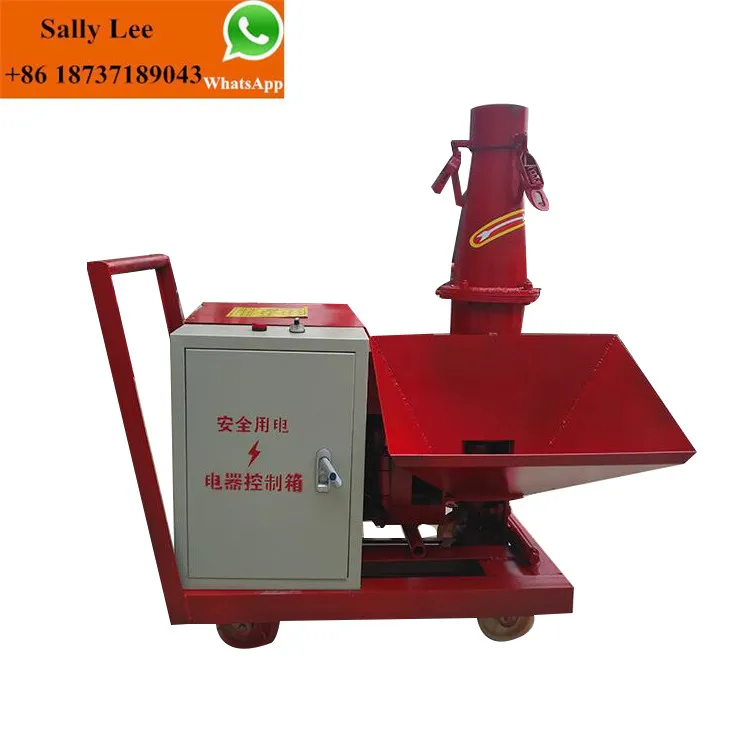

Machine pictures shows:
