Replace high flow cartridge water filter industrial made in China



Introduction:

LEFILTER large flow filter has a big diameter of 6 inches (152 mm), but no central supporting tube. Only one end of the filter is open and its flow manner of filtering fluid is from inside to outside. The big diameter of filter element increases effective filtering area and greatly reduces the amount of filter element and the size of its body case. Due to its large flow and long lifespan, LEFILTER large flow filter can lower investment and human cost in many  applications.



Application fields:

1)    RO cartridge filtration and seawater desalination pretreatment

2)    Filtration of condensed water in power plants

3)    Filtration of bulk drug, solvent and water in bio-pharmacy industry

4)    Filtration of bottled water, liquid glucose, edible oil, juice, soft drink and milk

5)    Painting, petrochemical industry

6)    Micro-electronics, film, fiber, resin



Product features:

1)    The structure of gradual aperture.

2)    Maximum flow of one filter can be up to 110m3/h during the water filtering.

3)    Filtration system size can be reduced by 50% in maximum.

4)    Filters with the length of 20’’, 40’’ and 60’’ can be offered.

5)    Inside-out directions guarantee all impurities to be left inside the filters.



Technical specifications:

1)   Filter size:

OD: 6 inches (152 mm)

Length: 20 inches (528 mm), 40 inches (1022 mm), 60 inches (1538 mm)

2)   Parts materials:

Filter material: pleated fiberglass, pleated deep polypropylene (PP), MBPP

Supporting/diversion layer: polypropylene (PP)

End caps: reinforced polypropylene with fiberglass

Sealing material: EPR, BNR

3)   Performance of filter element:

Filtering accuracy: 1micron, 4.5micron, 6micron, 10micron, 20micron, 40micron, 70micron, 100micron

Highest operating temperature: 121℃ for pleated fiberglass, 82℃ for pleated deep polypropylene (PP), 65℃ for MBPP

Maximum pressure drop: 3.4bar for pleated fiberglass, 3.4bar for pleated deep polypropylene (PP), 1.03bar for MBPP

Recommended pressure drop for filter replacement: 2.4bar, 20℃

Recommended maximum filtering water flow: 660L/min for 20inch filter, 1300L/min for 40inch filter, 1900L/min for 60inch filter

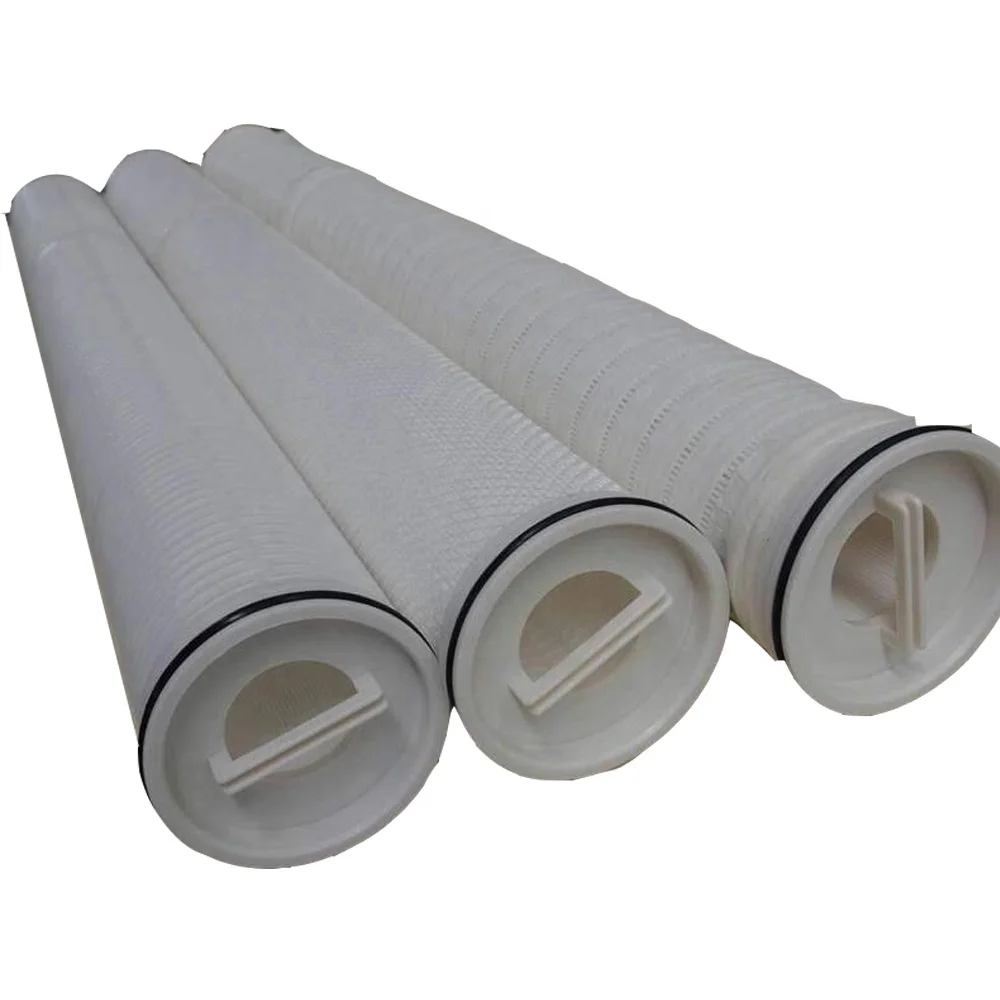

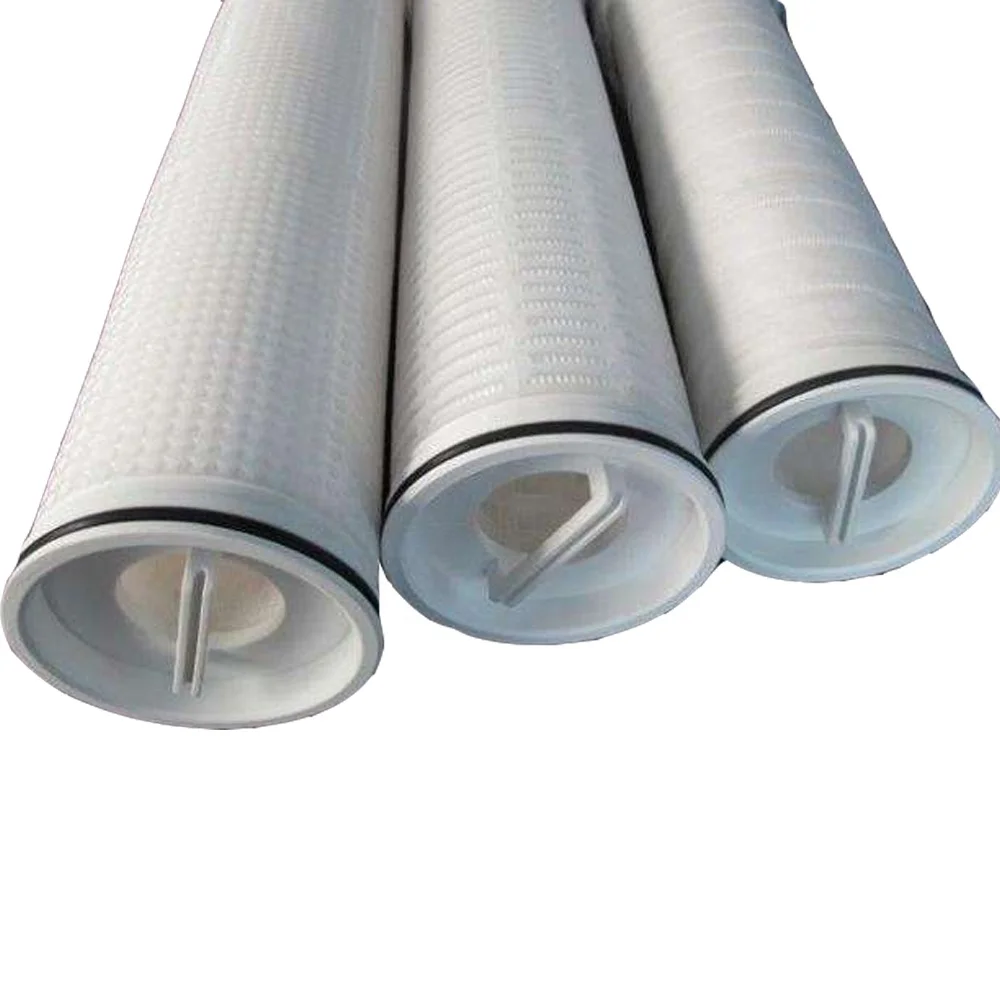

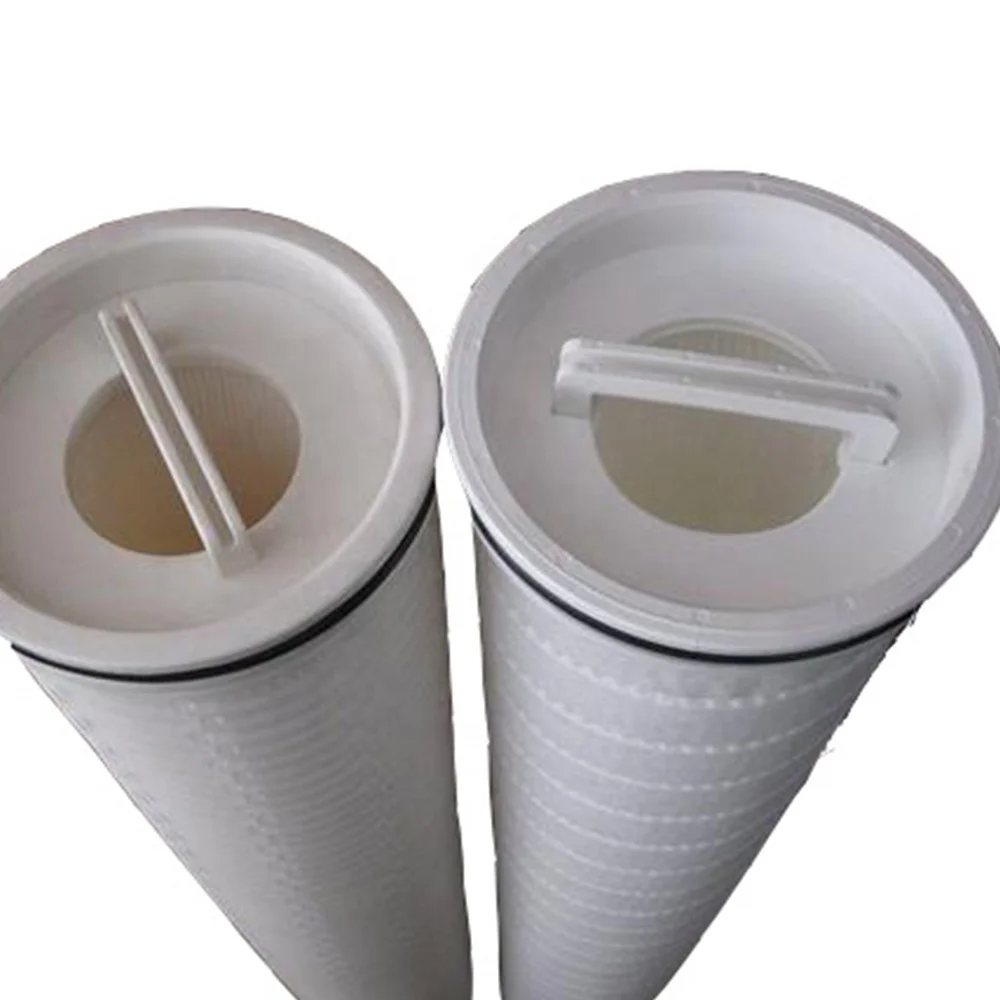

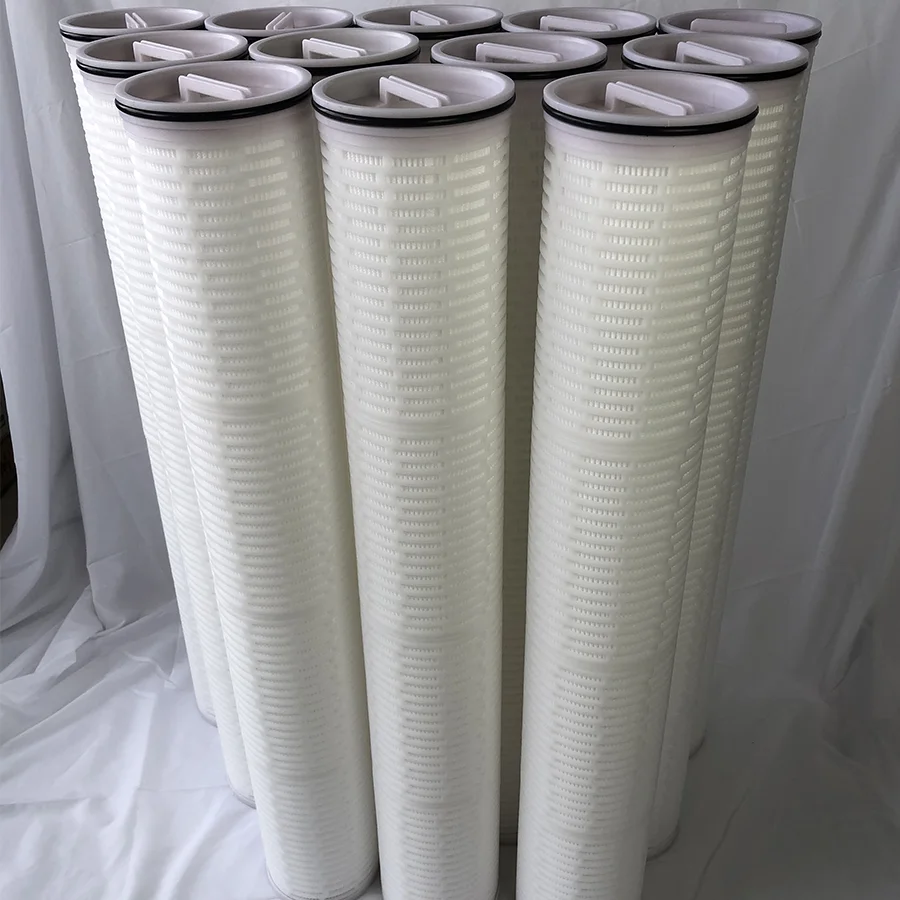

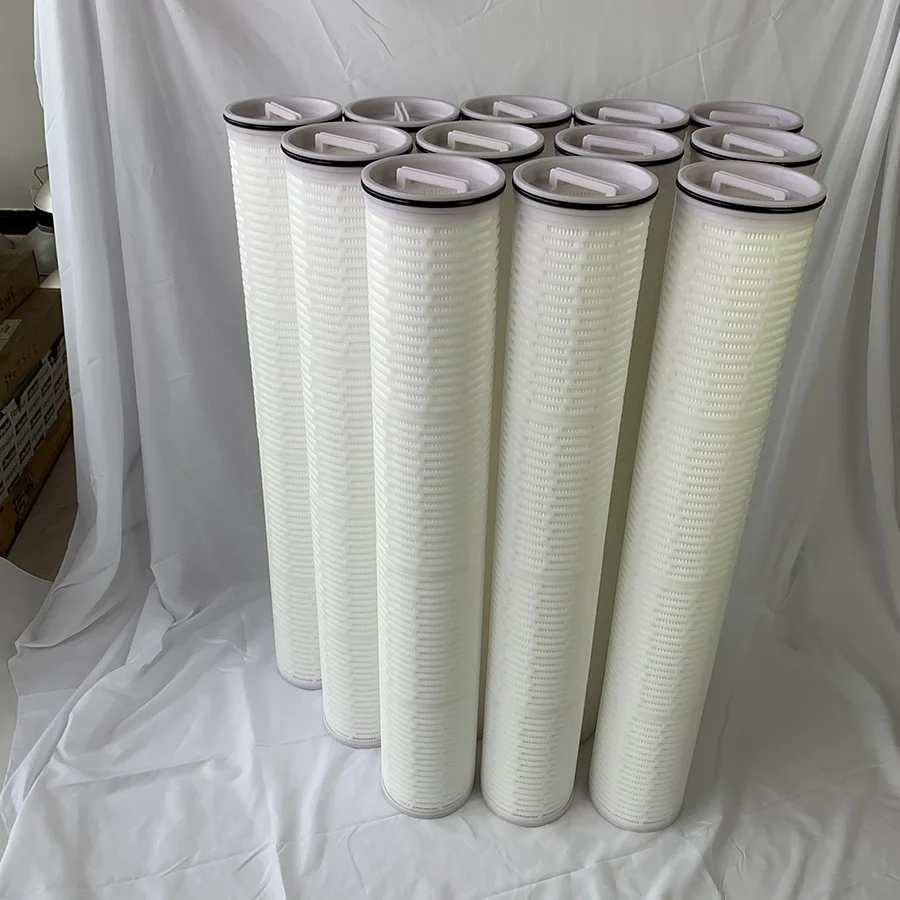

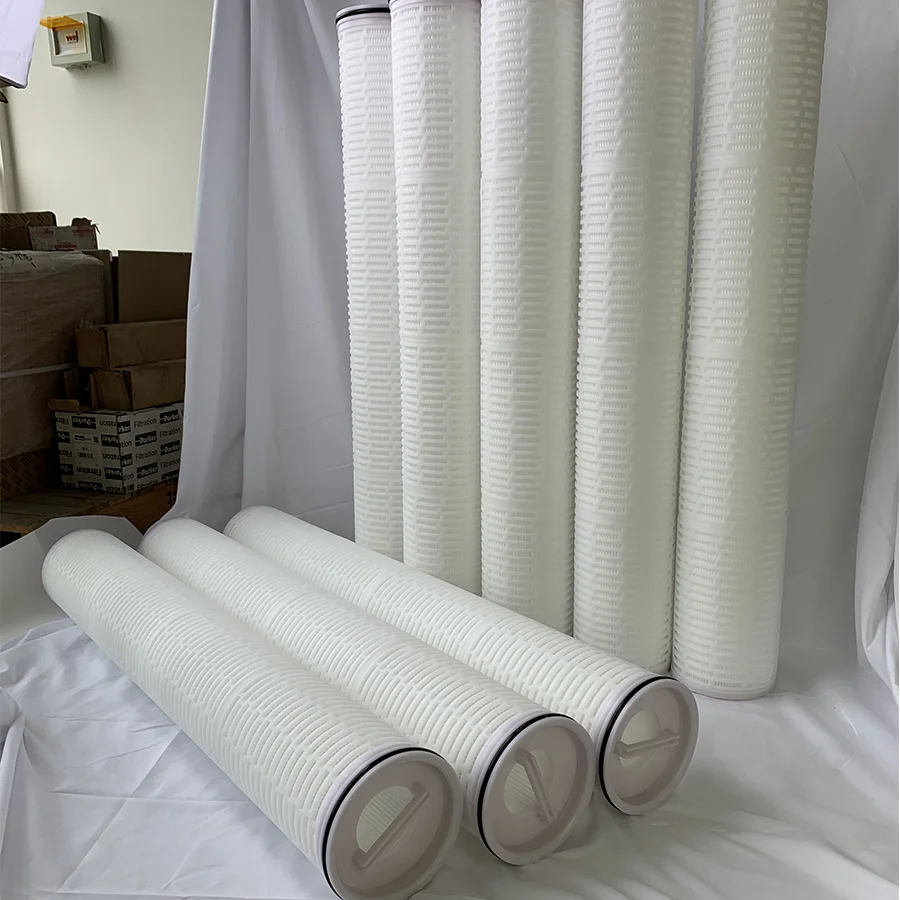

Product show:
