Кольцевой измеритель резьбы m23 x 1,25
US $22.00-$25.00

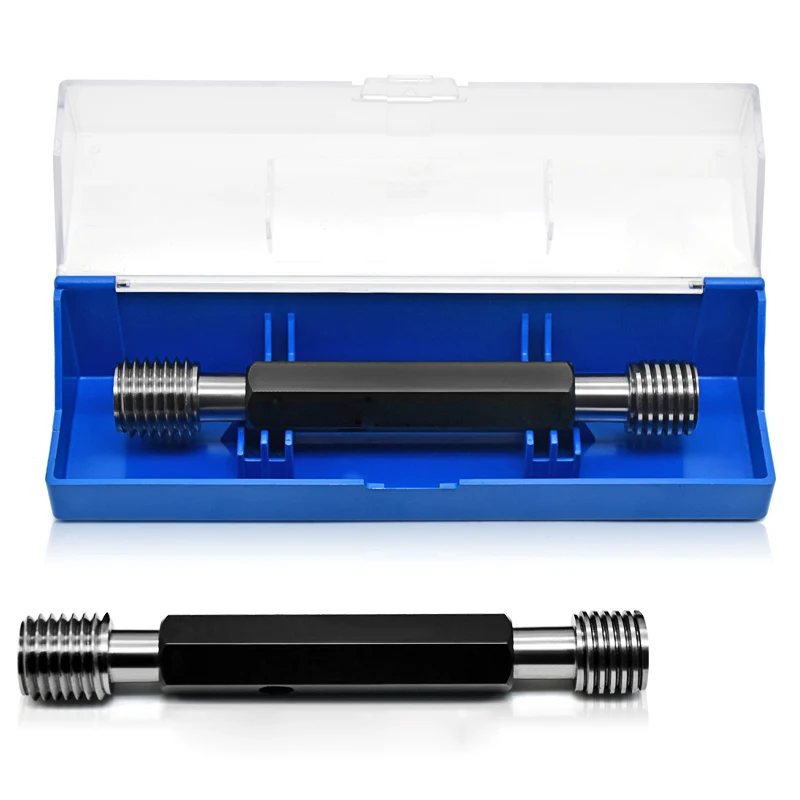

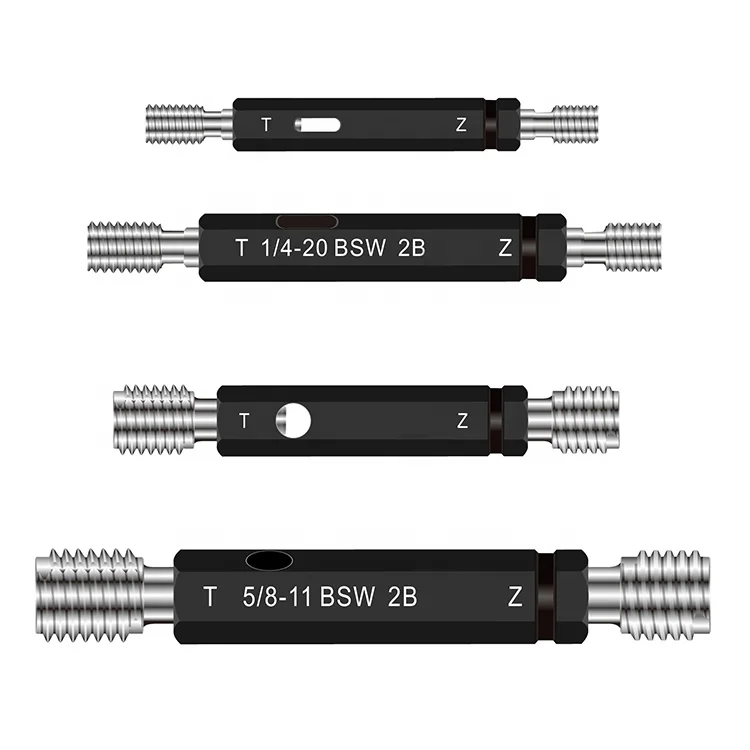

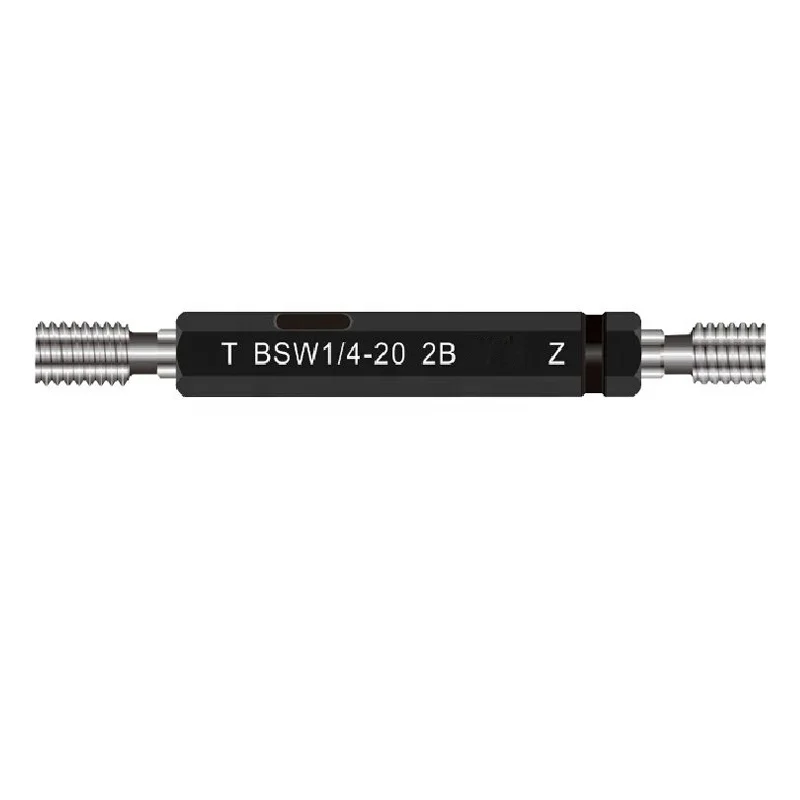

Стандартные стальные калибры Whitworth Go и NoGo 1/8 ~ 2 BSW BSF Калибр резьбовой
- Категория: Gauges >>>
- Поставщик: Dongguan,Bewell,Precision,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 4.14 $* | 4.64 $* |
| Jul-16-2025 | 3.84 $* | 3.29 $* |
| Jun-16-2025 | 4.26 $* | 4.89 $* |
| May-16-2025 | 4.66 $* | 4.91 $* |
| Apr-16-2025 | 3.26 $* | 3.85 $* |
| Mar-16-2025 | 4.67 $* | 4.4 $* |
| Feb-16-2025 | 4.40 $* | 4.79 $* |
| Jan-16-2025 | 4.91 $* | 4.35 $* |
Характеристики
Product Paramenters
Product Description
Ring gauges used to check external thread. Plug gauges used to check internal thread
GO & NOGO, RH(right hand) & LH(left hand) available
Metric, United Inch( UNEF, UNF, UNC, UN, UNS), Stub ACME, ACME, BSPP, PSPT, NPT, Trapezoidal (Tr), and Whitworth thread gauges, etc.
Material: GCR15
Hardness: 58-65 HRC
Tolerance: +/-0.001mm~+/-0.0025mm
Certificate: Factory test Data or offical certificate
Welcome Customized
Type | Series | Measuring range | Standard Tolerance | ||
Metric gauge | M | M1~M300 | 6g,6H,7g,7H | ||
US Units gauge | UN UNC UNF UNEF UNS NPSC NPSM NPSH NPSF NPSI NPSL NH STI | 0~12'' | 2A,2B | ||
Jap Units gauge | PT | 0~12'' | |||

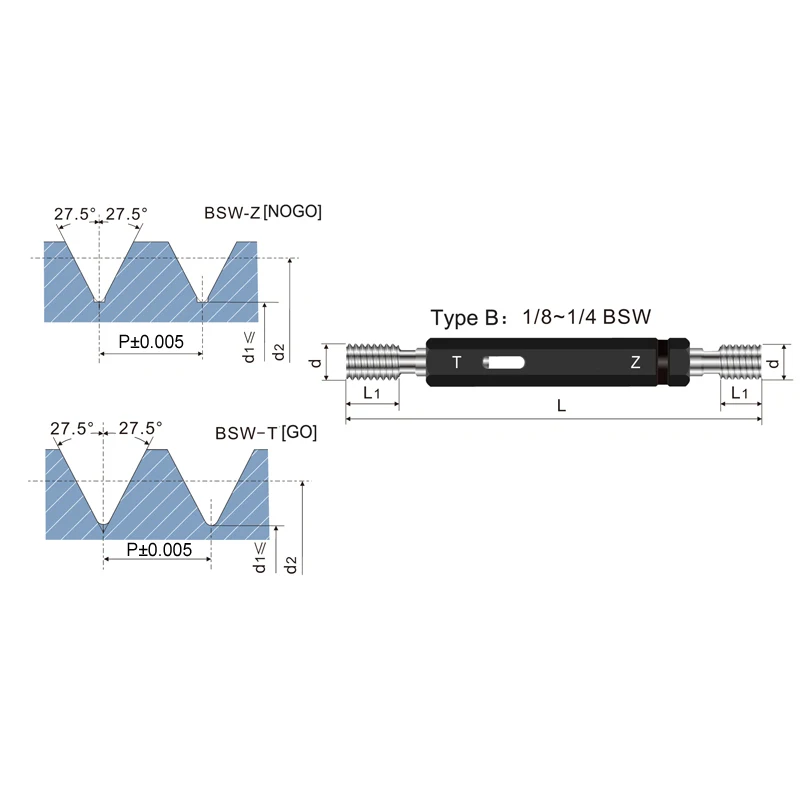

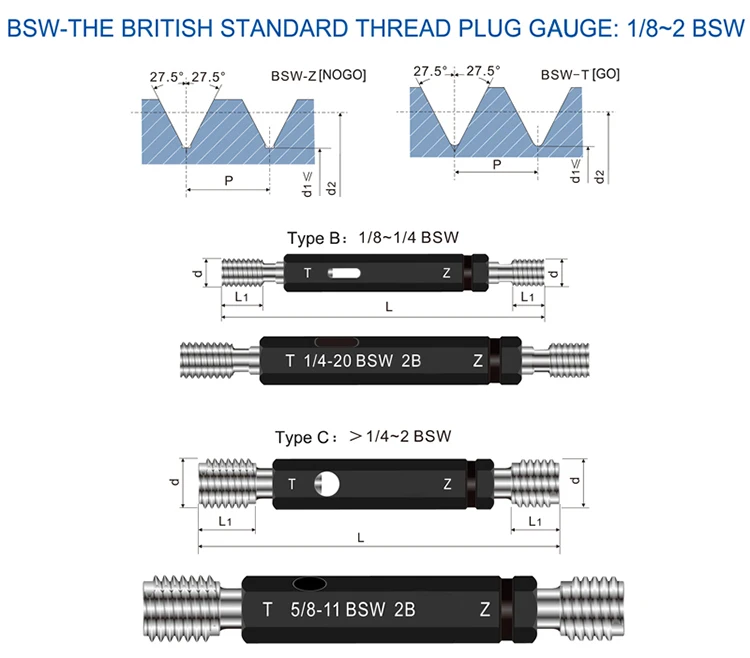

Imperial standard gauge | BSW BSF | 0~2'' | 2A,2B | ||
Taper gauge | NPT NPTF Z BKG R RB Rc RP PT ZG WKG BSPT ANPT PTF | 0~6'' | 2A,2B | ||
Trapezoidal gauge | Tr ACME STUB-ACME | 0~6'' | 2G,3G,4G | ||
other | API G PF PS BSP ST BSPP DIN spline gauge | 0~6'' | |||
Details Images
Packing&Shipping
2.the tool box packed with Pearl cotton,then in carton box,if for big heavry product,we will packed with wooden box.
Certificate
Customer Photos
If you sent inquiry off work time,We will reply you once we start work
We can quote in 5mins for standard gauges
We have experience engineer can give you professional suggest
we can provide factory test Data if you do not need official certificate
We also can provide offical certificate
We provide after-sales service always
Why Choose Us

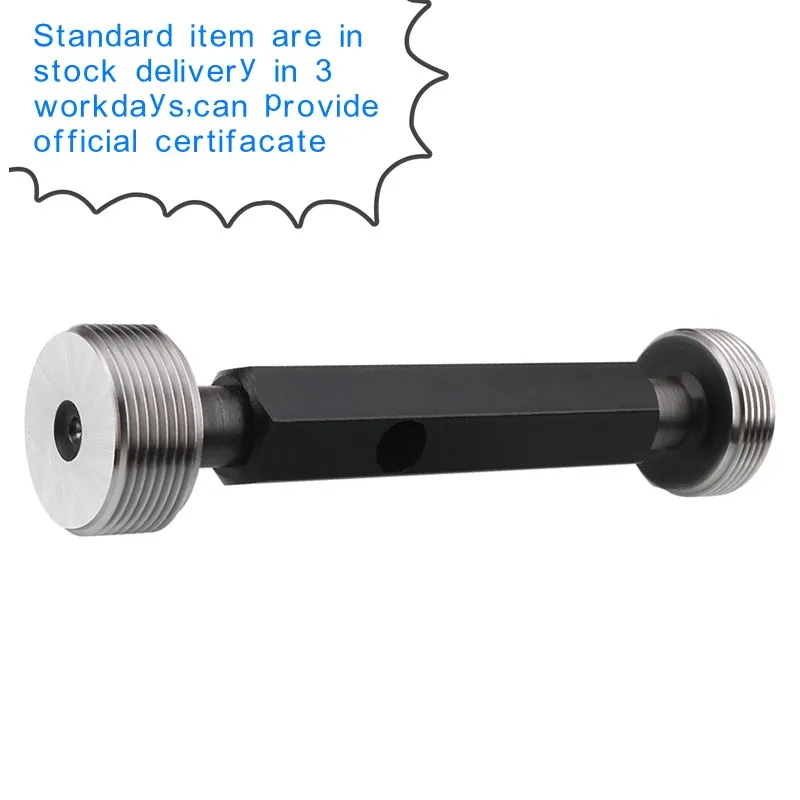

Most of standard specification have in stock,we can delivery in 3wordays,Non-standard specification can be customized
We can provide official certificate,if customer do not need official certificate,we also can provide factory test data
The customized gauge can provide No LOGO,the MOQ is 1pc,if the quantity is big,can mark customer's LOGO
