Wuxi Wandeshun Machine Co., Ltd  (we are factory)



 1.    About us



Wuxi Wandeshun Machine Co., Ltd. one of the leading wire drawing machine manufacturers in China , is specialized in manufacturing wire drawing machines , which was established in 2000.



Our products are popular in many provinces of china and have already been exported to Vietnam , Indonesia, Uzbekistan Kenya, South Africa,Algeria,Egypt, Turkey and so on.



Excellent geographic location and easy transportation access, only 2k meter from Wuxi airport and adjacent to national highway 312.Welcome friends of all industries to visit and instruct our factory.









Product  Details

Efficiency new or second hand Wire Drawing machine for Matress spring wire inlet 6.5mm outlet 1.8mm 600mm block

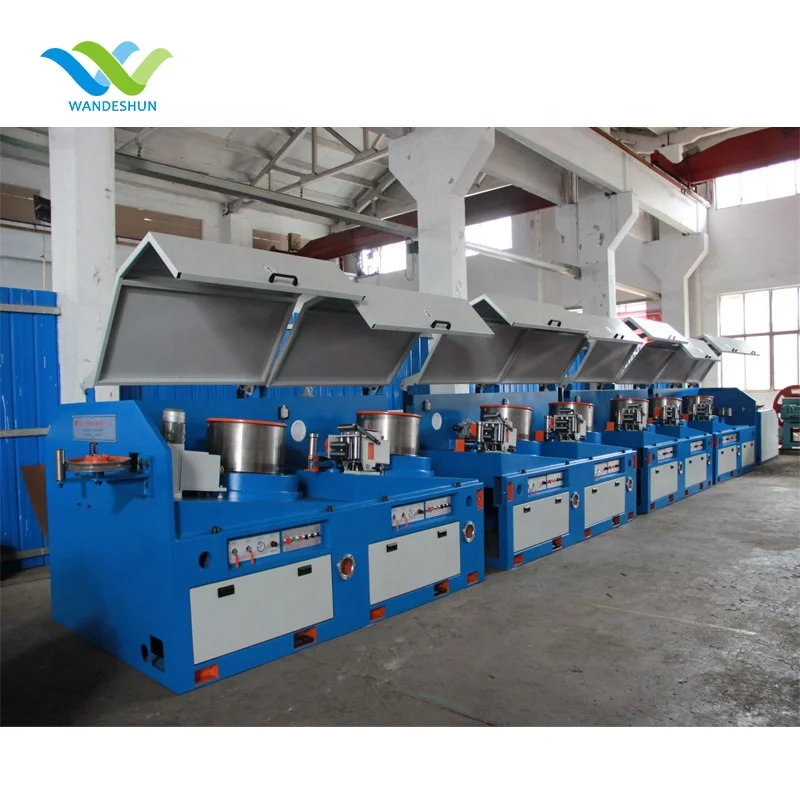

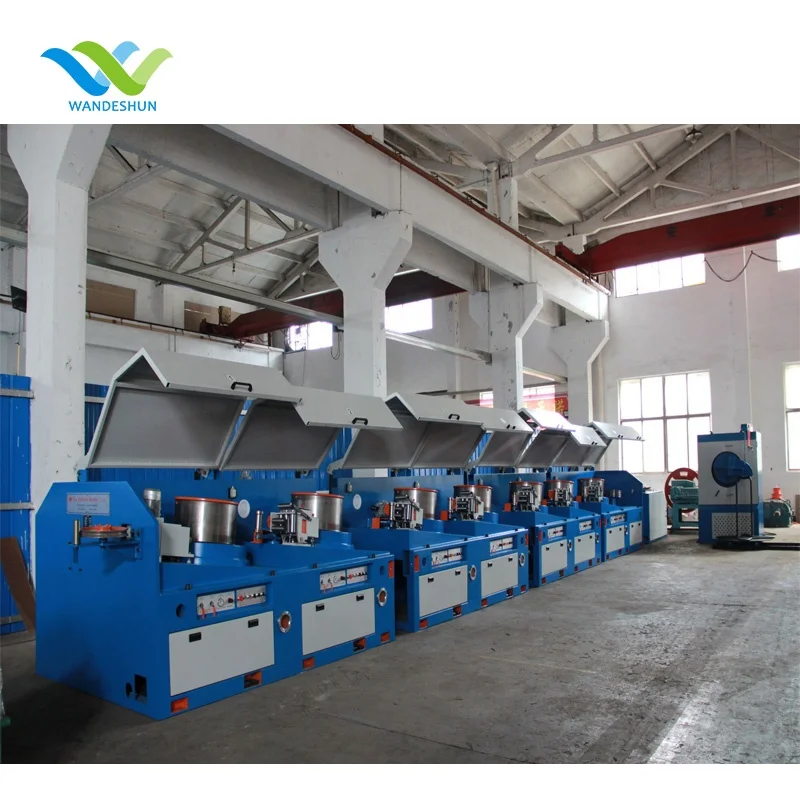

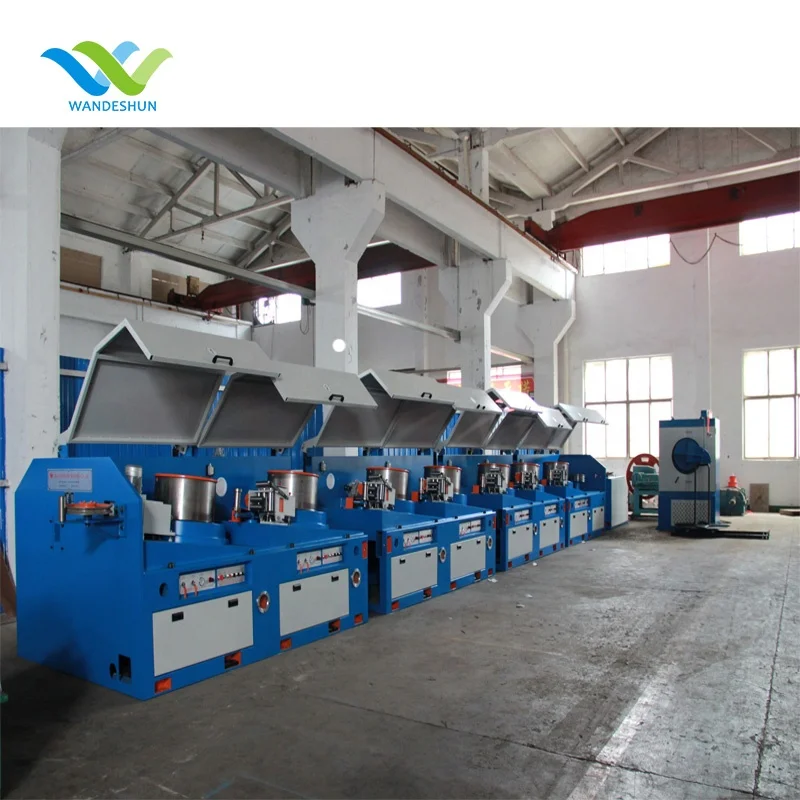

HIGH QUALITY & HIGH SPEED STRAIGHT LINE WIRE DRAWING MACHINE

Machine frame: Steel welding framework, all covered up dust free, with transparent organic glass panel in front showing movements inside during normal operation.

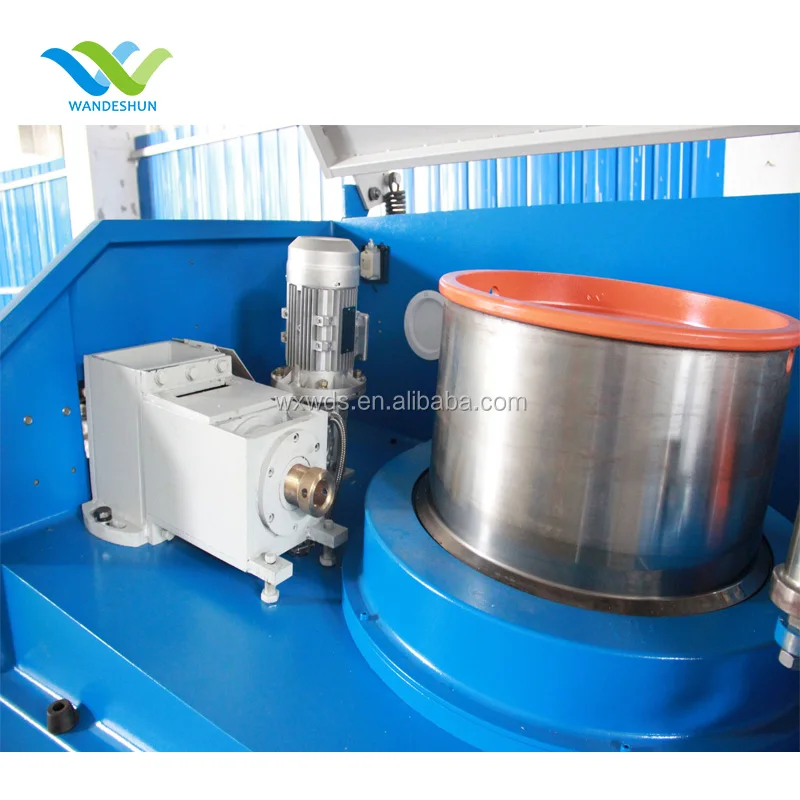

Capstan: round rolling forming by high strength manganese steel plate then via carburizing and quenching.

Surface treatment: layer welding by alloy welding rod and polishing, spray welding by tungsten carbide.

Cooling: Normal pressure water cooling plus high pressure air cooling.

Die box: dry & wet drawing normal die box, rotating die box

Transfer system: Italian brand gearbox plus belt transmission.

Electric cabinet details:
PLC: Siemens
Touch screen: Siemens
Inverter: Yaskawa, ABB, Schneider, Siemens
Circuit breakers and contactors: Schneider

Instruction of wire drawing machine

Transportation system:

Two grade belt transmission, double enveloping worm wheels, gearbox with hard tooth surface.

Way of speed adjusting:

AC Frequency conversion speed adjusting or DC speed adjusting.
Way of control:

Profibus field bus control system, touching screen show, human-computer communication, long-distance diagnose function.

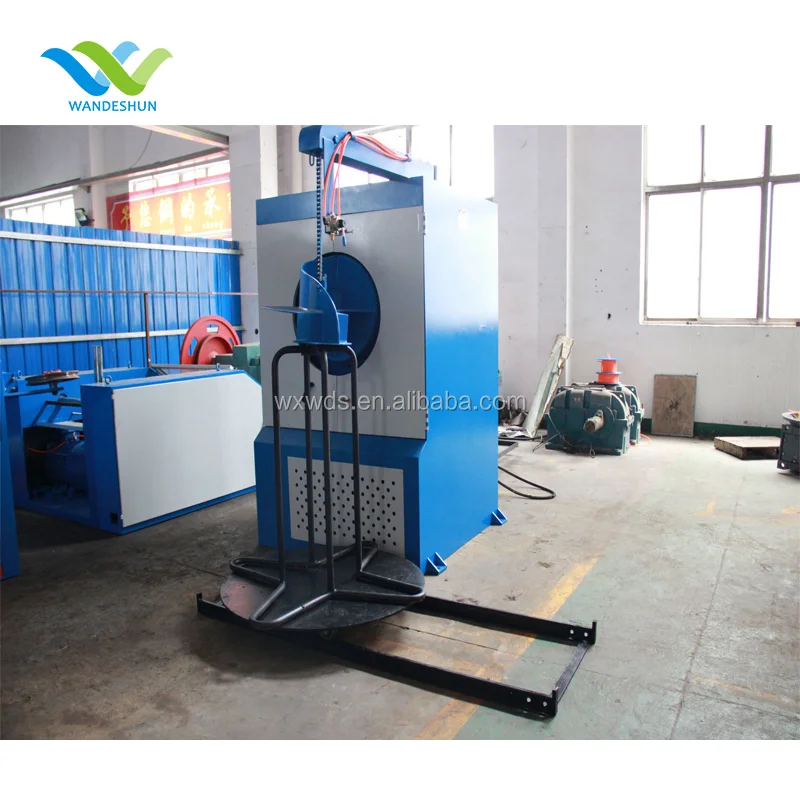

Way of take-up:

Spooler take-up, trunk take-up, headstand take-up, and all can take-up wire without stop work.
Way of pay-off:

Spooler pay-off, high pay-off frame, "-" type pay-off, duck-nip pay-off, can pay-off without stop work.
Main function:

Slowdown to stop at fixed length automatically, wire broken test and stop work automatically, cut off any block to compose new technical process freely,slowdown to stop automatically when the protecting shield is open, show of all kinds of fault information and the solution, inspection and control of all kinds of running information.

Material that can be drawn:
Steel wire (High, middle, low carbon steel wire, stainless steel wire, pre-tension steel wire, bead wire, rubber tube wire, spring steel wire, cord wire and so on).Welding wire (Air protecting welding wire, submerged arc welding wire, flux cored wire and so on).lectric wire and cable (Aluminum-clad steel wire, copper wire, aluminum wire and so on).Alloy wire and other kinds of metal wire.

Notes: All the parameters might be changed according to the actual situation.

 Main Technical Parameters:



Items	Unit	LZ9-12/1200	LZ10/800	LZ9/700	LZ10/560	LZ10/400
Reel diameter	mm	900	800	700	560	400
Draw passage	time	9-12	10	9	10	10
Incoming dia	mm	Φ14-8	Φ10-8	Φ8-6.5	Φ6.5-5.5	Φ14-8
Outgoing dia	mm	Φ5-3	Φ4-3	Φ3-2.5	Φ2-1.8	Φ1-0.8
Wire darwing line	m/min	300	360	480	720	840
Incoming strength	Mpa	≤1300	≤1300	≤1300	≤1300	≤1300
Total compressibility	%	87.24-85.94	84-85.94	85.94-85.21	90.53-89.29	87.24-84
Average compressibility	%	20.48-19.58	18.42-19.58	19.58-19.13	21.00-20.02	18.61-16.74
Single motor power	Kw	110-90	90-55	75-55	37-22	15-7.5
