Трубогиб для труб EMT 20 25 32 мм
US $150.00-$220.00
Ручной Гидравлический трубогибочный станок DW38NC для труб из нержавеющей
- Категория: Pipe and Tube Bending Machines >>>
- Поставщик: Zhangjiagang,Liye,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 4522.7 $* | 4748.1 $* |
| Aug-15-2025 | 4484.45 $* | 4708.66 $* |
| Jul-15-2025 | 3762.9 $* | 3950.95 $* |
| Jun-15-2025 | 4408.33 $* | 4628.2 $* |
| May-15-2025 | 3838.70 $* | 4030.0 $* |
| Apr-15-2025 | 4332.92 $* | 4549.51 $* |
| Mar-15-2025 | 4294.84 $* | 4509.28 $* |
| Feb-15-2025 | 4256.96 $* | 4469.98 $* |
| Jan-15-2025 | 4218.25 $* | 4429.57 $* |
Характеристики
pipe bending machine
Product Description

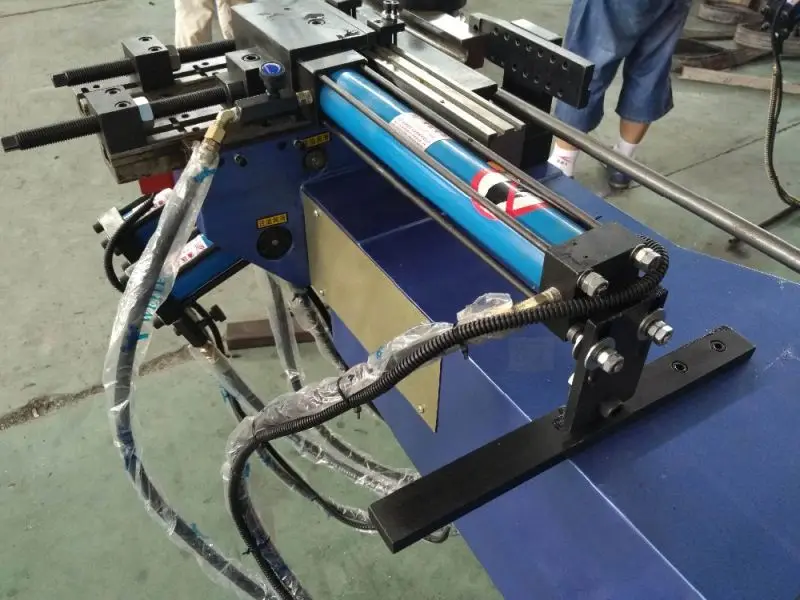

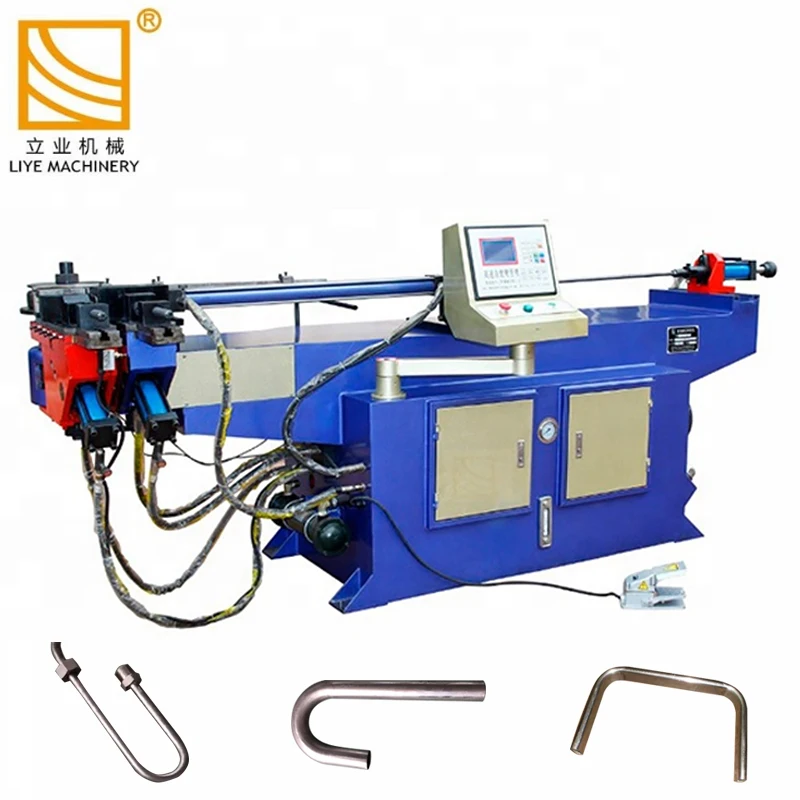

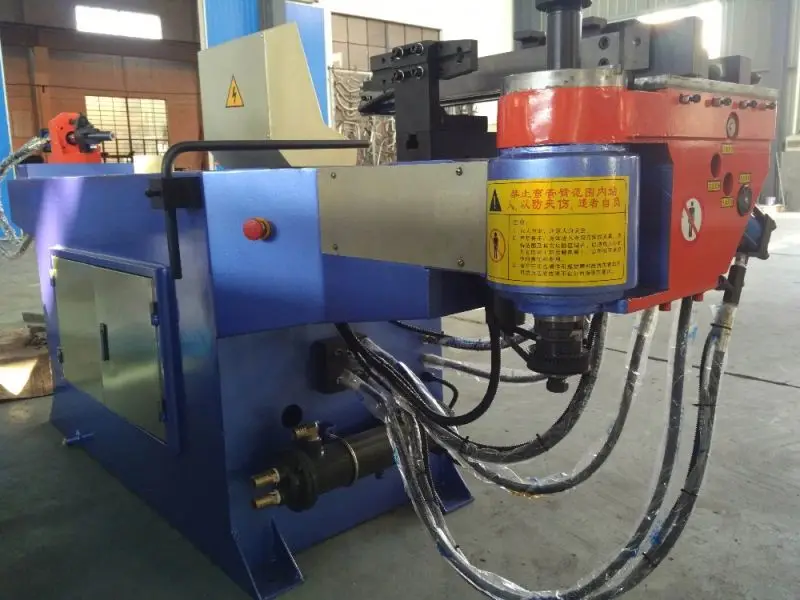

DW38NC Metal Stainless Steel Manual Hydraulic Square Tube Bender Pipe Bending Machine
NC semi-automatic tube bender
1. The product is controlled by microcomputer and driven hydraulically and it can bend various types of tube bender with different bending angle.
2. It applies Chinese character display and man-machine conversation operation, and can be operated manually, half circularly or full circularly.
3. It applies hydraulic and electrical elements with high performance.
4. Cooling system with large capacity is provided to control working temperature effectively.
5. The product has characteristics including easy operation, stable performance, high work efficiency and high safety factor and it is an ideal device for tube processing industry.
6. The movable foot switch has three functions, automatic startup, emergency stop and emergency stop continuity, which ensure high safety.
Standard accessories
1. One pair of standard mould (wheel mould, clamping mould and sliding plate mould)
2. One set of common tools
Categories of bent materials
Steel tube, stainless steel tube, copper tube, aluminum tube and multiple-unit tube
Special accessories
Auxiliary pushing device, core rod, wrinkle-proof mould, shaped mould, forming mould
Shapes

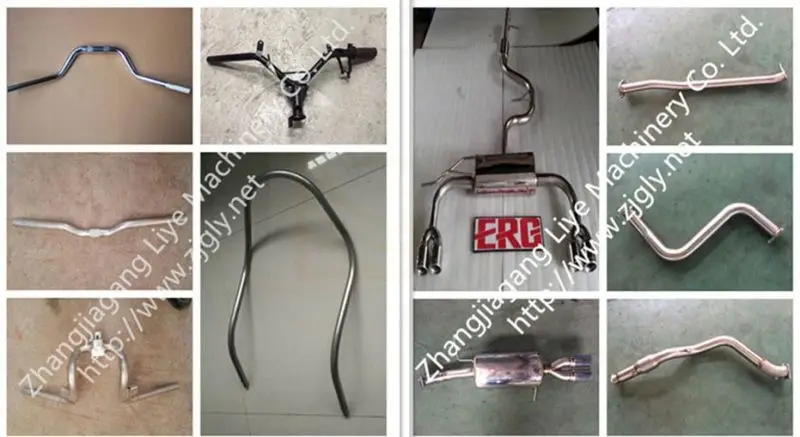

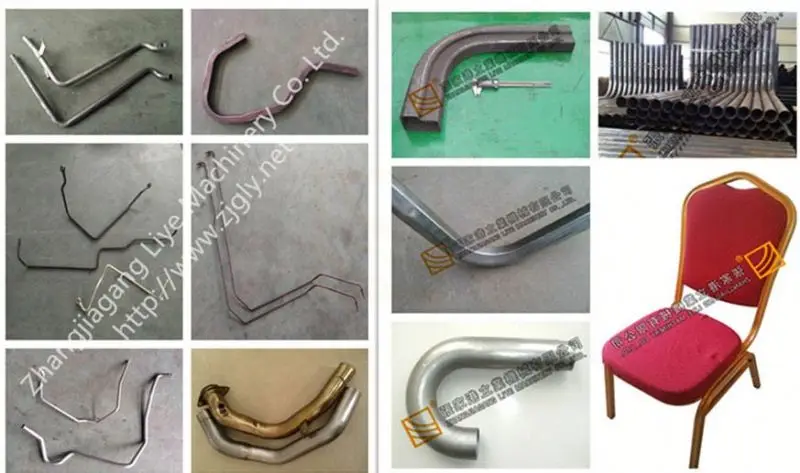

Round tube, square tube, elliptical tube, plum blossom-shape tube, shaped tube, U-steel, angle steel, I-steel and flat steel, etc.
Recommended using units
Automobile spare parts (brake line, bumper bar, silencer and seat, etc.). Industries including motorcycle manufacturing, electromobile manufacturing, iron art, fitness equipment, air conditioning, bicycle, steel furniture, sanitary and bathroom equipment, seats for relaxation, petroleum pipeline, shipbuilding and boiler.
Specification:
| DW38NC semi automatic pipe bending machine | |
| Specification | DW38NC |
| The Largest Processing Diameter (iron pipe) mm | φ38×2 |
| Max. Wear Heart Distance | 1600mm |
| Max. Bending Angle | 190° |
| Max. Bending Radius | 175mm |
| Main Oil Cylinder Diameter | Φ70 |
| Oil Pump | 17L |
| Pipe Bending Precision | ± 1° |
| Motor Power | 4kw |
| Hydraulic Pressure | 12Mpa |
| Can Be Bent Pipe Number Per Set | 16 |
| Can Set Fitting File Number | 16 * 16 |
| Measurement Size Of Machine (L*W*H) | 2600 * 600 * 1100 mm |
| Weight Of Machine | 750 kg |
| Bending Mode | Rack Transmission |
| Warranty | 1Year / Life-Long Maintenance |
Selection Guide:
http://www.zjgly.net/en/xxzn.html
Packaging & Shipping
Transaction History
Similar product
Company Information
Zhangjiagang Liye Machinery Co., Ltd. (hereinafter referred to as the "Company") is specialized in manufacture of machining equipment for metal pipes. The Company covers an area of more than 10,000 m2 with total assets of over CNY 20 million. The main products include 9 series and over 100 models, i.e. pipe machining line, pipe cutter, pipe bender, pipe end forming machine, chamfering machine, gear grinding machine, riveting machine, arc machine and bending press.
Our company is an entity factory.The company has a mature team about production, product research and development, and product inspection.Our products update faster .We can design or improve new type of machine to meet different customer needs.
Parts brand
FAQ
Q1 What a Liye machinery main product is?
The main products include 9 series and over 100 models, i.e. pipe machining line pipe cutter pipe bender
pipe end forming machine, chamfering machine, gear grinding machine, niveting machine, arc machine
and bending press.
Q2 Why can we trust Founding mechanical technology?
1.All of our products have passed CE, TUV, ISO quality cerification
2.0ur products have been exported so far been more than 80 countries
3.This site is written by the Department of Mechanical Technology Founding how to choose the type of
article bender http:/www zjgly.net/en/xxzn.html)
Q3 When did you set up?
We specialize in the production of pipe processing machinery has reached 16 years, starting in
2008 to developthe intemational market.
Q4 Where is your factory?
Zhangiagang City, Jiangsu Province, from Shanghai airport only two hours
Q5 Where is your ADVANTAGE?
1. In good faith-based, professiona skills,excellent quality
2 We have been committed to the development of new products, equipment canbe customized according to
needs
3. Strict management system and perfect after-sales service
