We provide the key parts of the electric vehicle( motor, controller, rear axle, gear box and etc ), moreover we provide one-stop service and integrated solutions!



Transmision rear axle(rear bridge) with gearbox for electric vehicle such as electric tricycle/rickshaw,golf cart,golf trolley,sightseeing bus,etc.







Model	LY110 SERIES
Speed ratio	12.44, 16.9,10.6,
Center distance	62mm
Torque capacity	105N.m
Input spline	Involute: 19Z,DP 24/48,α 45°
motor mounting rabbet	148.3
wheelbase	960, 980mm
Noise	<65dB
Option brake	mechanical 160,                    Hydraulic 160/180/220
Lubrication oil type	75W/90 GL-4





The advantages of the rear axle with gearbox are as below:



1. Die casting process for the housing.

2. Special process to gearbox.

3. Hard strengthening.

4. No leakage.

5. Whole structure to avoid cutting phenomenon.

6. No rust by effective surface treatment.

7. Pass many third-party test.

8. Customized as your request.















We will suggest a suitable program according to your vehicle information!

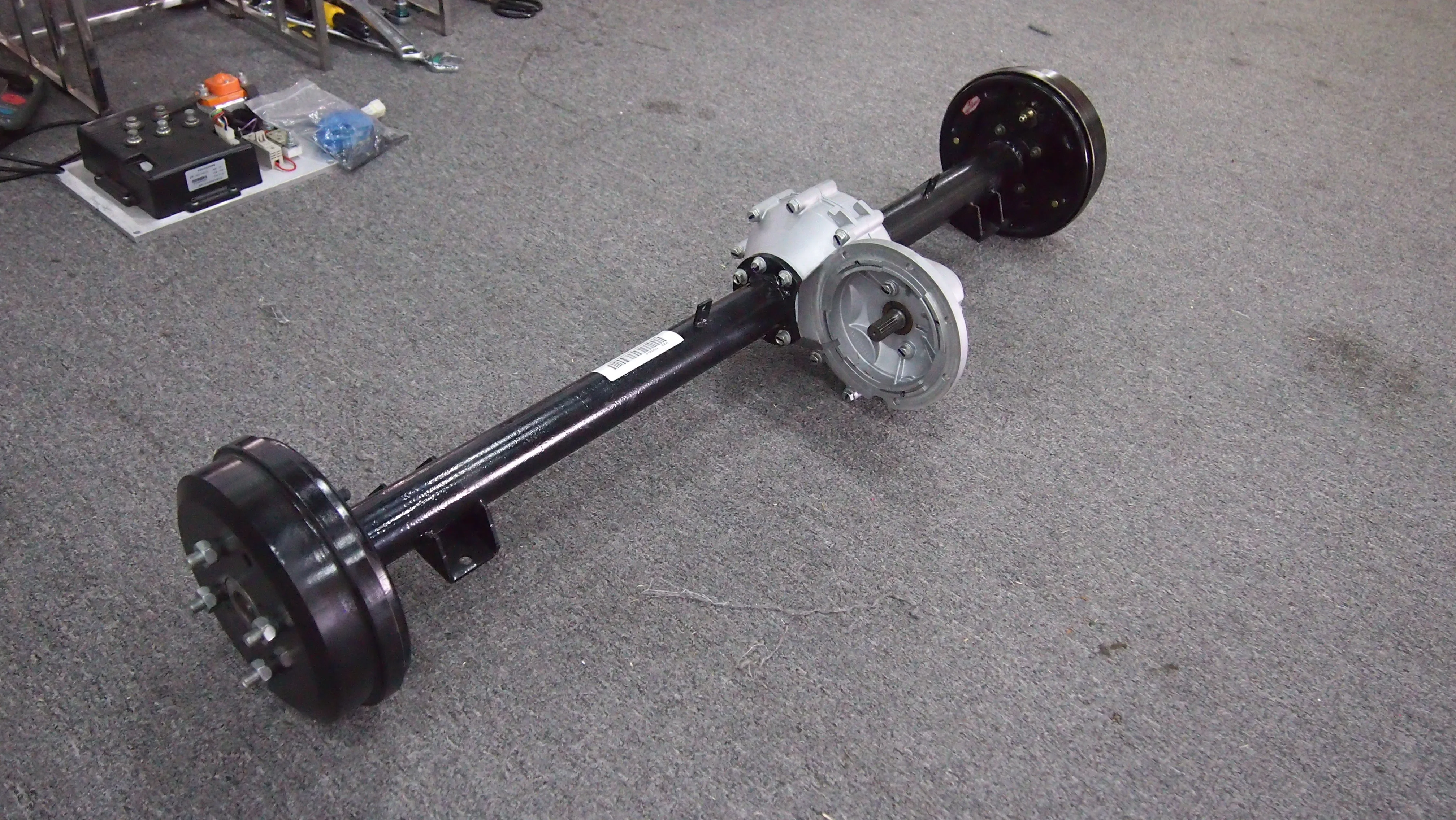

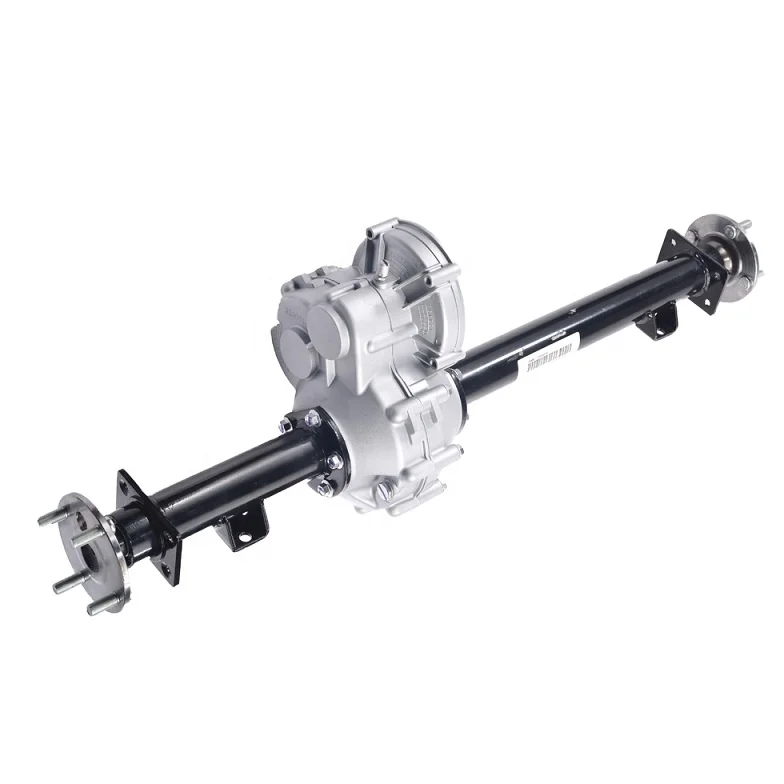

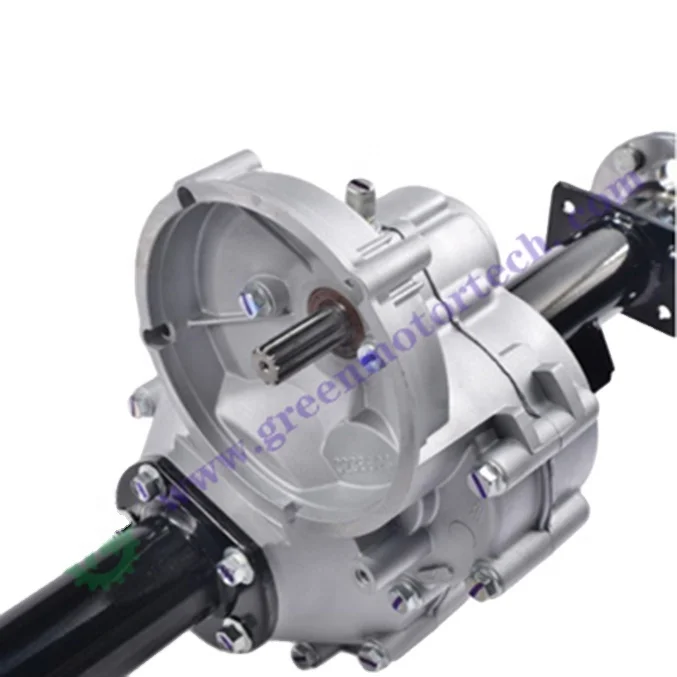

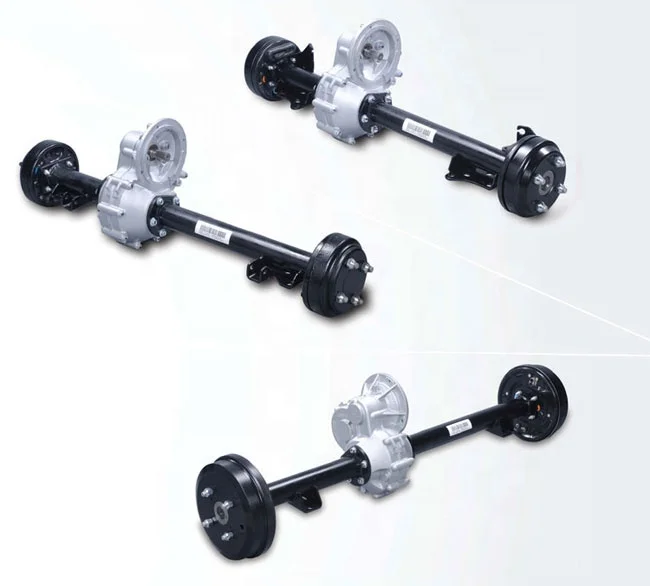

Pictures of rear axle with gearbox







Pictures of driving system











The advantages of the dirving kits of Green Motor are as below:



1.Heartbeat price:  Collaborative pricing strategy of motor, electric controller and axle, cutting  extra profit for customers.



2.Integrated performance:  Integrated drive assembly could solve the matching problem of the power  transmission system components.



3. One-time delivery:  Integration of all components of the production cycle, could improve the  efficiency of supply chain.



4. One-stop service:  The integrated service of providing assembly parts including pre-sale service,  sale service, and after- sale service.



 ,



1. One year guarantee.


2. Long time freely technical support.


3. 24 hours technical support by e-mail.


4. English software to program, user manual.


5. Free program design for your electric vehicles.













Our factory is the professional manufacture electric cars driving axle. The factory has a nearly ten year's professional technical team of the experience for research and development of electric cars driving axle and auto transmission. Our factory in accordance with the quality standard TS16949. The quality policy "pursuit perfection, forging the most perfect for electric cars driving axle on the global". We have excellent product quality, and the consistency is very good, the noise of assemblies is lower than the level of similar import products, and the reliability of fatigue and leakage all through the detection of nation automobile research institute.



The factory has been committed to the establishment of a top gear production, assembly and testing, currently has an annual output of twenty thousand units of electric vehicles after the bridge assembly production capacity. The factory varieties, has formed four series of nearly 20 varieties of electric vehicles after the bridge products, of which 10 tooth LY130 series rear axle has been fully replace imported.

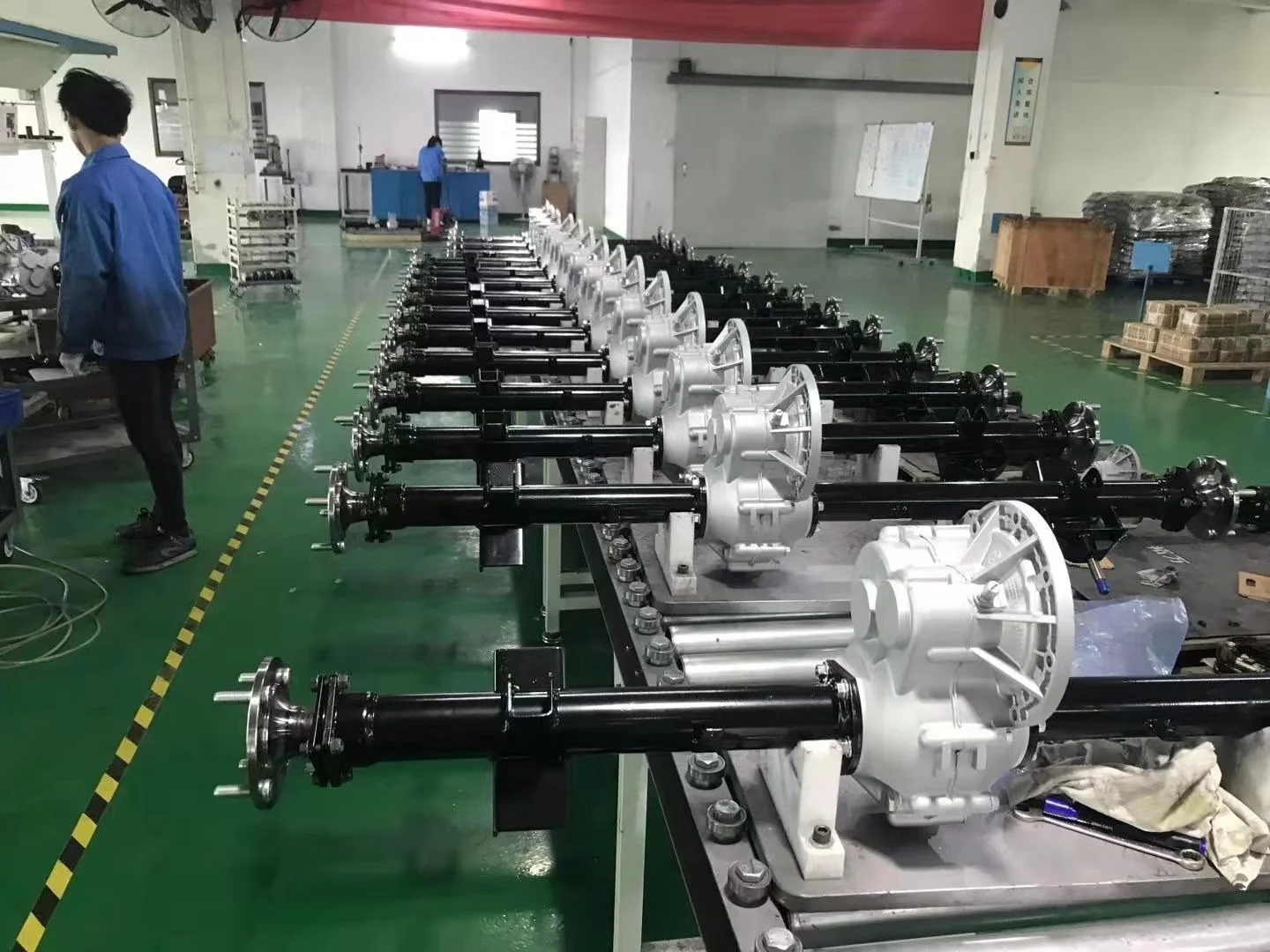

Factory Corner











 Why choose us?

1. Attractive price versus superior quality product.


2. Tailor made to the customer’s size.


3. On time delivery.


4. Team commitment, reliable partnership.


5. Customer focused & market driven.
