OEM 5 8G Wi-Fi документная камера сканер образования визуализатор беспроводной 13 м 8 книга для

Описание и отзывы

Трекер стоимости

Характеристики

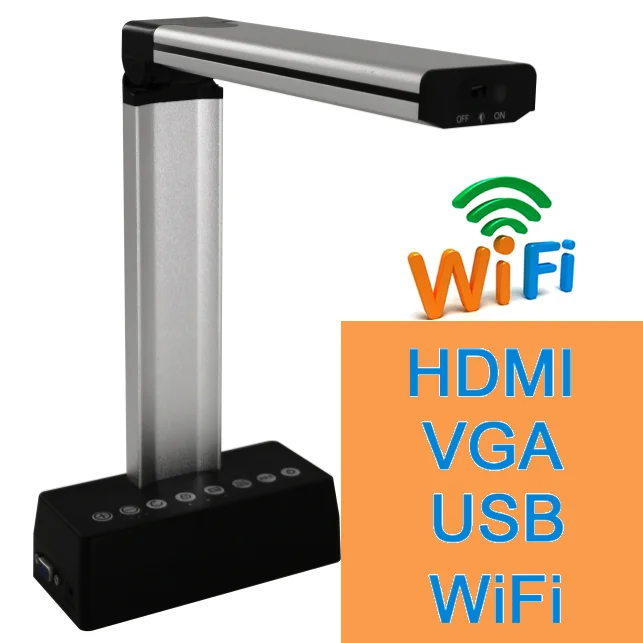

WIFI / HDM/ VGA / USB Document Camera

Model:WS130-HV

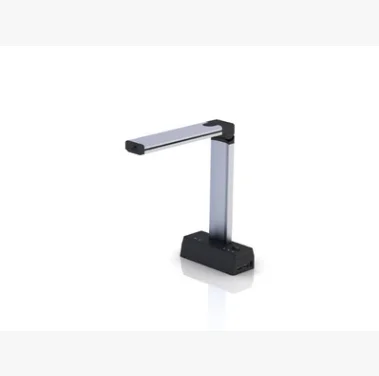

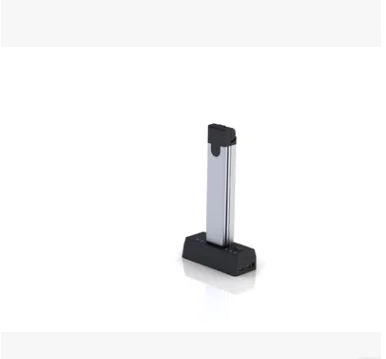

Appearance



Interfaces and keys



Funcations Specifications



1.     Three connection modes are supported:

a) USB wired mode

b) VGA or HDM wired mode

c) WiFi wireless mode

  Notes:  WiFi wireless mode supports 5.8G frequency, with more stable performance, stronger anti-interference ability than 2.4G transmission, and smooth image without jamming.

2.     Image fluency:

a) WiFi wireless mode: 10 fps at 8Mpixels with a delay of 500ms; 15 fps at 5Mpixels with a delay of 300ms; 30 fps at 2Mpixels without delay

b) USB wired mode: 15 fps at 8Mpixels without delay; 15 fps at 5Mpixels without delay; 30 fps at 2Mpixels without delay

c) VGA or HDMI wired mode: 15 fps at 8Mpixels without delay; 30 fps at 2Mpixels without delay

3.     Zoom: Support 6x lossless zoom and 4x digital zoom at VGA or HDMI wired mode;  support 1%-1500% zoom at WIFI wireless and USB wired mode

4.      This machine supports video and audio recording function by itself,  does not need the computer.

5.     Built in battery, can be used removable, battery capacity: 2600mAh, up to 6 hours

6.      foldable, retractable and portable design, with high-grade aluminum alloy expansion bar.

7.      two sets of LED lights are built in, which can respectively illuminate two different directions and 5-level touch brightness adjustment switch

8.      Resolution : 13 million pixels (4208 × 3120)

9.   Capture size: A3 and below

        9.1 Interface: 1 HDM output, 1 VGA output, 1 USB output, 1 USB-OTG, 1 TF card slot, 1 DC input interface, 8                   function keys, 1 reset key, 4 indicator lights,1 Battery indicator light

10.  WiFi wireless standards:

IEEE 802.11g, IEEE 802.11b, IEEE 802.11n, IEEE 802.11 ac

11.  WiFi wireless frequency range:  5.725ghz-5.850ghz

12.  WiFi wireless transmission distance:  50m

13.  WiFi wireless transmission speed:  433mbps

14.  USB interface:  USB 3.0, compatible with USB 2.0

15.  USB output format:  mjpg, yuy2

16.  Minimum illumination: 10lux.

17.  Recommended illuminance: 50-80lux

18.  Flash control: 50Hz or 60Hz.

19.  Auto aperture, auto white balance, auto exposure

20.  Operating temperature: - 10 to 45 degrees.

21.  Power input: 12V 1A

22.   Support system: Windows 10, Windows 8 / 8.1, Windows 7. Windows Vista, Windows XP SP2.
