Профессиональный многочастотный Биоэлектрический Анализатор сопротивления анализатор состава телесного

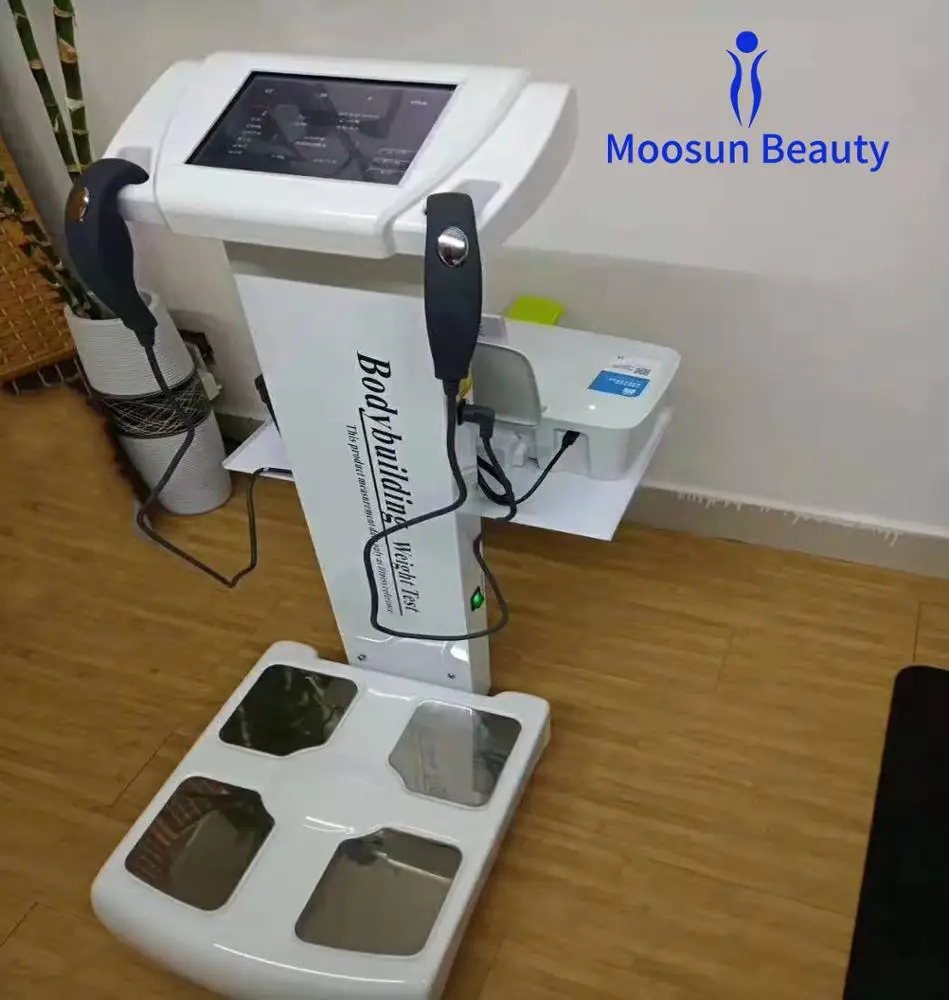

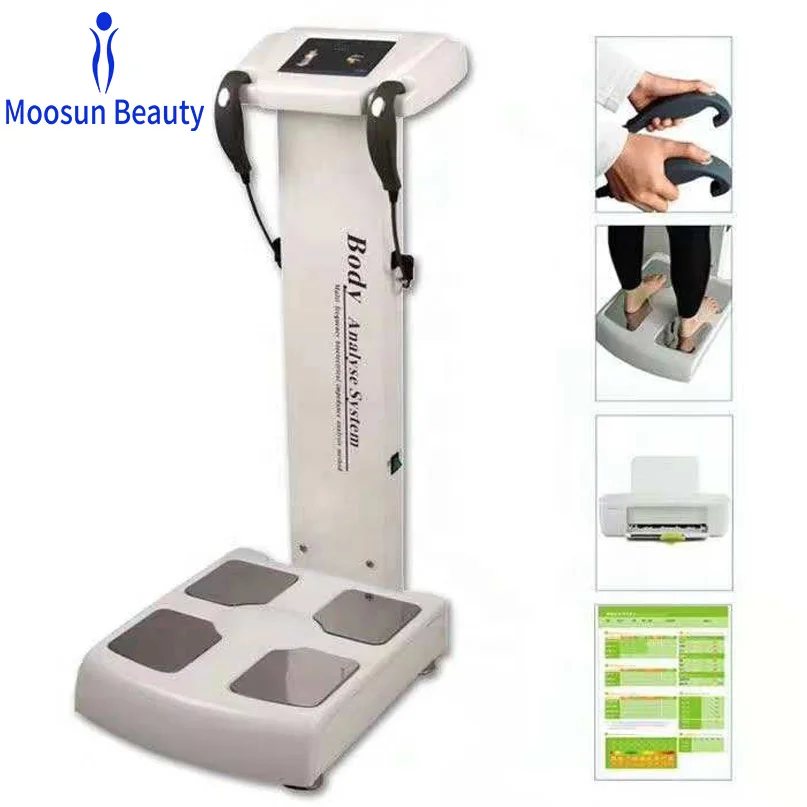

Hot Sale Multifunctional 8 points contact electrode body composition analyzer with printer for clinics

Test Method

Multi-frequency bioelectrical impedance analysis (MFBIA)

Test Part

bioelectrical impedance analysis on the part of left upper limb, right upper limb, trunk, left lower extremity, right lower
extremity

Test Frequency

Three differenct frequency(20KHZ, 50KHZ, 100KHZ)

Electrode Method

 8 point contact eletrode

Computing method of body components

Do not estimate through empirical value

Output Value(25)

 TBW, protein, mineral salt, Body fat, bone weight, Weight,IBW, fat-free weight, SMM(Skeletal muscle), BMI(Body mass index),
PDF(percentage of body fat), WHP(waisthip ratio),moisture ratio, Obesity diagnosis, nutritional assessment, Weight assessment,
obesity assessment, Goal weight,Weight control, Fat control, Muscle control, Health assessment, basic metabolism, bioelectrical
impedance.

Rated current

 less than 180μA

Power

Input power: AC100~240V, 50/60HZ

Screen

 8inch Touch Screen

Operation Language

 English and Multiple Language Option

Values Storage

 50000×10 and SD Card unlimited expansion is available

External Storage

Data transfer through USB line

External Interfaces

 RJ-45, USB2

Printer Interfaces

USB

IC Card System

standard IC card control

Printer

 A4 color paper ink-jet printer(manufacturers appoint the model), internally installed thermal printer

MEAS. Of Package

49CM*50CM*118CM(woodern case), GW: 40KG; NW:32KG

Test time

No more than 2 minutes

Operation Environment

Temperature: 10~400°C(50~1040°F),humidity: 30~80%RH, 500~600hPa

Conservation Environment

Temperature: 0~400°C(32~1040°F),humidity: 30~80%RH, 500~600hPa

Test scope of weight

10~200Kg; Test scope of age: 10~99 ages; Test scope of height: 90~200cm

External expansion project

Ultrasonic Height Measurer(selective purchasing)
