Цзинань многоголовый фрезерный станок с ЧПУ и плазменной резки AKMP1325 плазменный
- Категория: Плазменная резка с ЧПУ >>>
- Поставщик: Jinan,AccTek,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 8687.62 $* | 9121.92 $* |
| Aug-16-2025 | 8614.55 $* | 9045.98 $* |
| Jul-16-2025 | 7227.81 $* | 7588.9 $* |
| Jun-16-2025 | 8468.21 $* | 8891.42 $* |
| May-16-2025 | 7373.13 $* | 7742.62 $* |
| Apr-16-2025 | 8322.51 $* | 8738.35 $* |
| Mar-16-2025 | 8249.50 $* | 8661.83 $* |
| Feb-16-2025 | 8176.31 $* | 8585.8 $* |
| Jan-16-2025 | 8103.94 $* | 8508.44 $* |
Характеристики
Products Description
The Acctek® Product Line - CNC Plasma Cutting Tables For All Applications

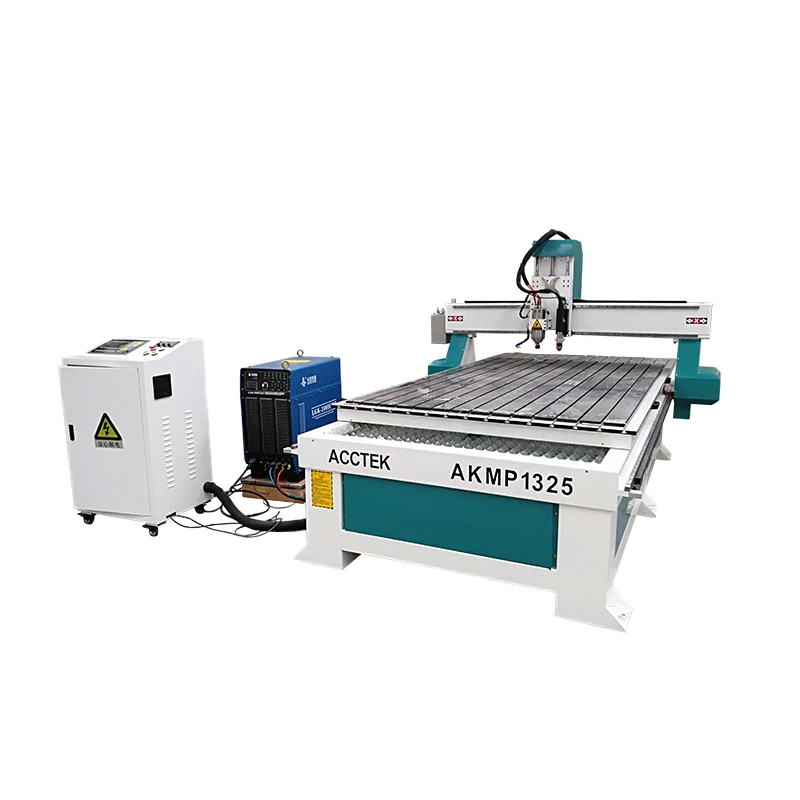

AKMP1325 cnc spindle and plasma torch combined machine.
Note: We can offer free shipping so some seaports, to save your time and delivery cost, please kindly confirm with us before make a payment !
This typle CNC spindle and Plasma torch combined machine ,
have the advantages of both machine ,and save space for your workshop .
Could cut thick metal use plasma high speed ,while still have precise milling and working accuracy with CNC spindle .
What can plasma part be used for?
Typical materials cut with a plasma torch include steel, stainless steel, aluminum, brass and copper,
although other conductive metals may be cut as well.
Plasma cutting is often used in fabrication shops, automotive repair and restoration, industrial construction,
and salvage and scrapping operations.
although other conductive metals may be cut as well.
Plasma cutting is often used in fabrication shops, automotive repair and restoration, industrial construction,
and salvage and scrapping operations.
How useful is a combined cutter?
This typle CNC spindle and Plasma torch combined machine ,
have the advantages of both machine ,and save space for your workshop .
Could cut thick and hard metal use plasma high speed ,while still have precise milling and working accuracy with CNC spindle .
have the advantages of both machine ,and save space for your workshop .
Could cut thick and hard metal use plasma high speed ,while still have precise milling and working accuracy with CNC spindle .
Basic Configuration of AKMP1325
01>Working area: 1300*2500*200 mm
02>Heavy duty welded steel body
03>Banner steel table&T-slot
04>Standard color
05>Voltage:380V

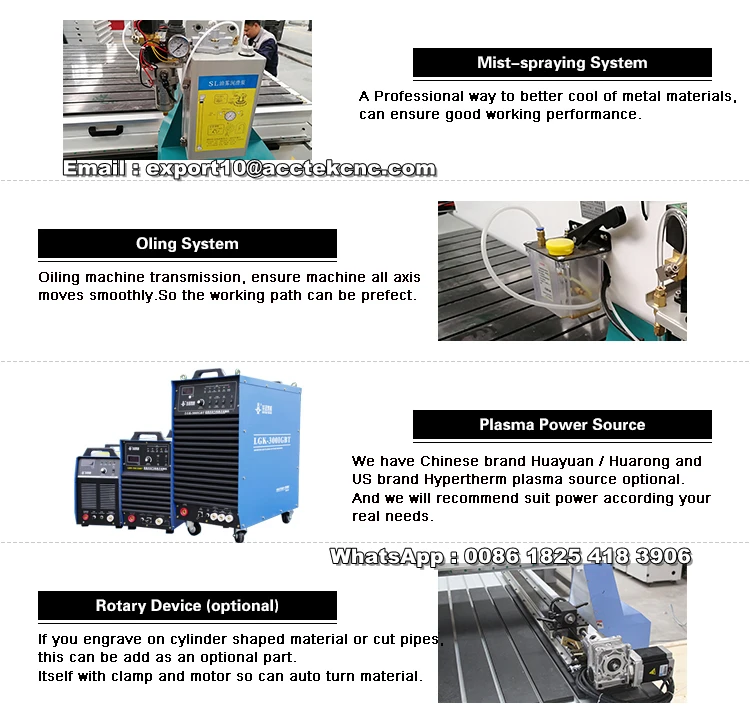

06>Mist spraying system for metal
07>3.0KW China water-cooling spindle ,with Marched ER20 collet
Can do precise engraving and cutting work on both metal and non-metal
08>China Huayuan 63A plasma supply (100A optional, for thicker metal cutting)
Can fast cut metal 6mm mild carbon steel / 3mm stainless steel / 2.5mm Aluminum
09>Taiwan high precision rack pinion transmission
10>Z axis high precision ball screw transmission
11>Start with THC for plasma ,Mach3 for cnc controller system
12>Independent control cabinet
13>Equiped operating software
14>Cost-efficient stepper motor and drivers
15>Taiwan PMI linear square rail guide
16>Domestic Fuling Inverter
17>Oil Lubrication ensure smooth transmission
18>Tool Calibration sensor
19>Safety Emergency stop Switch on cabinet
20>French Schneider Low voltage electrical part
21>Filter
22>Original flexible cable
23>One set wood tool bits as free gifts
24>Standard tool box (includes wrenches,clamp plate,data lines etc.)
25>Machine user instruction
26>Acctek exclusive personalized USB flash disk
02>Heavy duty welded steel body
03>Banner steel table&T-slot
04>Standard color
05>Voltage:380V
06>Mist spraying system for metal
07>3.0KW China water-cooling spindle ,with Marched ER20 collet
Can do precise engraving and cutting work on both metal and non-metal
08>China Huayuan 63A plasma supply (100A optional, for thicker metal cutting)
Can fast cut metal 6mm mild carbon steel / 3mm stainless steel / 2.5mm Aluminum
09>Taiwan high precision rack pinion transmission
10>Z axis high precision ball screw transmission
11>Start with THC for plasma ,Mach3 for cnc controller system
12>Independent control cabinet
13>Equiped operating software
14>Cost-efficient stepper motor and drivers
15>Taiwan PMI linear square rail guide
16>Domestic Fuling Inverter
17>Oil Lubrication ensure smooth transmission
18>Tool Calibration sensor
19>Safety Emergency stop Switch on cabinet
20>French Schneider Low voltage electrical part
21>Filter
22>Original flexible cable
23>One set wood tool bits as free gifts
24>Standard tool box (includes wrenches,clamp plate,data lines etc.)
25>Machine user instruction
26>Acctek exclusive personalized USB flash disk
Details Images

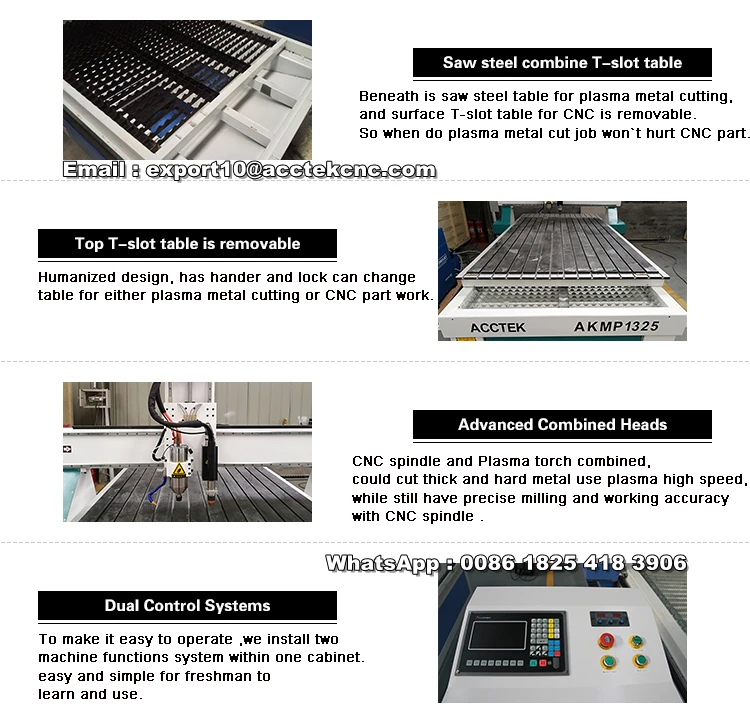

Machine Details
Machine is saw steel combine T-slot table ,surface T-slot table is removable .
So when do plasma metal cut job won`t hurt CNC part .
So when do plasma metal cut job won`t hurt CNC part .
# It need a mist-spaying system if you engrave on metal as well .
# And we added handle and lock for removable table ,easy to change and fix .
# There`s some method could reach 4axis job in a more cheap way :
Add a muanl 360°wheel behind the spindle
Or add a simple 4th. axis rotary device on machine .
# Control system :To make it easy to operate ,we install two machine functions system within one cabinet .
# And we added handle and lock for removable table ,easy to change and fix .
# There`s some method could reach 4axis job in a more cheap way :
Add a muanl 360°wheel behind the spindle
Or add a simple 4th. axis rotary device on machine .
# Control system :To make it easy to operate ,we install two machine functions system within one cabinet .

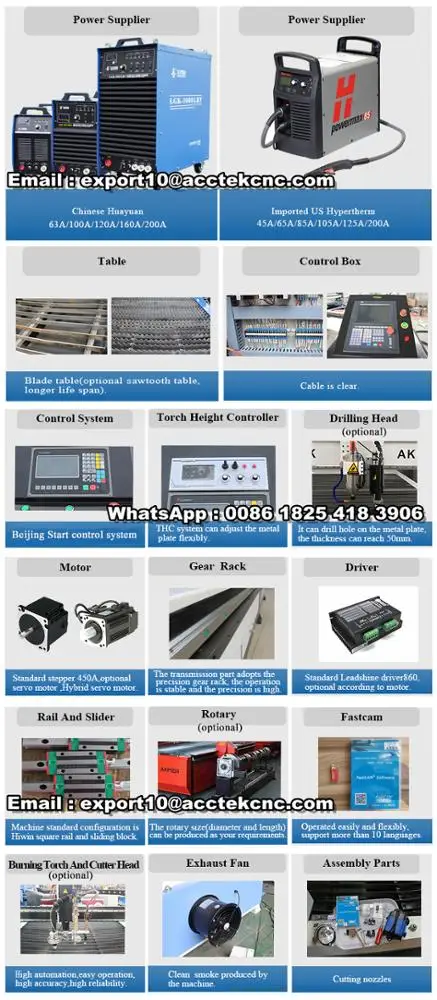

Accessories you will get
An extra piece limitor for spare parts + Original operate software + Cutting nozzles as free gift
+ Acctek flash disk inside with PDF manuals and teaching videos + Spare tools in tool box
+ Acctek flash disk inside with PDF manuals and teaching videos + Spare tools in tool box
# Optional
Air comprossor
Technical parameter
Cutting Ability
Power Supply Brand | Power (A) | Cutting Thickness ( mm ) | ||||||
Carbon steel | Aluminum, Copper | Stainless Steel | ||||||
Huayuan | 40 | 0.3~4 | *40% | *50% | ||||
63 | 0.3~6 | |||||||
100 | 0.3~15 | |||||||
160 | 1~20 | |||||||
200 | 1~30 | |||||||
Hypertherm | 45 | 6 (good) | 8 (max.) | |||||
65 | 8 | 12 | ||||||
85 | 10 | 16 | ||||||
105 | 12 | 19 | ||||||
125 | 15 | 22 | ||||||
200 | 25 | 50 | ||||||
Add Flame Cutting | 55 | 120 | ||||||

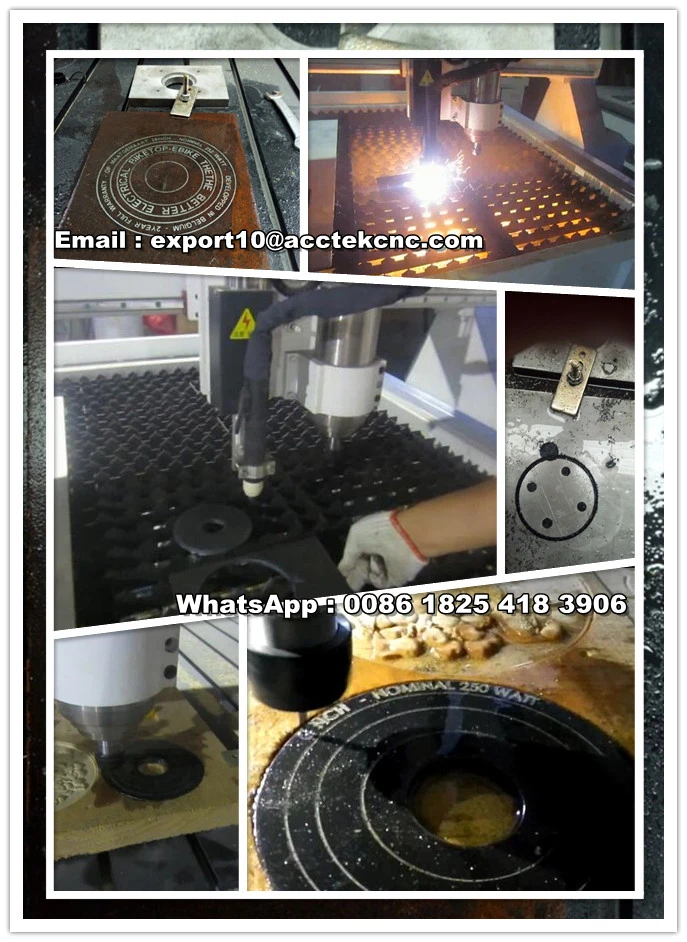

Customer Photos
Reference Working Videos
Machine end user feedback video (D.I.Y. table and chairs with families! )
https://www.youtube.com/watch?v=9YUPLht2hv4&list=PL4yY1EDVKQbz9LVjQsxGHlB9bGvlnjyV_&index=10
https://www.youtube.com/watch?v=9YUPLht2hv4&list=PL4yY1EDVKQbz9LVjQsxGHlB9bGvlnjyV_&index=10
Service
Our Service
1> 24 hours technical support by Email or Calling. (Skype: cnc.help)
2>English manual and CD video for machine using and maintaining.
3> Hardware: 2 years on whole machine (without person damaged).
Software: Whole life on update for free.
Maintenance and technological support: Whole life.
4> Free training course in our plant ( usually one weeks).
5>Engineers available to service machinery overseas.
2>English manual and CD video for machine using and maintaining.
3> Hardware: 2 years on whole machine (without person damaged).
Software: Whole life on update for free.
Maintenance and technological support: Whole life.
4> Free training course in our plant ( usually one weeks).
5>Engineers available to service machinery overseas.
