Product Description

Product Application

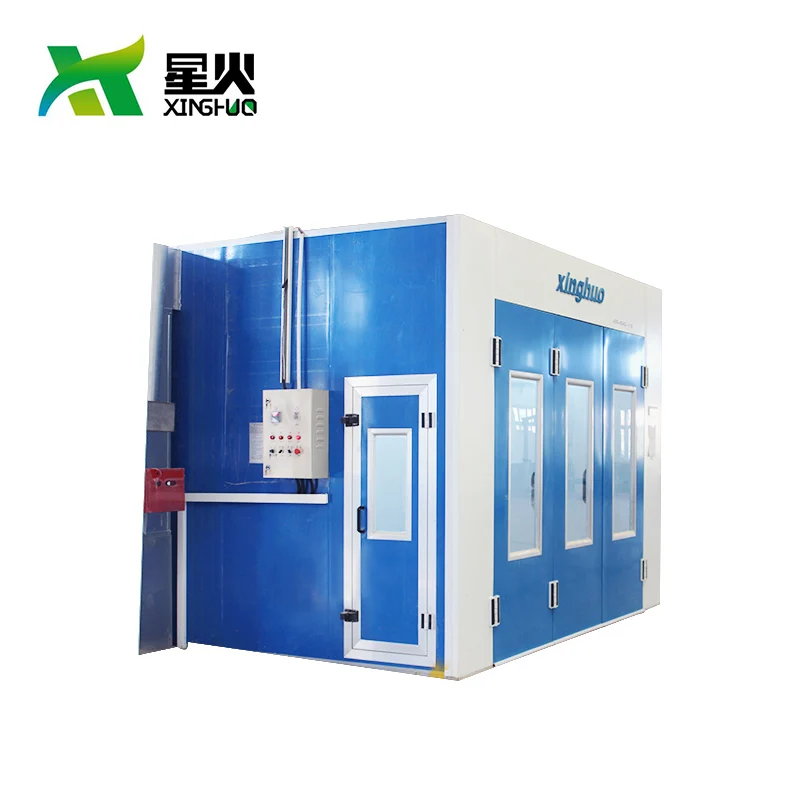

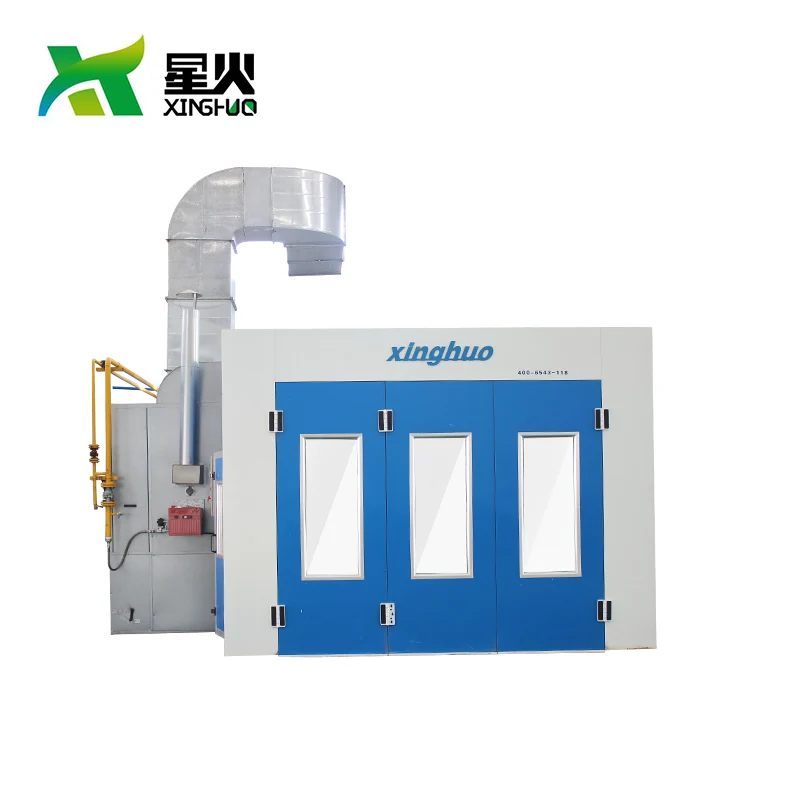

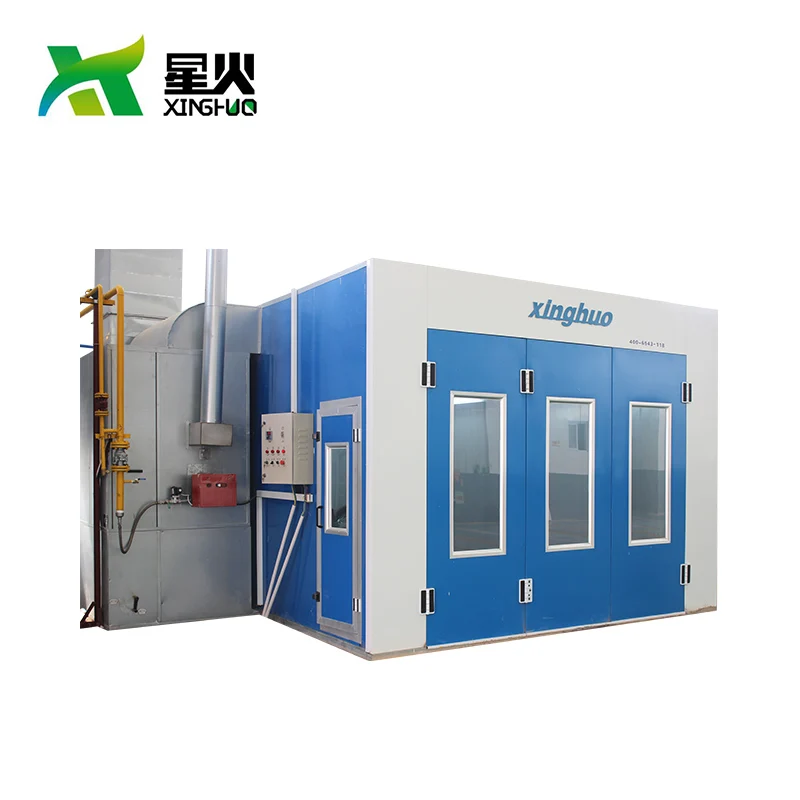

Spray paint room is a kind of equipment surface for painting and dyeing and drying equipment.It can not only play a beautiful role in equipment, but also protect the goods.A few factors that weigh lacquer room have brightness, air flow rate, filter effect, wall sealing effect, assure positive pressure, the sealing effect of heating system, heat up speed.It can prevent the object from being corroded in the bad environment of damp and dust, spray paint can prevent metal parts from being corroded, and delay the aging of plastic parts.At the same time, we can achieve the artistic aesthetic design style by painting the object, so that the object appearance is more beautiful, and bring more commercial value and visual beauty.Baking room is this kind of professional facilities through the technical treatment of the object surface decoration, repair of important equipment.In short, the paint room is generally used to spray and bake paint, therefore, the most accurate description of the paint room should be "spray paint room".It is widely used in automobile, machinery, hardware, furniture, FRP products, chemical equipment and other industries of the workpiece surface spray paint, paint construction.

SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR
Housing system
Wallboard: high quality fireproof basalt wool board, 50mm thick, double-sided 0.4/0.4mm steel plate;Bulk density of rock wool is 100kg/m3
Top plate: adopt high quality galvanized plate to bend and buckle.
Skeleton: galvanized steel skeleton welding;
The door
Design folding three doors, full sheet metal doors, external padlock, equipped with glass observation window;There is a safety working door on one side of the room, equipped with safety pressure lock device. When the pressure in the room reaches the limit value, the safety door will spring open automatically to relieve pressure.
 Air supply and exhaust system
The fan is YDW type fan in yancheng, jiangsu province, equipped with two 3kw fans for air intake and one 4kw fan for air exhaust.The occurrence room is welded with galvanized steel skeleton, galvanized sheet is covered with outer skin and has sound insulation layer;The exhaust duct adopts the mechanism ventilator;The box body is separated from the house body to avoid resonance between the fan operation and the wall.
 Filtration system
Selection of high quality galvanized steel welding frame to do cotton pad, filter cotton embedded design, prevent dropping, design six cotton pad, easy to replace, enhance the overall strength, domestic cotton primary filter, top filter cotton filter, filtration rate of 98%.
Heating system
Adopt far infrared electric heating mode.Fixed on both sides of the gridiron and equipped with far infrared electric heating tube at the rear can be used to paint both sides and front parts of the car.Total power of far infrared electric heater: 30kw, 3-way control.
Lighting system
The light box is made of galvanized sheet, bending, welding and plastic spraying. It is equipped with 32 sets of LED tubes, and the illumination is greater than or equal to 800 lux.The lamp tube is encased in glass.The light box is located on both sides of the spray-painted room and fixed on the roof of the spray-painted room at a 45-degree Angle.
Electronic control system
Hydraulic system
The main components adopt well-known brands at home and abroad, and the main circuit is equipped with multiple protection.Temperature and time setting, room temperature spray paint, paint switch, lighting switch, emergency stop switch, fault alarm, etc.
Pedestal
The high quality galvanized sheet is folded around, the bearing bracket is 1.8mm galvanized sheet is folded and welded with convex steel structure, and the upper floor is covered with two steel grids and three anti-skid plates. The steel grid is welded with 30*4mm flat iron and 8# rebar, and the anti-skid plate is painted with decorative pattern plate.
Environmental protection system
1 layer fiberglass cotton +1 layer activated carbon
Water-based paint device
Waterless paint unit (optional)

Main Features

1) High temperature resistance, fire resistance, easy assembly.

2) When working, safe and convenient, performance is reliable.

3)Strong suction and exhaust air, low noise and small vibration.

4) Multi-layer filter cotton, paint mist filter fully.

5) Heat up quickly and evenly.

Certifications
Detailed Images

Machine Parts

Name: LED Bulb

Brand: XingHuo

Original:China

The light box is made of galvanized sheet, bending, welding and plastic spraying. It is equipped with 32 sets of LED tubes, and the illumination is greater than or equal to 800 lux.The lamp tube is encased in glass.The light box is located on both sides of the spray-painted room and fixed on the roof of the spray-painted room at a 45-degree Angle.

Main Feature

Name: Heating Lamp
Brand: XingHuo
Original:China

Adopt far infrared electric heating mode.Fixed on both sides of the gridiron and equipped with far infrared electric heating tube at the rear can be used to paint both sides and front parts of the car.Total power of far infrared electric heater: 30kw, 3-way control.

Machine Parts

Name: Draught Fan
Brand: XingHuo
Original: China

The fan is YDW type fan in yancheng, jiangsu province, equipped with two 3kw fans for air intake and one 4kw fan for air exhaust.The occurrence room is welded with galvanized steel skeleton, galvanized sheet is covered with outer skin and has sound insulation layer;The exhaust duct adopts the mechanism ventilator;The box body is separated from the house body to avoid resonance between the fan operation and the wall.

Main Feature

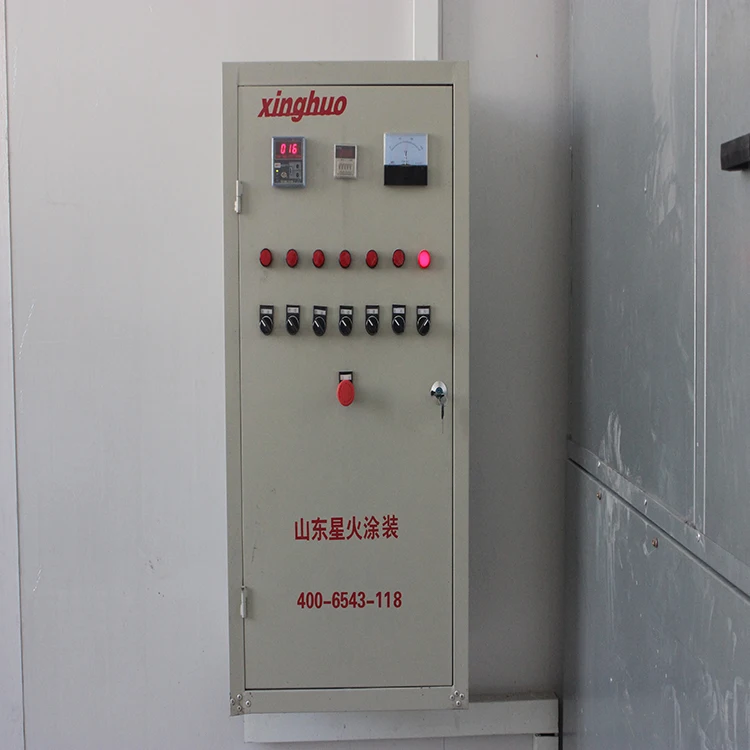

Name: Electronic control system
Hydraulic system
Brand: XingHuo
Original: China
The main components adopt well-known brands at home and abroad, and the main circuit is equipped with multiple protection.Temperature and time setting, room temperature spray paint, paint switch, lighting switch, emergency stop switch, fault alarm, etc.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
7000 (L) * 4000 (W) * 3300 (D)
Weight
3 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
