Телескопическая пневматическая мачта для камеры PTZ 4 2 м 5 8
- Категория: Телекоммуникационная башня >>>
- Поставщик: Shenzhen,Okaf,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 595.7 $* | 625.89 $* |
| Aug-16-2025 | 590.54 $* | 620.27 $* |
| Jul-16-2025 | 495.47 $* | 520.58 $* |
| Jun-16-2025 | 580.62 $* | 609.71 $* |
| May-16-2025 | 505.58 $* | 530.45 $* |
| Apr-16-2025 | 570.32 $* | 599.87 $* |
| Mar-16-2025 | 565.99 $* | 593.82 $* |
| Feb-16-2025 | 560.22 $* | 588.44 $* |
| Jan-16-2025 | 555.88 $* | 583.55 $* |
Характеристики

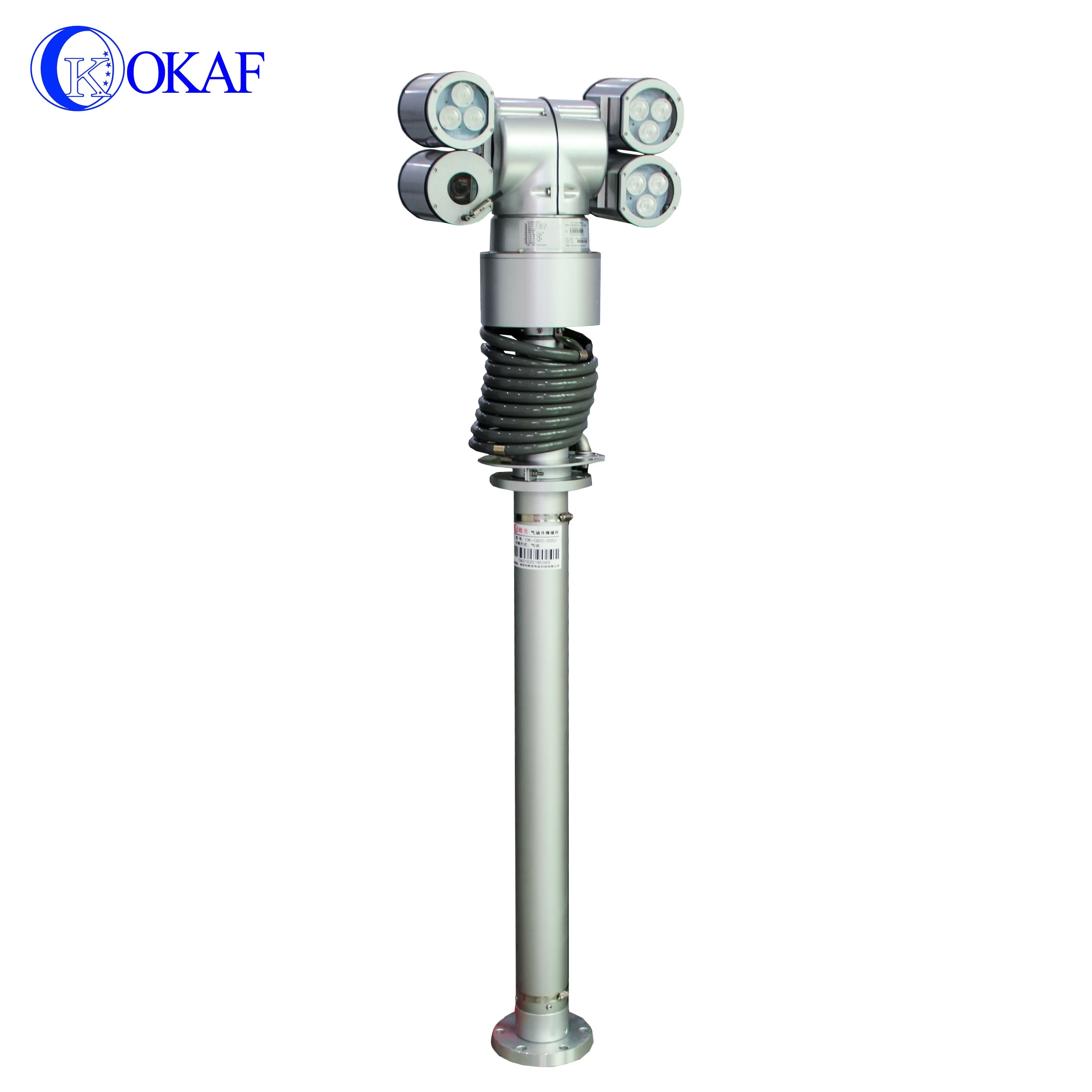

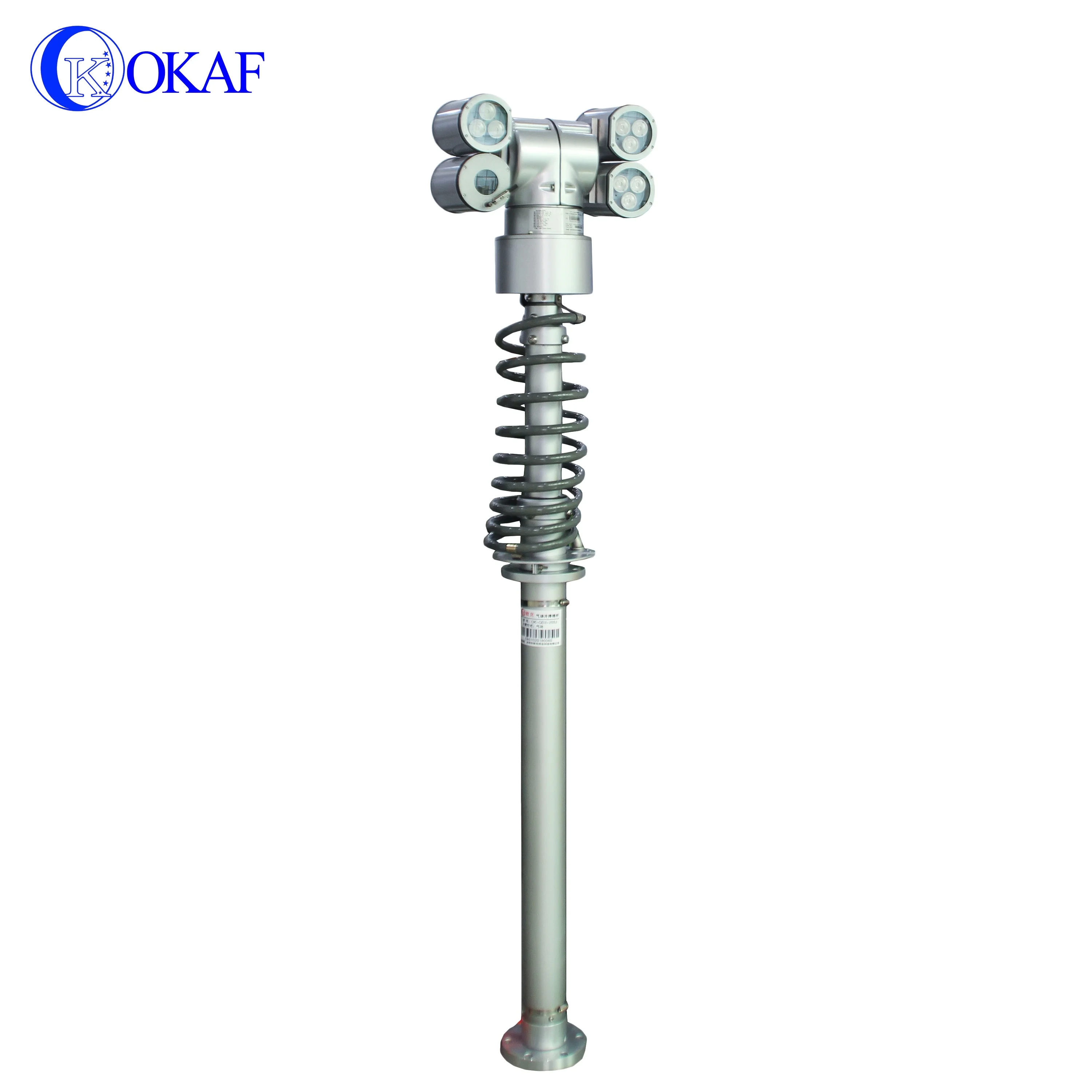

4.2m 5.8m 6.5m Pneumatic Mast Vehicle Mounted PTZ Camera Pole Telescopic Mast
Specification of Telescopic Mast
Telescopic masts have been designed for fast deployment of telecommunication, mobile surveillance, mobile lighting devices to a certain height (range from 3m to 20m), which offer an elevation solution with different payload capacity (range from 2kg -100kg).
Our lightweight aluminum telescoping masts can be mounted on a vehicle, trailer or ground by a tripod. Telescopic masts with locking collars could keep the equipments at a fixed height for a long time even without air pressure.
Telescopic mast lifting can be manual winch, air compressor or electric motor. Pneumatic telescopic mast is a type of elevation solution using compressed air to raise the central column to its extended height.
Technical data
| Telescopic mast datasheet | |
| Extended height | 4.2m |
| Retracted height | 1520mm |
| Top payload | 20kg |
| Maximum diameter | 87mm |
| Weight of telescopic mast | 13kg |
| Material | high strength aluminum alloy |
| PTZ camera datasheet | |
| Resolution | 1920*1080 |
| Pixel | 2.0 megapixel |
| Optical zoom | 18x /20x / 30x Optical zoom |
| Night vision | 150~200m |
| Control way | RS485 + RJ45 |
| Control protocol | Pelco-D/P |
| Pan/ Tilt rotation | 360° in horizontal, -60°~+90° in vertical |
| Preset position | 256 preset positions |
| Power supply | DC12V |
| Video output | IP network + BNC analog video output |

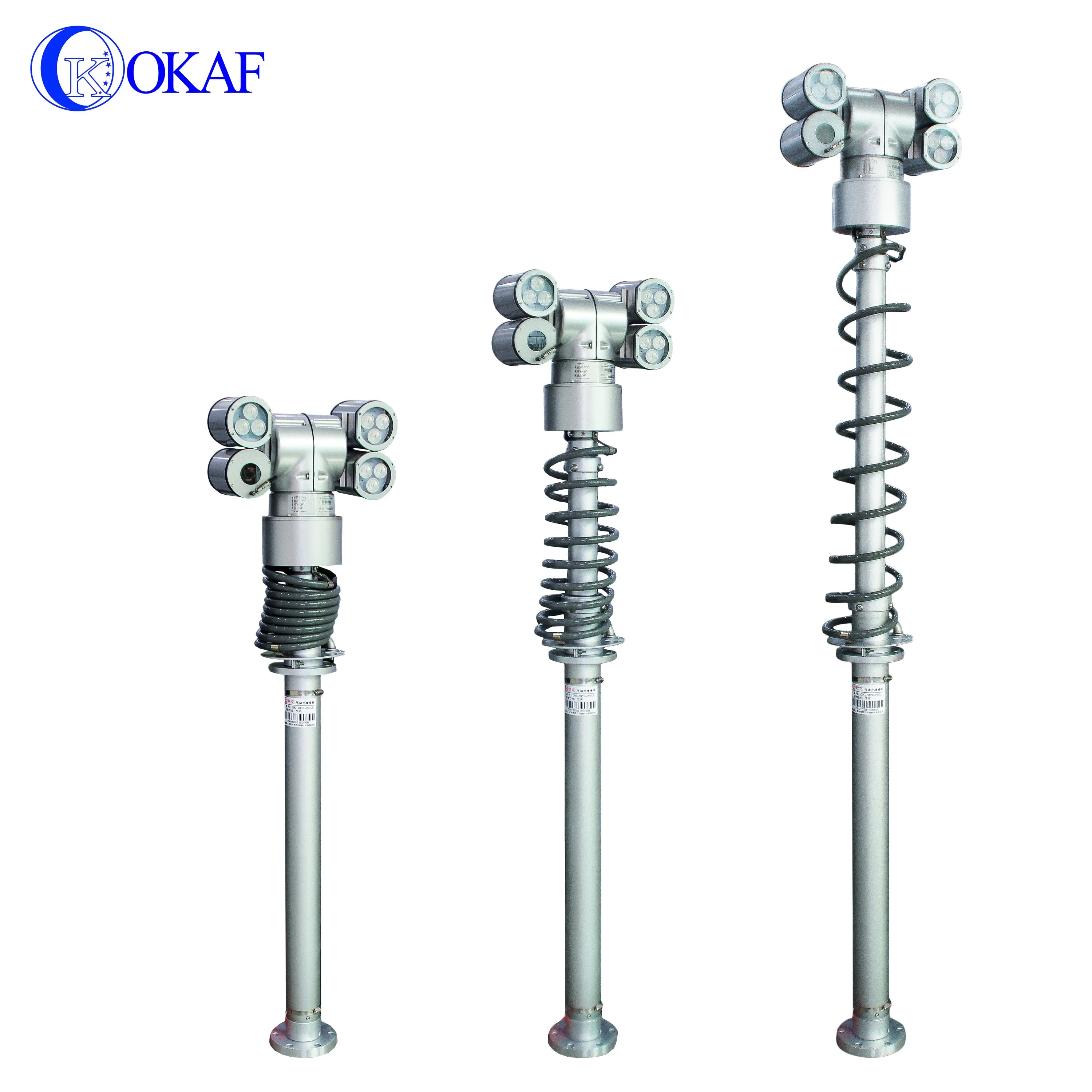

Different kinds of telescopic mast optional
 |  |  |
 |  |  |
Advantages of OKAF telescopic mast
• Wide range application. Suitable for vehicle, vessel and ground systems.
• Fast lifting. Within 1 minute to raise the telecommunication antennas, led lights,mobile surveillance PTZ Cameras and Lightning protection rod.
• Portable. The telescopic mast is lightweight, with the wheels, you can take it easily.
• Stable and safety. The mast is high strength, it can work during the 8 degree wind. With the tripod, it can stand well on the ground.
• Long life span. The aluminum mast is anti corrosive which can long last many years.
• For the extended height less than 10m pneumatic telescopic mast, It would be available to make internal cable
Application
Applications of telescopic mast
1. Okaf Aluminum telescopic masts have been widely applied to all kinds of vehicle,trailer, car, fire trucks for telescommunication or mobile light tower.
2. On the top of the telescopic mast It could Mount HD PTZ cameras for mobile surveillance.
3. It could be Mounted the antenna to be telescopic antenna mast for telescommunication.
4.Mounted led lights to be mobile telescopic light tower use on fire trucks for emergency rescue system.
5. Use on a Mobile CCTV trailer for the construction site or kinds of events surveillance and emergency surveillance.
6. For radio installation Surveying.
Packaging & Shipping
All of the telescopic masts will be package with standard export wood box to make sure the telescopic mast and accessories are protected well during the transportation.
Company Information
Shenzhen Okaf Technology Co., Ltd has specialized in CCTV surveillance products such as vehicle PTZ Camera, 4G deployment dome camera, telescopic mast and mobile surveillance trailer since 2005. It is one of the most professional CCTV surveillance system developer & manufacturer in China nowadays. Our main products apply to public security departments such as: vehicle PTZ Camera, 4G deployment dome camera, vehicle mobile lifter, vehicle mobile lighting devices, police dynamic forensics system, highway patrol and rescue system, fire emergency rescue system, urban management law enforcement system, mobile commanding system, operation commanding system etc.
FAQ
Q1: How to fix the telescopic mast on vehicle?
if the telescopic mast mounted on a vehicle, we could customized the flange and hoop according to customer's requirement. We will also provide guy wires and other accessories.
Q2.: How do I choose a telescopic mast ?
A: Please kindly share with us the application, working height and top payload you need. Then we will provide the most suitable solution or do customized fo you.
Q3. Can I have a sample first ?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the shipping cost.
Q4. How to order ?
A: Once the order confirm, we will send you PI. You could pay by TT, Western union, Paypal, Alibaba Trade Assurance. We will arrange production and shipment after get the payment.
