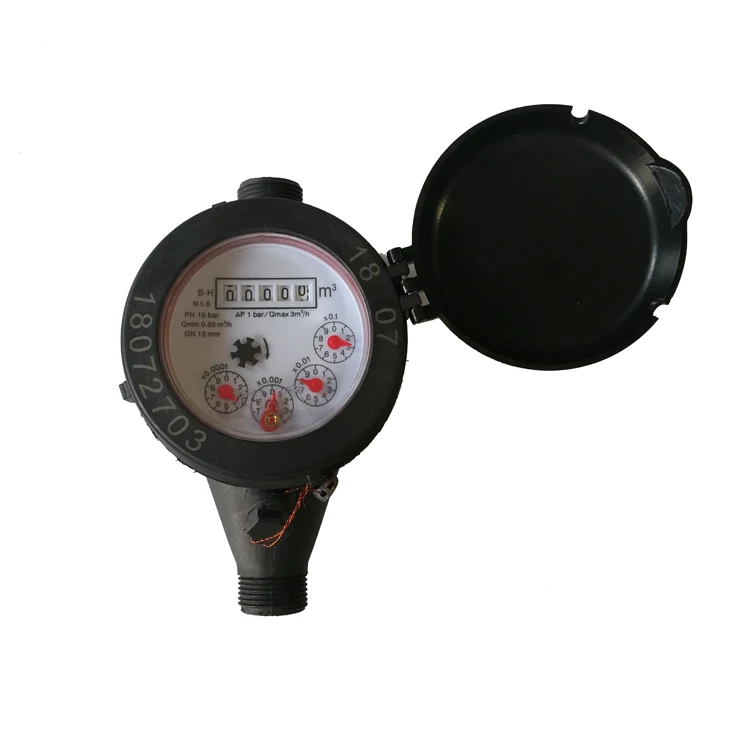

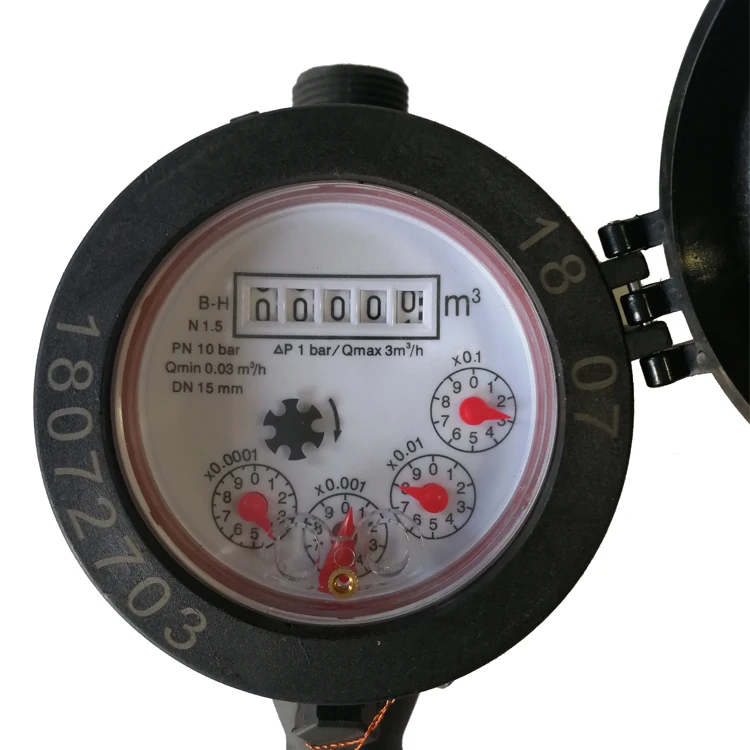

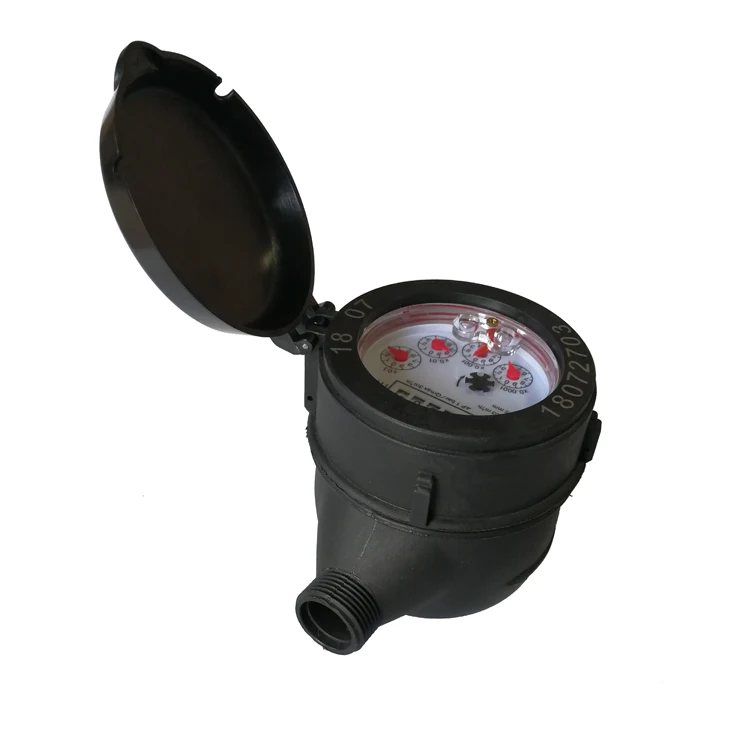

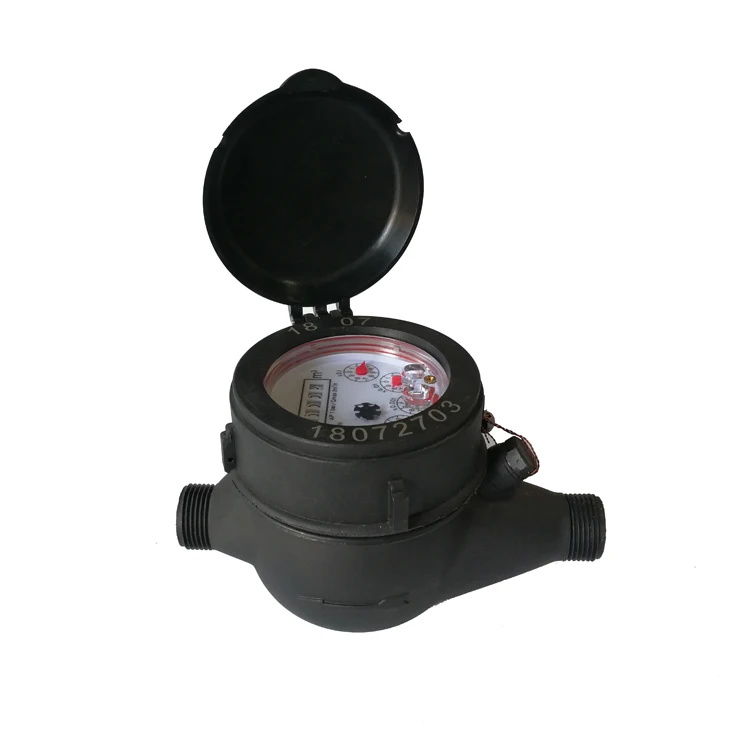

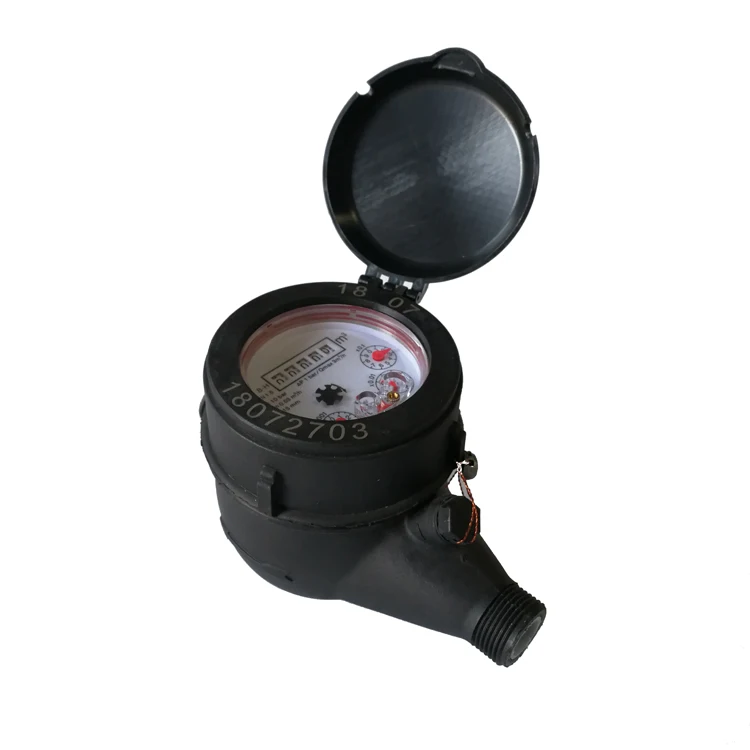

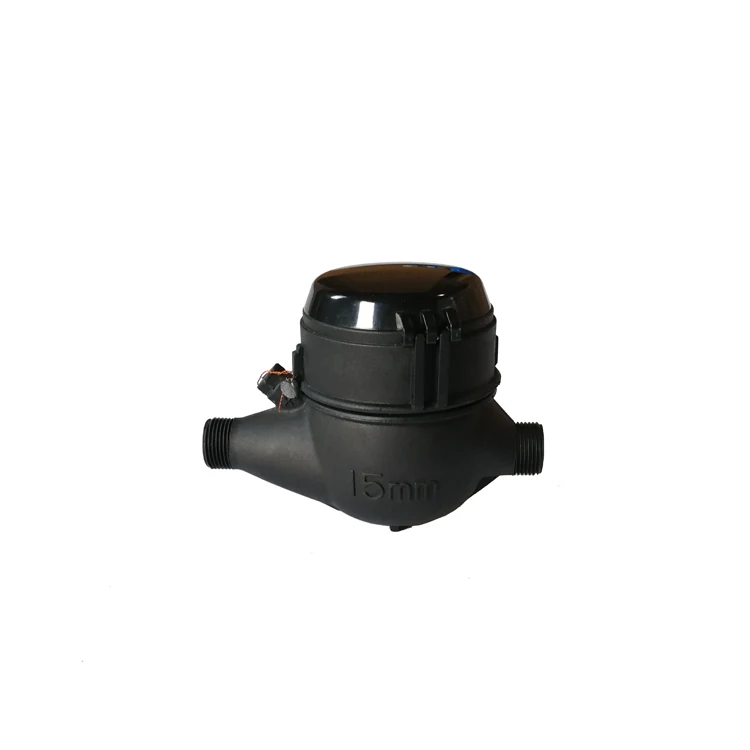

Многоструйный счетчик воды для жилых

Описание и отзывы

Трекер стоимости

Характеристики

Application:
--Measuring the total volume of cold potable water passing through the pipeline.



Feature:
--Dry type, magnetic drive, easy and long term clear reading, frost resistance, long working life etc.;
--High quality materials corrosion resistance
--Pole ring magnet polymer coating as protection against deposits.
--Plastic connector nut
--Data Output Options: 10 L/Pulse, 100 L/Pulse, or 1000 L/Pulse
-- Technical data conform to international standard ISO4064 Class B Class C R80,R100,R125,R160.



Working condition:
Water temperature: 0.1°C~50°C for cold water meter .
Water pressure: ≤1.0Mpa
Compliance with standard: ISO4064(GB/T778.1-1996) ISO4064(GB/T778.1-2007)

Maximum permissible error:
(1) in the lower zone from Qmin(Q1) inclusive up to but excluding Qt(Q2) is ±5%.
(2) in the upper zone from Qt(Q2) inclusive up to and including Qs(Q4) is ±2%;



MAIN TECHNICAL SPECIFICATIONS
According ISO4064(GB/T778.1-1996) standar



Type	Size   (mm)	Class	Qs Overload Flow	Qp Permanent      Flow	Qt Transitional Flow	Qmin Minimum Flow	Minimum Reading	Maximum Reading
			m3/h		L/h		m3
LXSG-15S	15	B	3	1.5	120	30	0.0001	99,999
		C			22.5	15
LXSG-20S	20	B	5	2.5	200	50	0.0001	99,999
		C			37.5	25
LXSG-25S	25	B	7	3.5	280	70	0.0001	99,999



According ISO4064(GB/T778.1-2007) standard

Type	Size	Q3/Q1	Q4	Q3	Q2	Q1	Minimum	Maximum
	(mm)		Overload                Flow	Permanent          Flow	Transitional	Minimum	Reading	Reading
					Flow	Flow
			m3/h		L/h		m3
LXSG-15S	15	80	3.125	2.5	50	31.25	0.0001	99,999
		100			40	25
		125			32	20
		160			25	15.625
LXSG-20S	20	80	5	4	80	50	0.0001	99,999
		100			64	40
		125			51.2	32
		160			40	25
	25	80	7.875	6.3	126	78.75	0.0001	99,999
LXSG-25S



Dimensions and Weight

	Meter Size	Length	Width	Height	Connecting		Weight
Type					Thread
	mm	mm			D	d	kg
LXSG-15S	15	165	99	108	G3/4B	R1/2	0.53
LXSG-20S	20	195	99	108	G1B	R3/4	0.6
LXSG-25S	25	260	105	108	G11/4B	R1	0.7

Flow Error Curve:

Pressure Loss Curve
