Автоматическая клеевая машина с шариковым винтом
- Категория: Клеемазальные машины >>>
- Поставщик: Dongguan,Yiren,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 10472.4 $* | 10996.65 $* |
| Aug-19-2025 | 10384.38 $* | 10903.73 $* |
| Jul-19-2025 | 8712.47 $* | 9148.67 $* |
| Jun-19-2025 | 10208.25 $* | 10718.34 $* |
| May-19-2025 | 8888.94 $* | 9332.39 $* |
| Apr-19-2025 | 10032.29 $* | 10534.44 $* |
| Mar-19-2025 | 9944.28 $* | 10441.61 $* |
| Feb-19-2025 | 9856.83 $* | 10349.88 $* |
| Jan-19-2025 | 9768.54 $* | 10256.60 $* |
Характеристики
Products Description

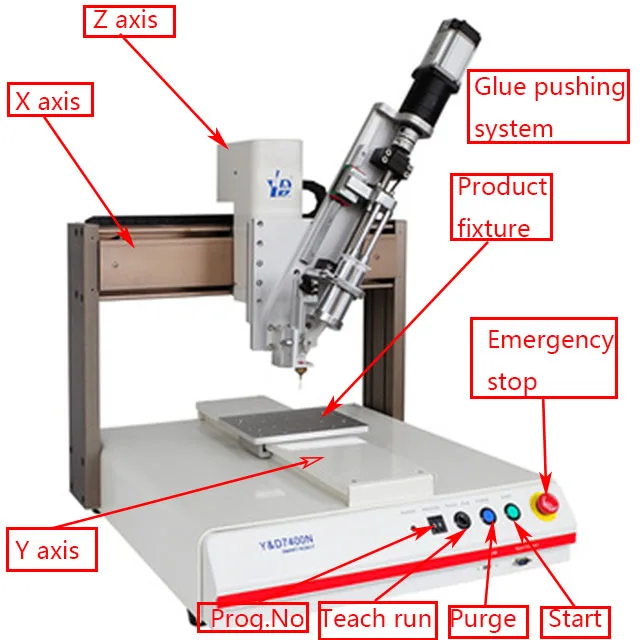

Y&D7000N-W Destop Two Component Automatic Dispensing Robots
Using the volumetric method to push the glue evenly from the container, the pressure is stable and the speed is even. Adopt Servo motor + Reducer collocation TBI high- precision screw pushing way. High precision of gluing, repeatability accuracy reached +/-0.02. Apply to 50ml 1:1, 2:1, 4:1, 5:1, 10:1 etc. 400ml 1:1, 2:1 two component glue.
Product Paramenters

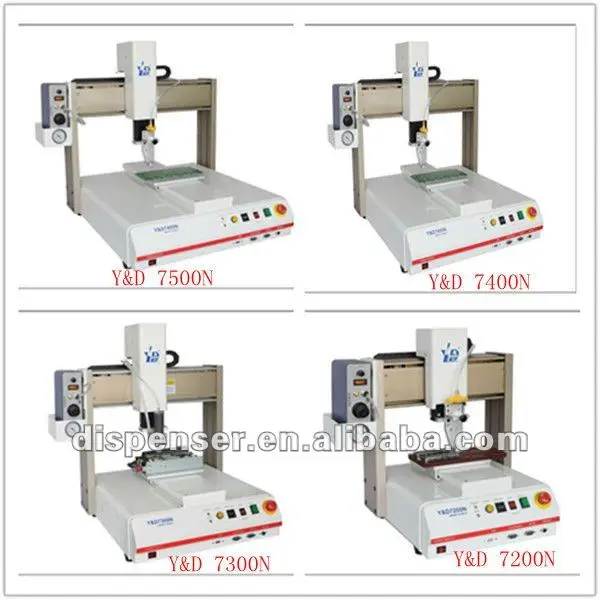

Gauge/Mode | Y&D7300N-W | Y&D7400N-W | Y&D7400N-W | Y&D7500N | |||||
Working Range | 300/300/100 | 300/300/100 | 400/400/100 | 500/500/100 | |||||
Max Load Y/Z | 20kg/10kg | 11kg/6kg | |||||||
Speed X&Y/Z | 0.1-400/320 | 800/350 (mm/sec) | |||||||
Repetive Positioning Accuracy | +/-0.01mm/Axis | ||||||||
Program Capacity | Min 100 Group, 4000 points/group | ||||||||
Data Storage Type | CF Card | ||||||||
Byte | 32bit | ||||||||
Program Display | LCD | ||||||||
Drive mode | servo motor + Precision screw + Linear guide rail | ||||||||
Glue supply mode | Servo motor + Precision screw | X/Y Axis synchronous belt, Z Axis precision ball screw | |||||||
Operation mode | 3 Axis point to point, Continuous straight line, Arc | ||||||||
Teaching Method | Teach Pendant | ||||||||
I/O Signals Port | 8 Inputs/ 8 Outputs | ||||||||
External Control | RS232 | ||||||||
Power Supply | AC90-260V 320W | ||||||||
Working Temperature | 0-40℃ | ||||||||
Working Relative Humidity | 20-90% no condensation | ||||||||
Applied glue or liquid
ABglue
Applied Industry
Wireless communication, electronics, semi-conductor, automobile, medical machinery, chemical industry, artware, etc.

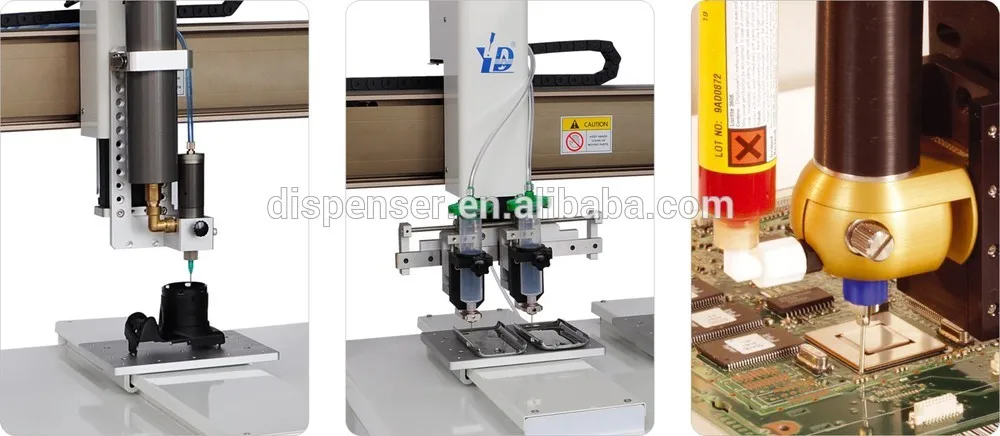

Application Range
Automobile mechanical parts coating, cell phone buttons point glue, mobile phone battery packaging, laptop battery packaging, the coil point glue, PCB bonding/ sealing, IC bonding/ sealing, horn external punctuate glue, PDA sealing, LCD sealing, IC packaging, casing bonding, optical device processing, mechanical sealing, ink clip, LED, DVD, digital cameras, switches, connectors, radiators, semiconductor and other electronics, clocks, toys, medical equipment, etc.
Main Uses
1) Processing with bonding, infusion, coating, sealing, filling, drop, linear/ arc/ round gluing, etc.
2) Dispense in point, line, surface, arc, circle and irregular curve, and triaxial linkage function is available.
3) Set the amount of glue size, glue speed, glue time, stop glue time, glue stability, no glue leakage
2) Dispense in point, line, surface, arc, circle and irregular curve, and triaxial linkage function is available.
3) Set the amount of glue size, glue speed, glue time, stop glue time, glue stability, no glue leakage
4) The plate multi - jigs work in circulation, effectively improve the working efficiency
Product packaging
Package & Terms
Package: Y&D standard package.
payment:100% T/T in advance after confirm the order
Shipping:DHL/TNT&Fedex express shipment
payment:100% T/T in advance after confirm the order
Shipping:DHL/TNT&Fedex express shipment
Exhibition
We will participate in Munich Fair every year to show our products and technologies and build our own brand with all our heart.
Company Profile
Company Strenghth
We are a professional manufacturer of dispensing equipment and liquid dispenser and all the accessories. Valve, pressure tank, cartridge, barrels, tips, dispensing pen, glue gun, connect and so on. Our main product including dispensing equipment and liquid dispenser. We also have gantry conveyor robot.
Competitive Advantages
* Professionalism,creativity,advanced fluid control technology.
* Established an unshakable position in the liquid control and dispensing production.
* Highly Vertical Integration Of Manufacturing.
* Worldwide Sales
* Advanced Engineering/ Development Capability.
* Good Material Management Programs.
* Established an unshakable position in the liquid control and dispensing production.
* Highly Vertical Integration Of Manufacturing.
* Worldwide Sales
* Advanced Engineering/ Development Capability.
* Good Material Management Programs.
OEM/ODM service offered
Our product could match with other accessories (valve, tank, cartridge) according to your actual situation or as your request. We are capable to manufacture dispensing equipment and liquid dispenser according to customer's drawings or samples. We are insisting on providing top quality products with competitive price. Please feel free to contact us. Welcome your inquiry.
For more information, please feel free to contact our sales, and we will give you a quick reply as soon as we get to know it.
