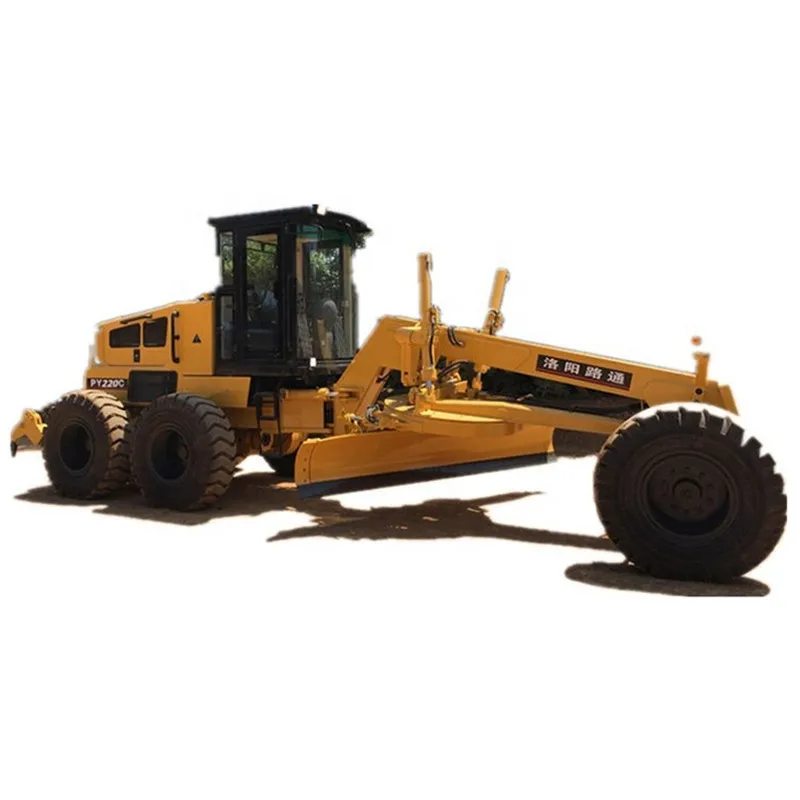

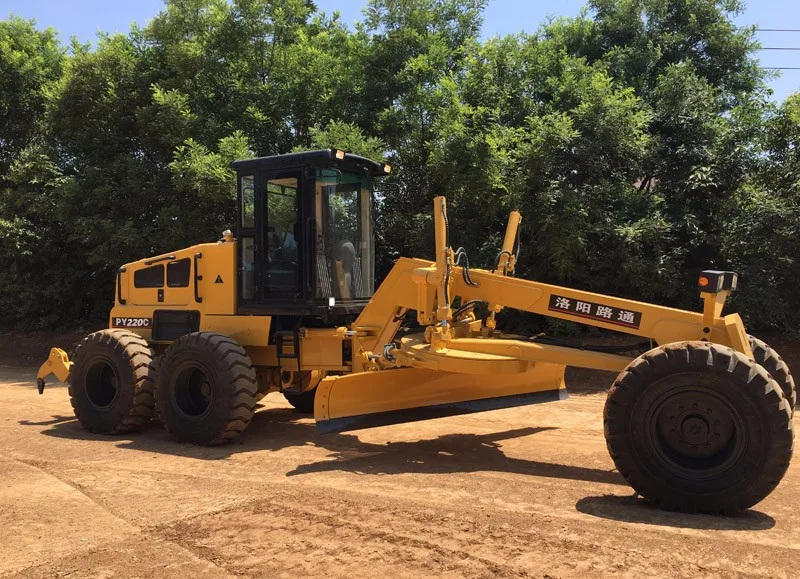

Factory price motor grader PY220C

Main Features

1. Famous brand diesel engines turbocharged and water-cooled with reliable and powerful performance feature energy.

2. Torque converter and power-shift gearbox introduced from GERMANY ZF inc. are integrated together. Six forward gears and three backward gears meet various requirements during machine’s working and transporting.

3. Driving axle with integrated free-wheel anti-slip differential and strong roller chain drive tandem case, Boxed oscillated steering front axle with leaned wheels.

4. Popular working mechanism with pendulum-arm connecting rod structure, Standard equipped free-maintenance rolling-plate circle device. Double cylinders of the blade tip control can adjust the cutting angle depending on soil quality.

5. Flexible hydraulic control system with two sets of HUSCO five way control valve, Imported hydraulic equalizing valve for the blade lifting, Patent hydraulically –operated pin drawing device is designed firstly in board.

6. Steering system with center articulate joint and tilting turning front wheels can get offset travel of the entire machine.

7. Service braking system of, caliper disc brakes on four rear wheels and mechanical internal expanding parking brake let.

8. Dual diagonal appearance with whole metal hood 1m×1m distance.

9. Electro-hydraulically operated with entire instrumental monitoring system, Free

-maintenance OPTIMA Sweden batteries have.

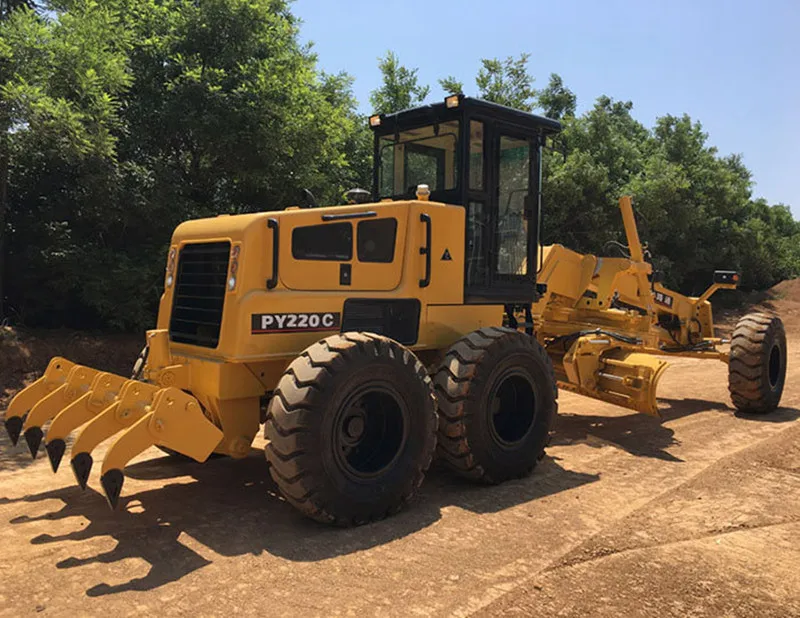

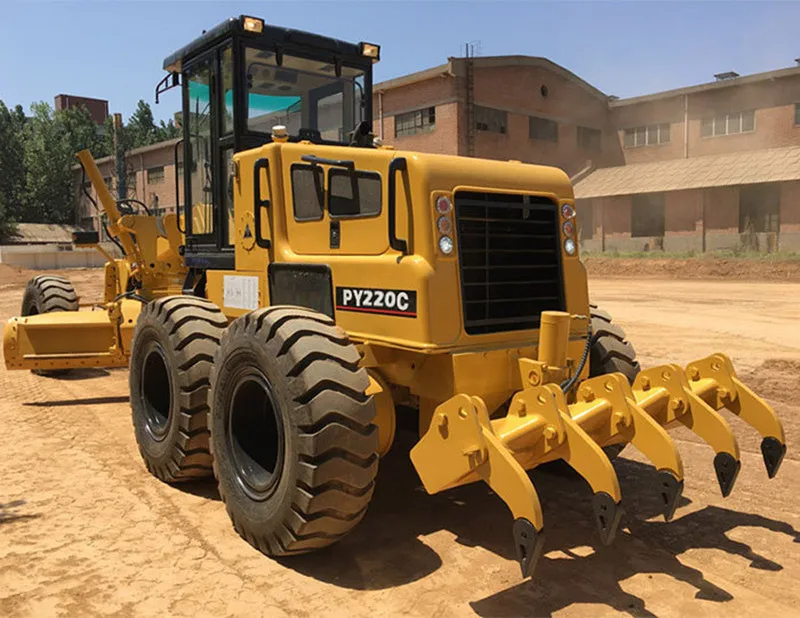

10. It is optional for front bulldozing plate and rear ripper.

After sales service term:

1. Guaranty time: 12 months (calculating from the date the machine leave the port of loading) or 1500 working hours, whichever comes first.

2. Provide maintenance instruction, parts list, packing list, accessories and tools free of charge when send the machine to you.

3. Provide the parts free of charge in the guaranty time if the parts cannot work well.

4. Excess the guaranty; you can easily to buy from us with cost price anytime.

Packing term: In nude





Parameters:



MODEL		PY220C
Operating mass	kg	16900
Front axle load	kg	5820
Rear  axle  load	kg	11080
Max.forward  speed	km/h	36.8
Max.backward  speed	km/h	24.8
Speed  gear  number		F6/R3
Turning  radius	mm	7800
Hydraulic system pressure	Mpa	18
Blade  lenght*height	mm	3965*610
Front  wheeltrack	mm	2150
Rear  wheeltrack	mm	2255
Wheelbase	mm	5647
Engine  model		QSC83
Engine  power	kW	158
Overall dimensions	mm	8605*2695*3420
