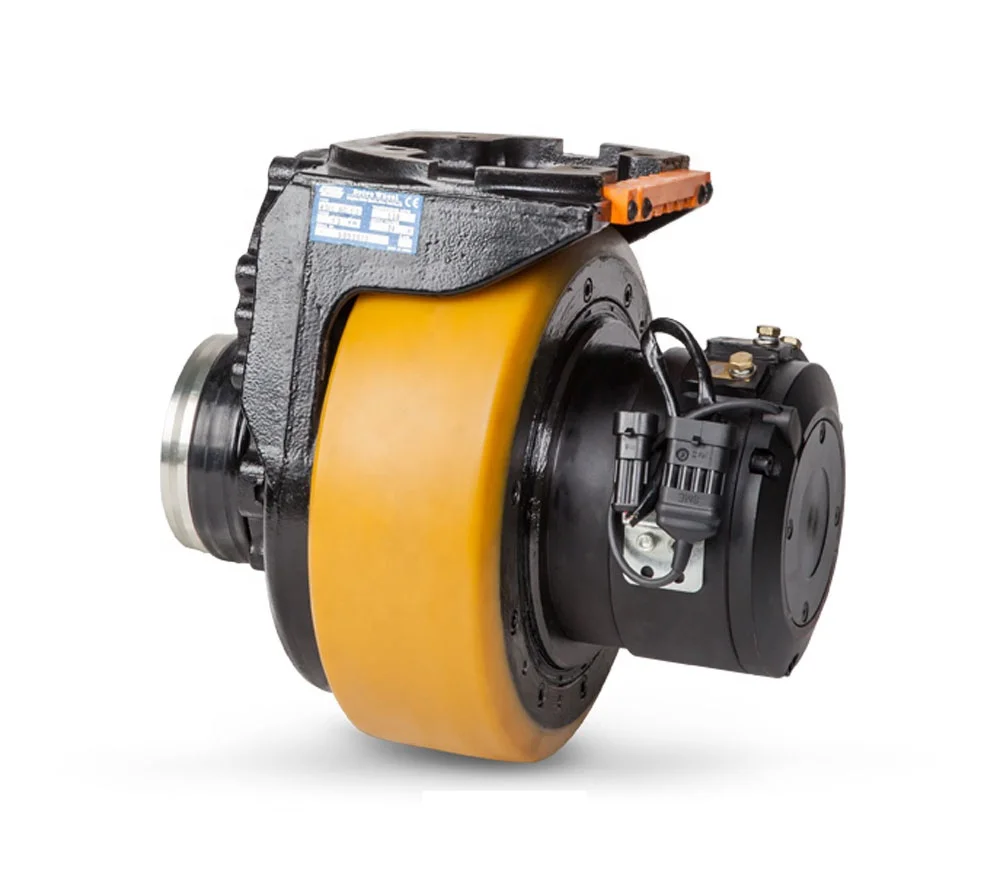

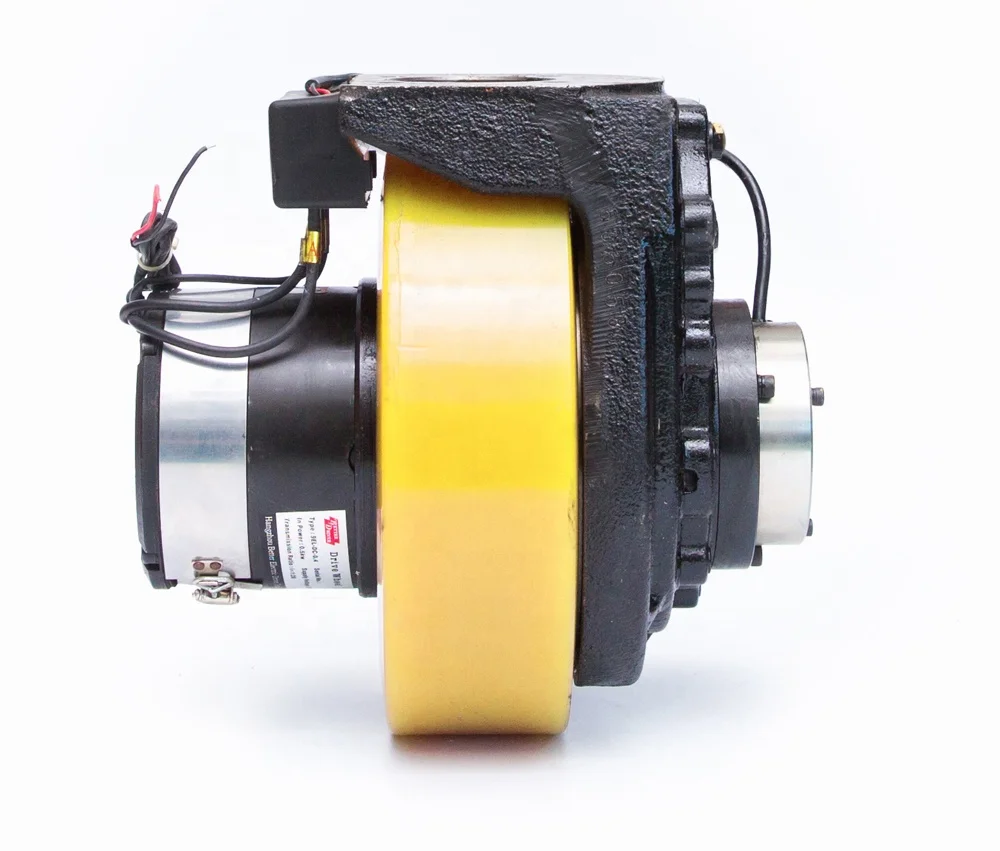

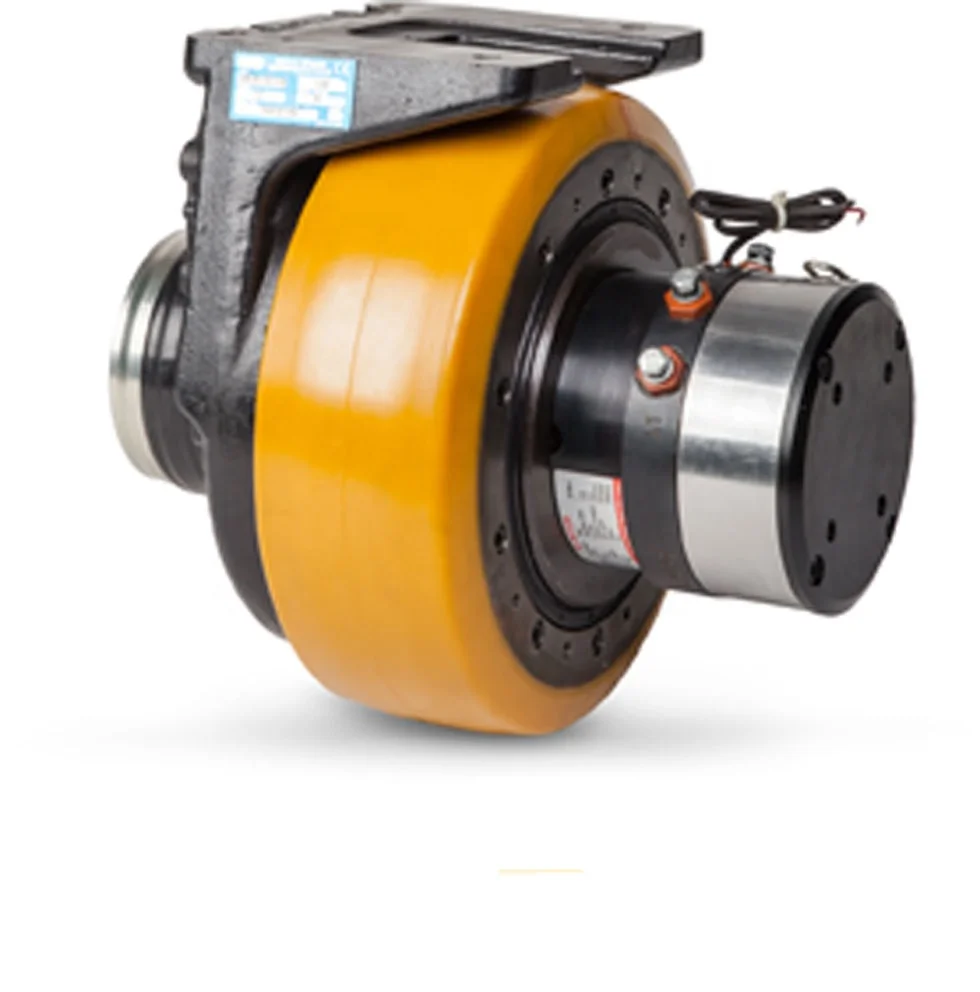

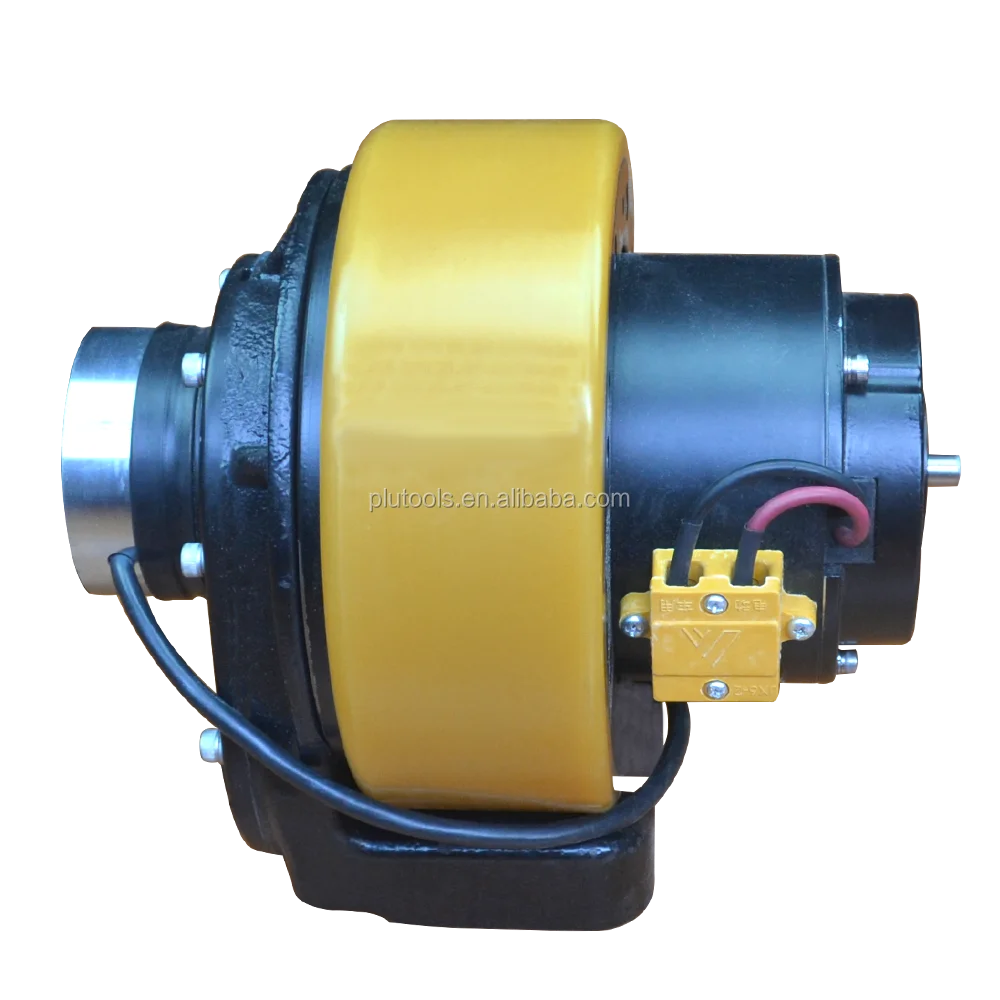

OEM AGV приводное Колесо рулевого колеса постоянного тока приводной блок в
- Категория: Material Handling Equipment Parts >>>
- Поставщик: Shanghai,Plutools,Automation,Corporation,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 286.97 $* | 292.43 $* |
| Jul-16-2025 | 232.21 $* | 237.20 $* |
| Jun-16-2025 | 281.35 $* | 287.6 $* |
| May-16-2025 | 279.39 $* | 285.17 $* |
| Apr-16-2025 | 223.35 $* | 227.54 $* |
| Mar-16-2025 | 275.53 $* | 281.95 $* |
| Feb-16-2025 | 272.3 $* | 277.2 $* |
| Jan-16-2025 | 270.90 $* | 275.40 $* |
Характеристики
Product Description
| Model Name | PLT-210P650D-24H | PLT-210P650D-24HS |
| Traction motor type | Brushed DC | Brushed DC |
| Rated Power(S2-60 minutes)(W) | 650 | 650 |
| Battery voltage | 24 | 24 |
| Traction motor rated speed(RPM) | 2650 | 2650 |
| Traction rated current(A) | 38 | 38 |
| Traction motor torque(Nm) | 2.7 | 2.7 |
| Traction gear ratio | 24.69 | 24.69 |
| Traction gear torque(Nm) | 45 | 45 |
| Wheel diameter(mm) | 210 | 210 |
| Wheel width(mm) | 76 | 76 |
| Mounting height(mm) | 240 | 279 |
| Max.turning radius(mm) | - | 212 |
| Max.load(kg) | 660 | 660 |
| Max.speed(m/s) | 1.18 | 1.18 |
| Weight | 28 | 46 |
| Steering motor | ||
| Steering motor type | - | Brushed DC |
| Steering Power(W) | - | 200 |
| Steering rated current(A) | - | 11.9 |
| Steering gear ratio | - | 58.22 |
| Steering motor torque(Nm) | - | 0.6 |
| Steering gear torque(Nm) | - | 28.1 |
| Steering motor rated speed(RPM) | - | 3200 |
Company Information
Plutools Automation Co,.Ltd is engaged in distribution and production of electric motor in wheel, as leading integrated solution provider in China, we produce and supply following products.
-Horizontal drive wheels with payloads from 150kg up to 1800kg
-Vertical drive wheels with payloads from 800kg up to 3000kg
-Differential drive wheel with loads 150kg
-AC motor, DC brushed motor, DC brushless, PMSA(permanent magnet synchronous AC motor,
mixed motor

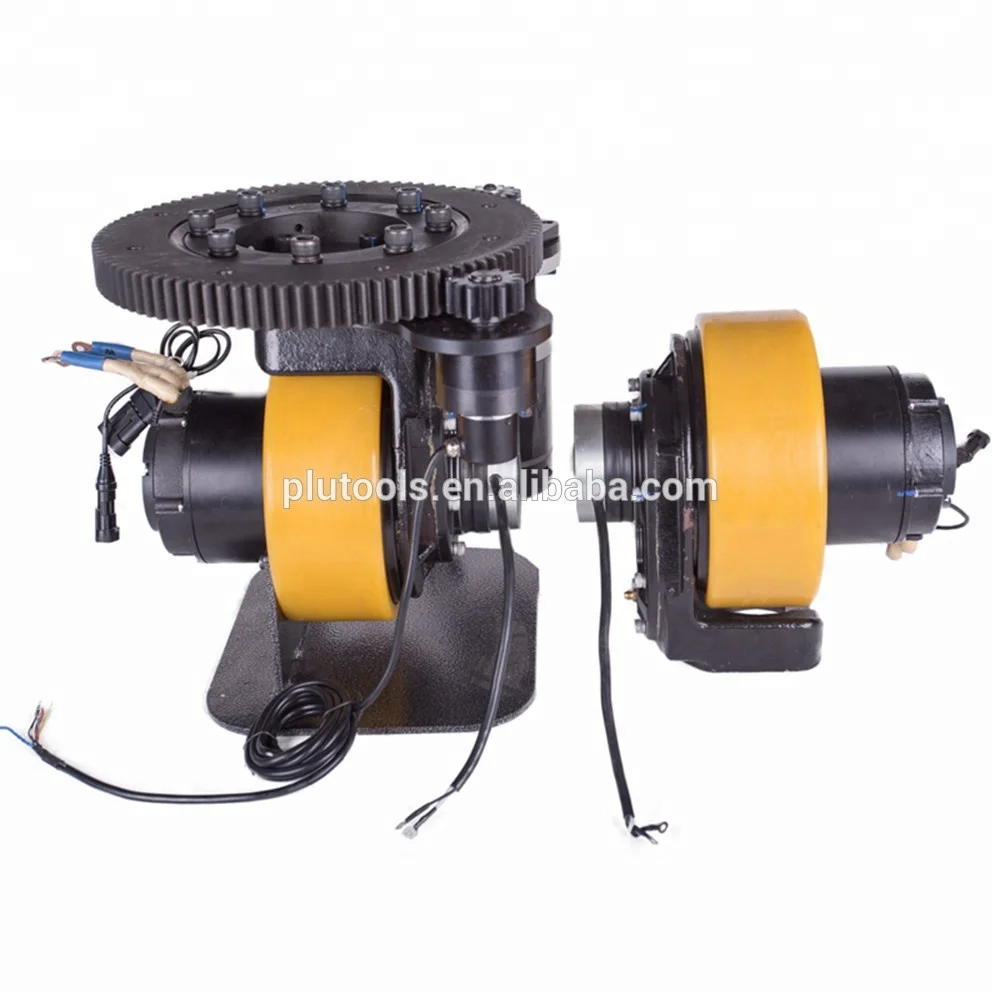

Motor combination
Packaging & Shipping
Products packaged in EPE foam, then in carton boxes / in wooden pallet or as per customers' request.
A): We recommend FEDEX, DHL Express for samples and small quantities. It is very fast, safe and relatively cheap.
B) We arrange shipment by sea and by air and go with FOB/CIF/CFR terms for large quantities.
C)Door to door service available, products could be loaded & delivered directly from our factory to any corner of the world with very competitive rates either by air, by train or by sea.
FAQ
Q: Are you a trading company or a manufacturer?
A: We are a manufacturer.
Q: Can you make a motor with custom specifications?
A: Yes, actually that is what we do most of the time.
Q: What is the MOQ (minimum order quantity)?
A: 1 pc for sample order, and 100pcs for bulk order.
Q: Do you have motors in stock?
A: No, we don’t. All motors are made with orders.
Q: How to pay you?
Paypal, Western Union, Money Gram, T/T, L/C payment are acceptable.
Q: What do you need to know if I need a recommendation on motor?
A: Normally we need to know dimensions, rated voltage, speed at load/no load, torque at load/stall. i.e. a motor with diameter 37mm, 12V, 100rpm and 2Kgf.cm at load.
Q: Can I ask you for help if I know nothing about motor?
A: Yes, our pleasure. We are nice people with big hearts.
Q: Where is your loading port ?
A: Ningbo Port, Shanghai Port, China.
Q: Can I visit your factory?
A: Yes,of course
