Сварочная машина HDPE

Категория: Стыковой сварочный аппарат >>>
Поставщик: Hebei,Zemo,Technology,Co.,Ltd.

Цена:2 500,00 $ - 2 800,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	2975.83 $*	3124.55 $*
Aug-16-2025	2950.90 $*	3098.49 $*
Jul-16-2025	2475.5 $*	2599.38 $*
Jun-16-2025	2900.16 $*	3045.60 $*
May-16-2025	2525.50 $*	2651.71 $*
Apr-16-2025	2850.20 $*	2993.45 $*
Mar-16-2025	2825.79 $*	2966.65 $*
Feb-16-2025	2800.36 $*	2940.93 $*
Jan-16-2025	2775.70 $*	2914.41 $*

Характеристики

Product Description

Applications

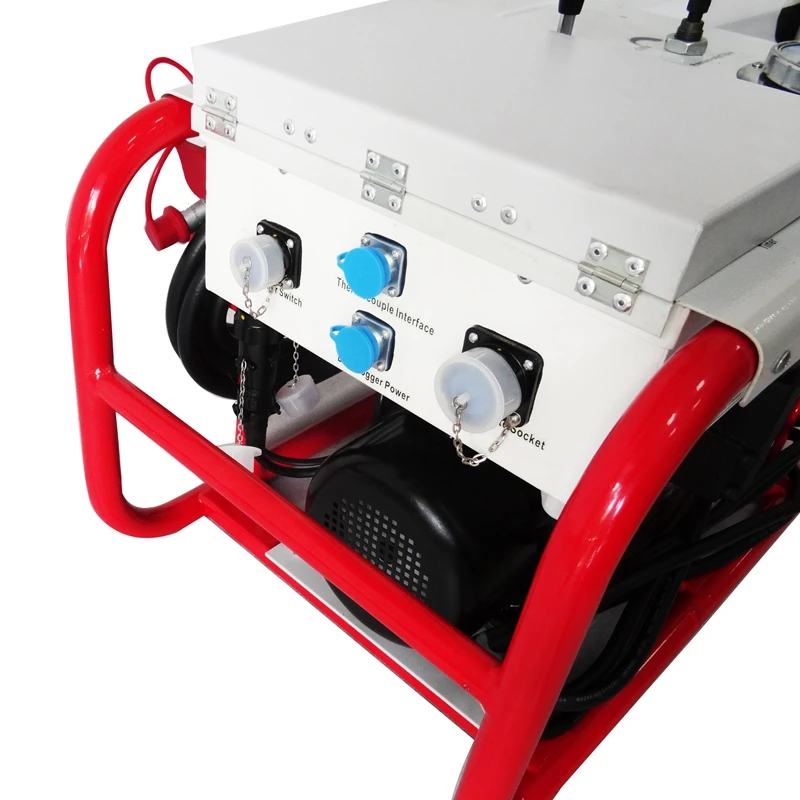

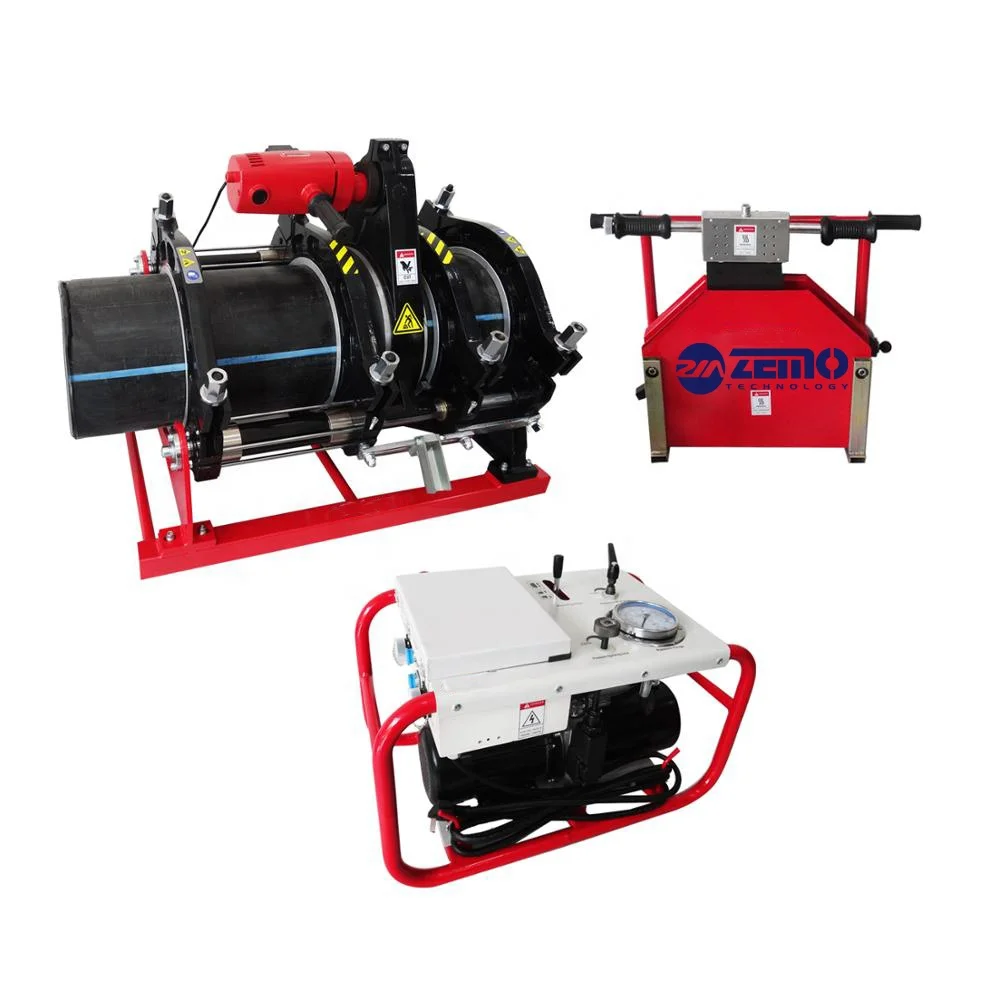

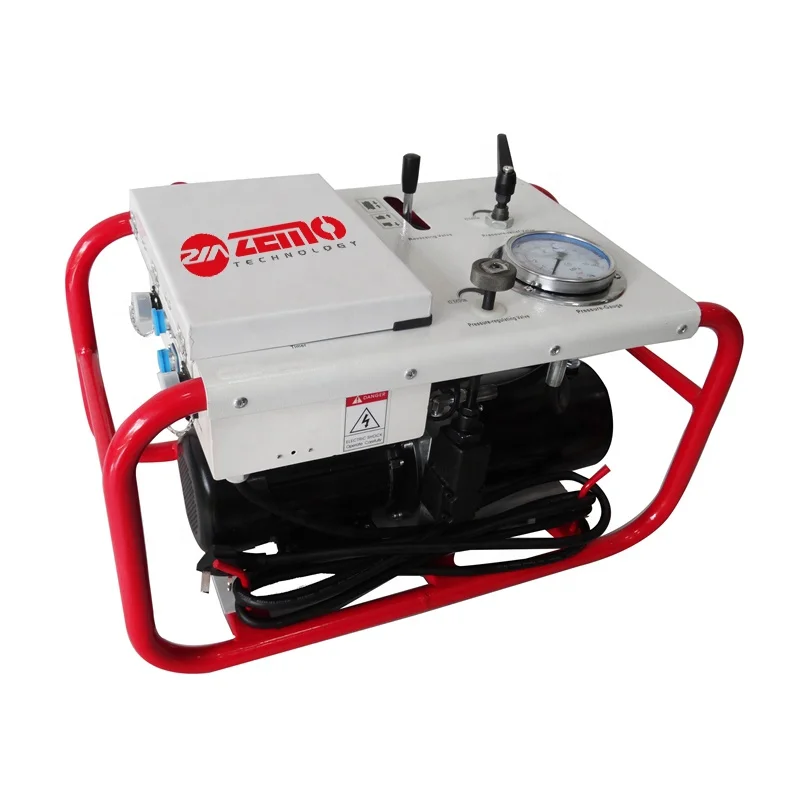

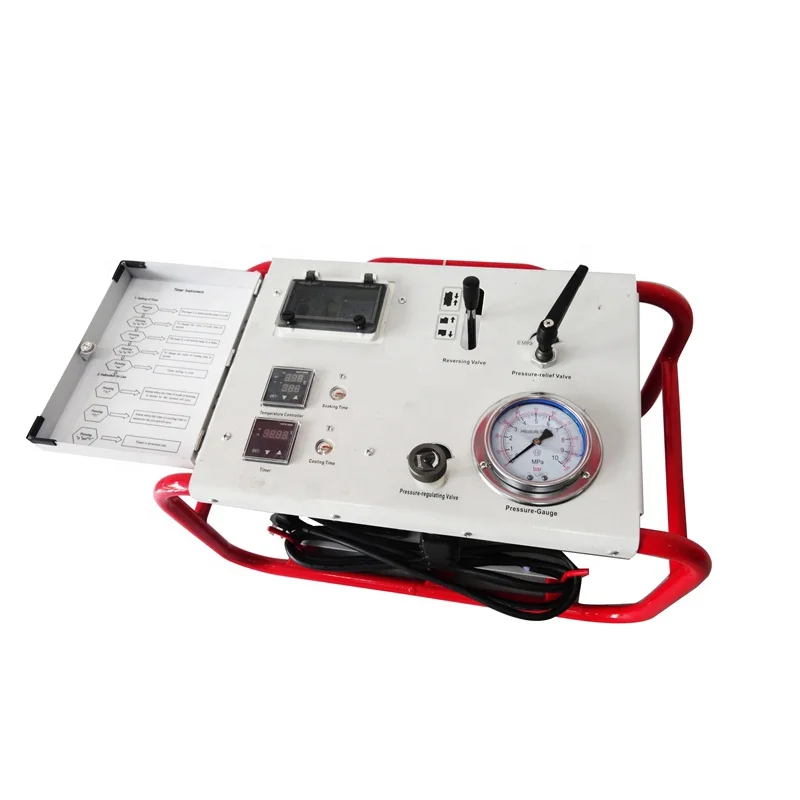

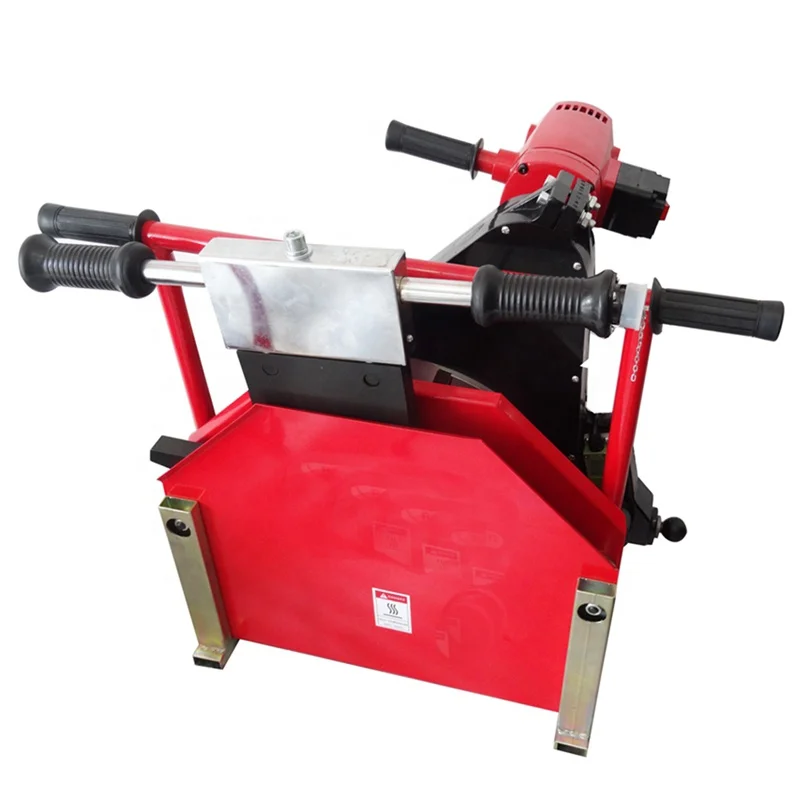

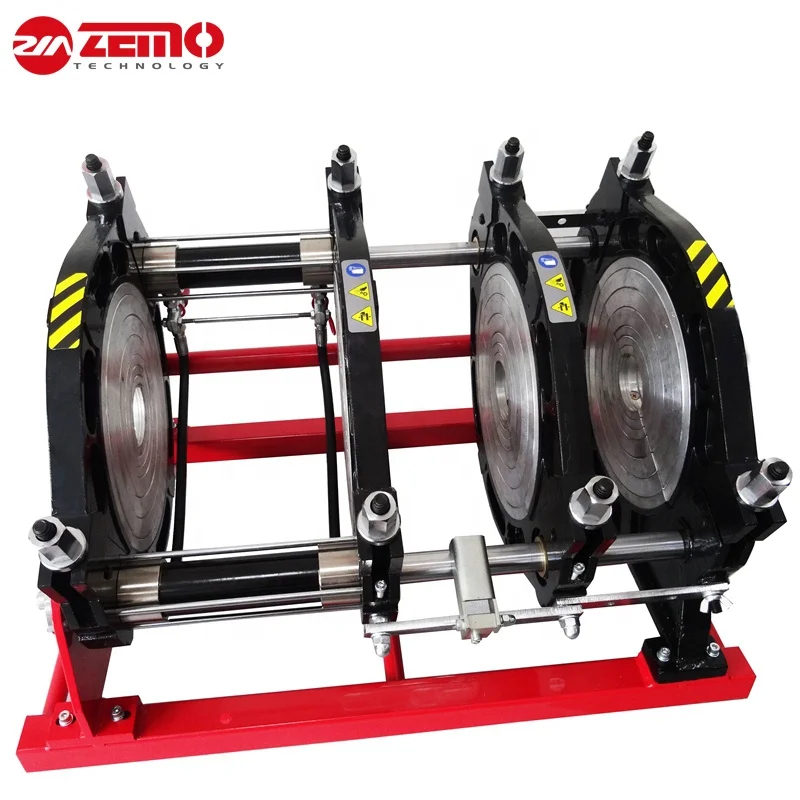

SMD-B355/90H HDPE Welding Machine is able to weld pipes and fittings with material PE, PP and PVDF, operation easily and suitable for any complex work condition. It Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts

Description

When our SMD-B355/90H HDPE Welding Machine welds pipe together with data logger, the welding process is in a semi-automatic way, continuous repeat of the welding cycles and automatic control of preset parameters. Data Logger can store up to 1000 welding cycles and sum them into a encrypted EXCEL file. This report can be transferred to a PC/Laptop through a USB port.

SMD-B355/90H HDPE Welding Machine Technical Parameters

Model		SMD-B355/90H
Pipe size (mm)		90,110,125,140,160,180,200,225,250,280,315 355
Heating plate Max. Temperature		270℃
Temp.deviation in surface (170-250 ℃)		≤±7℃
Pressures Adjustable Ranges		0-6.3Mpa
Working Voltage		220V , 50/60HZ , single phase
Heating plate power		3.5KW
Planing tool power		1.1KW
Hydraulic unit power		0.75KW
Total Power		5.35KW
Weight		260KG
Packing	Cases	3 plywood cases
	Volume	1.07 CBM
