Шахтная подъемная шина с конкурентоспособной ценой и высокой

Шахтная подъемная шина с конкурентоспособной ценой и высокой

Категория: Другие фермы для майнинга >>>
Поставщик: Cic,Luoyang,Mechanical,Engineering,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.54 $*	0.3 $*
Aug-19-2025	0.57 $*	0.35 $*
Jul-19-2025	0.1 $*	0.18 $*
Jun-19-2025	0.53 $*	0.83 $*
May-19-2025	0.5 $*	0.31 $*
Apr-19-2025	0.84 $*	0.75 $*
Mar-19-2025	0.25 $*	0.55 $*
Feb-19-2025	0.25 $*	0.43 $*
Jan-19-2025	0.58 $*	0.1 $*

Характеристики

Why Choose Us

Products Description

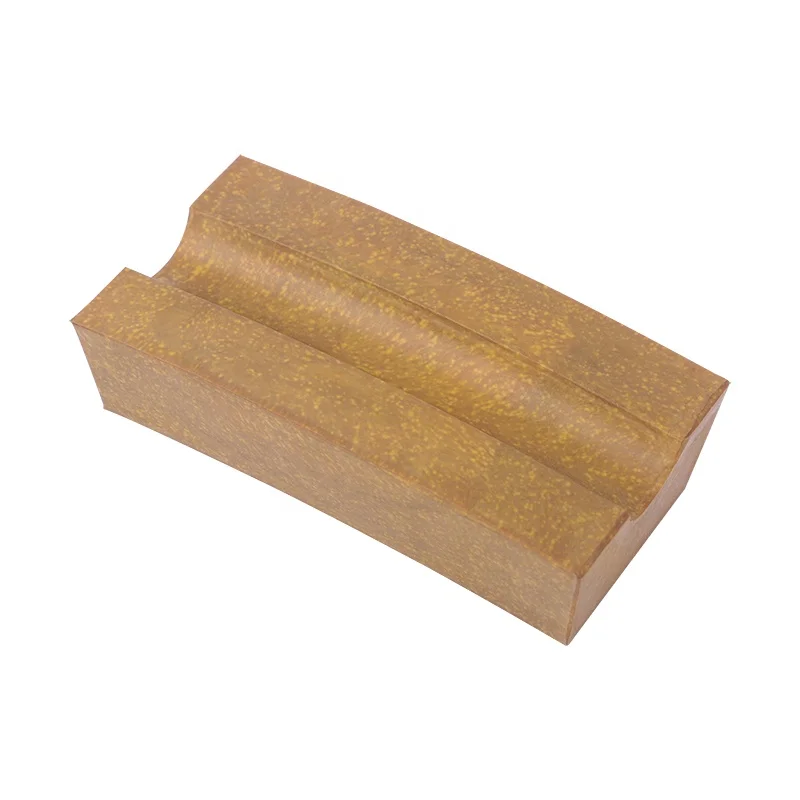

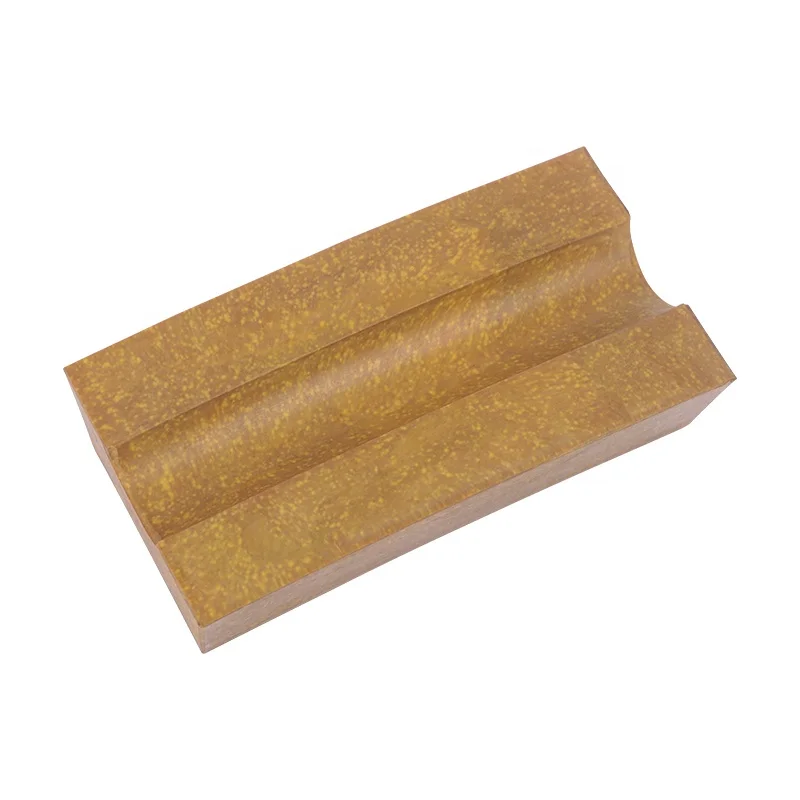

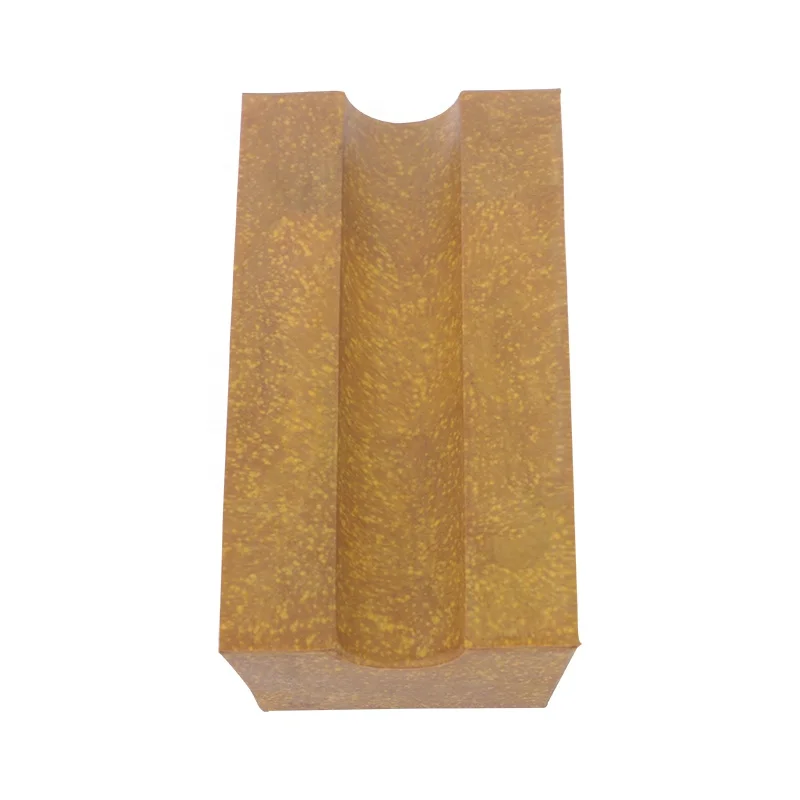

GDM326 Friction Liner

Product Feature:

1.Under various working conditions, the friction coefficient of GDM326 friction liner is greater than 0.28, which fully meets the requirements of multi-rope friction hoist.

2.It has high mechanical properties, no harmful material to damage the wire rope, and it is easy to process the rope groove on site.

Densityg/cm3	Hardness	Impact strength KJ/M2	Tensile strength Mpa	Bending Strength Mpa	Flexural modulus Mpa	Elongation at break %	Compression strength Mpa
1.40	58-65	15	17	13	920	62.3	33

In order to meet the domestic new demand on large-scale, ultra-large multi-rope friction hoist, our plant introduced raw materials from Germany to produce GDM326 high-performance friction pad, for supporting import and domestic large-scale, ultra-large hoists and for meeting the needs of different users.

Compared with other pads, GDM326 high performance friction pad with imported material has greater increases mainly in the friction coefficient, compression resistance, wear resistance and stability, so it can be trusted. It has been widely used and achieved very good economic benefits. GDM326 high performance friction pad with imported materials can be applied to other machineries that take use of friction transmission, and also be used as leading wheel friction pad for cable car.

The friction coefficient in different stiuation:

Surface pressure Situation	8 KJ/cm2	12 KJ/cm2	16 KJ/cm2	20 KJ/cm2	25 KJ/cm2	30 KJ/cm2
Dry	0.55	0.55	0.51	0.51	0.49	0.49
Wet	0.60	0.60	0.60	0.61	0.62	0.62
Lubricated with turex604	0.36	0.34	0.34	0.33	0.30	0.30

Product Details

Packaging Details

1. Wooden case

2. Meet export standards

3. As per your requirements

By sea, by air or by express

Port

Qingdao, Tianjin, Shanghai etc.

Associated Products

PRODUCT NAME

About Us

CIPC is originally known as CITIC Heavy Machinery Corporation Industrial Corporation Engineering Plastic Factory, which was the exclusive hoist plastic parts supporting factory designated by CITIC Heavy Machinery Corporation (former Luoyang Mining Machine Factory). Over the past thirty years or more, we have been specialized in the R&D, development and production of engineering plastics.

We are the mining machinery friction material research base and teaching base of China Mining University as well as the Industry-University-Research Cooperation Base of Henan University of Science and Technology; the member unit of China Heavy Machinery Industry Association; and member of National Mining Machinery Standard and Technical Committee. In 2006, we passed the certification of ISO9001:2000 Quality Management System.

Patent

CIPC specializes in research, development and production of mineral engineering plastic new materials, and has 16 patented technologies including 6 scientific achievements at ministerial and provincial level or above. CIPC has stronger scientific research and production capacity, and can completely meet the requirements of production and product inspection, to ensure the stability of products. By constant technical progresses, our product properties and quality have ranked the top in the same industry.

No.	Scientific Achievement Name	Reward Name and Grade	Acquisition Time
1	Key Technology and Application of Large Mine Elevation Equipment	The Second Prize of National S&T Progress Award	2010
3	Key Technology of Increasing the Elevation Capacity of Mine Elevation Equipment and Application Thereof	The First Prize of Jiangsu Provincial S&T Progress Award	2010
4	Development and Application of Disc Brake and Intelligent Braking Performance Inspection System Thereof	The First Prize of China Coal Industry S&T Progress Award	2010
5	Eco-friendly Non-asbestos Brake Tile for Disc Brake of Mine Elevator and Braking Performance Inspection Technology	The Second Prize of China Machinery Industry S&T Award	2010
6	WSM-3 Non-asbestos Brake Tile (New Material for Disc Brake of Mine Elevator)	The Second Prize of Luoyang Municipal S&T Progress Award	2010
7	GM-3 High-performance Friction Gasket	The Third Prize of National Machinery Industry Science Award, The Second Prize of Henan Provincial S&T Progress Award	2010

CIPC is committed to providing high quality products and services to customers around the world and strives to maximize customers's vlaue to achieve win-win coopertation.

Team

service
Before: * Inquiry and consulting support. * free sample * View our Factory.							After: * Training how to install the product on machine. * It can be repaired, exchanged and returned repaired in a year if the product with quality problems.

FAQ

1.How about the quality of your products?
A: our products are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.

2. How about the price?
A: We are manufacturer, and we can give you lower price then those trade companies. Besides, customers from Alibaba can get a discount.

3. Do you provide after-sale service:
A:Yes, the warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.

4. Do you provide equipment operation training:
A: Yes, we can send professional engineers to the working site for equipment installation, adjustment, and operation training.All of our engineers have passports.
