Сделано в китае миниатюрная монокристаллическая солнечная панель 12 3 вт 5 18 10 15 20 30 40 50 60 80 цена на солнечные
- Категория: Solar Panels >>>
- Поставщик: Shenzhen,Shine,Solar,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.27 $* | 0.37 $* |
| Aug-19-2025 | 0.54 $* | 0.17 $* |
| Jul-19-2025 | 0.8 $* | 0.32 $* |
| Jun-19-2025 | 0.62 $* | 0.49 $* |
| May-19-2025 | 0.6 $* | 0.85 $* |
| Apr-19-2025 | 0.2 $* | 0.12 $* |
| Mar-19-2025 | 0.70 $* | 0.19 $* |
| Feb-19-2025 | 0.20 $* | 0.48 $* |
| Jan-19-2025 | 0.28 $* | 0.80 $* |
Характеристики

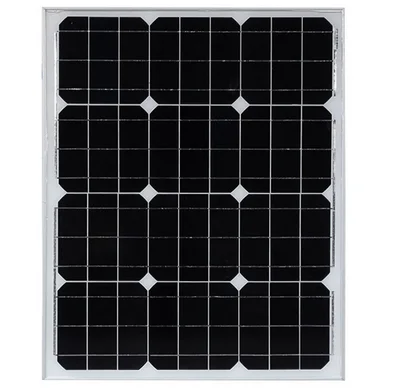

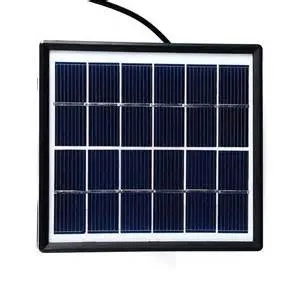

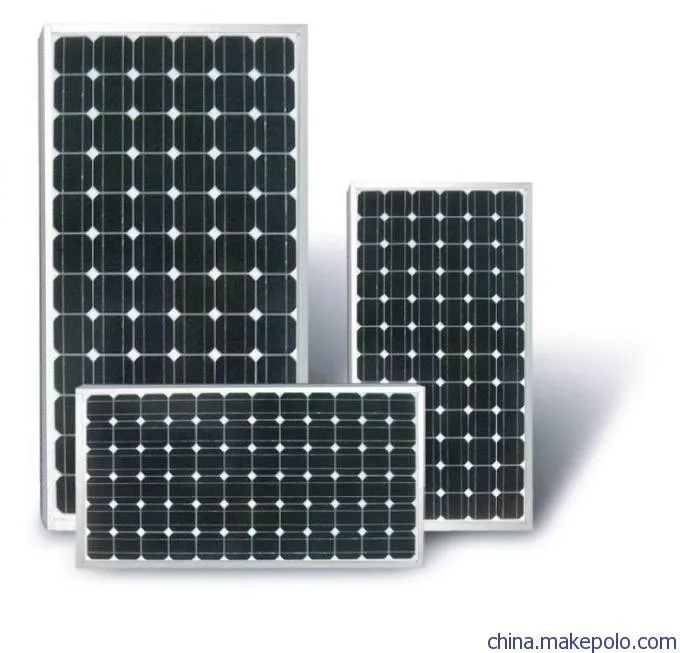

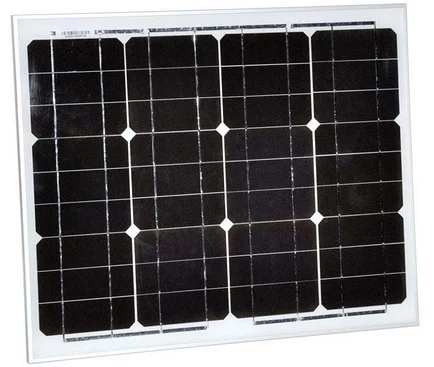

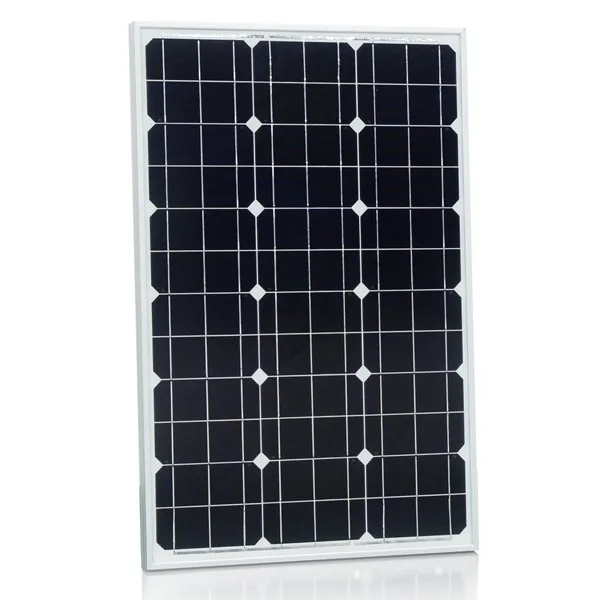

china made mini Monocrystalline solar panel 12v 3w 5w 18v 10w 15w 20w 30w 40w 50w 60w 80 watt solar panel price
product description
| 5-80Watt Monocrystalline Solar Panel | ||||||||
| Characteristics | SN-M005 | SN-M010 | SN-M020 | SN-M030 | SN-M040 | SN-M050 | SN-M060 | SN-M080 |
Maximum Power (Pmax) | 5Wp | 10Wp | 20Wp | 30Wp | 40Wp | 50Wp | 60Wp | 80Wp |
Optimum Operating Voltage/Vmp | 18.0V | 18.0V | 18.0V | 18.0V | 18.0V | 18.0V | 18.0V | 18.0V |
Optimum Operating Current/Imp | 0.27A | 0.56A | 1.11A | 1.67A | 2.22A | 2.78A | 3.33A | 4.44A |
Open Circuit Voltage /Voc | 21.6V | 21.6V | 21.6V | 21.6V | 21.6V | 21.6V | 21.6V | 21.6V |
Short Circuit Current /Isc | 0.3A | 0.66A | 1.21A | 1.87A | 2.42A | 2.98A | 3.52A | 4.64A |
| Module Efficiency | 10.32% | 11.37% | 12.33% | 13.70% | 14.80% | 14.42% | 14.21% | 15.61% |
| Weight | 1Kg | 1.7Kg | 2.3Kg | 2.8Kg | 3.2Kg | 4.0Kg | 5.2Kg | 6Kg |
| Numbers of cells | 36(2*18) | 36(2*18) | 36(2*18) | 36(2*18) | 36(3*12) | 36(3*12) | 36(4*9) | 36(4*9) |
| Cell dimension(mm) | 78*10.4 | 156*10.4 | 156*22.3 | 156*31.2 | 156*39 | 156*52 | 156*62.4 | 156*78 |
| Dimensions(mm) | 255*190*18 | 345*255*18 | 470*345*25 | 635*345*25 | 530*510*25 | 680*510*30 | 670*630*30 | 765*670*30 |
Standard test condition | Irradiance 1000W/m²,Module temperature 25℃, AM=1.5 | |||||||
| Mechanical Characteristics | |
| Power Tolerance | ±3 % |
| Maximum Series Fuse Rating | 15A |
| Maximum System Voltage | 1000V DC |
| Operating Module Temperature | -40°C to +80°C |
| Frame Material | Clear Anodized aluminum Frame |
| Thickness of glass | 3.2mm tempered glass |
| Frame | Anodized aluminum alloy |
| Laminating material | EVA |
| Backsheet material | TPT |
| Junction box | Ip65 |
| Temperature Characteristics | ||
| Norminal Operating Cell Temperature(NOCT) | 45±2℃ | |
| Temperature Coefficient of Pmax | -0.45%/2℃ | |
| Temperature Coefficient of Voc | -0.34%/2℃ | |
| Temperature Coefficient of Isc | -0.050%/2℃ | |
Company Information
FAQ
1. Q: How do I pay for my purchase order?
A: T/T, L/C, Paypal at sight.
2. Q: How can I get sample and how long will it takes?
A: It usually takes 6-8 days to produce the samples.
3. Q: What's the MOQ?
A: Any quantities are appreciated.
4. Q: What's the time delivery?
A: Depends on quantity.
5. Q: Can I have my own customized product?
A: Yes, your customized requirements for color, logo, design, package,shipping marks etc are available.
Contact us
