6 в 1 многометаллический мини токарный станок по дереву моторизованный зажим-пила шлифовальный сверлильный фрезеровочный комбинированный с ЧПУ DIY
- Категория: Ручной токарный станок >>>
- Поставщик: Shenzhen,Zehong,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 154.36 $* | 157.41 $* |
| Jul-18-2025 | 125.86 $* | 128.90 $* |
| Jun-18-2025 | 151.78 $* | 154.78 $* |
| May-18-2025 | 150.22 $* | 153.75 $* |
| Apr-18-2025 | 120.1 $* | 122.72 $* |
| Mar-18-2025 | 148.97 $* | 151.22 $* |
| Feb-18-2025 | 146.63 $* | 149.90 $* |
| Jan-18-2025 | 145.96 $* | 148.40 $* |
Характеристики
Product Description
6 In 1 Multi Metal Mini Wood Lathe Motorized Jig-saw Grinder Driller Milling CNC Combined Machine DIY Tool
6 in 1 multi metal mini wood lathe Machine -enjoy the joy of creation with ''Transformer''
6 in 1 multi metal mini wood lathe not only has single unit, such as Jig-saw, grinder, Driller,wood lathe, metal lathe, Miller,
but also has the 6 in 1 combined set. Base is made of advanced aluminum alloy, and it's durable and not deformed. This is really a
good tool.

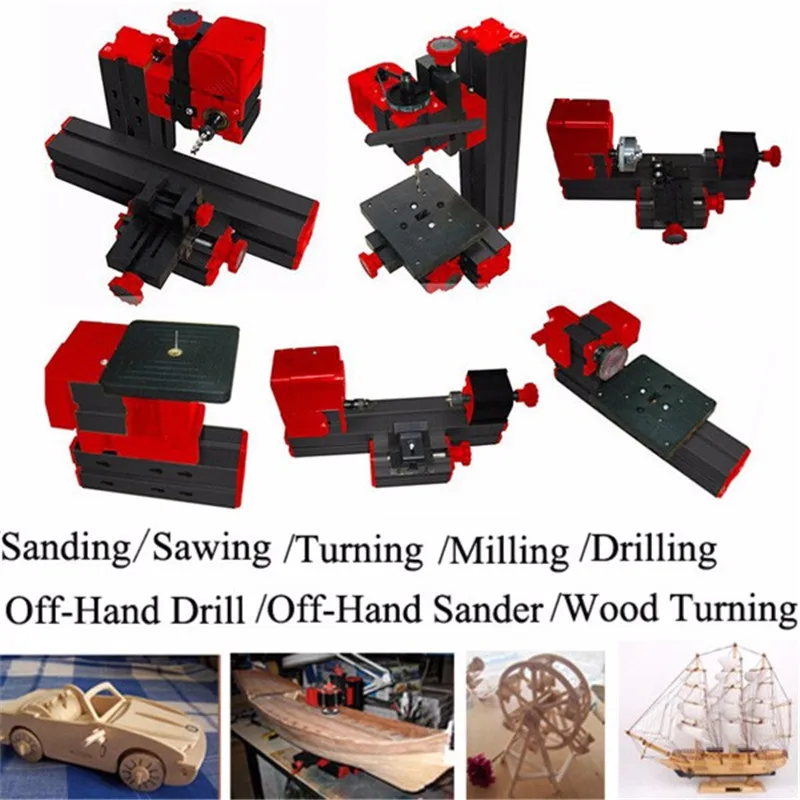

6 in 1 multi metal mini wood lathe can make up of : 1) Jig-saw 2) Grinder 3) Driller 4) Metal lathe 5)Wood lathe 6)Milling
Specification:
Material： Carbon steel, Aluminum, ABS
Headstock speed： 2,000rpm
Motor input： DC 12V
Max. Cutting diameter： 45mm(bigger diameter is possible with intermediatepiece)
Center distance： 135mm(with accessories extra long machine bed can longer to 360mm)
Color： Black + Red
Recommended types of wood Lim wood, birch, maple, pear tree, cherry tree (medium hard), beech tree, oak (hard).
Scope：
1, Can process integrated circuit, acrylics, wood, plastic, gold, silver, copper, steel, aluminum, and so on.
2, Every suitable chisel and gouge can be used
Notice:
For efficient use and cost balance, U58 belt,U40 metal shim,U15 screw driver,U45 shim would not be collected in 6 in 1 box -set
from 1st, November. 2015, and the normal operation can not be effected. Hope all the customers' kindly understanding.
Warning:
6-in-in Functions: Milling / sawing / turning lathe / sanding / drilling / wood turning lathe
6 in 1 multi metal mini wood lathe is possible to assemble 6 different types of machine, Each machine can cause severe injures if
handled improperly
The machines are supplied with sharp-tools, handle these with caution to injury
The workpiece may fly out of the chuck when being machined
Always make sure that the tool and workpiece are each properly secured.
Use protection goggles when operating
Never touch the revolving workpiece with any part of your body
Keep hair and clothing well away from moving parts
Propulsion is furnished by a 12V direct-current motor
Keep working place clean and tidy, Make sure the assembly of machine part is done correctly
Never connect the-transformer output in parallel with other-transformers! If lead, plug or case of the transformer is damaged,
discontinue using the transformer immediately!

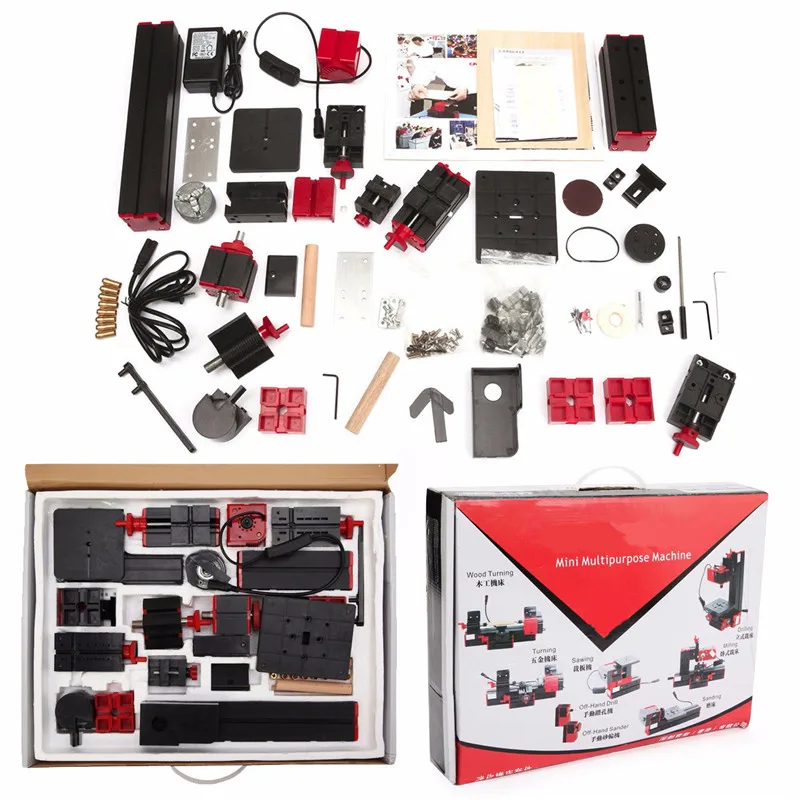

Package included:
1x Sticker
1x Drive belt cover
1x Machine bed (long)
1x Counter shaft
1x Motor
1x Machine bed (short)
1x Machine vice
1x Intermediate piece (U10)
1x Intermediate piece (U11)
1x Lever for drilling
1x Small Slide (U3)
1x Small Slide (U5)
1x Tailstock
1x Big Slide
6x Collets (0.5-6mm)
1x Three-jaw chuck
1x Jig-saw casing
1x Jig-saw table
1x Gage
1x Jig-saw base
2x Jig-saw cap
2x Screw (2.2 x 13mm)
2x Saw blade
1x Eccentric
1x 3.5mm Brass collet
1x Fixation of turning tool
1x 12V Transformer
1x Instructions in 6 language
6MODEL | 8 In 1 Mini Multipurpo |
Motor speed | 12VDC/2A/24W |
Direction for use
On-hand machine Technique Data:
1) Motor speed: 20,000rpm
2) Power: 12VDC/2A/24W,
3) Material: Aluminum, Carbon steel, ABS
4) it can process wood ,soft-aluminum, brass, copper, plastics, other soft, colored etc
1) Motor speed: 20,000rpm
2) Power: 12VDC/2A/24W,
3) Material: Aluminum, Carbon steel, ABS
4) it can process wood ,soft-aluminum, brass, copper, plastics, other soft, colored etc
Description of application effect
Specification:
Sawing machine Technique Data:
1) Motor speed: 20,000rpm
2) Power: 12VDC/2A/24W,
3) Table size: 90 x 90mm
4) Material: Aluminum,Carbon steel, ABS
5)The max.thickness of cut:
hardwood: 4mm, polywood: 7mm, softwood: 18mm,
sheet metal: 0.5mm, plexi-glass: 2mm
Sawing machine Technique Data:
1) Motor speed: 20,000rpm
2) Power: 12VDC/2A/24W,
3) Table size: 90 x 90mm
4) Material: Aluminum,Carbon steel, ABS
5)The max.thickness of cut:
hardwood: 4mm, polywood: 7mm, softwood: 18mm,
sheet metal: 0.5mm, plexi-glass: 2mm
Detailed Images
