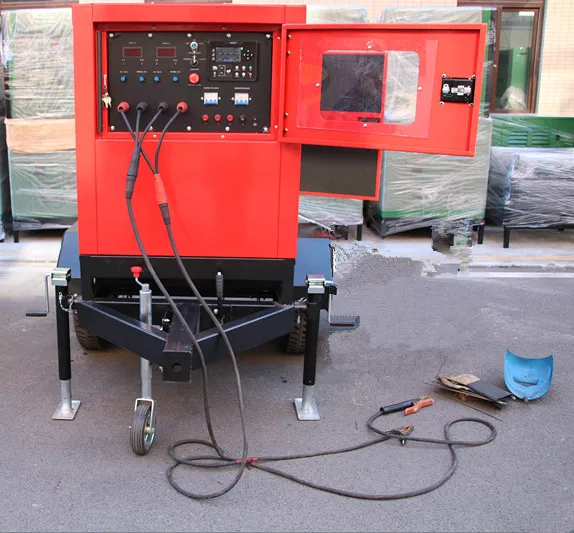

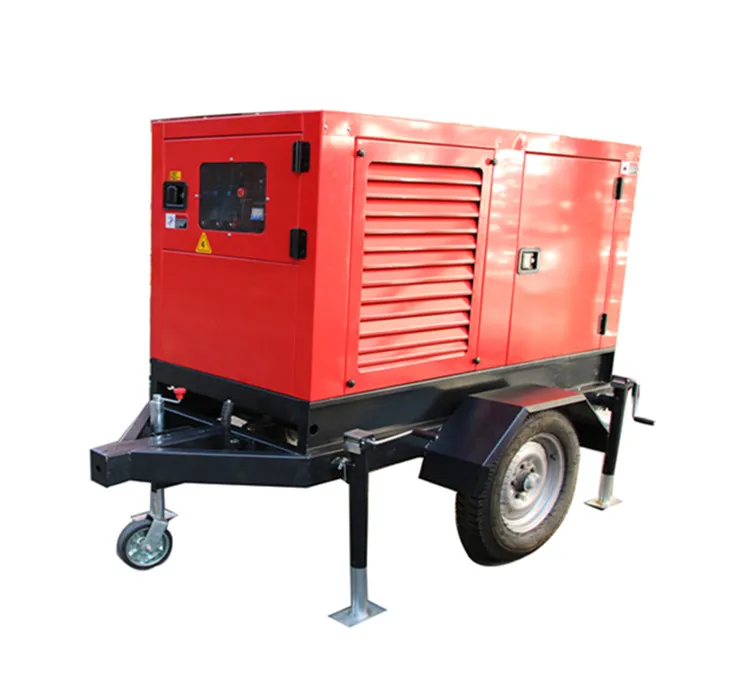

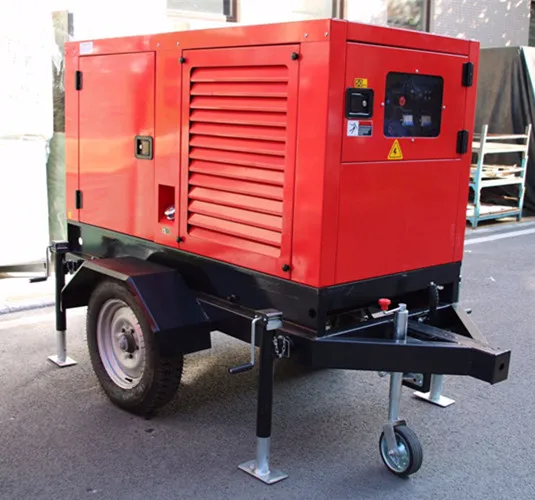

Mobile 15kva AC electric engine power generator DC 400Amp welding DG price



1. Electric Starter ensures easy starting

2. Separate welding range with fine adjustment in each range

3. Great Welding Performance

4. Auxiliary power while welding

5. 500 Amperes output suitable for 1.6 to 8.0 mm Air Carbon Arc Gouging and Stud Welding

6. Adopts advanced inverter soft switch technology, PWM control technology, and negative feedback control technology,enjoys excellent dynamic quality and welding performance within full voltage/current regulation range.





Model	diesel welding generator
Welding output
Welding Processes	MMA			TIG			FCAW
Open Circuit Voltage (V)	75			75			75
Current Range (A)	30-500			30-500			30-500
Welding Current (A)	310	350	500	310	350	500	310	350	500
Welding Voltage (V)	32.4	34	36	22.4	24	26	29.5	31.5	33
Duty Cycle	100%	80%	60%	100%	80%	60%	100%	80%	60%
External Characteristic Curve	Drop Characteristic			Drop Characteristic			Flat Characteristic
Generator output
Power	16Kw
Excitation Type	AVR Brushless Excitation
Frequency	50Hz
Phase	Three Phase					Single Phase
Output Voltage/Power	AC 400V/16Kw					AC 230V/6.9Kw
Engine
type	4 stroke ,direct injection  diesel engine
Fuel	Diesel
Rated Power	23Kw
Rated Speed	1500 RPM
Low Temperature	Pre-heated Start
Warning Type	Water Temperature /Oil Pressure/Battery Voltage
Fuel  Capacity	50L
Cooling Method	Water-cooled
Fuel Consumption	5.0L/hr
Complete appliance
