Drinking straw making machine with manufacturer
This Machine is suitable for producing different sizes of paper straws and very small paper tubes.

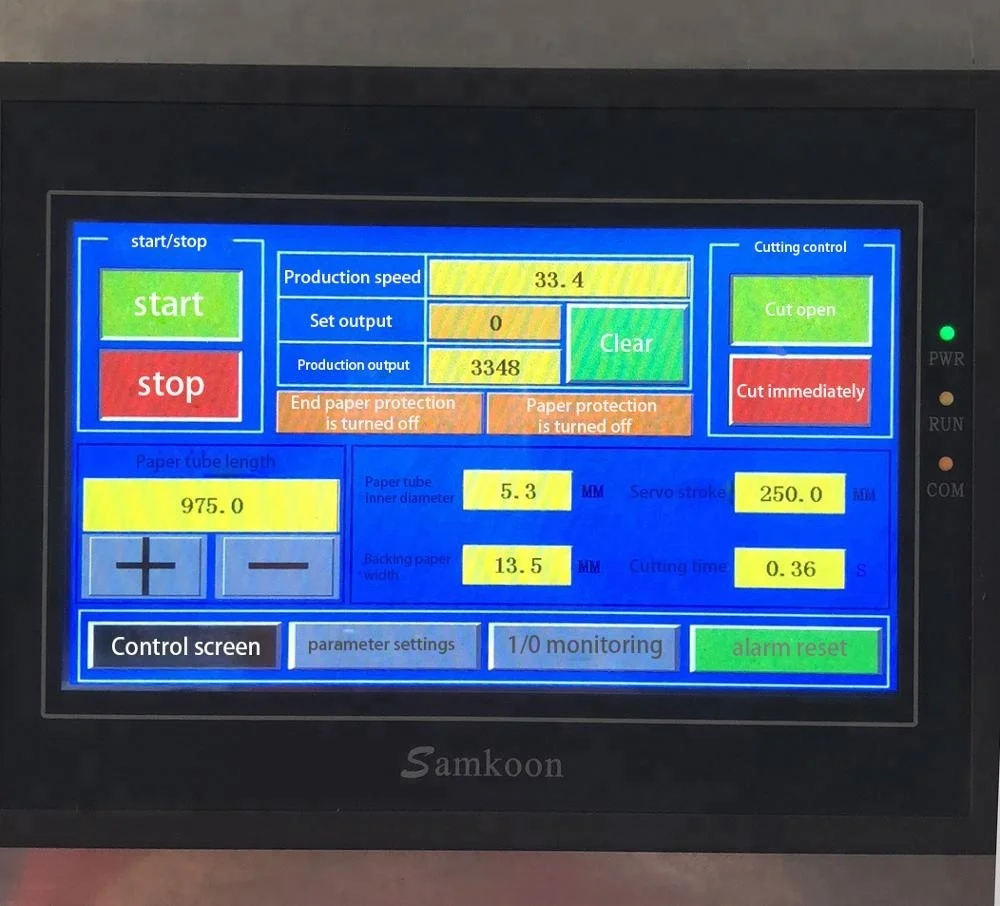

[1] It adopted with PLC controller; main motor is equipped with variable frequency speed regulation; touch screen man-machine interface. Easy for parameters setting & operating.
[2] Cutting section adopted with numerical multi-blades cutting system. Servo synchronous tracking cutting system makes it higher precision and multi-blades cutting makes it higher efficiency.
[3] Machine body and main spare parts made by stainless steel instead of painting. Ensure the hygiene and environmental protection of the products.
![STRAW.jpg]()
Technical Parameter
Technical Parameter
|
Control System
|
Paper Layer
|
3 layers
|
Motor
|
3.0kw
|
Inner Diameter
|
5-12mm
|
PLC
|
Panel Master |
Wall Thickness
|
0.5-1mm
|
Operating Panel
|
Panel Master
|
Winding Speed
|
20-40 meters/min
|
Inverter
|
3.7kw Schneider
|
Winding Nose
|
Two noses single belt
|
Electric Components
|
Schneider
|
Cutting System
|
Numerical Multi-blades (standard 5 pcs)
|
Servo Motor
|
Schneider
|
Synchronism tracking cutting system
|
Servo motor synchronism tracking
|
Pneumatic Components
|
Jingwei
|
Bearing
|
Haerbin
|
Gluing Way
|
Single/Double sides
|
Screw Rod / Slider
|
Shangyin
|
Working Air Pressure
|
0.6Mpa
|
Configuration
|
Operator
|
1-2 person
|
Paper Reel Stand
|
3 Layers
|
Power Supply
|
380V/3Phase/50Hz
|
Gluing Unit
|
3Layers
|
Measurement & Weight
|
Belt
|
5 Pieces
|
Measurement
|
3500*1500*1200mm
|
Mandrel Shaft
|
2 Pieces
|
Working Space
|
7000*5000mm
|
Extra blades
|
5 Pieces
|
Weight
|
1300kgs
|
Useful Tool
|
1 Set
|

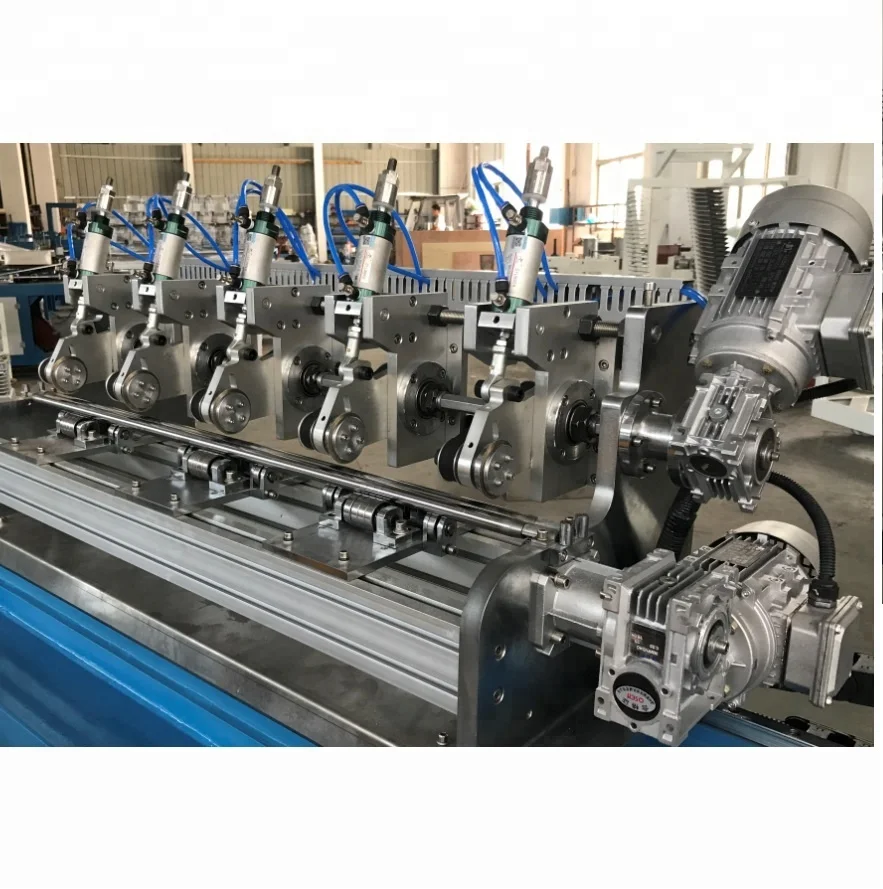

Multi-knives Inline Cutting System
![STRAW2.png]()

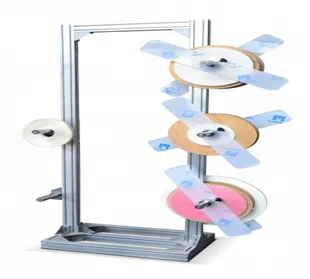

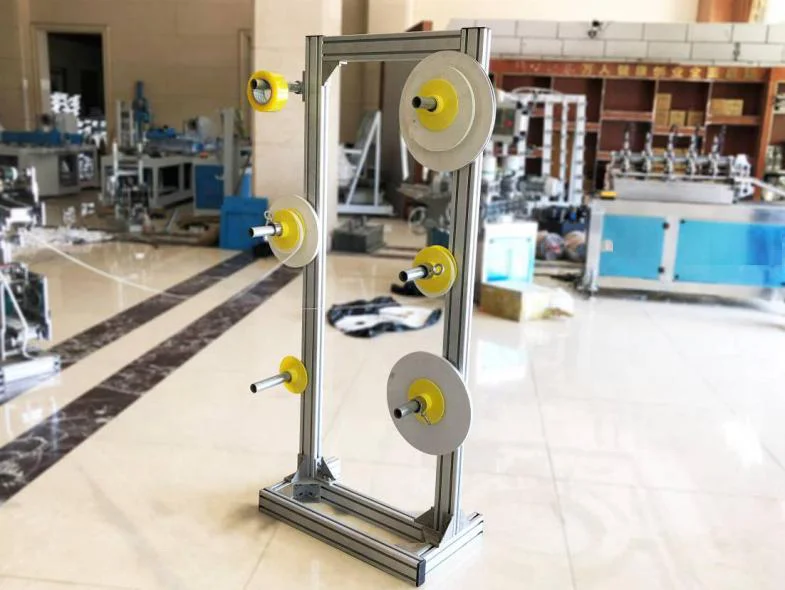

Aluminum-Profile Paper Reel Stand
![STRAW4.png]()

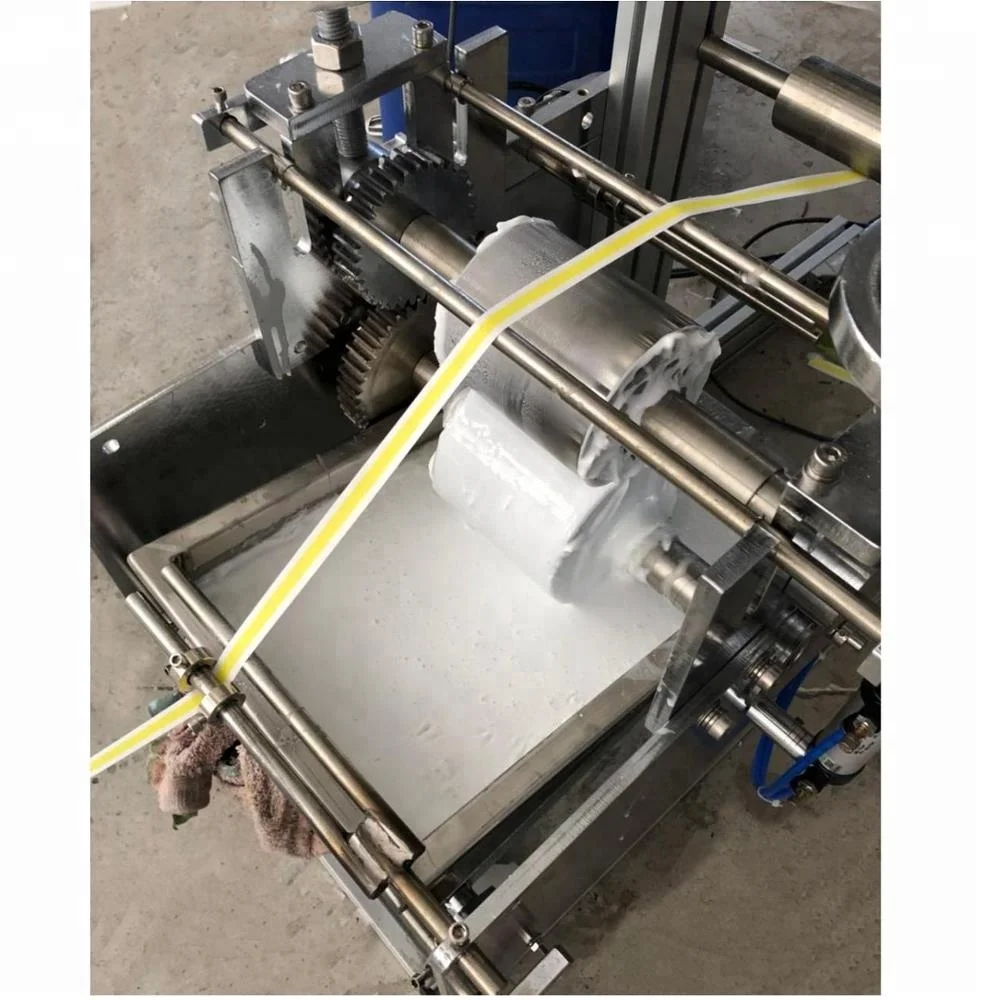

Aluminum-Profile Glue Unit
![STRAW5.jpg]()
Finished Products
Paper Drinking Straws
![]()
