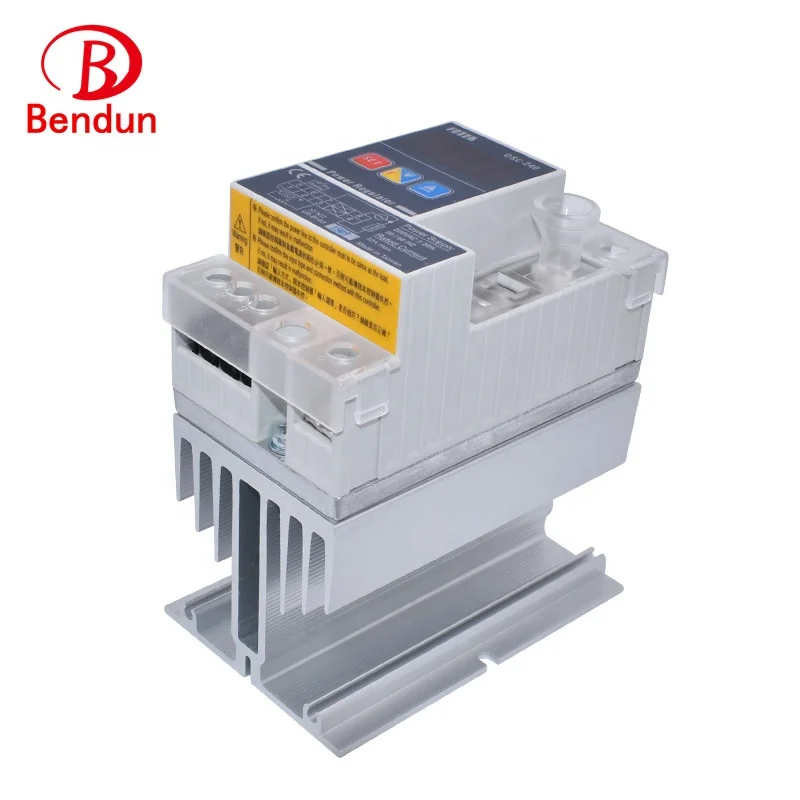

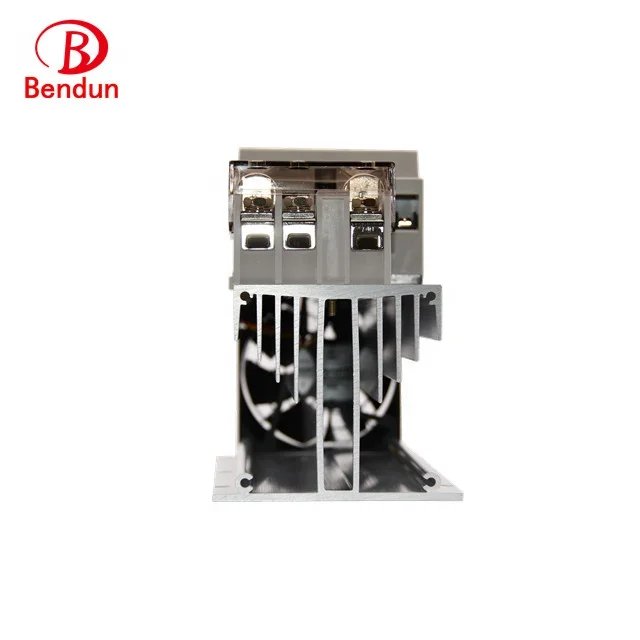

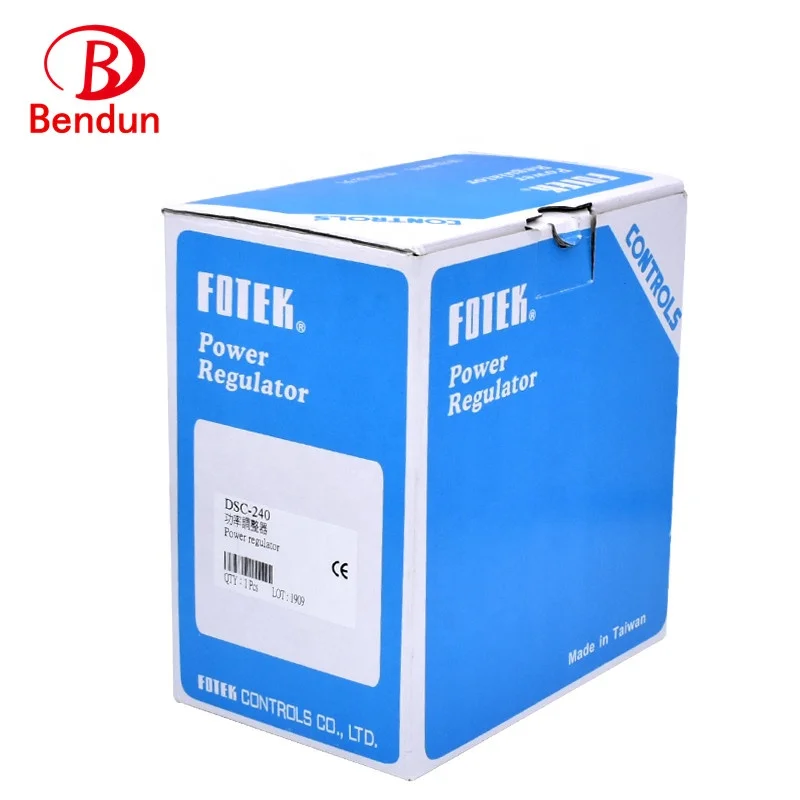

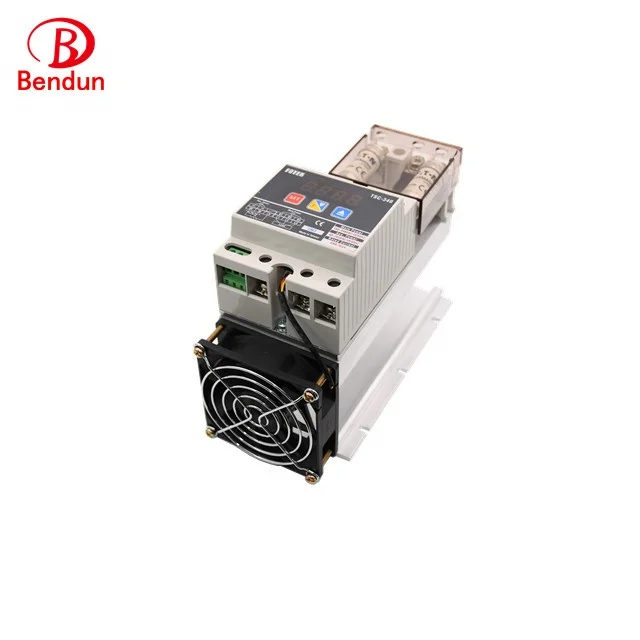

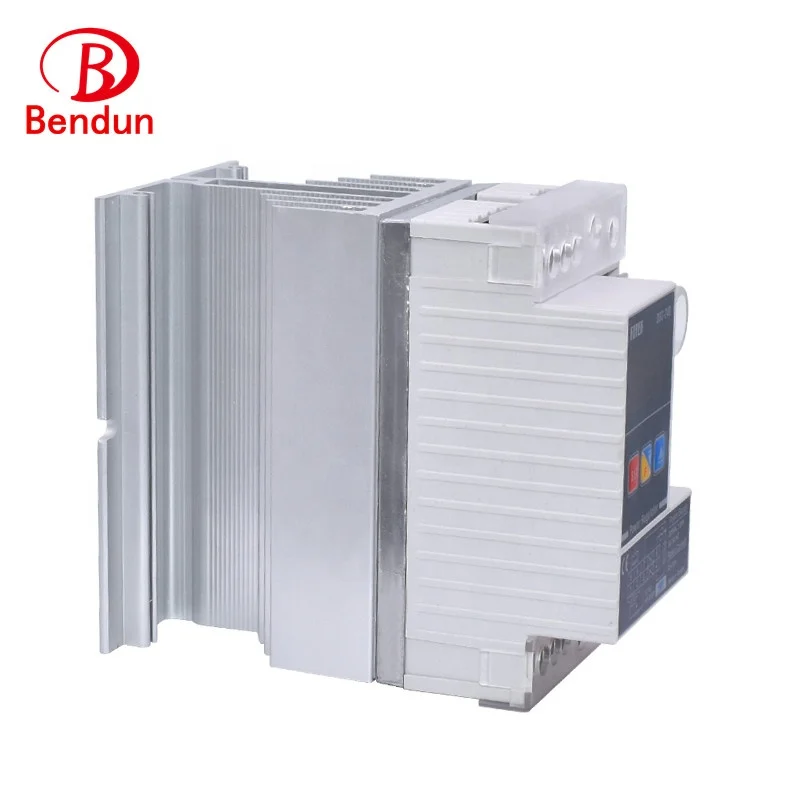

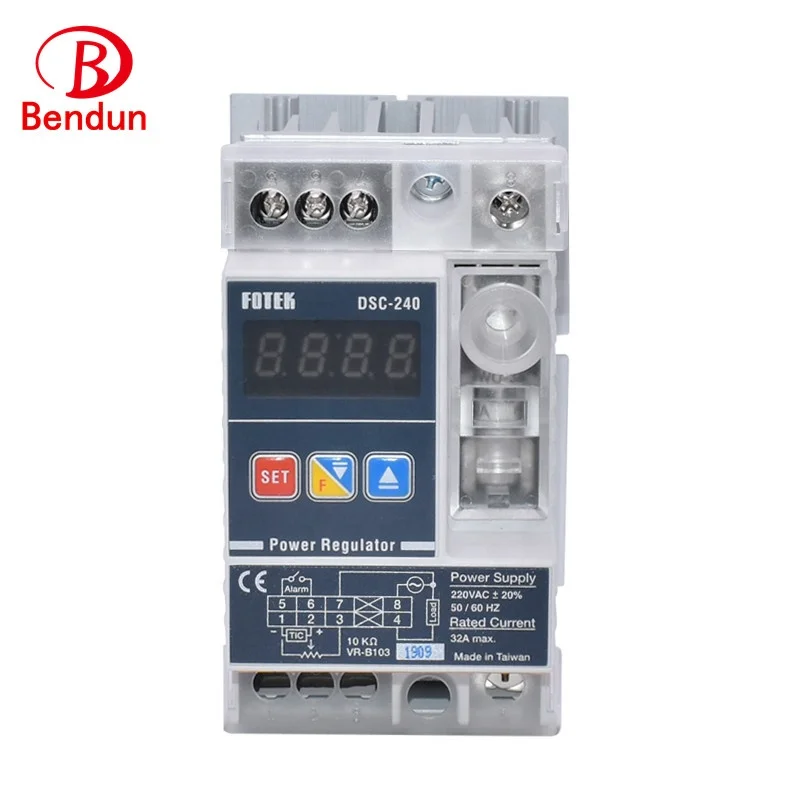

Оригинальный однофазный однопроводный цифровой регулятор мощности Fotek

Цена:46,00 $ - 48,00 $*

Количество:

Products Description

Model	DSC-240	DSC-340
Operating voltage	220VAC	380VAC
Rated current	32A max.	32A max.
Protection fuse	32A(Semi-conduct fuse inside)	32A(Semi-conduct fuse inside)
Surge current duration	410A/1 cycle of power frequency	410A/1 cycle of power frequency
Alarm output	3A/250VAC ; NO/NC changable	3A/250VAC ; NO/NC changable
Cooling fan	non	non
Min.block voltage	600VAC(repetitive)	600VAC(repetitive)
Leakage current	25mA max.
Surge resistance	Over 4KV
Noise resistance	±2KV/1μs
Input method	4~20mA/0~20mA/1~5V/2~10V/0~5V/0~10V or VR-10kΩ selectable
Control method	Zero cross control or phase angle control selectable; Excluding EPS2-□ □ □ & TPS2-□ □ □
Output control	Auto output or manual output selectable
Output range	0~100%
Input resolution	0.39%
Output low limit	0~100% (L.000~L.100) settable
Output high limit	0~199% (H.000~H.199) settable
Soft start	0~199 sec (t.00~t.199) settable
Dielectric strength	Over 2.5KV
Isolation strength	Over 100MΩ / 500VDC
Operating temp	-20ºC~+80ºC;35~85%RH
Housing material	Intensive PC+ABS (UL-94V0)
