Алюминиевая керамическая нагревательная пластина

Алюминиевая керамическая нагревательная пластина

Категория: Ceramics >>>
Поставщик: Xiamen,Innovacera,Advanced,Materials,Co.,Ltd.

Цена:4,00 $ - 5,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	5.22 $*	5.41 $*
Aug-18-2025	5.18 $*	5.71 $*
Jul-18-2025	4.88 $*	4.34 $*
Jun-18-2025	5.29 $*	5.32 $*
May-18-2025	4.67 $*	4.93 $*
Apr-18-2025	5.3 $*	5.51 $*
Mar-18-2025	5.13 $*	5.96 $*
Feb-18-2025	4.39 $*	4.71 $*
Jan-18-2025	4.98 $*	4.39 $*

Характеристики

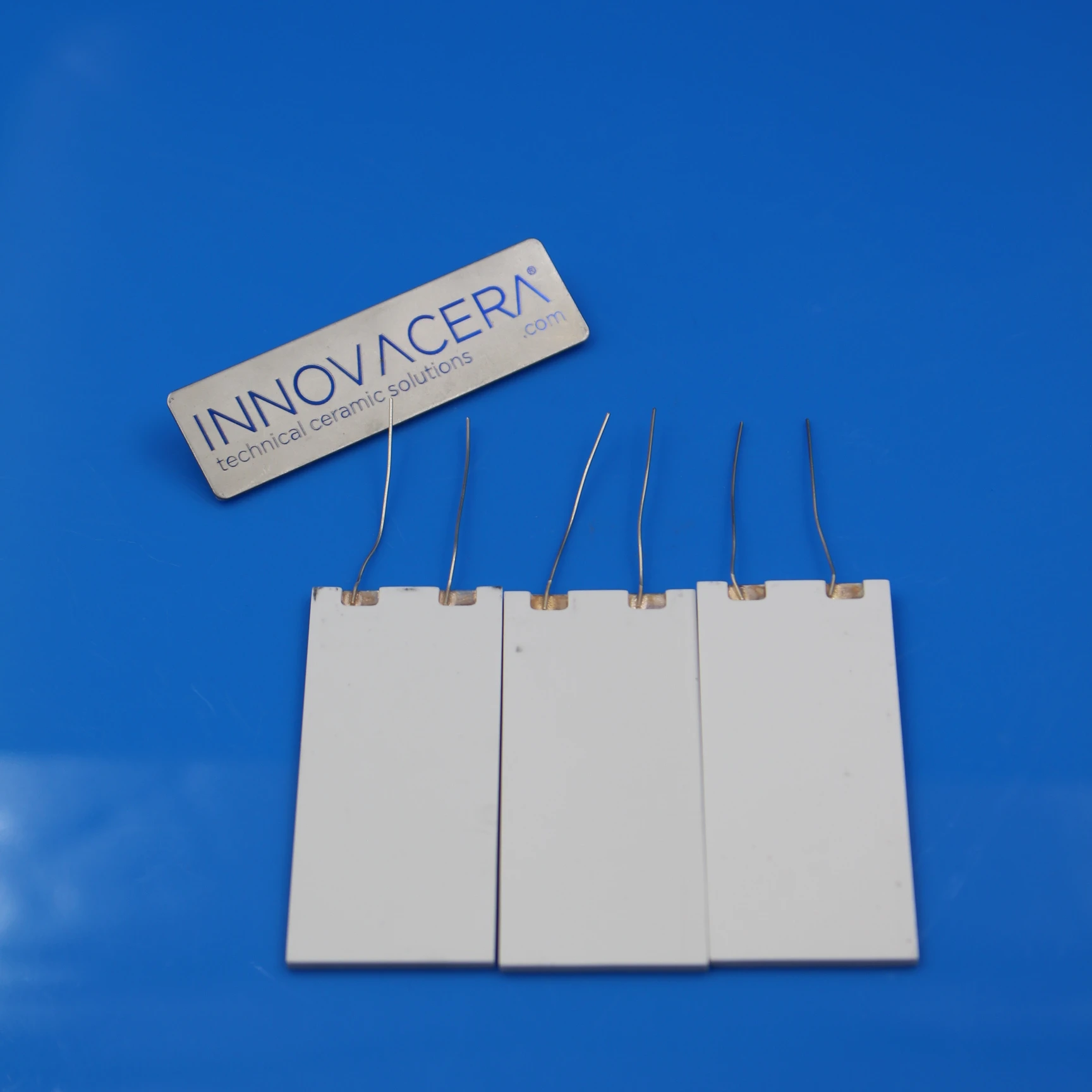

Alumina Ceramic Heater Plate

Ceramic heater Plate is a new generation of electric heating element produced directly after printing resistance paste on AL2O3 alumina ceramic green, co-burning at about 1600℃ at high temperature, and then after electrode and lead processing. It is another new generation after alloy heating wire and PTC heating element. It is widely used in many fields such as daily life, industrial and agricultural technology, communication, medical treatment, environmental protection, and so on.

Thermal Properties of Alumina Ceramic Heater
Item	Unit	Value
Material		≥96% Alunima Ceramic
Density	g/cm3	＞3.7
Voltage	V	110-240V
Resistance	Ω	70-110
Flexural Strength	MPa	＞300
Thermal Conductivity	W/(m.K)	≥25
Insulation Resistance	MΩ	＞100
Temperature	℃	600

Advantages

---

>Compact ,Light-Weight and Energy-Conserving
· High watt density, good thermal efficiency
· Laying of multiple heating elements per unit is available
>Superior Thermal Properties
· Rapid heat increase
· Custom designed temperature distribution available
· High levels of insulation allow direct contact with water, kerosene and metal
>High Reliability
· Superior dielectric strength and electrical insulation
· Longer life due to oxidation-proof design on resistivity material
· Superior chemical resistance

Application

---

Alumina Ceramic Heater Plater widely used in warm wind heating device, hair dryer, clothes dryer, heating machine, cold and warm mobile phone, dryer, electric heating splint,electric iron, electric iron, straightener, hair curling irons, electronic thermos flask, heat preservation cabinet, electric
cooker, ceramic heater, water heater, etc.

ABOUT INNOVACERA

---

INNOVACERA is a professional high-tech enterprise, cooperate with Chinese University in advanced materials, many products are awarded as high-tech products and obtain patents.

Xiamen INNOVACERA engages in R&D, manufacturing and selling the products of advanced ceramic materials, including Alumina, Zirconia, Boron Nitride, Silicon Nitride, Machinable Glass Ceramic and other advanced materials. Through different manufacturing processes, we supply metallized ceramic components, alumina heater, ceramic pump components and other ceramic components as request.

INNOVACERA engages in R&D, manufacturing and selling the products of advanced ceramic materials, including Alumina, Zirconia,Boron Nitride, Silicon Nitride, Machinable Glass Ceramic and other advanced materials. Through different manufacturing processes,we supply metallized ceramic components, alumina heater, ceramic pump components and other ceramic components as request. Ourproducts are mainly used in Aerospace, Research, Food Processing, Fluid Handling, Scientific, Automotive, Defense, Thermal Processing, Electronic and Electrical, Process Control, Textile, Pulp and Paper, Mechanical, Glass Processing, Mineral Processing and other Industrial. INNOVACERA is a professional high-tech enterprise, cooperate with Chinese University in advanced materials,many products are awarded as high-tech products and obtain patents. Our aim is to offer the ideal advanced material solution for any application.

EXHIBITION

---

>>> Our Products are Alumina Ceramic, Zirconia Ceramic, Boron Nitride Ceramic,Porous Ceramic, Silicon Nitride Ceramic, Machinable Glass Ceramic, Beryllia Ceramic, Aluminum Nitride, Metallized Ceramic Components, Alumina Ceramic Heater, Ceramic Metering Pump And so on.

>>> Our aim is to offer ideal advanced material solution for any application.
>>> We delivery the order on time, competitive price, high quality and long service to our customers.

FAQ

Q1. Do you offer samples?
A: Yes, we'll offer you samples if we have stock, but some will charge sample fee. Shipping cost will pay by customer.

Q2. What is your terms of payment?
A: T/T in advance, Western Union, Alipay, Paypal.

Q3. How about your delivery time?
A: Depends on the requirement of the producst, according to the materials, dimensions and the manufacture process.

Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q5: What else products do you offer?
A: We provide the products of advanced ceramic materials, including Alumina, Zirconia, Boron Nitride, Silicon Nitride, Machinable Glass Ceramic and other advanced materials.
