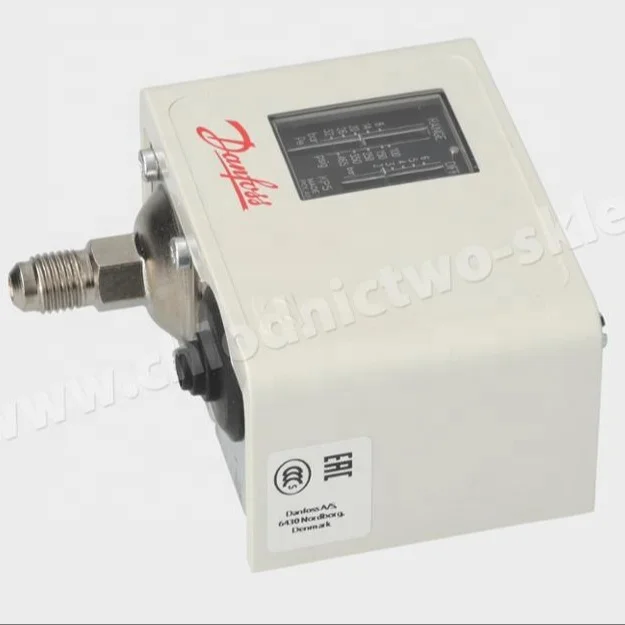

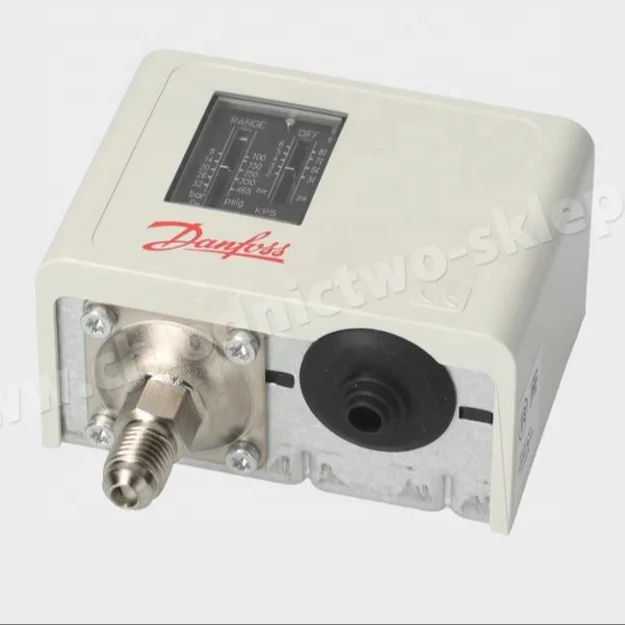

Датчик давления Danfoss KP
Датчик давления Danfoss KP
Датчик давления Danfoss KP

Датчик давления Danfoss KP


Поделиться:


Цена:59,00 $ - 110,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-19-2025 75.43 $* 77.24 $*
Jul-19-2025 61.36 $* 62.16 $*
Jun-19-2025 74.96 $* 75.41 $*
May-19-2025 73.97 $* 74.29 $*
Apr-19-2025 58.2 $* 59.77 $*
Mar-19-2025 72.70 $* 73.80 $*
Feb-19-2025 71.78 $* 72.22 $*
Jan-19-2025 71.37 $* 72.67 $*

Характеристики















Gross weight0.48 Kg
Net weight0.44 Kg




































































































Amb. Temp. Note80 °C/176 °F for max 120 min
Ambient temperature range [°C] [Max]65 °C
Ambient temperature range [°C] [Min]-40 °C
Ambient temperature range [°F] [Max]149 °F
Ambient temperature range [°F] [Min]-40 °F
ApprovalBV
CCC
CE
DNV
EAC
GL
LR
LVD
PZH
RINA
RMRS
RoHS China
c UL us UL873, CS C22.2
CMIM
Contact functionSPDT
Contact ratingAC15=10 A, 400 V
AC1=16 A, 400 V
AC3=16 A, 400 V
DC13=12 W, 220 V
LR=112 A, 400 V
Differential [bar] [Max]6 bar
Differential [bar] [Min]1.8 bar
Differential [psi] [Max]87 psi
Differential [psi] [Min]26 psi
Electrical connectionRubber cable gland
Electrical connection size6-14 mm
EN 60947 electrical propertiesPollution degree: 3
Rated impulse voltage: 4 kV
EN 60947 wiring propertiesFlex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2
Enclosure rating IPIP44
Enclosure rating Nema (~)2
Max. test pressure [bar] Pe35 bar
Max. test pressure [psig]510 psig
Max. Working Pressure [bar]35 bar
Max. Working Pressure [psig]510 psig






























































































Packing formatMulti pack
Pressure connection size10 x 0.75
Pressure connection standardISO 261
Pressure connection typeM
Pressure Male/FemaleMale
Pressure range categoryHigh pressure
Pressure sensing elementBellows
Product accessoriesSwitches accessories
Product descriptionPressure Switch
Product family nameKP Pressure switch
Product groupSwitches and thermostats
Product namePressure switch
Quantity per packing format14 pc
RefrigerantsR113
R124
R134a
R22
R404A
R407A
R407C
R407F
R407H
R422B
R422D
R438A
R448A
R449A
R450A
R452A
R507A
R513A
R717
R449B
R515B
Regulation range [bar] Pe [Max]32 bar
Regulation range [bar] Pe [Min]8 bar
Regulation range [psig] Pe [Max]464 psig
Regulation range [psig] Pe [Min]116 psig
Reset functionAuto
ServiceableNo
TypeKP5A
UL approval file nameE31024
