Product Description

Model	DLM200-6
Wire Diameter	Φ0.19mm~Φ1.2mm
Swing Diameter	Φ220mm
Operation Head	12
Winding Head	6pcs
Max Stack Height	65mm
Max Stator O.D	Φ120mm
Max Speed	2500r/min
Air Pressure	≥0.5Mpa
Power Supply	380V 50/60Hz 10kW
Weight	≈4500kg
Dimension	(L)2400×(W)1900×(H)2250mm



Main Feature

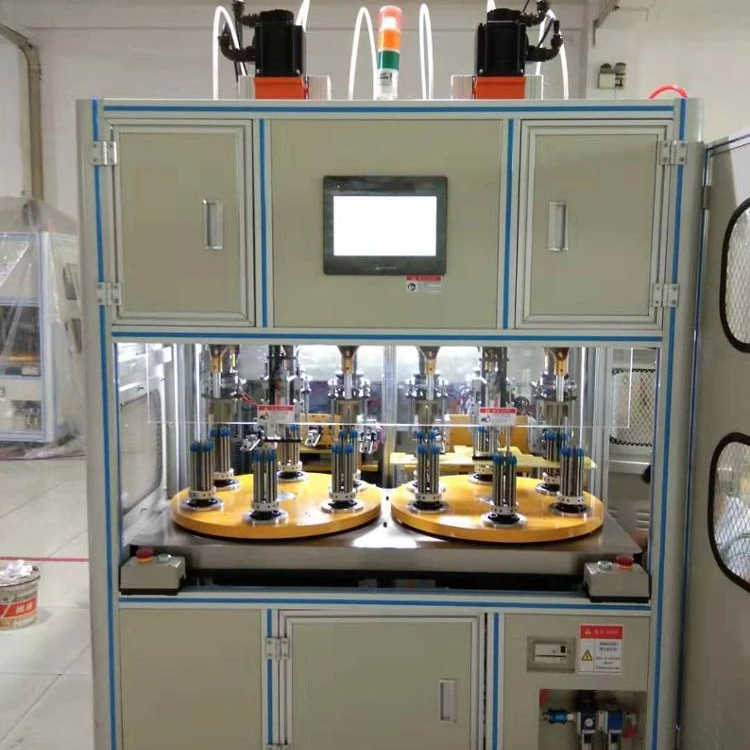

• The machine is six winding heads with twelve operation stations,high efficiency is its feature.

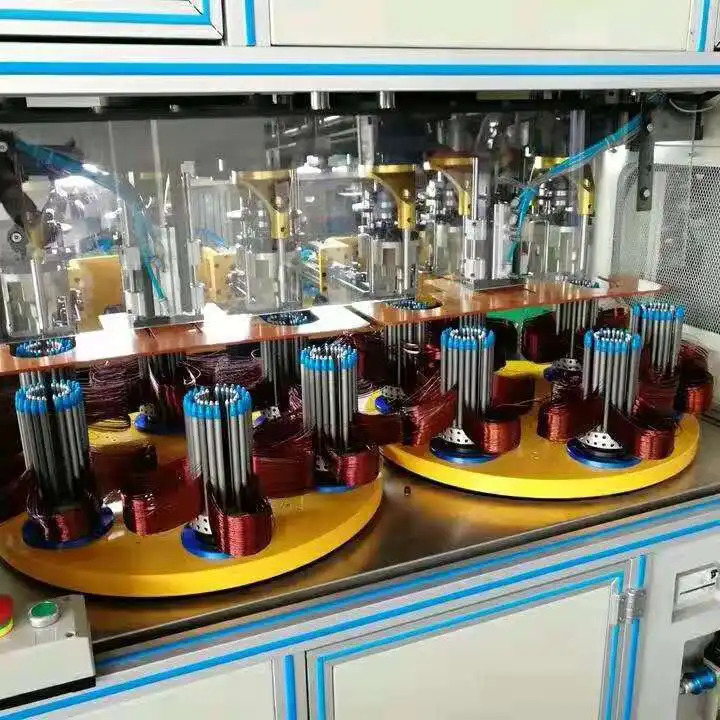

• The machine automatically put the coil into transfer former orderly,especially suitable for highproduction capacity requirement,high slot filling rate,small slot opening stator coil winding.
• Winding mode such as auto skip,auto cutting and auto indexing could be completed at a time successively,parameter could be set in human-machine interface.
• Continuous/discontinuos winding way and meets the 2 poles,4 poles and 6 poles coils winding.
