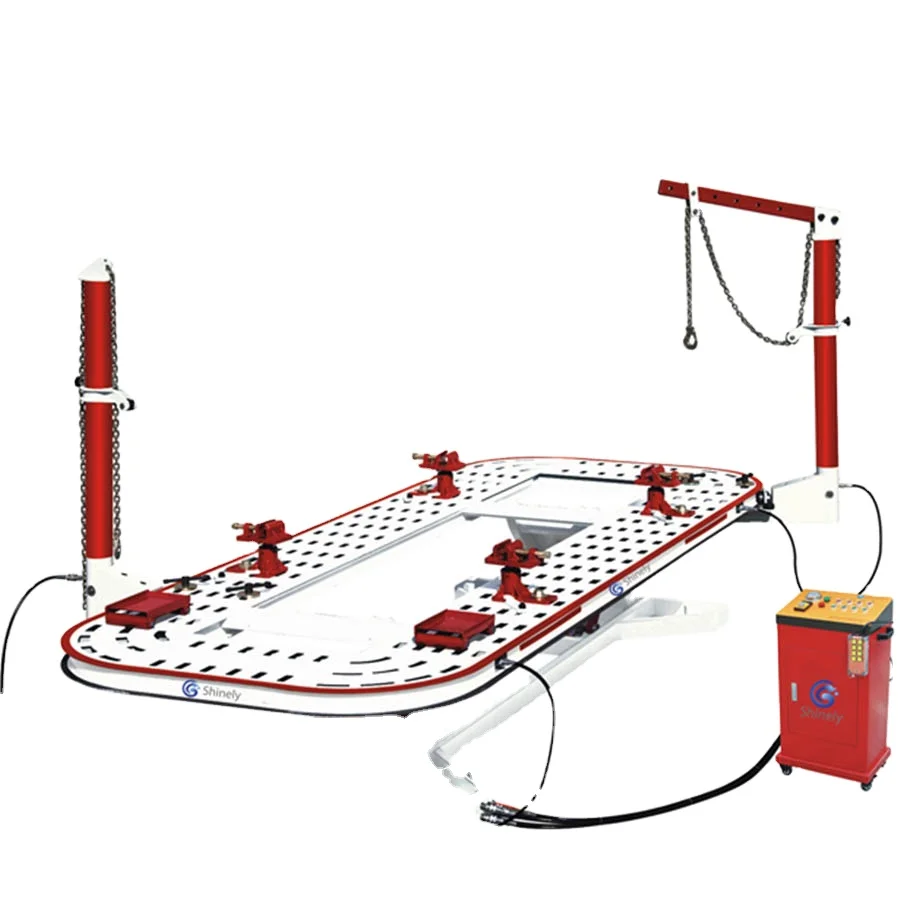

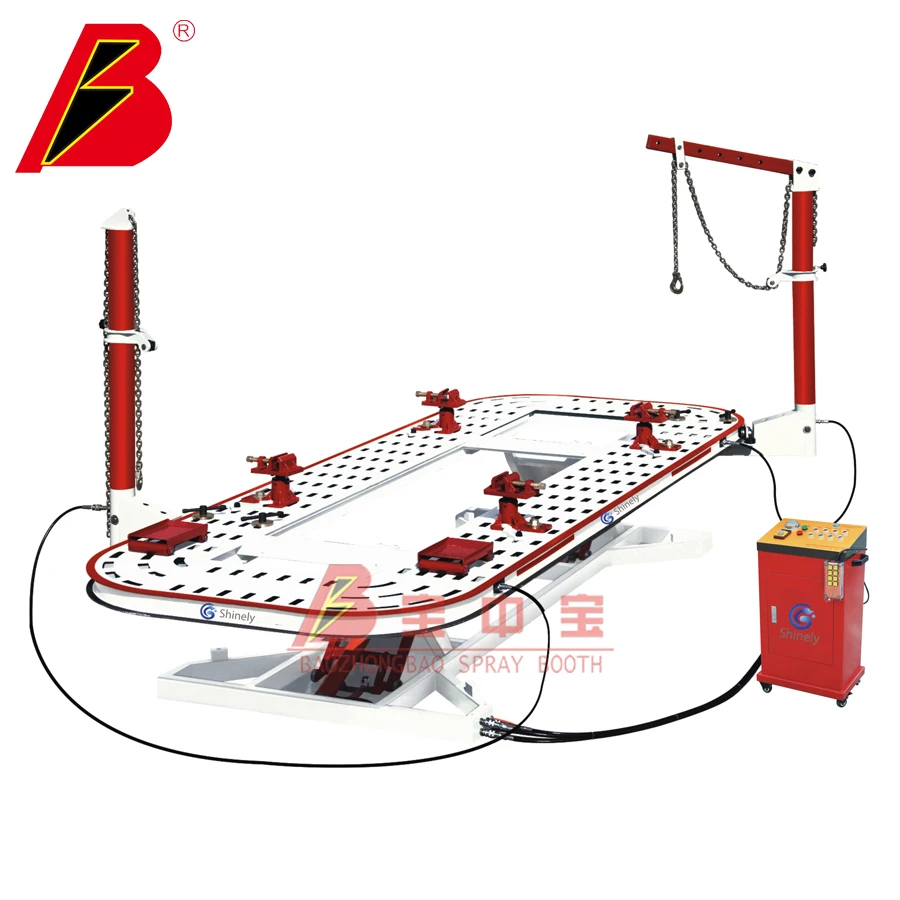

Высококачественный выпрямитель для автомобильного шасси скамья механическая Рабочая оборудование

Описание и отзывы

Трекер стоимости

Характеристики

SPECIFICATION

Frame Length: 5600mm

Frame Width: 2260mm

Frame Height: 0-380-1080mm

Max Push Power For Pulling Tower: 95KN

Rated Voltage:   220V/380V

Working Range Of Pulling Tower: 360°

Max Load Bearing: 4000KG

Tools and Accessories (please find the details in component list)

Frame Length	5600mm
Frame Width	2260mm
Frame Height	0-380-1080mm
Max Push Power For Pulling Tower	95KN
Rated Voltage	220V/380V
Working Range Of Pulling Tower	4000KG
Tools and Accessories	please find the details in component list



PRODUCT FEATURES:

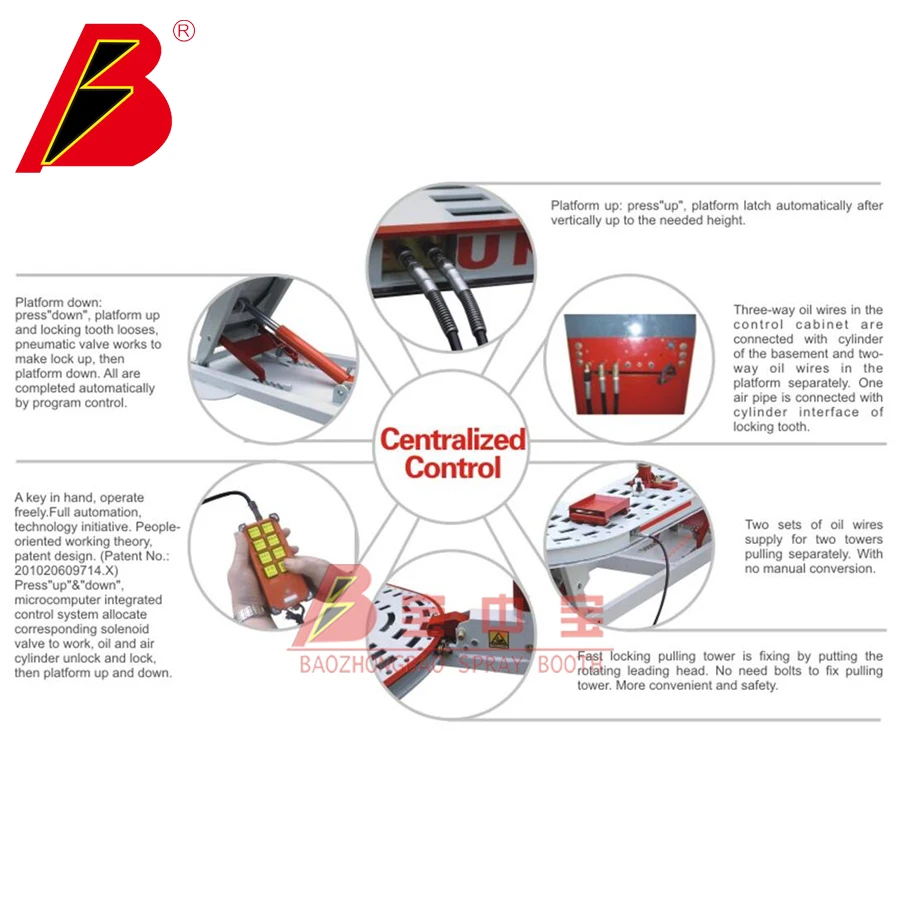

· Three outputs of electric pump station control both vertical and tilt lifting, pulling and stretching of two towers , can be achieved with only one
remote control independently, centralized control. A key is in hand, free manipulation.
· Totally enclosed three-way hydraulic piping, centralized control, not influenced by the external environment, easy demolition and installation,
low failure rate.
· Vertical self-locking bench , flexible height ranges from 380-1080mm. Lifting bench is secured by hydraulic and mechanical self-locking. One
side can tilt lift from 0-380mm which is easy for on and off.
· Flat plate and square hole working platform with five rows square holes, bench width 650mm assembled by the large cutting cnc equipment,
the high intensity. No working blind spot, quick stretching.
· 360-degree spiral and unique wheel rotation makes pulling towers move stable and flexible.

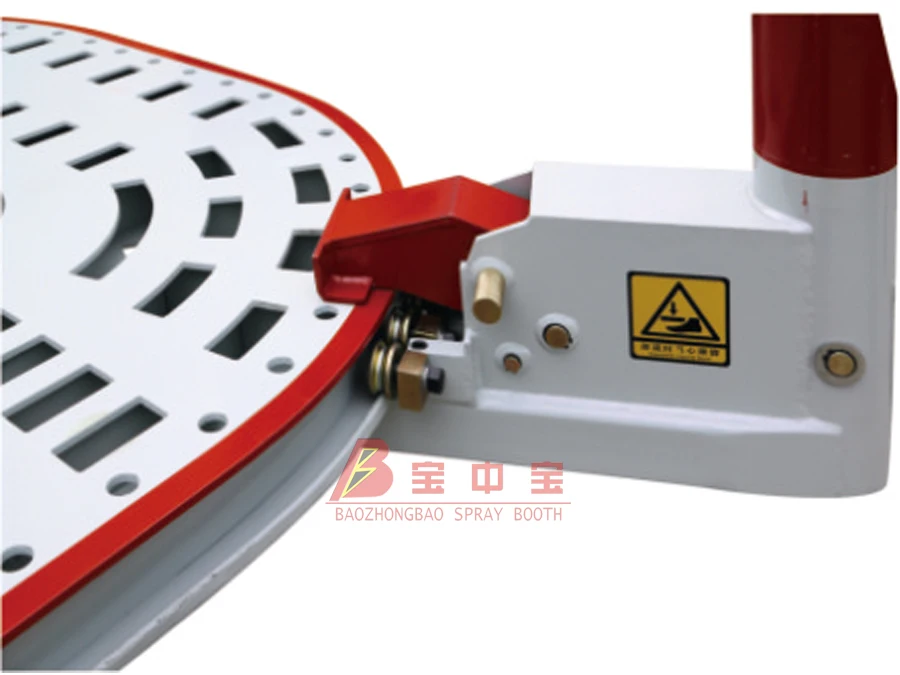

· Fast locking pulling tower is fixing by putting the rotating leading head. No need bolts to fix pulling tower. More convenient and safety.
· Unique spiral movement design of main clamps. Turn the pole up and down to change the height. Applying to adjust vehicles with different
chassis.

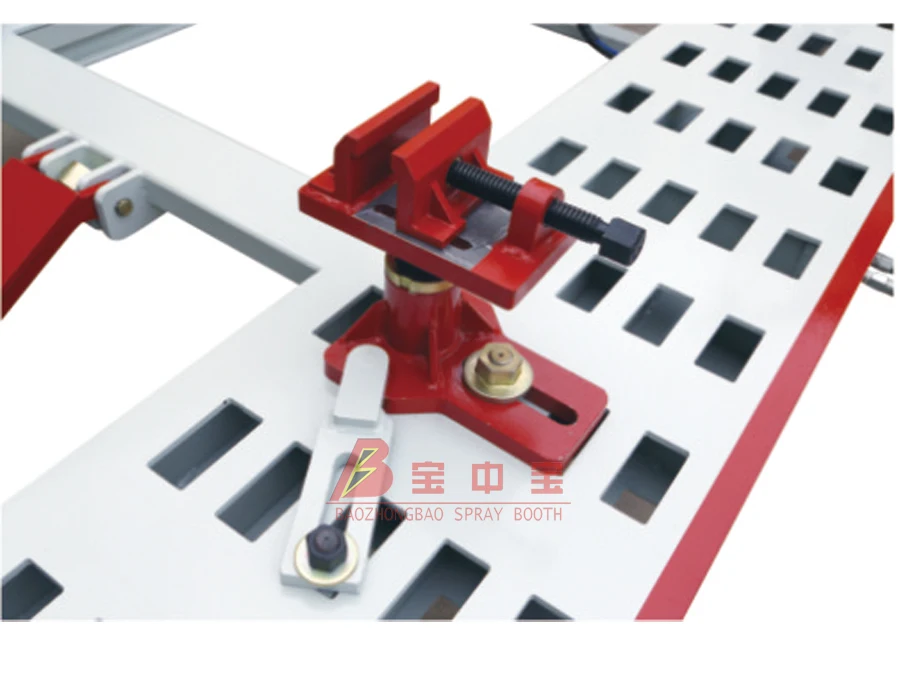

· General tiger type beam clamps, applied to clamping and fixing beam of car, truck and suv.
· Mechanical streamline design tools, forge and heat treatment process, long service life and high-intensity, almost considerate all deformation
correction.
· Retractile wheelbase coordinates measuring (ptp), the most advanced measuring system, no interrupted point, operated conveniently, laser
carved scale, durable.
· Totally enclosed three-way hydraulic piping, electrical controls, not influenced by the external environment, easy demolition and installation, low
failure rate.
