Автоматическая линейная совместимая машина для приготовления кофейного порошка чая капсулы запечатывания упаковочная
- Категория: Tobacco Processing Machinery >>>
- Поставщик: Jiangsu,Sunyi,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.47 $* | 0.33 $* |
| Aug-15-2025 | 0.41 $* | 0.28 $* |
| Jul-15-2025 | 0.92 $* | 0.6 $* |
| Jun-15-2025 | 0.17 $* | 0.90 $* |
| May-15-2025 | 0.20 $* | 0.79 $* |
| Apr-15-2025 | 0.84 $* | 0.66 $* |
| Mar-15-2025 | 0.73 $* | 0.67 $* |
| Feb-15-2025 | 0.17 $* | 0.53 $* |
| Jan-15-2025 | 0.79 $* | 0.11 $* |
Характеристики
Product Description
Big Discount Compatible Nespresso/K-cup/Lavazza Blue/Dolce Gusto Coffee Capsule Filling and Sealing Machine(Model: SKP-1) of Sunyi Machinery is fully automatic and muti-function capsules K-cups filling sealing packaging machinery. With good appearance, stable performance, and most importantly with absolutely competitive lower price, this machine have won a variety of customers at home and abroad.
This machine main body frame adopts painted carbon steel and foodstuff contact part being food grade stainless steel. This design will meet the lower-end market requirements. However, there’s not a bit of discount on the filling speed or the filling accuracy. On contrast, the speed will be faster with stable performance because we have updated the control system and applied European brand components(such as Schneider, Siemens, Omron, etc).
Of course, we will still have full stainless steel machine for your choice.
And we also have bigger capacity machine models for your options.
If any further questions, please don’t hesitate to contact us.

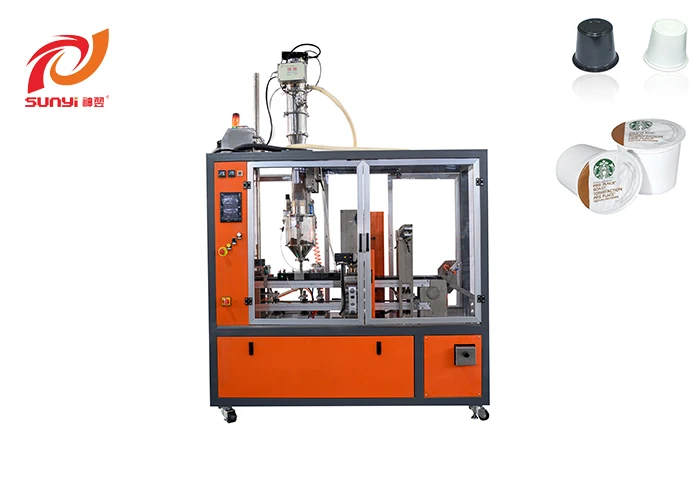

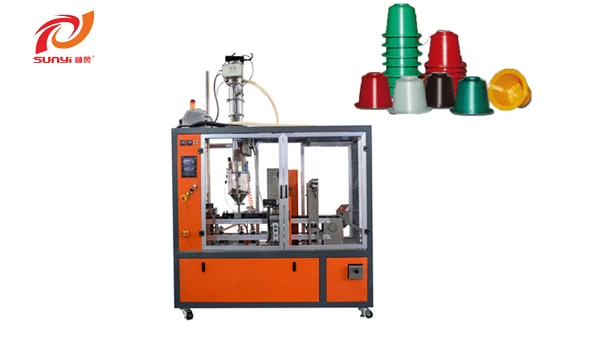

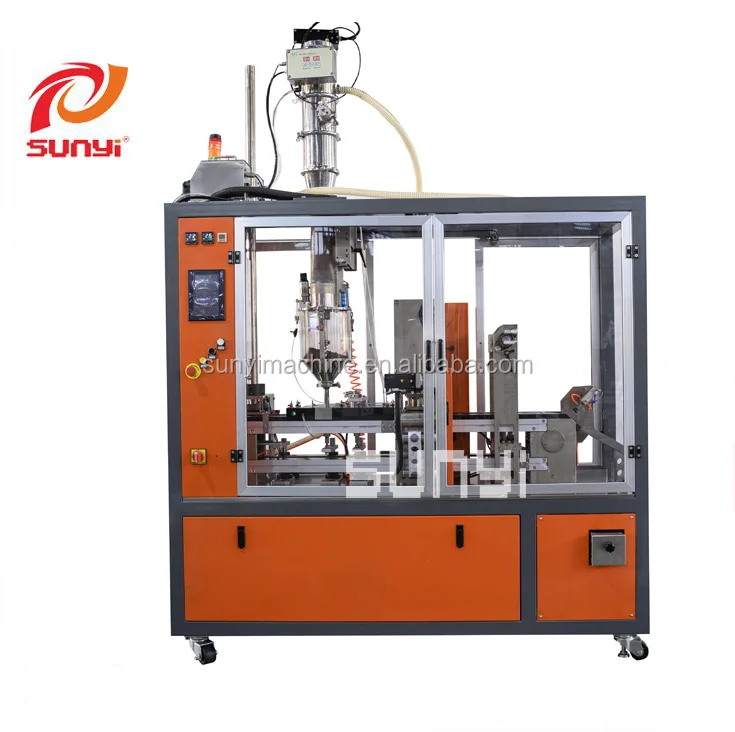

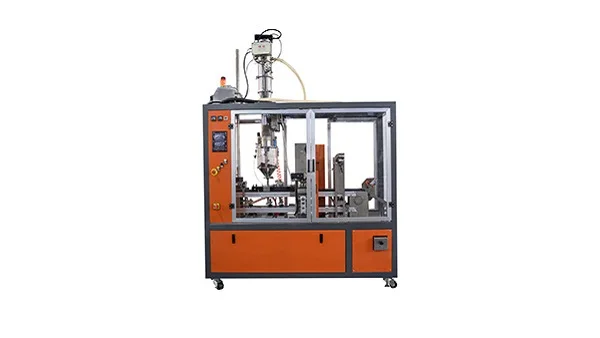

Machine Photos for reference:
*Main Function
1. This machine is suitable for compatible Nespresso coffee capsules, such as: Nespresso, k-cup, lavazzablue, A Modo Mio, K-shot, one cup, Dolce Gusto, etc..
2. This machine can not only work with powdery products, but also with something liquid, cream, paste, or granule, etc...
3. According to the capsules/cups stackable or not, the vertical capsule/cups feeding/ horizontal capsules loading or the
automatic centrifugal/vibration capsules loading feeding methods will be optional.
4. With world famous brand servo driving auger filling system, for much better filling accuracy;
5. With mixing system to flat the powdery level for better filling pressure, a better filling accuracy
6. With Nitrogen flushing function to prolong the product shelf life.
7. With optional stuff material feeding methods
8. With tamping station and vacuum capsule top rim clean function for better sealing effect
9. With pre-cut lids or rolled foil lids cutting sealing station as alternative.
10. With pretty good brass heat sealing head for better heat sealing surface
11. With swing output arm to unload the capsule automatically
12. With optional UV sterilization, anti-static, flavor adding, remote control and so on
2. This machine can not only work with powdery products, but also with something liquid, cream, paste, or granule, etc...
3. According to the capsules/cups stackable or not, the vertical capsule/cups feeding/ horizontal capsules loading or the
automatic centrifugal/vibration capsules loading feeding methods will be optional.
4. With world famous brand servo driving auger filling system, for much better filling accuracy;
5. With mixing system to flat the powdery level for better filling pressure, a better filling accuracy
6. With Nitrogen flushing function to prolong the product shelf life.
7. With optional stuff material feeding methods
8. With tamping station and vacuum capsule top rim clean function for better sealing effect
9. With pre-cut lids or rolled foil lids cutting sealing station as alternative.
10. With pretty good brass heat sealing head for better heat sealing surface
11. With swing output arm to unload the capsule automatically
12. With optional UV sterilization, anti-static, flavor adding, remote control and so on
Technical Parameter | ||
Filling weight range: | 0-20g | |
Filling accuracy: | 0.1-0.3g | |
Max speed: | 50 Cup per minute | |
Hopper capacity: | 1.0L(2.5L)Option | |
Control system: | OMRON SCHNEIDER ROCKWELL | |
Displayer: | 7 Inch touchscreen | |
Power supply: | 220V/380V | |
Dimension: | 1900*762*2432mm | |
*Learn More about Our Capsule and What Can Be Filled in the Capsule.
The machine is suitable for various granule,powder and liquid materials.Such as coffee,milk powder,tea,instant powder,yogurt and other food materials.Applicable capsule:Compatible Nespresso,Dolce gusto,Lavazza blue or point,Pod,K-CUP,K-Shot,OneCup.
Jiangsu Sunyi Machinery Co.,LTD., founded in 2011, is headquartered in Kunshan city, Jiangsu province, the top of the country‘s top 100 countries. It has a subsidiary company, Zhejiang Sunyi Machinery. It is the national science and technology innovative enterprises. It’s a professional R&D, manufacturing, sales of intelligent food packaging machinery, packaging systems and a variety of automation control equipment technology innovative enterprises.
*Contrast Form of Other Production in Our Company
Since the establishment of company,we pour ourselves more into research and development of coffee packaging machine.We have produced SKP-1,SKP-2,SKP-4,SKP-6,SKP-8(Compatible nespresso,Dolce gusto,Lavazza Blue,Point,K-CUP,Kshot,One Cup)automatic Coffee capsule filling and sealing machine.With good appearance,high filling accuracy,stable performance,which has won the favor of customers at home and abroad.The product has obtained many technical invention patents,through CE,UL certification,ISO9001 quality management system certification and got a number of Zhejiang science and technology.
Model | SKP-1 | SKP-1N | SKP-2 | SKP-4 | SKP-6 | ||||
filling weight range | 0-20*n | 0-20*n | 0-20*n | 0-20*n | 0-20*n | ||||
filling accuracy | ±0.1~0.3g | ±0.1~0.3g | ±0.1~0.3g | ±0.1~0.3g | ±0.1~0.3g | ||||
Max speed | 50cups/minute | 50cups/minute | 80-100 cups/minute | 160-200 cups/minute | 240-300 cups/minute | ||||
Hopper capacity | 1.0(2.5L) Option | 1.0(2.5L) Option | 10-24L Option | 10-24L Option | 2.5L Option | ||||
control system | PLC(OMRON,SCHNEIDER,ROCKWELL) | ||||||||
power | AC 220V/380V 50Hz/60Hz | ||||||||
Certifications
Product Details
Vertical Capsules Loading Station
* Manually placing the stackable capsules on pile onto the inclined rack, and pushing them into the capsules magazine.
* The Capsules will be denester and dropped into the capsule module plates one by one automatically
* The Capsules will be denester and dropped into the capsule module plates one by one automatically
Servo Auger Filling Station
* With Nitrogen flushing function inside the 10L visual stuff hopper;* With world famous Schneider brand servo motor driving auger
filling system
* With mixing system to flat the powder level for a better filling accuracy
* With tuning fork type level sensor to control the stuff feeding automatically
* With flexible movable hopper, the hopper can be pulled out for easy clean the hopper
filling system
* With mixing system to flat the powder level for a better filling accuracy
* With tuning fork type level sensor to control the stuff feeding automatically
* With flexible movable hopper, the hopper can be pulled out for easy clean the hopper
Tamping and top rim clean station
* With tamping the powder and clean the capsule top rim for a better sealing surface;* With optional UV sterilization lamp and
anti-static device.
* With Nitrogen flushing tunnel to build a Oxygen-barrier environment to prolong the coffee shelf life.
anti-static device.
* With Nitrogen flushing tunnel to build a Oxygen-barrier environment to prolong the coffee shelf life.
Pre-cut lids feeding station/ Rolled foil lids cutting sealing as alternative
* With pre-cut lids feeding station or with rolled foil lids cutting and sealing station as alternative
Heat Sealing Station
With pretty good brass heat sealing head for well-distributed temperature control, the heat sealing surface is even .
Swing Output Arm
With swing output arm to output the finished capsules automatically.
Our Service
Our Services during COVID-19
* We supply the buyer each machine operation manual, operation video, simple assembling video because our machine is whole set machine, just need to combine the main machine together.
* In the COVID-19 pandamic environment, After receiving the machine, we can supply PPT installation display and visual-audio installation guidance and free trainning service on live.
* The machine with the remote control device, if there’s any programe system problem, we can monitor and revise the program remotely as long as your machine can reach the internet.
* We have distributors in USA, Mexico, Thailand, Italy, Russia, etc. No worry about the services.
* In the COVID-19 pandamic environment, After receiving the machine, we can supply PPT installation display and visual-audio installation guidance and free trainning service on live.
* The machine with the remote control device, if there’s any programe system problem, we can monitor and revise the program remotely as long as your machine can reach the internet.
* We have distributors in USA, Mexico, Thailand, Italy, Russia, etc. No worry about the services.
Packing & Delivery
Strong Export Wooden Case Related
* Before packed in the wooden case, the machinery will be wrapped with bubble film and
plastic film around and around. After fixed onto the pallet, another plastic bag will be entangled on the machine, then packed into the strong export wooden case.
* Strong Wooden Case is important part for transporting the machine during the shipment journey. A solid wooden case will protect the machine from damaging, which make sure the customers accept flawless and perfect production. It's our duty to reassure you.
plastic film around and around. After fixed onto the pallet, another plastic bag will be entangled on the machine, then packed into the strong export wooden case.
* Strong Wooden Case is important part for transporting the machine during the shipment journey. A solid wooden case will protect the machine from damaging, which make sure the customers accept flawless and perfect production. It's our duty to reassure you.
FAQ
1. What advantages you have?
* Over 10 Years professional working experience in the coffee capsules filling packing machine only.
* With abundant of technology reserve and lots of innovative patents
* With very strict standard on each machine that sold to all over the world.
* With world famous components application.
* One-stop packaging solutions
* Sunyi machine has been exported to over 40 countries all over the world.
* Professional after-service system
* With distributors in USA, Mexico, Thailand, Russia, Italy, etc...
*Prompt response to the after sales service.
2. How can you guarantee that we can receive a good quality machine?
* Sunyi Machinery is the direct factory-based company, we can supply visual-audio factory inspection service.
* From the machine processing parts to the electric-pneumatic parts, from the machine assembling to the electric-pneumatic adjustment, from the package to the shipment, we have a set of strict QC standard.
* After the machine is ready, we will send each customer their machine photos and machine testing videos.
After confirmation by the customers, then we are permitted to arrange the delivery.
* After receiving the machine, we can set out technicians to customer factory for machine installation as agreed if need.
* Within the 12 months warranty, any broken parts will be delivered to customers by express for free of charge.
After the warranty, the broken parts will be discharged only at the lowest cost price.
3. Do you provide and help about the product operation?
* We have English version operation manual and videos for all products, and all the icons will be displayed by English or
nominated language.
* After receiving the machine, we can supply the remote guidance on Internet for machine installation and operation.
4. During the COVID-19, How can I visit the factory?
* During the COVID-19, we can supply 360 degree VISUAL-AUDIO factory inspection services.
* If any questions, we can show you the details on the Internet.
* We have distributors in USA, Mexico, Thailand, Italy, Russia, etc.
* Over 10 Years professional working experience in the coffee capsules filling packing machine only.
* With abundant of technology reserve and lots of innovative patents
* With very strict standard on each machine that sold to all over the world.
* With world famous components application.
* One-stop packaging solutions
* Sunyi machine has been exported to over 40 countries all over the world.
* Professional after-service system
* With distributors in USA, Mexico, Thailand, Russia, Italy, etc...
*Prompt response to the after sales service.
2. How can you guarantee that we can receive a good quality machine?
* Sunyi Machinery is the direct factory-based company, we can supply visual-audio factory inspection service.
* From the machine processing parts to the electric-pneumatic parts, from the machine assembling to the electric-pneumatic adjustment, from the package to the shipment, we have a set of strict QC standard.
* After the machine is ready, we will send each customer their machine photos and machine testing videos.
After confirmation by the customers, then we are permitted to arrange the delivery.
* After receiving the machine, we can set out technicians to customer factory for machine installation as agreed if need.
* Within the 12 months warranty, any broken parts will be delivered to customers by express for free of charge.
After the warranty, the broken parts will be discharged only at the lowest cost price.
3. Do you provide and help about the product operation?
* We have English version operation manual and videos for all products, and all the icons will be displayed by English or
nominated language.
* After receiving the machine, we can supply the remote guidance on Internet for machine installation and operation.
4. During the COVID-19, How can I visit the factory?
* During the COVID-19, we can supply 360 degree VISUAL-AUDIO factory inspection services.
* If any questions, we can show you the details on the Internet.
* We have distributors in USA, Mexico, Thailand, Italy, Russia, etc.
