Медный нагревательный элемент Songtai с резьбой промышленный водонагреватель

Медный нагревательный элемент Songtai с резьбой промышленный водонагреватель

Категория: Electric Water Heaters >>>
Поставщик: Yancheng,Songtai,Electric,Heating,Element,Factory

Цена:22,00 $ - 30,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	26.40 $*	27.94 $*
Aug-15-2025	26.79 $*	27.61 $*
Jul-15-2025	22.40 $*	23.60 $*
Jun-15-2025	26.96 $*	27.48 $*
May-15-2025	22.46 $*	23.90 $*
Apr-15-2025	25.96 $*	26.3 $*
Mar-15-2025	25.27 $*	26.98 $*
Feb-15-2025	25.34 $*	26.57 $*
Jan-15-2025	24.50 $*	25.69 $*

Характеристики

\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t

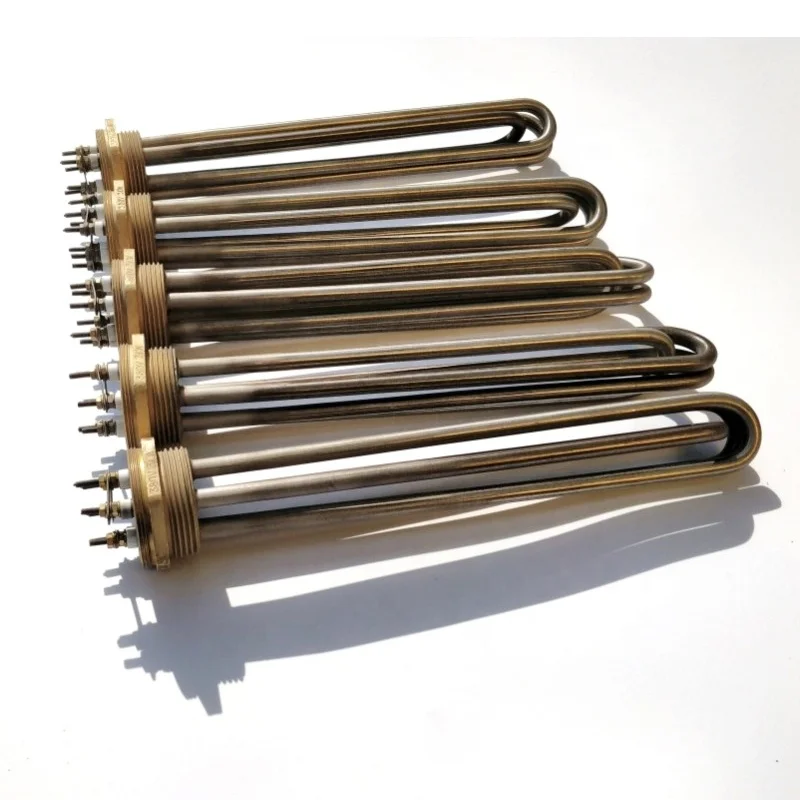

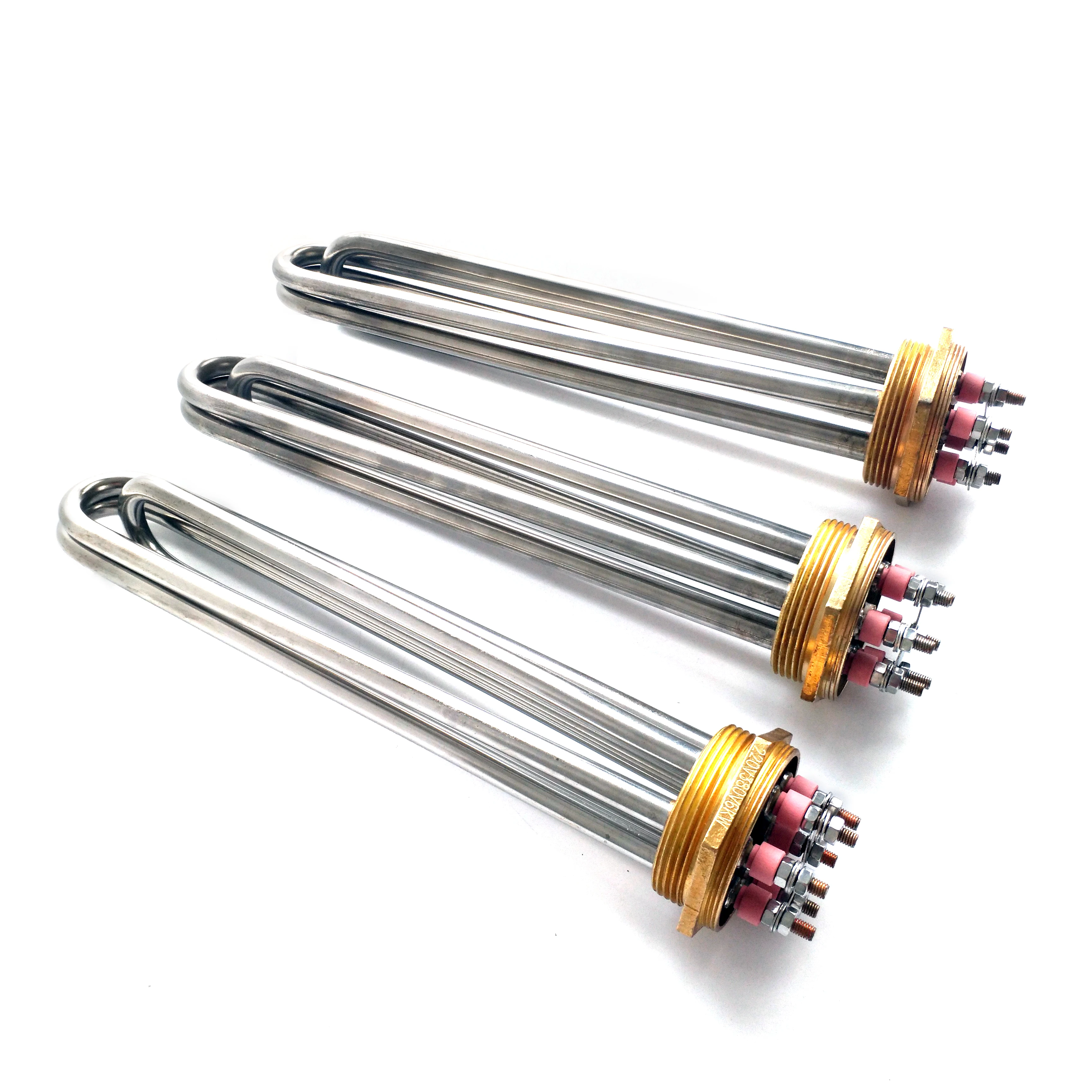

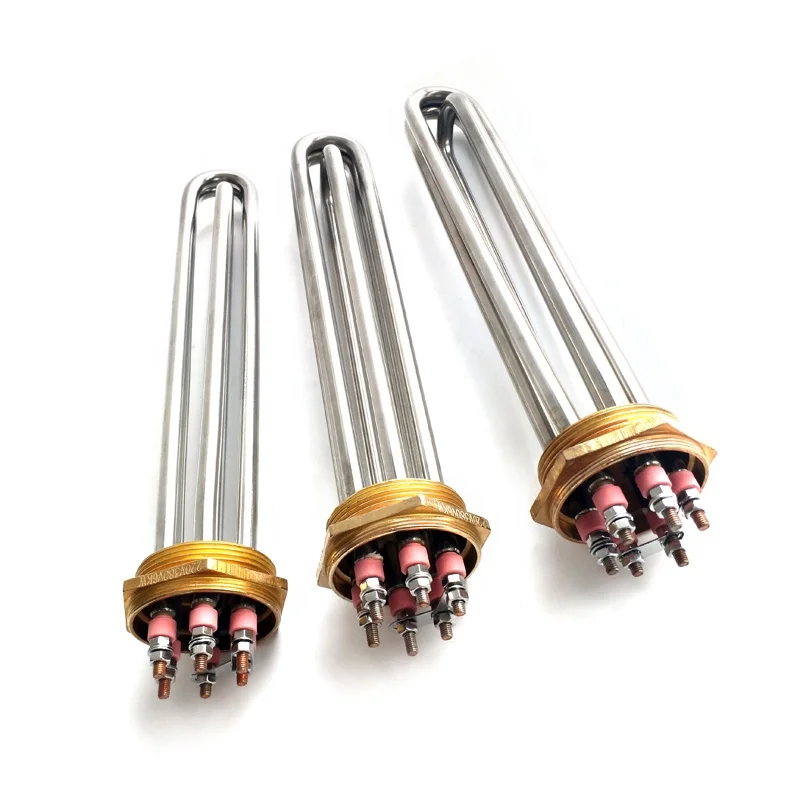

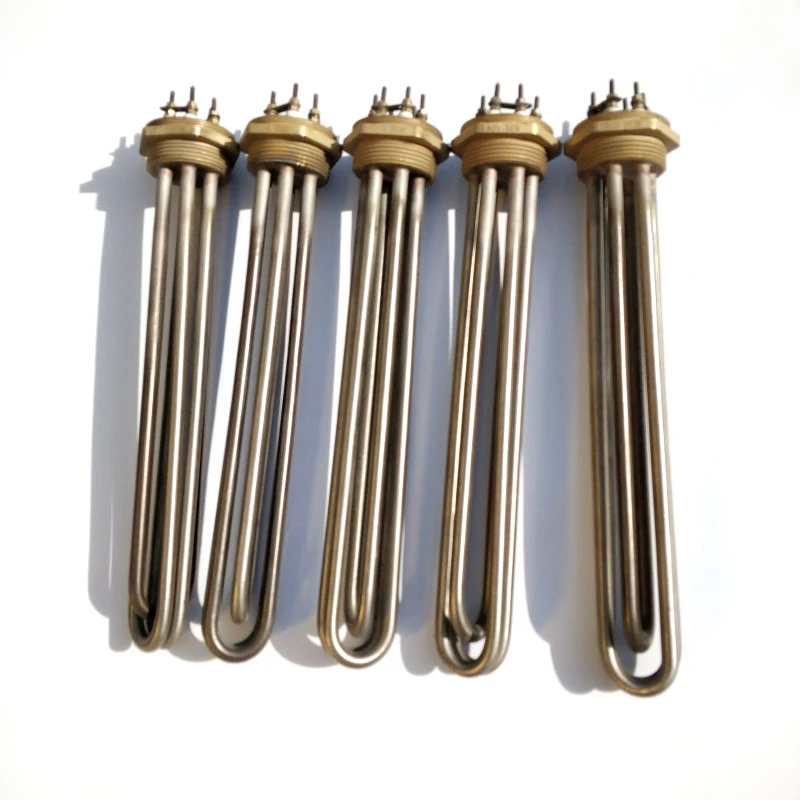

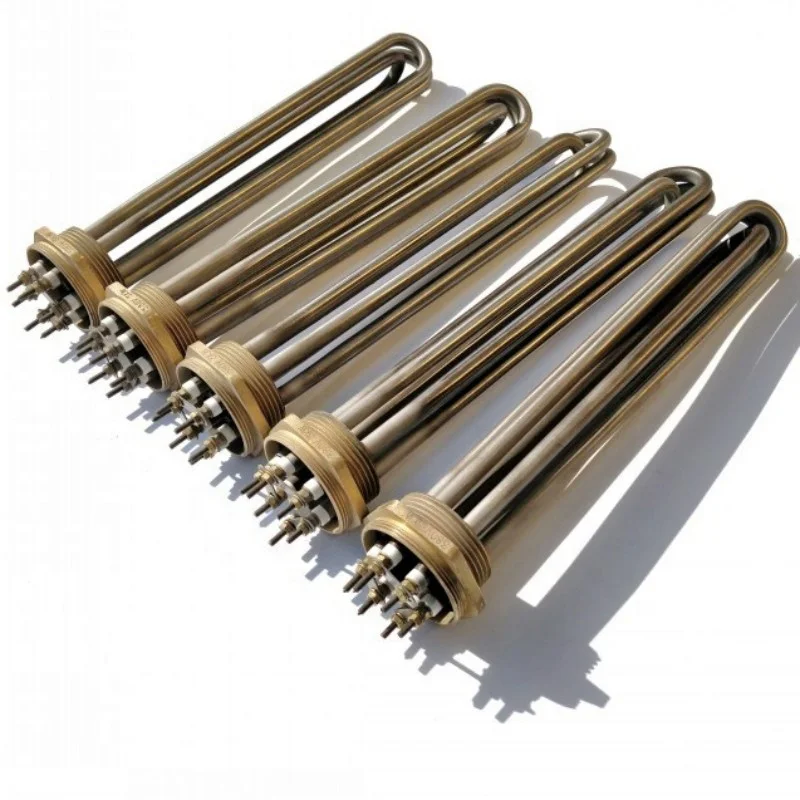

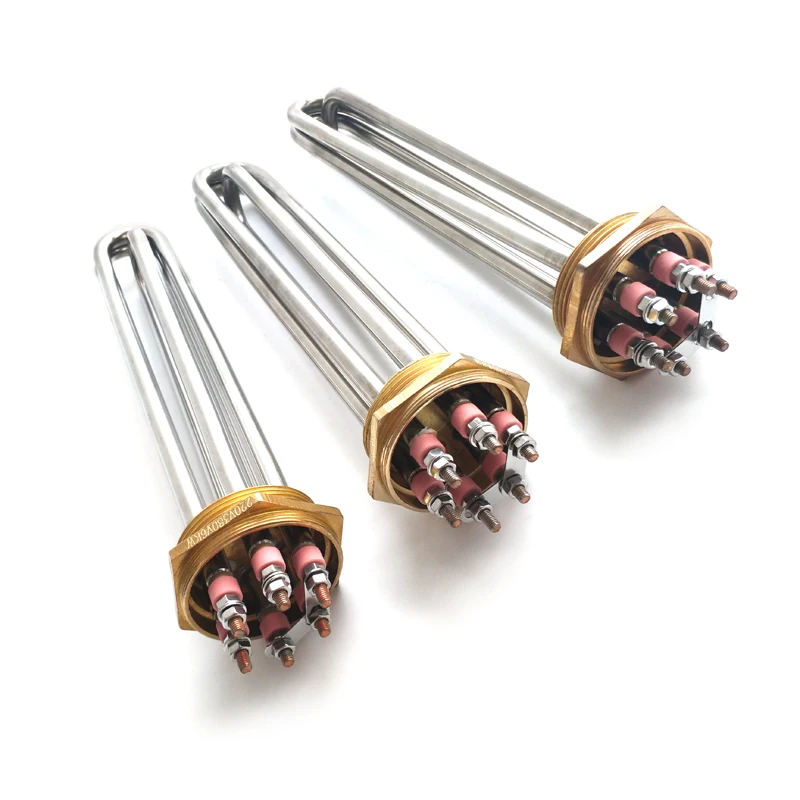

Flange Immersion Heaters

Songtai Immersion heaters are of a variety styles for multi usage. All the tube elements are made of Nichrome heating wires, sheathed by pure stainless steel or Incoloy and Insulated by 99% purity Mgo , which gurantee long life span up to 15000 hours. Also, the mounting terminals are of flexible choices - Hexagon Screws, Flat Flange(round or Square), with Anti-explosion Box, or with Thermostat or Thermocouple hose based on customer diverse applicance. Above all,

our factory has great capacity of designing and developing special immersion heaters to meet customer personalized needs. We never cease our steps in progress and growth with customers.

Immersion Heater Construction

1. Therminal Housing 4. Threaded Connectors

2. Screw Plug or Flat Flange 5. Fixation Round Flange

3. Tubular Heating Elementsm 6. Silicone Sealing Gaskets

Technical Specification
Voltage	110V AC up to 600V AC
Wattage	Customized
Immersion Length	50mm-1000mm
Sheath Material	Stainless steel 304, 316L, 310S	T2 Copper	Incoloy800, 840
Welded Elements QTY	1 to 20 units or more
Bult in Thermostat	Temperature range 30°C -110°C	Thermostate suitable fo Max 250V up to 16 amps	Special for Screw plug immersion heaters
Bult in Thermowell	Thermowell hole size and length customized
Terminal Cover Material	Stainless steel	Nylon	Plastic
Screw Thread size	G / NPT / BSPP Thread 1'' 1 1/4'' 1 1/2'' 2'' etc
Round Flange size	DN80 DN100 DN120 DN150 DN200 etc

High Standard Material

* Pure Stainless Steel 304 or higher grade Flange or Screw plug

* Pure Stainless Steel 304 connected fittings

* High-frequency insulation ceramic for fittings

* 100% Nichrome Heating Resistance Wire

* Pure Stainless Steel or Incoloy Elements Sheath

Immersion Heater Features

* Samll Volume Large Wattage

* Powerful function for all liquid heating

* Anti-explosion or Temperature controlling custom design

*Flexible Horizontal or Vertical Installation

* Durability and Resistant Building body

\t\t\t\t\t\t\t\t\tApplication \t\t\t\t\t\t\t

Application	Sheath Material
Water, Freeze protection, Hotwater storage, Boilerandwaterheaters, Coolingtowers, Solution not corrosive to copper, Food equipment	Stainless Steel304 316L or Copper
Oil, Heavy and non-circulated oils, Solution water, Corrosive solutions, Steam super heating	Stainless Steel 316L 310s or Incoloy
Light oils , In forced oil circulation loops	Stainless Steel304 316L
Light oils , In forced oil circulation loops	Stainless Steel 316L 310s or Incoloy
Process water, Soap and detergent solutions, Soluble cutting oils, Demineralized or deionized water	Stainless Steel304 316L
Fluid heat transfer media, Tar, High to low viscosity petroleum oils, Asphalt, Wax, Paraffin, Degreasing solvents, Alcohol, Molten salt, Solutions not corrosive to steel	Stainless Steel304 316L
