Индивидуальная автомобильная светодиодная цифровая Пиксельная лента 5050 RGB SMD Led
- Категория: SMD LED >>>
- Поставщик: Shenzhen,Led,Color,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.59 $* | 0.85 $* |
| Aug-15-2025 | 0.17 $* | 0.58 $* |
| Jul-15-2025 | 0.36 $* | 0.96 $* |
| Jun-15-2025 | 0.7 $* | 0.20 $* |
| May-15-2025 | 0.57 $* | 0.93 $* |
| Apr-15-2025 | 0.53 $* | 0.76 $* |
| Mar-15-2025 | 0.24 $* | 0.88 $* |
| Feb-15-2025 | 0.88 $* | 0.32 $* |
| Jan-15-2025 | 0.47 $* | 0.23 $* |
Характеристики

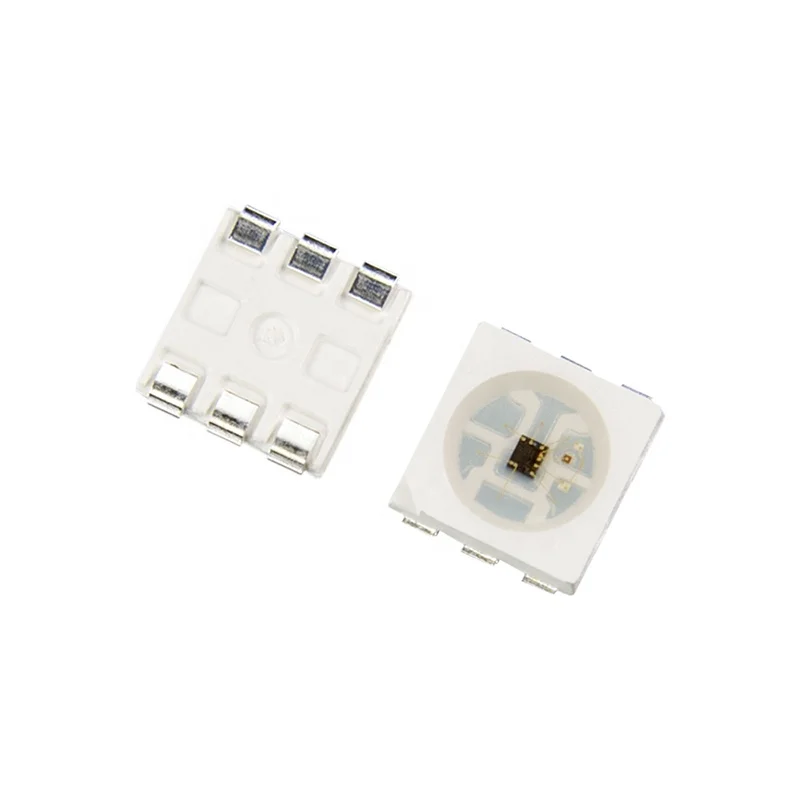

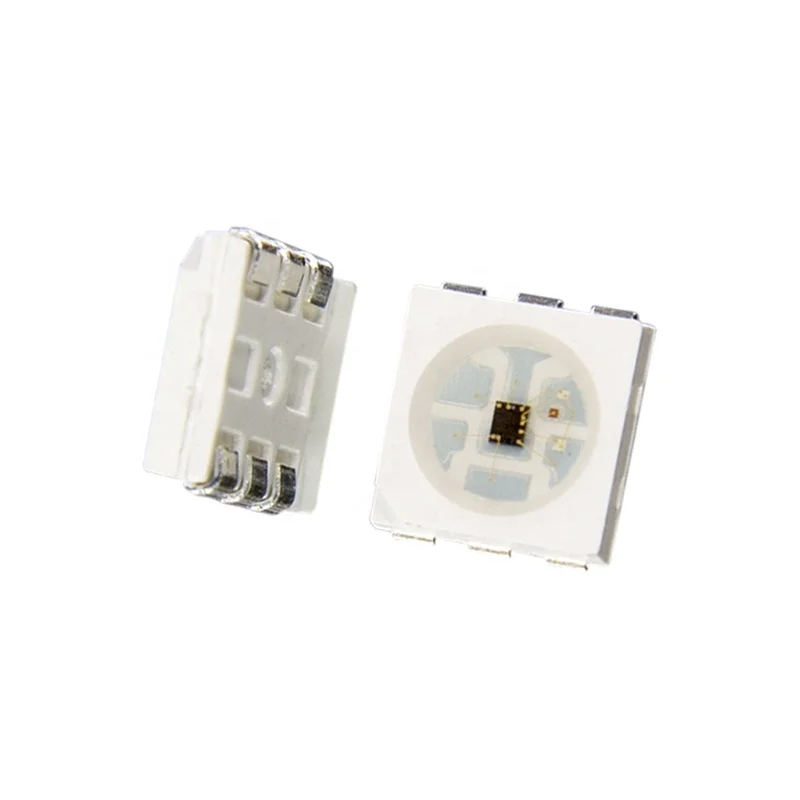

Custom smart 5050 rgb/white/warm white Car Led Digital Pixel Strip 5050 RGB SMD LED SK9822
SK9822 LED is come out , it is as same as APA102c ,have clock , and Data signal , which can be compatible with APA102C, SK9822 can use same led controller as APA102C led, and they have same frequency speed. Now we have packed smd 5050 rgb, white, warm white color and price is similar for both , then customer have more choose.
Now we have develop SK9822 RGB LED STRIP SK9822 white color led strip. About the LEDS/M , We have 30leds ,32leds,48leds,60leds, 72leds,144leds per meter, and we accept OEM ,ODM products.
Product Description
SK9822 is a new type of IC for (RGB) 3ch led chips` color dimming control,which has one double signal line-- the data cable and clock cable.After a series of improvement design,it can well compatible with other two signal IC,and share the same controller system,
More details as below:
1. Product Overview :
SK9822 is a two-wire transmission channel three (RGB) driving intelligent control circuit and the light emitting circuit in one of the LED light source control. Products containing a signal decoding module, data buffer, a built -in constant current circuit and RC oscillator; CMOS, low voltage, low power consumption; 256 level grayscale PWM adjustment and 32 brightness adjustment; use the double output, Data and synchronization of the CLK signal, connected in series each wafer output action synchronization.
2. Main Application Field:
Full color LED string light, LED full color module, LED super hard and soft lights, LED guardrail tube, LED appearance / scene lighting
LED point light, LED pixel screen, LED shaped screen, a variety of electronic products, electrical equipment etc..
3. Description:
Top SMD internal integrated high quality external control line serial cascade constant current IC; 5V application; default on electric lights;
Control circuit and the RGB chip in SMD 5050 components, to form a complete control of pixel, color mixing uniformity and consistency;
The two-wire synchronous control.
The three RGB output control, 8Bit (256) color; 5Bit (32) to adjust the brightness;
The three constant current drive, self detection function specific signal
The maximum frequency of 30MHZ serial data input
The double data transmission, built-in support uninterrupted oscillation PWM output, can maintain a static image.
sk9822 led solder pad
pin configuration of sk9822
series data structure
