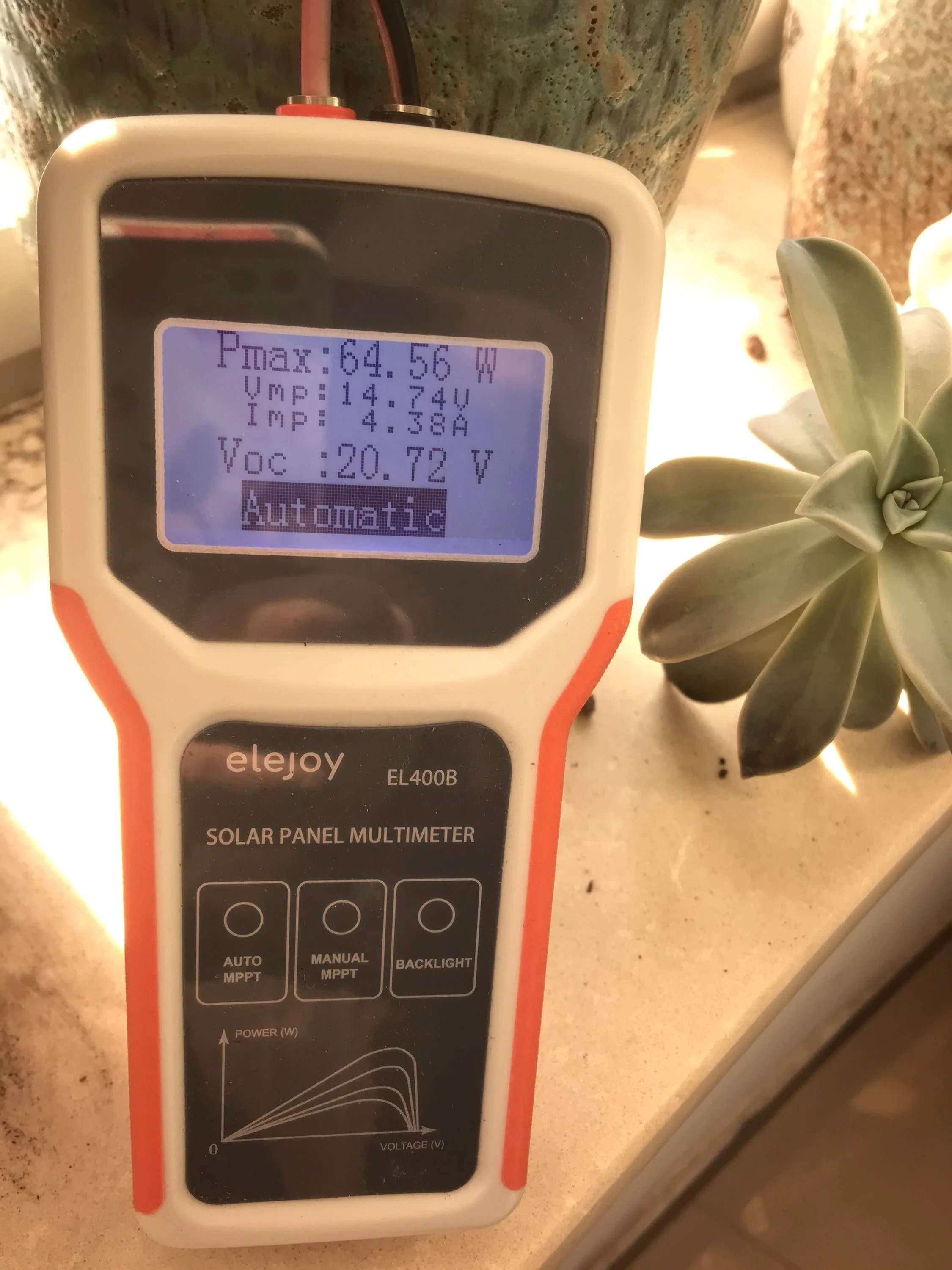

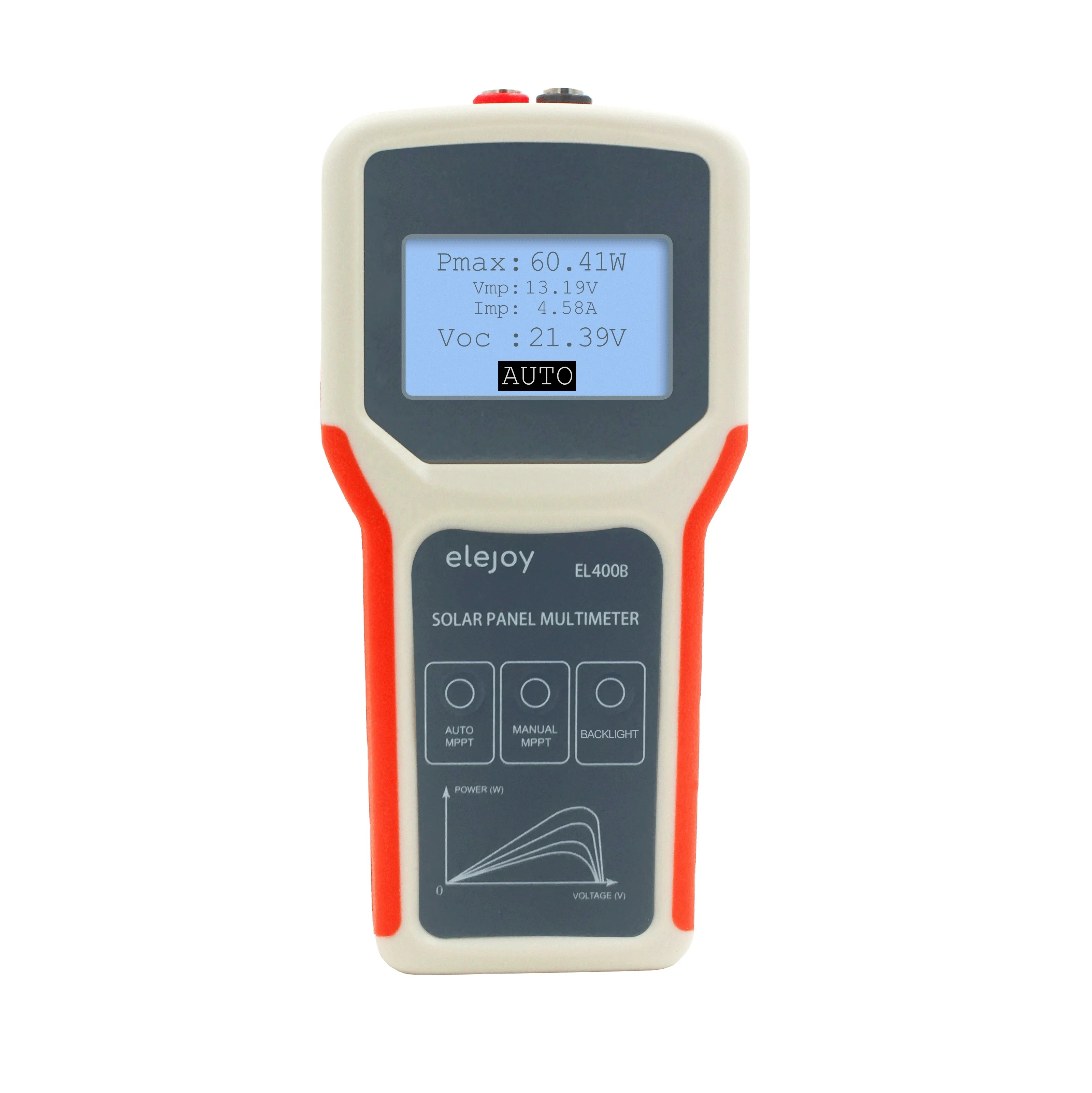

SOLAR PANEL MULTIMETER

Model: EL400B

Product function:

This solar panel multimeter can test the maximum power point and open circuit voltage of photovoltaic panel.

Notice: The multimeter is directly powered by solar panels without additional batteries.



Product feature:

1.    AUTO MPPT test

2.    Manual MPPT test

3.    Over-voltage, over-temperature, over-current protection

4.    Over rated power protection

5.    No additional power supply required



Use object:

1.    Solar panel manufacturer

2.    Solar panel distributor

3.    Solar panel user

4.    Solar panel fans

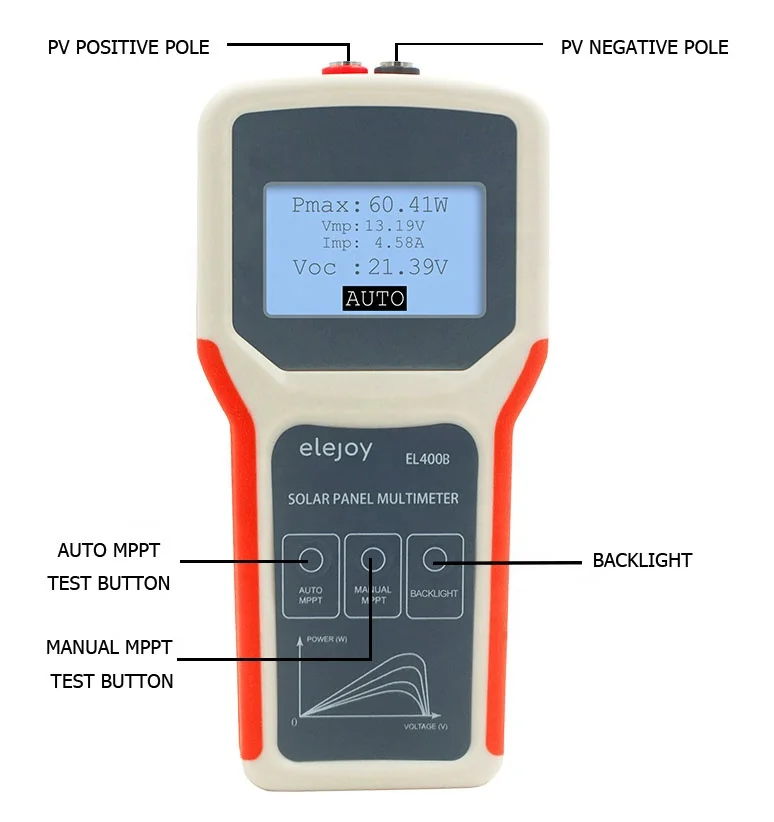

Key instructions:

AUTO MPPT DETECTION:

When pressing the AUTO test button, the instrument automatically adjusts the test interval time according to the current power value and refreshes the digital display.



For example: when the power of photovoltaic panel is 100W, refresh once every 5S; when the power is 300W, refresh once every 15s.



MANUAL MPPT DETECTION:

When pressing the manual test button, the instrument starts a scan of the maximum power point and refreshes the digital display.





Attention:

1. Please be sure to use this product within the rated voltage and current power range.

2. Please be sure to disconnect the photovoltaic board from other equipment or loads before testing.





ACCESSORIES:



Aligator clip cable:



MC4 connecting cable:







TECHNICAL DATA:

Product name	Solar panel multimeter
Model	EJ400B
Power	0.1-400W
Voltage	12-60V
Current	0-20A
Power supply mode	Solar panel power supply
Packing	EVA package
Dimensions	165×80×30 mm
Weight	436g



  TROUBLESHOOTING:

ERROR	CAUSE	EXPLANATION
No display	Reverse connection protection	Please check the input polarity
Display over power	Over rated power	Using within the rated power range of the instrument
Display over temperature	Over-temperature protection	To be used after cooling
Display over voltage	Over-voltage protection	Using within the rated voltage range of the instrument
Display over current	Over-current protection	Using within the rated current range of the instrument
