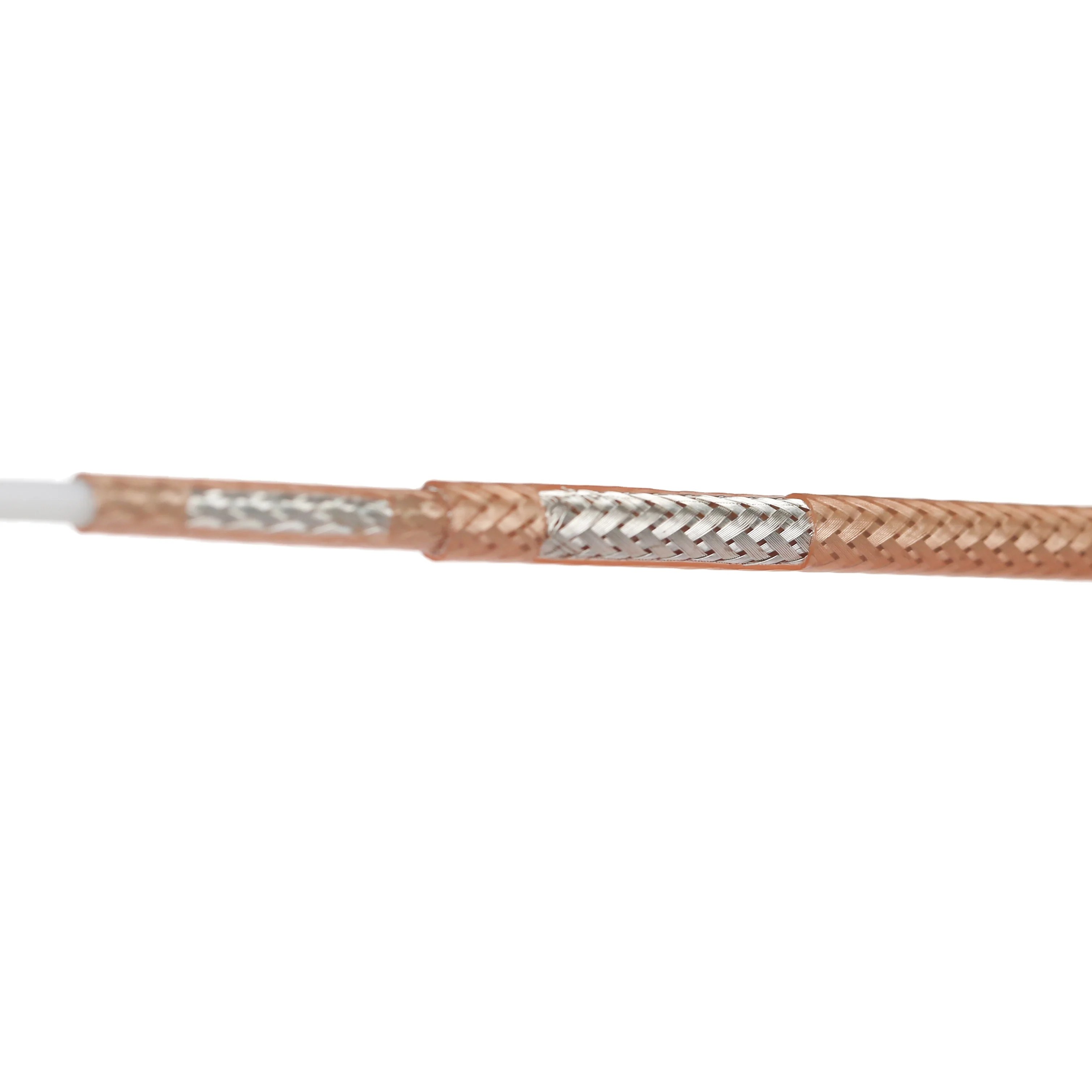

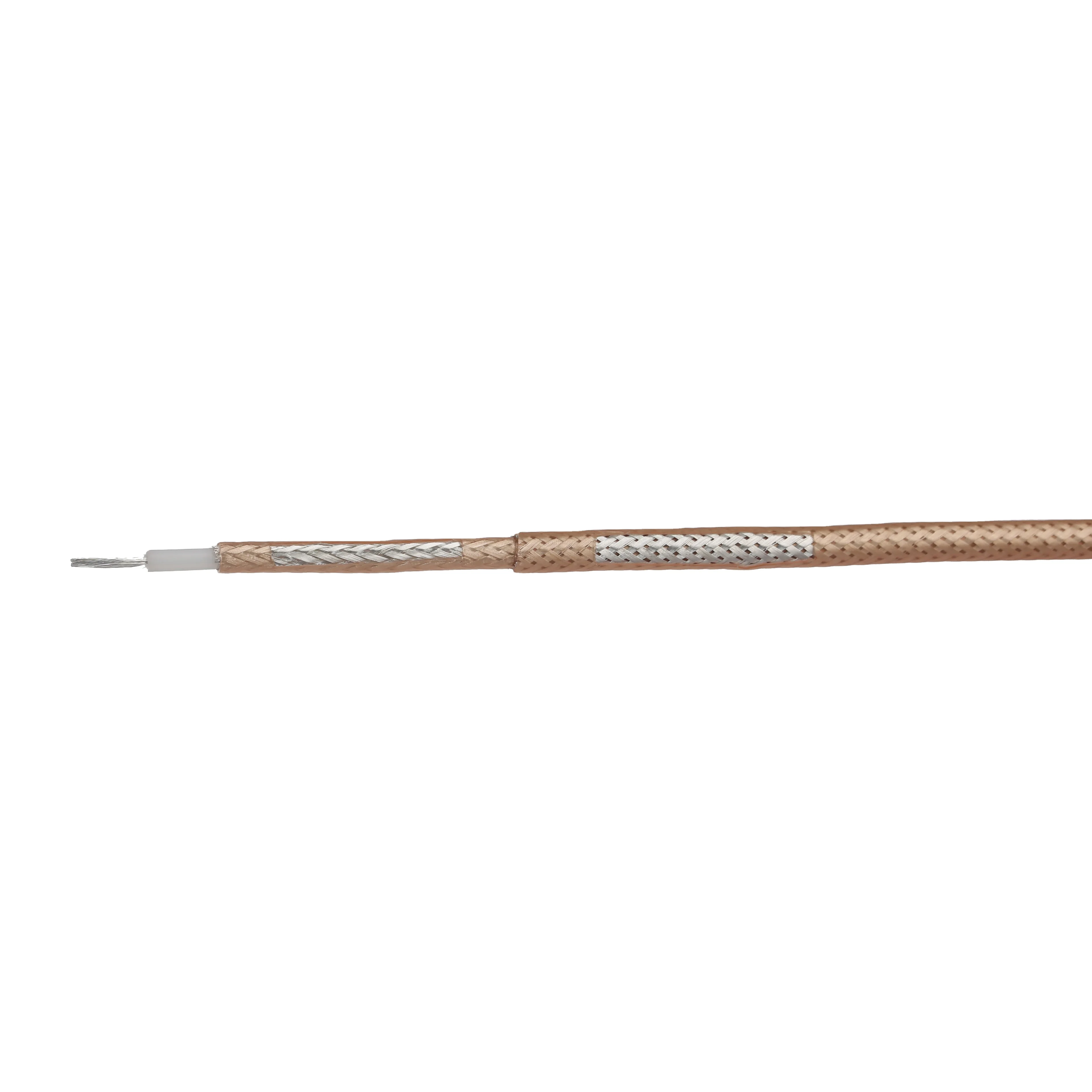

Factory high performance best price RG400 High Temperature Coaxial Cable Double Braiding Shield for communication





Description:

. Standard Mil-c-17

. Insulation Material:PTFE

. Impedance:50Ω±2

. Jacket:FEP

.Color:Light Brown



Typical Application:Transmission of data signals in applications such as antenna feed cables or Ethernet backbones where high temperature performance is needed.





Best Feature: Lower loss than smaller diameter cable such as RG174, high temperature rating of extruding FEP jacket. The RG400 loss is widely accepted at HF frequencies. Because it is constructed with a silver plated outer conductor this prevents oxidation of the conductor which decreases loss vs time.



Custom service:

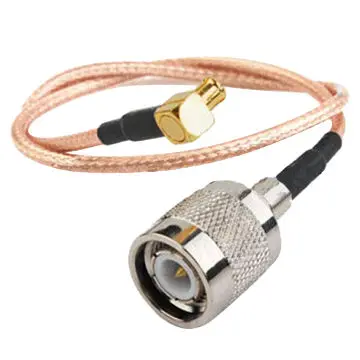

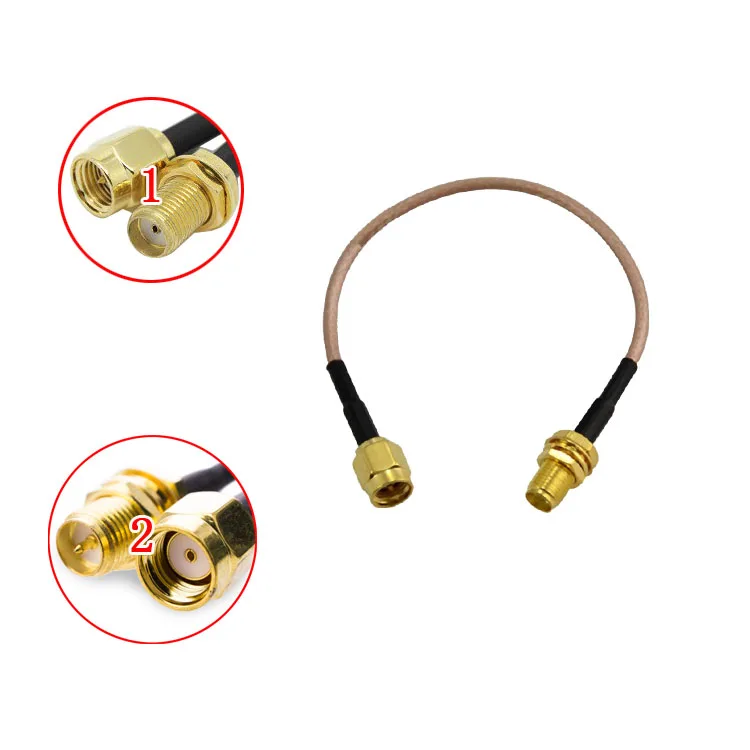

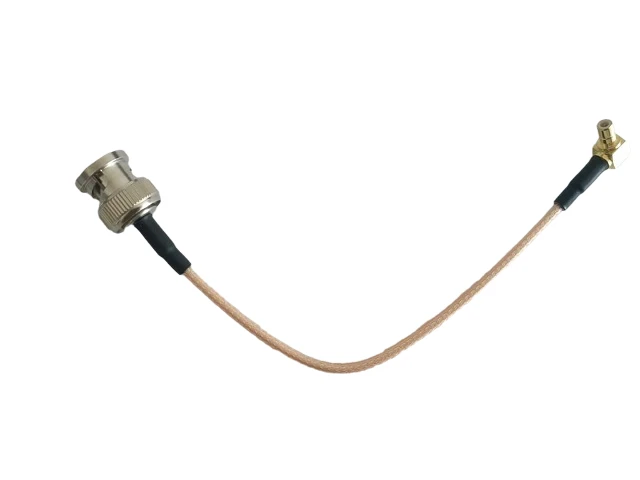

We supply RG400 cable assembly with N connector, 7/16 DIN connector, BNC connector TNC connector

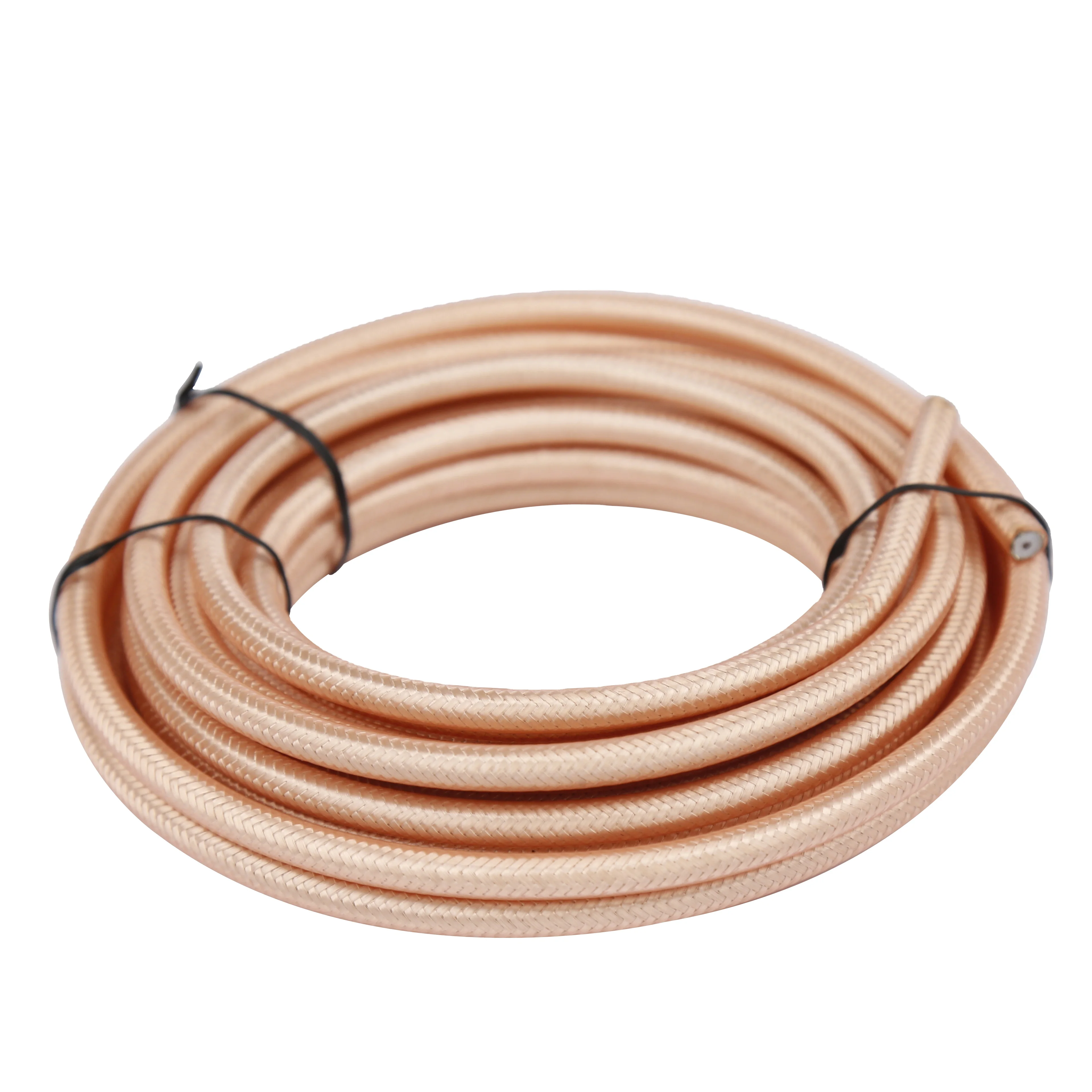

Custom packing: the length can be 100m/roll, 200m/roll, 305m/ roll, or 500m/drum,1000m/drum

Perfect Service(an excellent team serving you) 24*7 hours available.

Shipment:by sea(when the goods weighs more than 100KGS), by air (when the goods weighs less than 100KGS, or by DHL or Fedex express (when the goods weighs less than 50KGS)



RG400/U coaxial cable specifications
Material of Inner Conductor	Silver Copper
Structure of Inner Conductor	19/0.20mm
Material of Insulation	PTFE
Diameter of Insulation	3.00mm
Material of Braiding(Shielding)	Silver Copper
Structure of Braiding(Shielding)	144+168*0.15mm
Material of Jacket	FEP
Diameter of Jacket	4.95mm
Working temp	-55℃/200℃
Impedance	50Ω±2
Voltage	3000V
