Мини 3G Gps Gprs трекер для домашних животных OEM ODM устройство слежения с SD-картой RS232
- Категория: IoT Solutions & Products >>>
- Поставщик: Xuzhou,Ennfu,Scientific,Company,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 57.44 $* | 58.23 $* |
| Jul-16-2025 | 46.48 $* | 47.84 $* |
| Jun-16-2025 | 56.97 $* | 57.31 $* |
| May-16-2025 | 56.4 $* | 57.6 $* |
| Apr-16-2025 | 45.74 $* | 46.18 $* |
| Mar-16-2025 | 55.35 $* | 56.25 $* |
| Feb-16-2025 | 54.20 $* | 55.59 $* |
| Jan-16-2025 | 54.7 $* | 55.48 $* |
Характеристики
Product Description

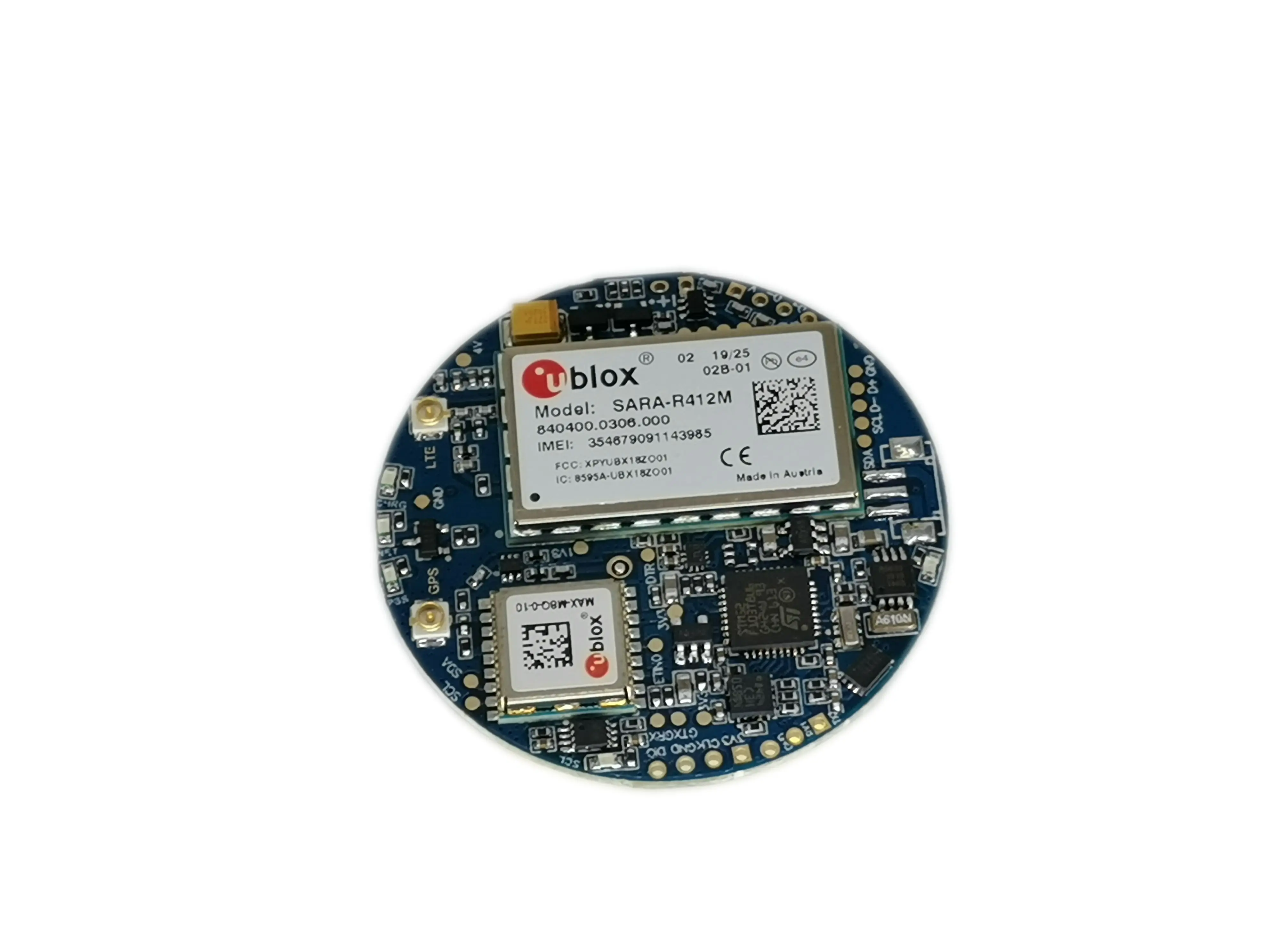

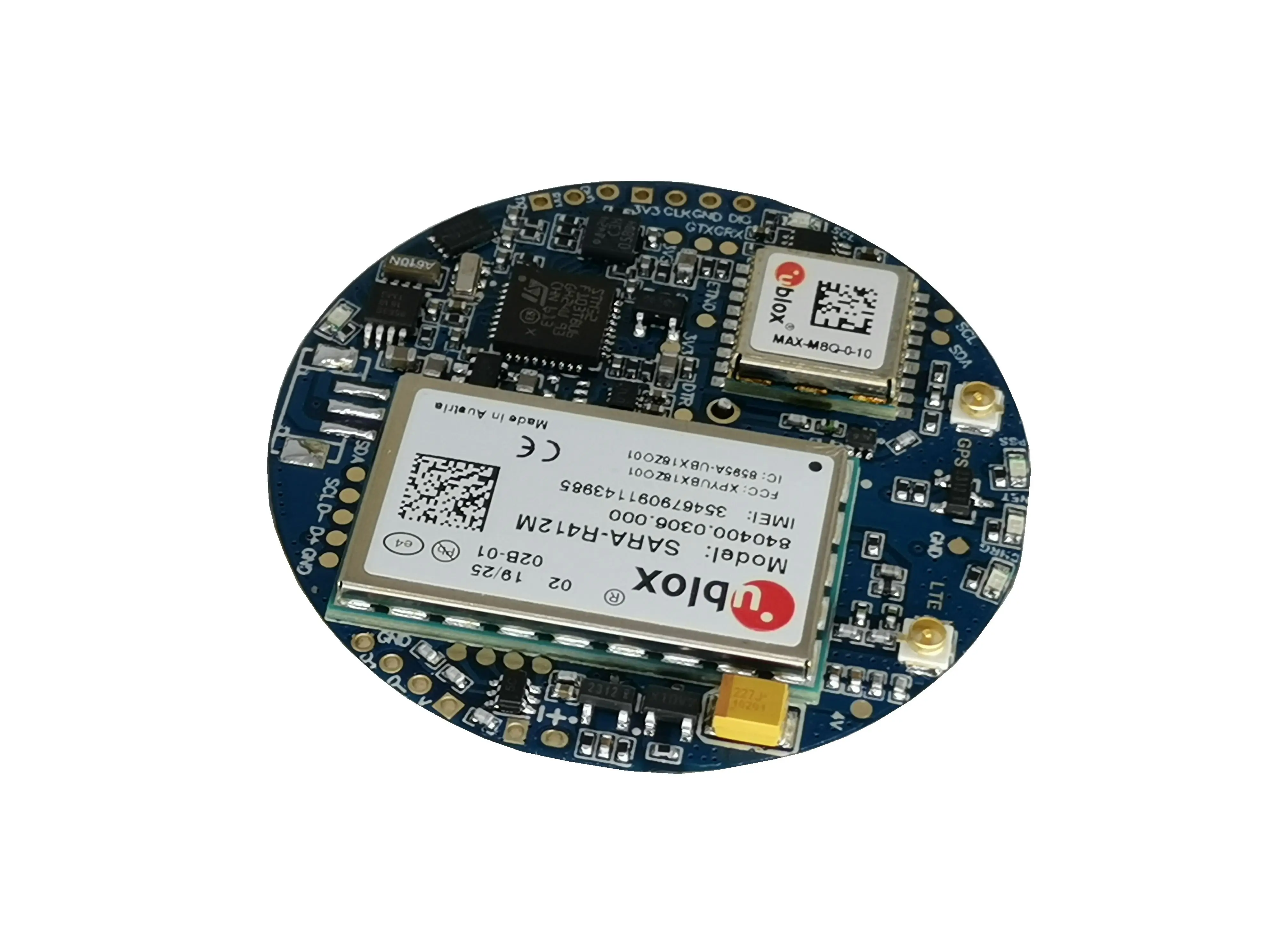

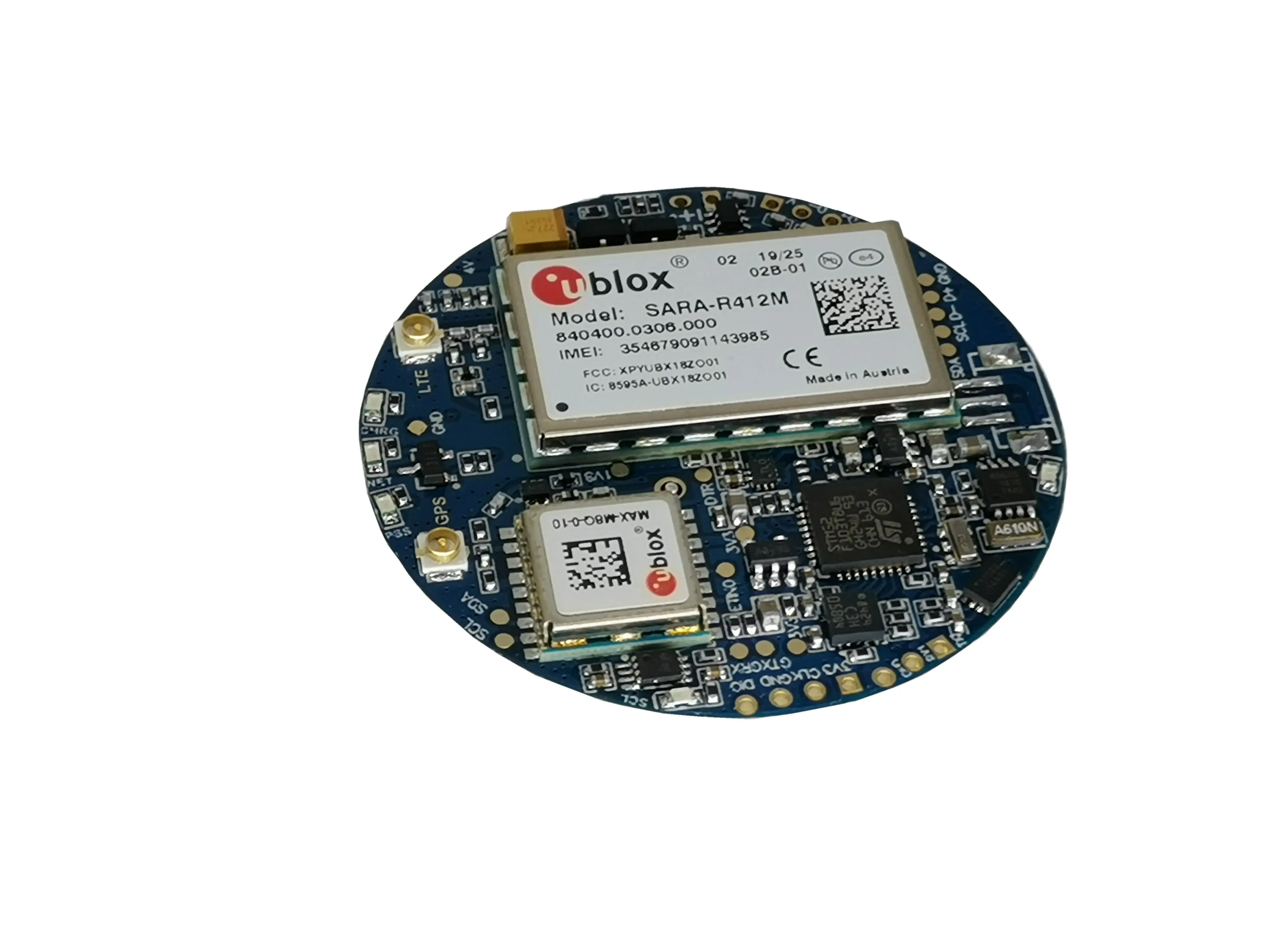

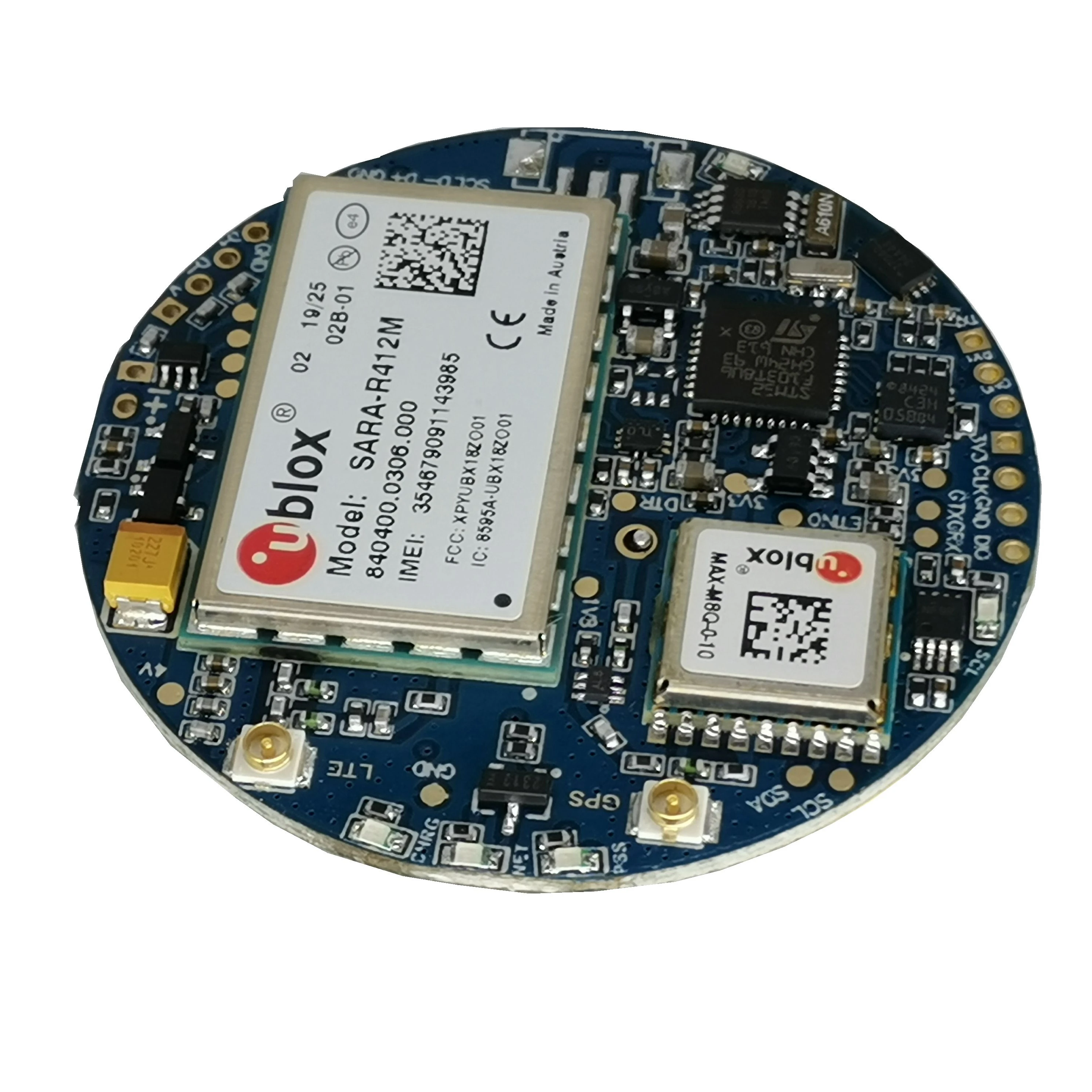

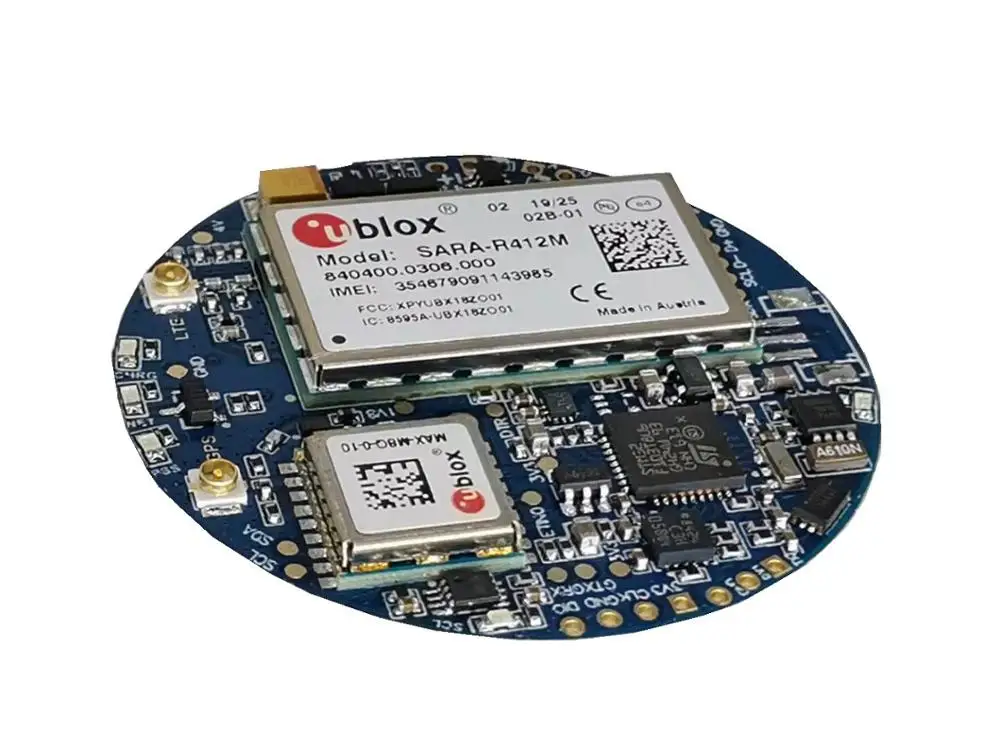

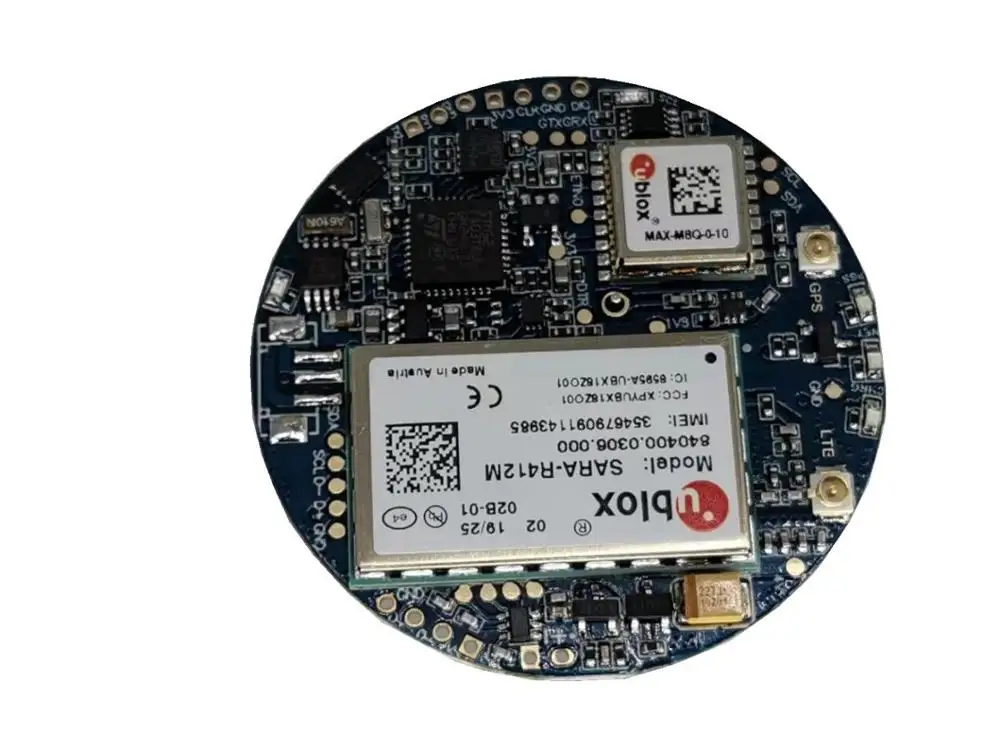

2G GSM GPRS Mini Round 42mm Size GPS TRACKER MODULE
A Brief Information
1, Highest peformance gps soultion: 2G GSM/GPRS UBX SARA- G350 cellular module+Max- M8Q 2, 2.5m poisoning accuracy.
3, 25*25mm GPS antenna on board
4, eSim on Board
5, API output to the cloud/app
*Note: Need eSim chip on board**
Don't support sim card.
B Performance and features
1） High Positioning Accuracy and Fast Positioning;
2） Auxiliary positioning function;
3) Support GPS,BDS, GLONASS and Galileo,Positioning system;
4） 2G Quad-band GSM GPRS mode
5） Vibration wake up function
6) Regular wake up
7） Low to 156uA Ultra Low Power Consumption
8） Outline size:
Small round 42mm diameter
9） Enclosures optional. Round 50mm~52mm
C Technical parameters
Exteral powered supply | DC 12~24VDC | ||||||
Battery voltage | 3.6~4.2VDC | ||||||
Standby Power Consumption | ~156uA | ||||||
Working Power | ~0.36W | ||||||
Cellular antenna gain | 3~4dB | ||||||
GPS antenna gain | 3~5dBI | ||||||
positioning Accuracy | up to 2.5meters | ||||||
Cellular Networking | 2G Quad-bands or LTE CAT M1&NB1&2G optional | ||||||
Polarization | Vertical | ||||||
D String Data Format
The string data includes:Date,Time,Zone,Coordinator, altitude, Speed,IMEI,Signal quality,backup
battery capacity,battery capacity percent, firmware version.
Eg:
SM21:13/08/2019,10:23:36.000,51.1676651,6.7501132,59,1551,0,0,0,0,0,0,0#35467909052262
7#10#4.0850#87.5#10#0000000#V0.01
“#” is Separator.
GPSData:
13/08/2019,10:23:36.000,51.1676651,6.7501132,59,1551,0,0,0,0,0,0,0
13/08/2019,10:23:36.000 --------------------- Date&Time
51.1676651,6.7501132 -------------------- Latitude&Longtitude
59 --------------------- Altitude
1551 --------------------- Uncertainty
0 --------------------- Speed
Note: The remaining data has no meaning
IMEI:
354679090522627
Connection signal quality:
10
Battery Voltage:
4.0850 -------------------- Battery Voltage
Battery Percentage:
87.5 ------------------- Battery Percentage
Battery and charge state:
01 ------------------- Battery not connection, External power supply connected
10 ------------------- Battery connection, External power supply not connected
11 ------------------- Battery connection, External power supply connected
Note: 0 show not connection 1 show connection
battery capacity,battery capacity percent, firmware version.
Eg:
SM21:13/08/2019,10:23:36.000,51.1676651,6.7501132,59,1551,0,0,0,0,0,0,0#35467909052262
7#10#4.0850#87.5#10#0000000#V0.01
“#” is Separator.
GPSData:
13/08/2019,10:23:36.000,51.1676651,6.7501132,59,1551,0,0,0,0,0,0,0
13/08/2019,10:23:36.000 --------------------- Date&Time
51.1676651,6.7501132 -------------------- Latitude&Longtitude
59 --------------------- Altitude
1551 --------------------- Uncertainty
0 --------------------- Speed
Note: The remaining data has no meaning
IMEI:
354679090522627
Connection signal quality:
10
Battery Voltage:
4.0850 -------------------- Battery Voltage
Battery Percentage:
87.5 ------------------- Battery Percentage
Battery and charge state:
01 ------------------- Battery not connection, External power supply connected
10 ------------------- Battery connection, External power supply not connected
11 ------------------- Battery connection, External power supply connected
Note: 0 show not connection 1 show connection
