Фрезерный станок с ЧПУ для изготовления металлических форм AK6090C ATC

Фрезерный станок с ЧПУ для изготовления металлических форм AK6090C ATC

Категория: Оборудование для гравировки по металлу >>>
Поставщик: Jinan,AccTek,Machinery,Co.,Ltd.

Цена:12 600,00 $ - 13 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	14994.43 $*	15744.77 $*
Aug-16-2025	14868.99 $*	15611.59 $*
Jul-16-2025	12474.60 $*	13098.83 $*
Jun-16-2025	14616.93 $*	15347.42 $*
May-16-2025	12726.9 $*	13362.41 $*
Apr-16-2025	14364.90 $*	15082.44 $*
Mar-16-2025	14238.87 $*	14950.65 $*
Feb-16-2025	14112.76 $*	14818.20 $*
Jan-16-2025	13986.22 $*	14685.66 $*

Характеристики

cnc router for metal mould making AK6090C ATC CNC ROUTER

400*400mm, 600*600mm working area is optional

Advantages

1. It is suitable for engraving, milling and drilling compactly all sorts of materials such as steel, copper, aluminum and plastics.

2. It is widely used on automotive, injection mould, ironware mould and engrave mould industries.

3. Especially designed for engraving and milling molds, eyeglasses, watch, panel, badge, brand, graphics and words of three-dimensional and outside surface's sleeking of large size molds.

4.ATC spindle with 4 pieces bits, smart and automatic,

5.full cover design for operater safety.

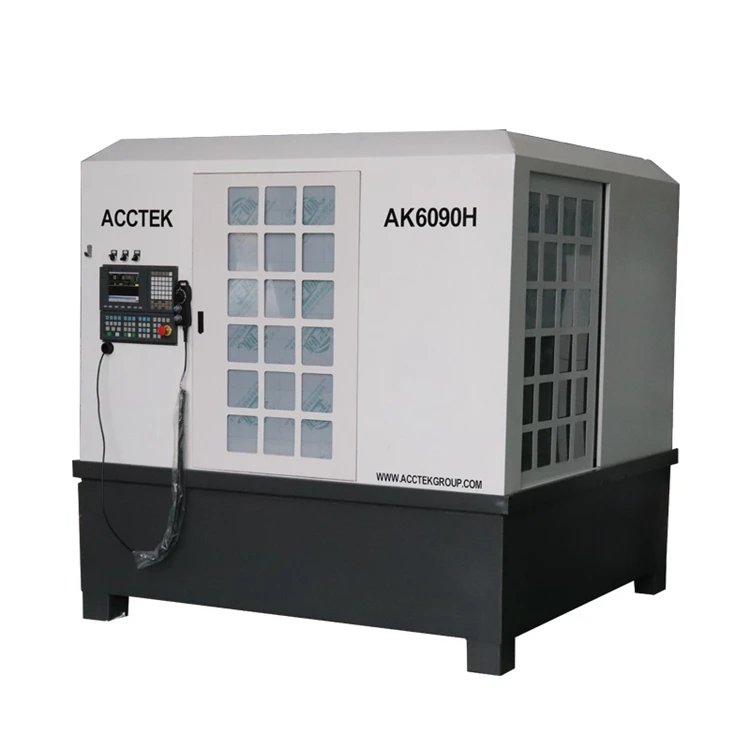

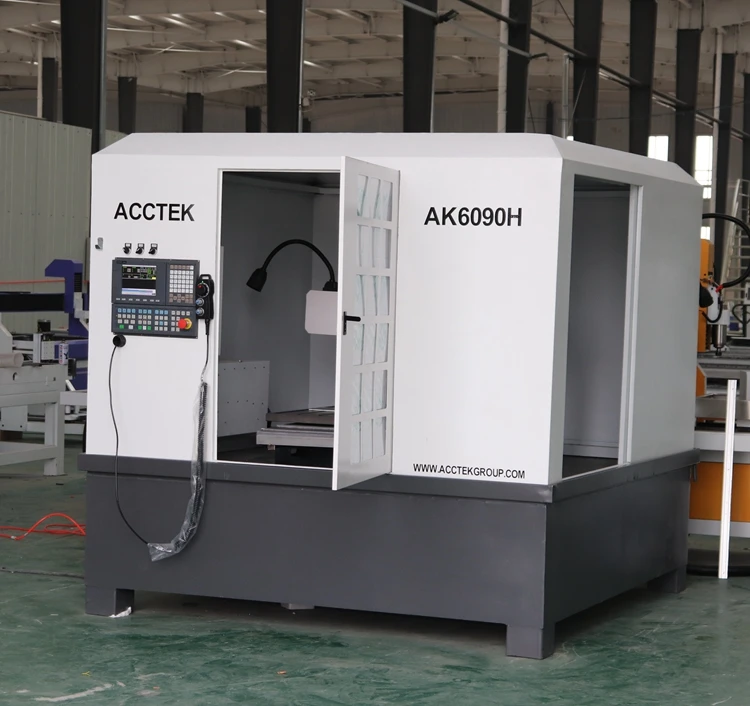

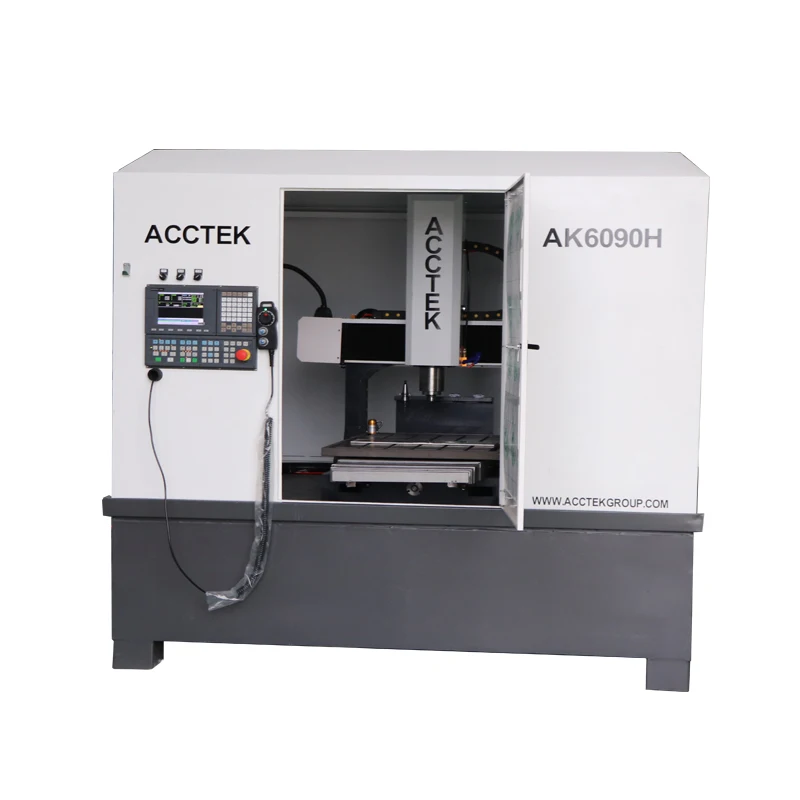

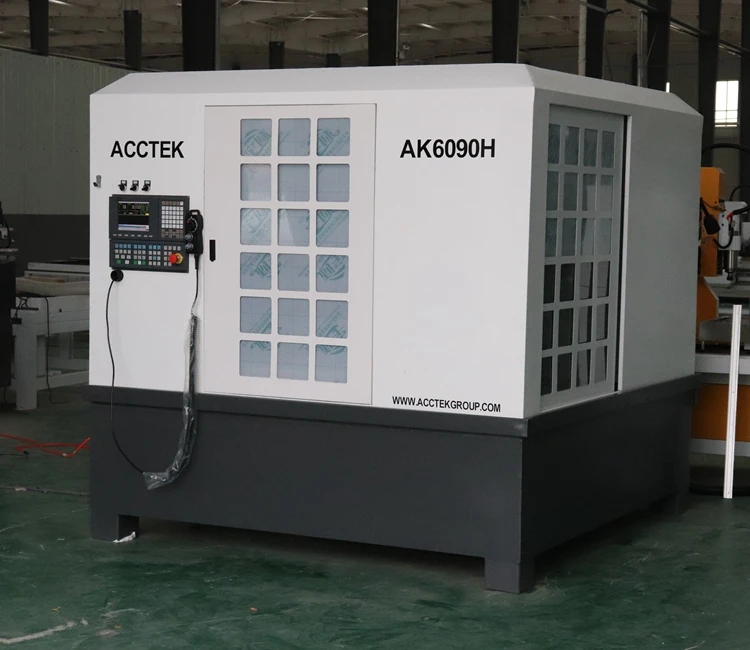

AK6090C METAL CNC.jpg

metal mould cnc router.jpg

ATC CNC METAL MACHINE.jpg

Product Description

Mainly configuration:

#Working area: 600*900*200mm
#Spindle:ATC 3.2 kw water cooling spindle with 4 pieces bits
#Control system:Taiwan Syntec Controller

#Drive system: Leadshine easy servo Driver and motor

#Transmission:Table moved
#Rail guide: Taiwan 20mm Hiwin linear square rail guide

#X,Y 20mm ball screw. Z 16mm
#Table: Cast iron T-slot table with water tank
#Inverter: Taiwan Delta inverter

#Cost iron body &welding frame
#Tool sensor
#water pump. software,Artcam
#Tool box

#Extra box tools

#Stainless steel Sliding cover for table

#Automatic oiling system

#Full cover

Technical parameters

Model	AK6090C
Effective working area	600900mm/600600mm
Machine materials	cast iron machine bed , cast aluminum gantry
Working table	Cast iron T slot table
Moving type	Table moving
Guide rail	Taiwan Hiwin linear square guide rail
Transmission	ball screw for XYZ axis
Driving mode	Leadhinese Hybrid servo motor
spindle power	3.2kw
Collet type	ER25
Tools diameter	1-17mm
Spindle speed	24000rpm
Empty traveling speed	0-8000mm/min
Engraving speed	0-6000mm/min
Control system	Taiwan Syntec 6MB
Machine voltage	AC220V /AC380V 3phase

Applicable Industry

CNC metal mould router with 4 pieces atc bits for small and medium vehicle parts,Pressing mould,High-frequency mould ,Carbon steel, stainless steel, Red copper electrode, aluminum and other metal materials; Woodiness material, aluminum model board, plastic board, PVC, acrylic, double color boards, density board, crystal and etc..

Packaging & Shipping

About the delivery.

Its need about 15-20 working days to produce the machine after get your deposit.

all thing is tested well,then we arrange the delivery.

About payment:

We accept T/T , you can pay 30% in advance, 70% before delivery.

The machine will be produced after received your deposit.after the machine is ready, we will show you the machine photos and the testing video.

After you agree, please finish the balance.Finally.we arrange the delivery.

Company Information

Jinan AccTek Machinery Co.,Ltd specializes in manufacturing CNC Router and Laser machines. Our main products are AccTek CNC Routers and Laser engraving and cutting machines. Stock or custom configurations are our specialty. Components for our machines are sourced from world class suppliers and innovators in machine control.

Our dedicated and highly skilled after sales service department, sales team, and thorough quality assurance procedures mean that you can buy with confidence.

Now we own two workshops,one for cnc router and another for laser machines. Which covers 3000,00 square meters. There are 40 members in manufacturing and 21 members for marketing and service.
