Портативный гидравлический обжимной инструмент для
- Категория: Другие гидравлические инструменты >>>
- Поставщик: Taizhou,Junjie,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 607.27 $* | 637.4 $* |
| Aug-15-2025 | 602.69 $* | 632.35 $* |
| Jul-15-2025 | 505.31 $* | 530.73 $* |
| Jun-15-2025 | 592.79 $* | 622.3 $* |
| May-15-2025 | 515.41 $* | 541.42 $* |
| Apr-15-2025 | 581.53 $* | 610.87 $* |
| Mar-15-2025 | 576.18 $* | 605.96 $* |
| Feb-15-2025 | 571.14 $* | 600.96 $* |
| Jan-15-2025 | 566.2 $* | 594.49 $* |
Характеристики
Product Description
EC-400 is a tool for crimping Cu/Al lugs with cables from 16-400 mm2. It is powered by Li-ion, actuated by motor and controlled by MCU. With a high pressure hydraulic system, it is a perfect tool to be used in electrical construction site.
crimping force | 12T |
crimping force | 16-400sqmm |
stroke | 38mm |
crimp /charge | 320times(CU150sqmm) |
voltage | 18V |
capacity | 5.0Ah |
charging time | 90mins |

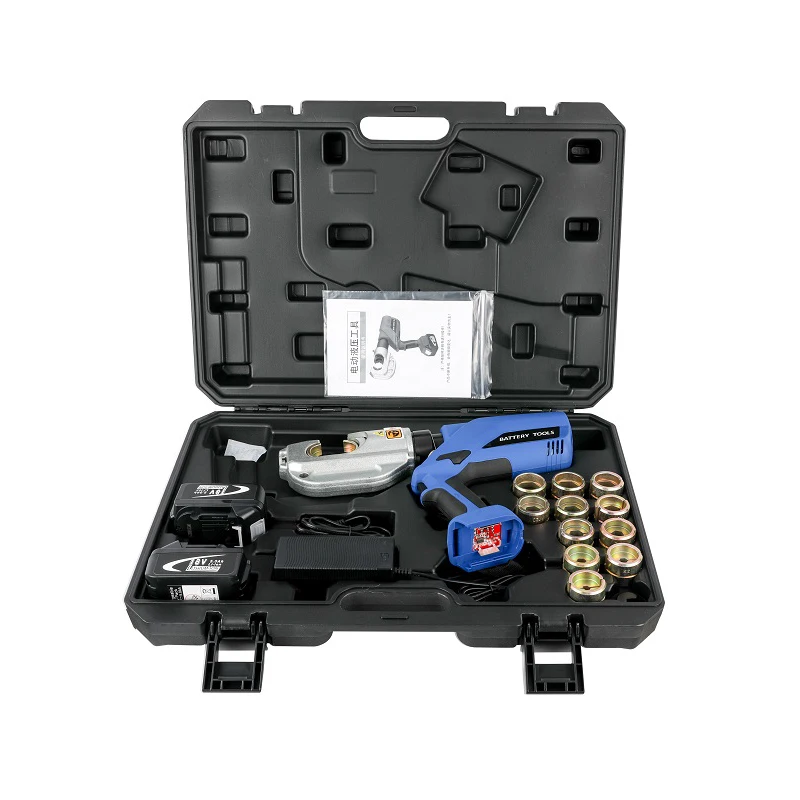

pakage | plastic case |

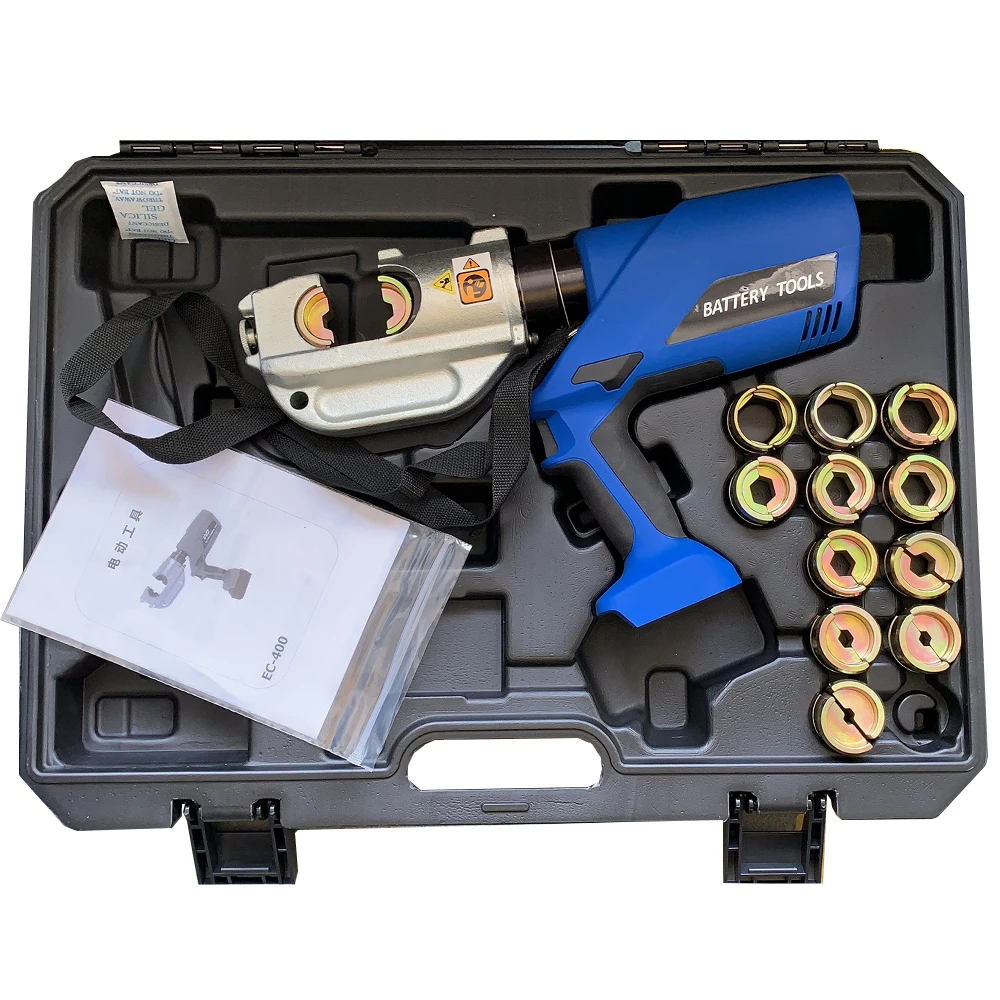

accessories | 2pcs batteries/1pc charger/1set sealing ring/12pcs dies |

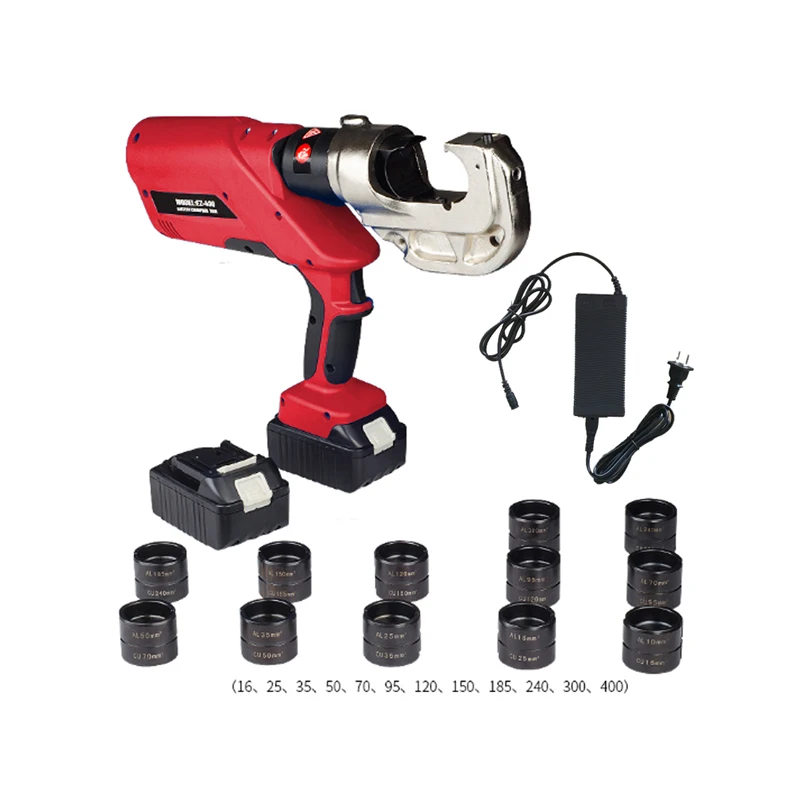

crimping dies | 16.25.35.50.70.95.120.150.185.240.300.400sqmm |
- Function description
1.automatically detect the pressure during operation and provide security protect, shut off the motor and reset automatically after operation.
2.Auto reset- Release the pressure automatically, retract the piston to the starting position when reached the max output. 3.Manual reset —Can retract the piston to the starting positioning in case of an incorrect operation.
4.The unit is equipped with a double piston pump which is characterized by a rapid approach of the die towards the connector and a slow crimping motion.
Usage of the tool
1） First you have to check the LED indicator is light or not. If the indicator is light off for more than 5 seconds, it means no power of the battery and should change the full powered battery to settle on the tool. 2） Select the right dies for the intended application
Don’t operate the tool without dies.

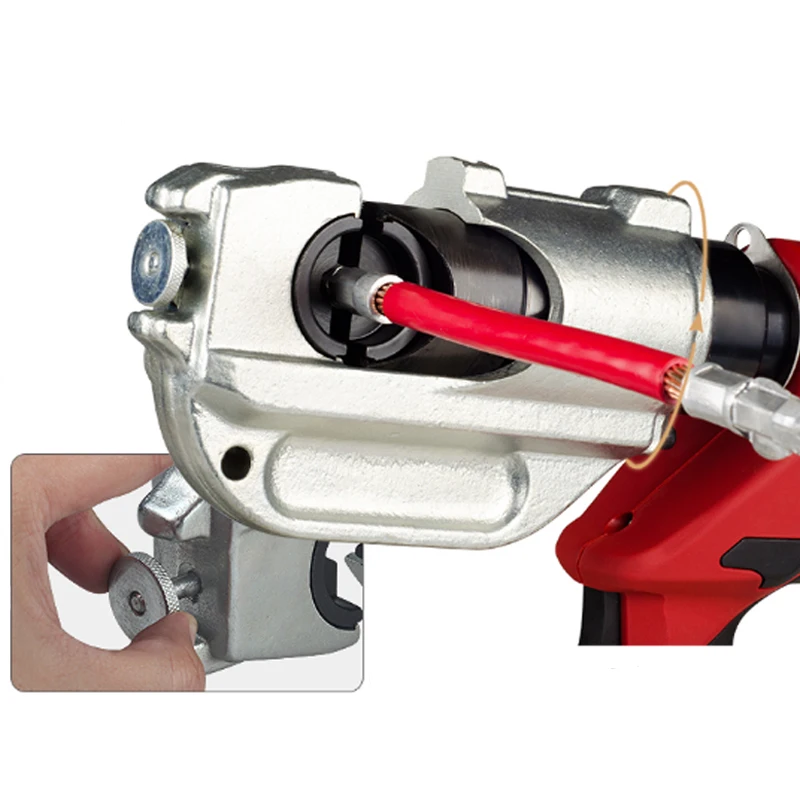

3） Place two dies up and down after activating the retaining clips. Then the connecting material shall be positioned in the crimping head correctly, in order to start the crimping procedure,
4） A crimping process is initiated by switching the trigger. It is defined by the closing motion of the dies. The connection material is positioned in the stationary half of the crimping dies and the moving part is approaching the compression point.
5） A crimping cycle is terminated when the dies contacted each other and when the maximum crimping force is reached. After the crimping cycle is completed the piston retracts automatically. During the crimping process can be terminated by the Retract button. Afterwards a new crimping cycle please remove the connecting material out of the head.
Detailed Images
Due to continuing improvements, actual product may differ slightly from the product described herein
Related Products
Packing&Shipping
Due to continuing improvements, actual product may differ slightly from the product described herein
After Sales Service
After sales service
One year warranty, lifetime maintenance for all hydraulic tools.
Within seven days after the product is sold, the product has non-human factors quality problems, you can contact customer service to exchange goods.
If human factors are damaged during the warranty period, they can be returned to the factory for repair and collect the cost of spare parts.Repair costs will be incurred after the warranty time
