Индуктивный детектор катушки дорожного сигнала Tenet 24 В постоянного
- Категория: Other Access Control Products >>>
- Поставщик: Shenzhen,Tenet,loT,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 36.73 $* | 38.94 $* |
| Aug-18-2025 | 35.70 $* | 37.77 $* |
| Jul-18-2025 | 30.43 $* | 32.27 $* |
| Jun-18-2025 | 35.66 $* | 37.47 $* |
| May-18-2025 | 30.80 $* | 32.73 $* |
| Apr-18-2025 | 34.37 $* | 36.79 $* |
| Mar-18-2025 | 34.74 $* | 36.93 $* |
| Feb-18-2025 | 34.99 $* | 36.2 $* |
| Jan-18-2025 | 33.15 $* | 35.62 $* |
Характеристики
Related Products
Product Description
Tenet inductive dc24v traffic signal vehicle loop coil detector
Introduction

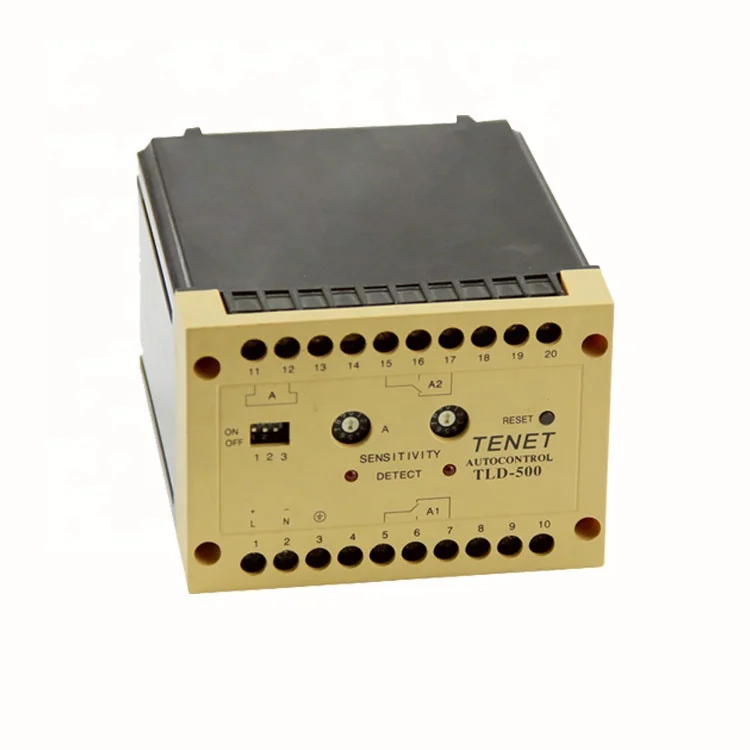

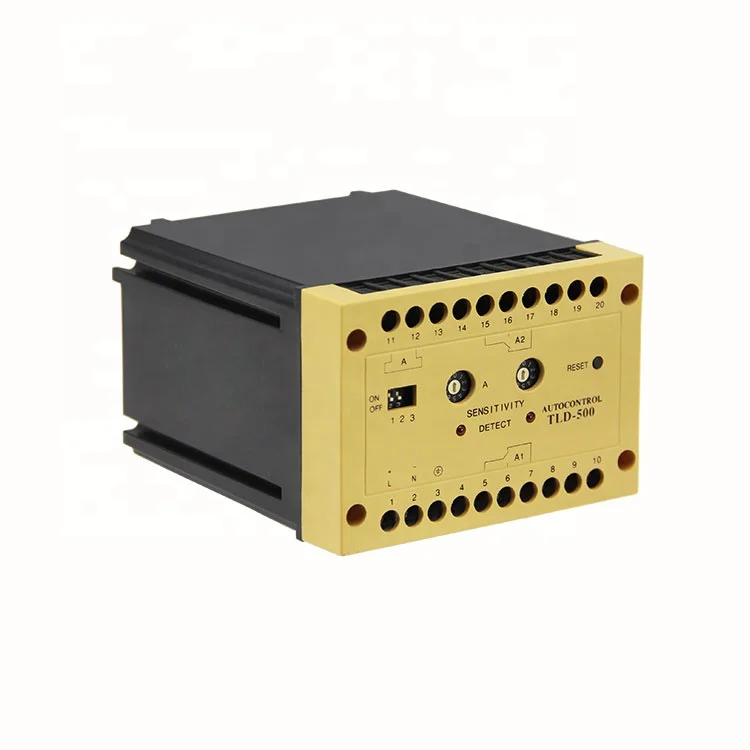

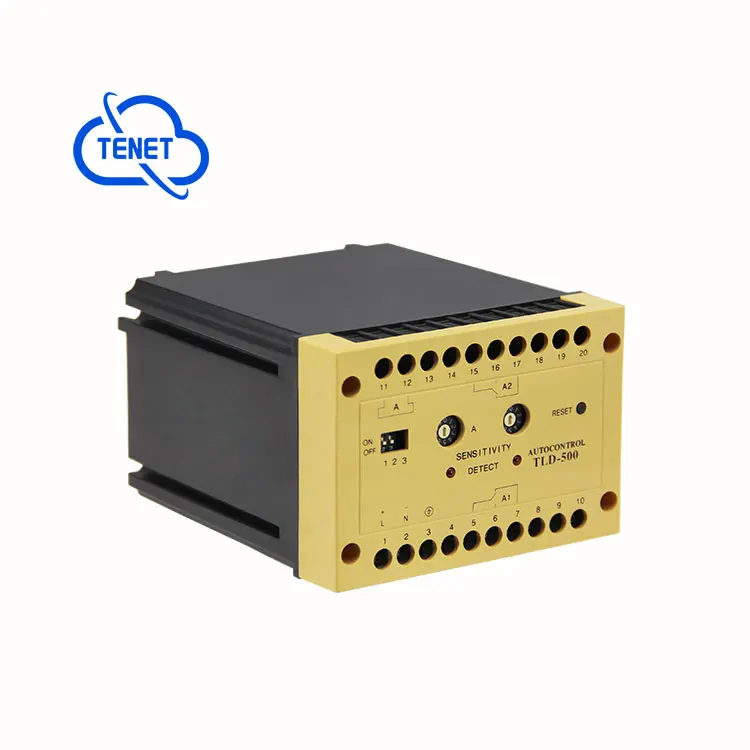

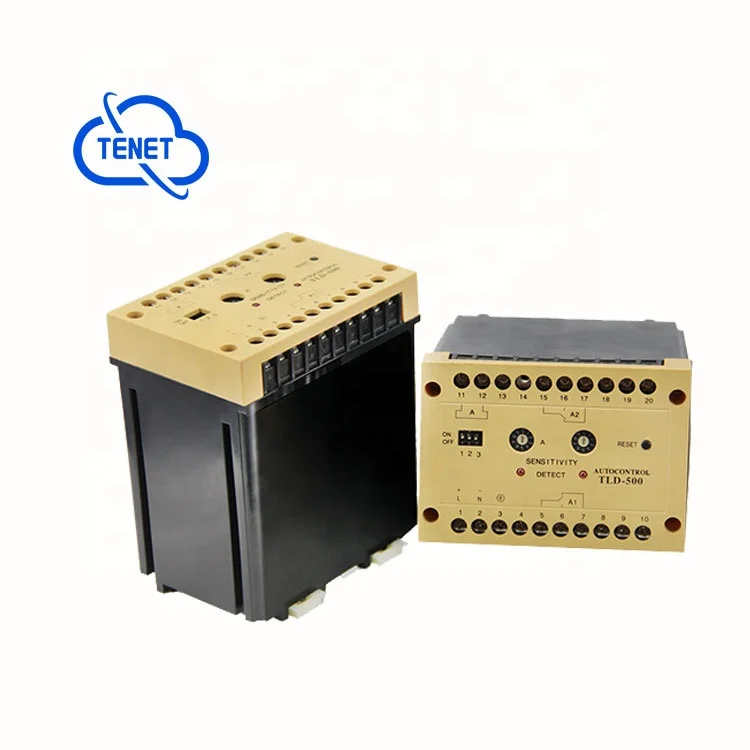

TLD-500 is used for wherever vehicles have to be detected, for example for monitoring and safe-guarding access ways or for counting vehicles. The output signal can be used for controlling door drive mechanisms, operating barriers, activating card dispensers etc.
Operating voltages | AC220V±10% | ||||||
Power consumption | ＜5W | ||||||
Relay output | DC24V /3A | ||||||
Frequency range | 20kHz ～ 170kHz | ||||||
Reaction time | 20 ms | ||||||
Sensitivity | 10 grades adjustable | ||||||
Loop inductance | Ideal 100µH～300µH Max 50µH～1000µH | ||||||
Loop conn. Wiring | Max 100m, twisted at least 20 times | ||||||
Automatic calibration time | 2s～5s | ||||||
Main Features
1. The accuracy of speed measurement and traffic volume is high.
2. The work stability is good.
3. It is not affected by changes in meteorological and traffic environment. Industrial grade design
4 sensitivity levels adjustable.
5.Supports multi output ports
6.Fault self detected function
7.Realized barrier close automatically after car pass
8.Supports OEM and ODM
Why Choose Us

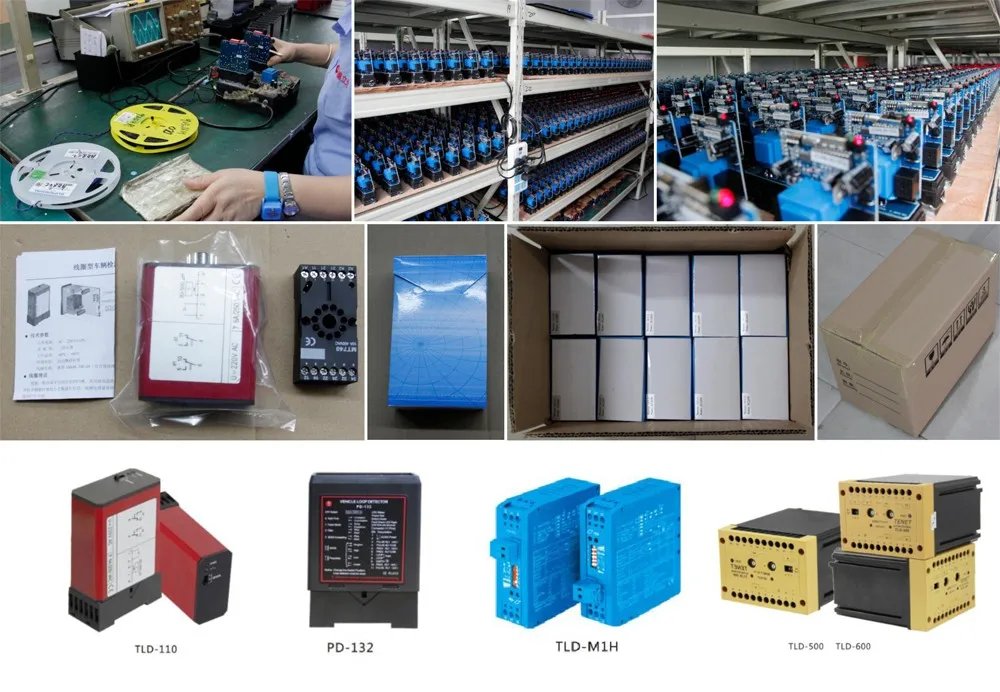

Factory.
All staffs are trained well
Company
Action by moral,succeed from honesty !
Warehouse.
More than 4500 square meter .
Team
Innovation---Not only technology!
Certifications
Exhibition
Customer Photos
